The upcut spiral bit provides superior results and excellently removes the cut material. The lower round blade is intended for making slots, decorative cutouts, cutting three-dimensional shapes and similar.
The CMT double-faced cutter spiral HWM router bit is excellent for use on hand-held router machines and CNC machines for making grooves with different diameters in various types of materials, such as soft or hard solid wood, wood composites, laminates and plastics.
The router bit has right-hand rotation.

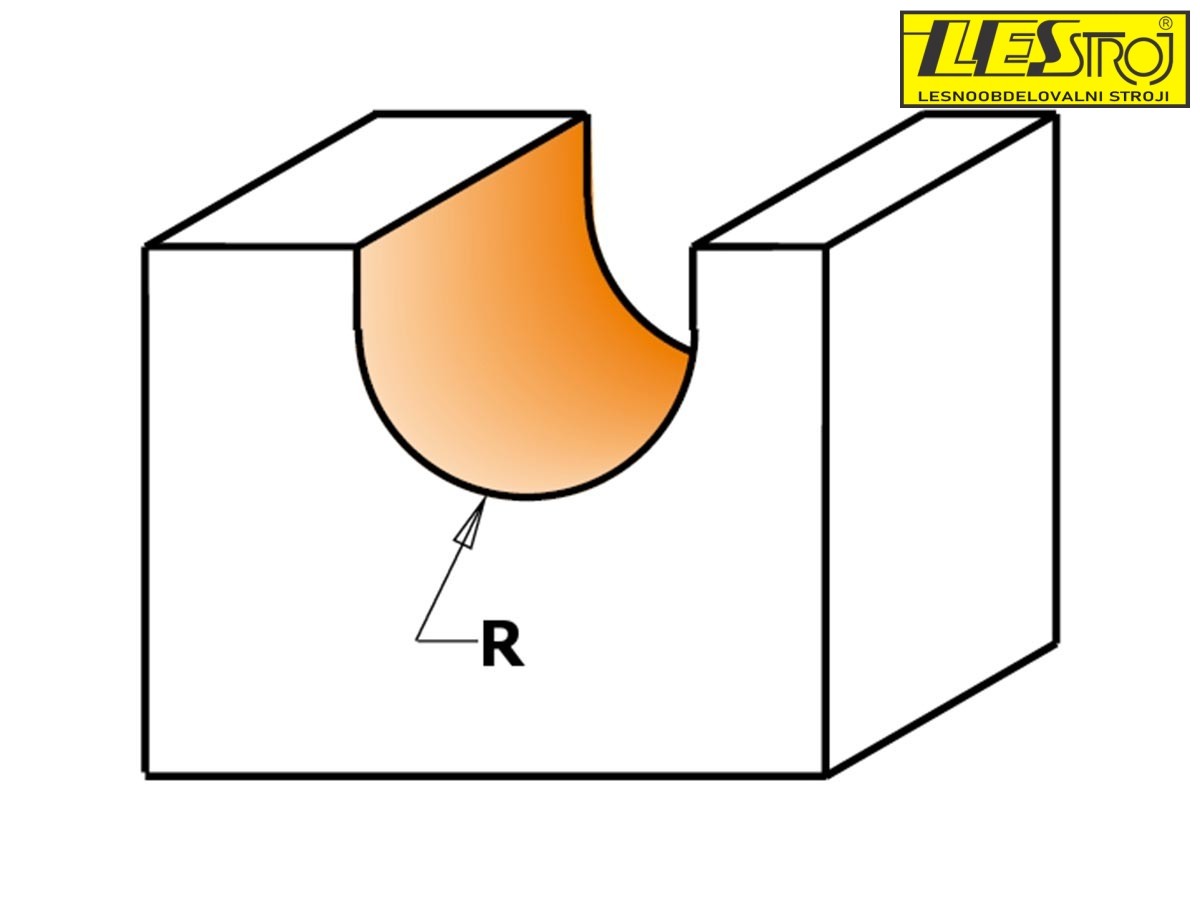

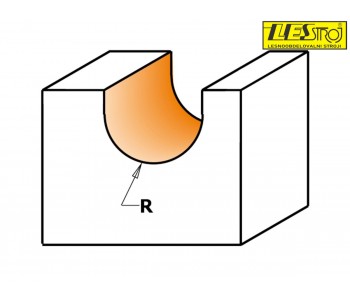

Model | Diameter (D) | Radius (R) | Cutting length (I) | Total length (L) | Shank diameter (S) | Unit price | Buy | Avail. |
---|---|---|---|---|---|---|---|---|
199.001.11 | 3,18 mm | 1,6 mm | 12,7 mm | 50,8 mm | 6,35 mm |
– 5%
€30.12
|
![]() |
|
199.060.11 | 6 mm | 3 mm | 27 mm | 70 mm | 6 mm |
– 5%
€34.39
|
![]() |
|
199.081.11 | 8 mm | 4 mm | 32 mm | 80 mm | 8 mm |
– 5%
€40.95
|
![]() |
|
199.100.11 | 10 mm | 5 mm | 32 mm | 80 mm | 10 mm |
– 5%
€65.36
|
Call us
|
![]() |
199.120.11 | 12 mm | 6 mm | 35 mm | 80 mm | 12 mm |
– 5%
€90.73
|
![]() |
|
199.160.11 | 16 mm | 8 mm | 55 mm | 110 mm | 16 mm |
– 5%
€176.03
|
![]() |
