Classic ORMA NPC press for surface gluing of solid wood, wood composites and veneer. Several press sizes are available with pressing forces from 40 to 200 tons.
Width gluing press ORMA LS ECO
Brand:
Press for edge gluing wood with manual glue application and manual placement of strips.

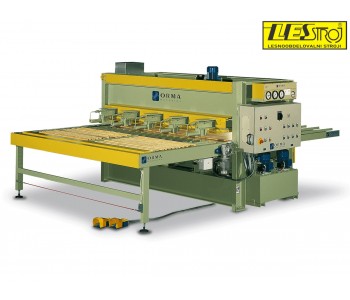

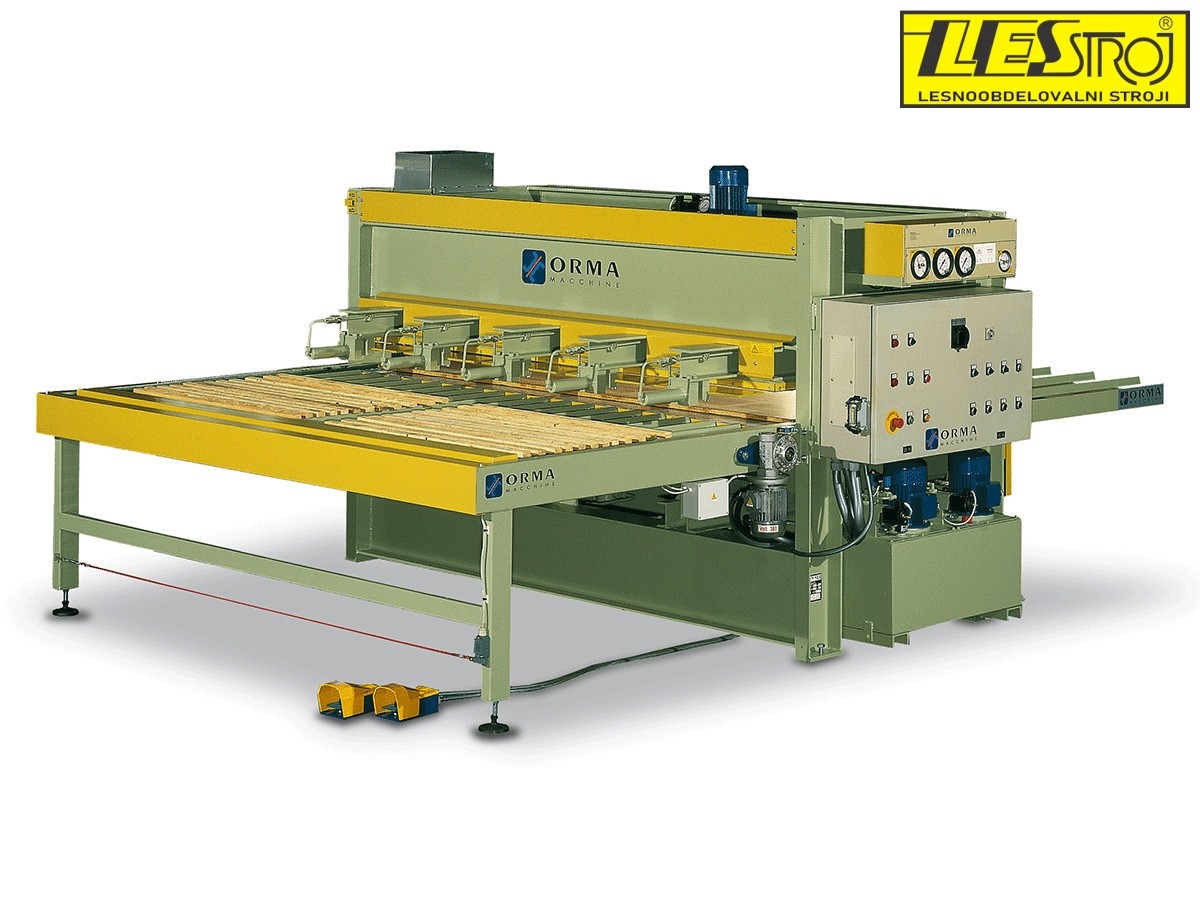

Edge gluing press ORMA LS ECO
ORMA LS Eco is a press for edge gluing solid wood strips.
Placing the strips and applying glue is done manually.
The press applies high pressure horizontally; vertical pressing pressures are lower, as they only serve to align the strips during pressing.
Three press types are available.
| LS ECO 25/13 | LS ECO 30/13 | LS ECO 35/13 | |
| Plate dimensions: | 2500 x 1300 mm | 3000 x 1300 mm | 3500 x 1300 mm |
| Vertical pressing pressure: | 38.4 t | 57.6 t | 57.6 t |
| Horizontal pressing pressure: | 7.5 t | 9 t | 10.5 t |
| Vertical cylinders: | 4 pcs ø 70 mm | 6 pcs ø 70 mm | 6 pcs ø 70 mm |
| Horizontal cylinders: | 5 pcs ø 40 mm | 6 pcs ø 40 mm | 7 pcs ø 40 mm |
| Motor power: | 1.1 kW | 1.1 kW | 1.1 kW |
| Weight: | 3500 kg | 4200 kg | 5000 kg |
