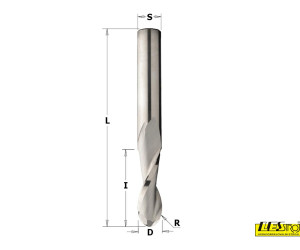

The upcut spiral bit provides superior results and excellently removes the cut material. The additional lower blade contributes to easier, cleaner entry of the router bit perpendicular to the material.
The CMT three-faced cutter spiral HWM router bit is excellent for use on hand-held router machines and CNC machines for making grooves with different diameters in various types of materials, such as soft or hard solid wood, wood composites, laminates and plastics.
The router bits with right- and left-hand rotation are available.
Model | Diameter (D) | Cutting length (I) | Total length (L) | Shank diameter (S) | Rotation | Unit price | Buy | Avail. |
---|---|---|---|---|---|---|---|---|
193.081.11 | 8 mm | 32 mm | 80 mm | 8 mm | Right-hand |
– 15%
€39.78
|
![]() |
|
193.081.12 | 8 mm | 32 mm | 80 mm | 8 mm | Left-hand |
– 15%
€59.33
|
Call us
|
![]() |
193.100.11 | 10 mm | 32 mm | 80 mm | 10 mm | Right-hand |
– 15%
€60.10
|
![]() |
|
193.100.12 | 10 mm | 32 mm | 80 mm | 10 mm | Left-hand |
– 15%
€64.94
|
Call us
|
![]() |
193.101.11 | 10 mm | 42 mm | 90 mm | 10 mm | Right-hand |
– 15%
€73.10
|
![]() |
|
193.120.11 | 12 mm | 35 mm | 83 mm | 12 mm | Right-hand |
– 15%
€81.18
|
![]() |
|
193.121.11 | 12 mm | 42 mm | 90 mm | 12 mm | Right-hand |
– 15%
€92.73
|
![]() |
|
193.122.11 | 12 mm | 52 mm | 100 mm | 12 mm | Right-hand |
– 15%
€97.83
|
![]() |
|
193.140.11 | 14 mm | 58 mm | 110 mm | 14 mm | Right-hand |
– 15%
€130.73
|
![]() |
|
193.160.11 | 16 mm | 55 mm | 110 mm | 16 mm | Right-hand |
– 15%
€166.01
|
![]() |
|
193.161.11 | 16 mm | 35 mm | 90 mm | 16 mm | Right-hand |
– 15%
€138.04
|
![]() |
|
193.165.11 | 16 mm | 72 mm | 120 mm | 16 mm | Right-hand |
– 15%
€177.90
|
Call us
|
![]() |
193.180.11 | 18 mm | 55 mm | 110 mm | 18 mm | Right-hand |
– 15%
€211.14
|
![]() |
|
193.200.11 | 20 mm | 60 mm | 120 mm | 20 mm | Right-hand |
– 15%
€235.53
|
![]() |
|
193.201.11 | 20 mm | 70 mm | 120 mm | 20 mm | Right-hand |
– 15%
€243.61
|
![]() |
