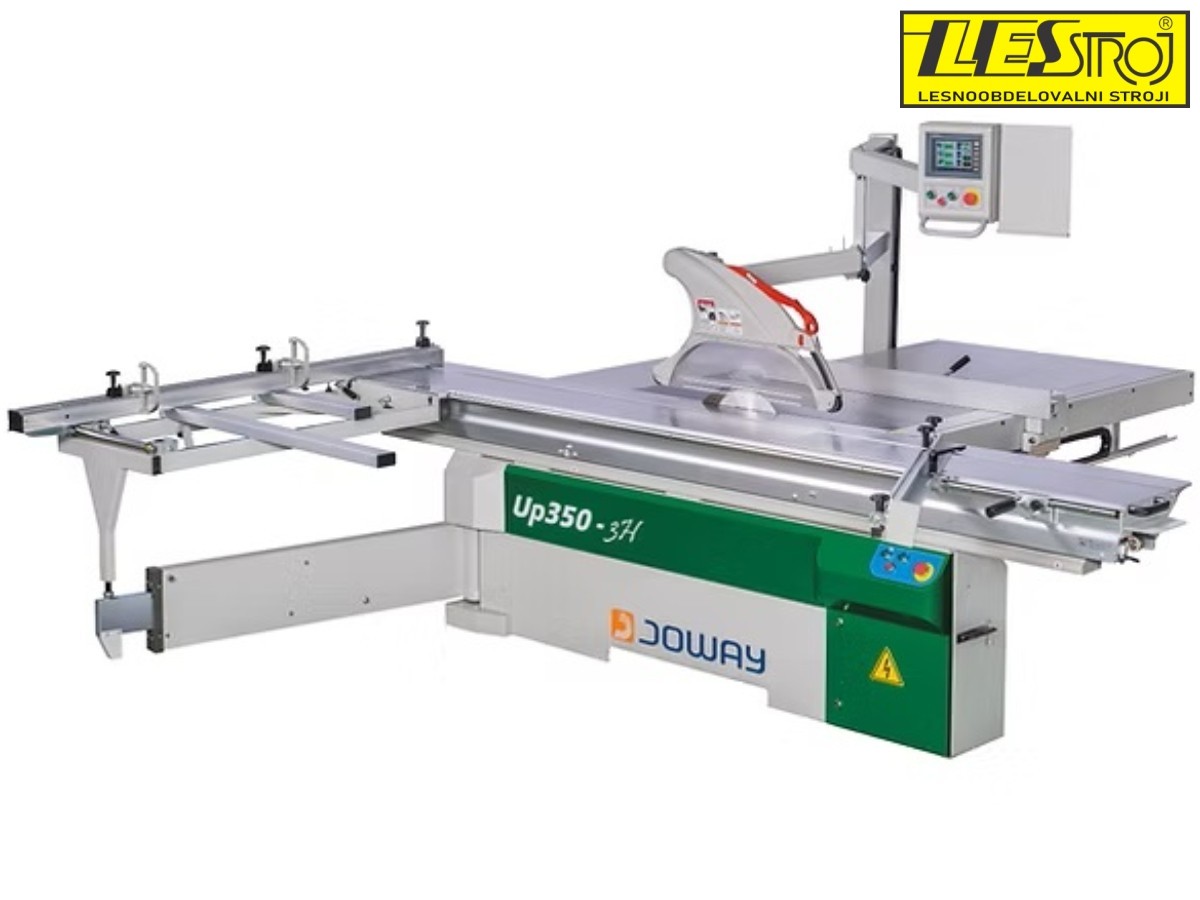

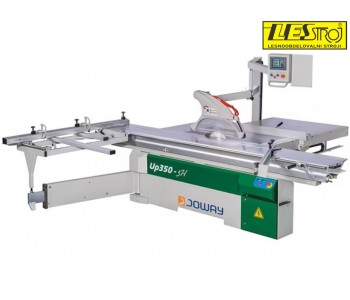

Sliding table saw JOWAY Up350-3H
Sliding table saw JOWAY UP-350-3H combines robustness, stability, and advanced technology, being equipped with computer control via a 7" touchscreen and motorized adjustments that allow the user fast, easy, and precise operation.
The Ø400 mm saw blade with the option to choose between four speeds (3000 / 4000 / 5000 / 6000 rpm) provides exceptional versatility and cutting accuracy when processing different materials, ensuring the perfect balance between power and flexibility.
Sliding table saw JOWAY UP-350-3H is an excellent machine operated via a clear and intuitive 7" touchscreen display. Thanks to its motorized movements, adjusting the blade height, saw tilt, and right table is quick, easy, and precise.
The circular saw blade with a diameter of Ø400 mm allows operation at four different speeds – 3000, 4000, 5000, and 6000 rpm, providing exceptional flexibility for cutting various materials.
Key advantages include: advanced control system, the option of selecting multiple saw speeds, a powerful motor, exceptional cutting precision, and great versatility with adjustable functions.
Technical specifications:
- Max. diameter of main saw blade: Ø400 mm (16")
- Max. cutting height at 90°: 125 mm
- Max. cutting height at 45°: 88 mm
- Fixed cast iron table dimensions: 620 x 1125 mm
- Main blade speed: 3000 / 4000 / 5000 / 6000 rpm
- Touchscreen: 5.7" STN color
- Sliding table length: 380 x 3200 mm
- Main saw blade bore: Ø30 mm
- Main motor power: 7.5 HP (5.5 kW)
- Scoring blade: Ø120 mm
- Scoring motor power: 1 HP (0.75 kW)
- Scoring blade speed: 8000 rpm
- Cutting width: 1300 mm
- Table extension: 800 mm
- Motorized blade height adjustment
- Motorized saw tilt ± direction control
- Protective hood on the overhead arm
- Control panel: 7" Touch Schneider
- Dust extraction port (below): Ø120 mm
- Dust extraction port (on guard): Ø80 mm
- Machine weight: 1147 kg
