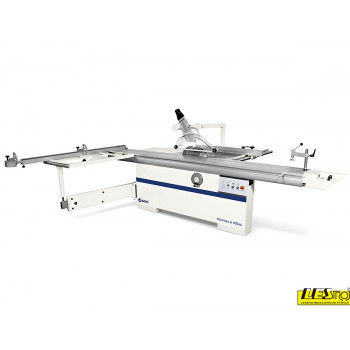

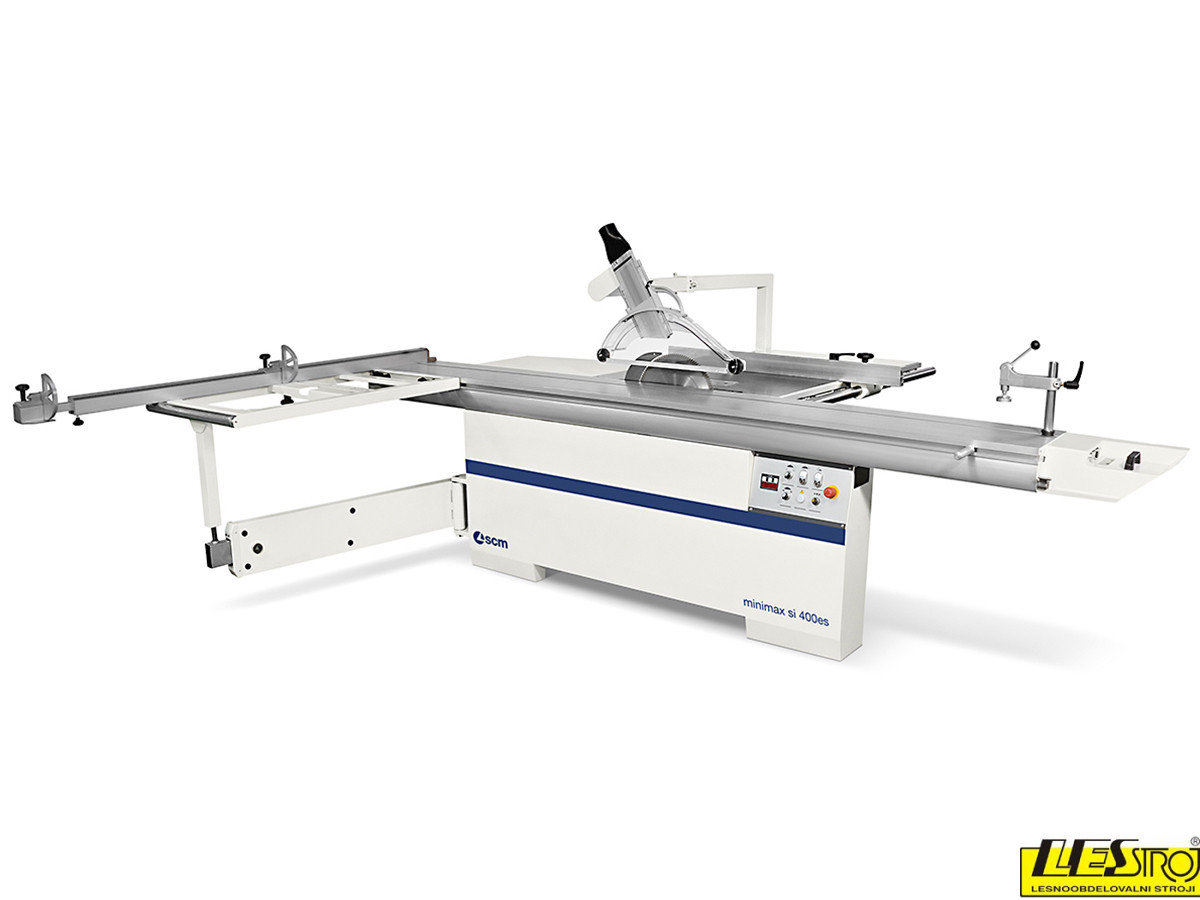

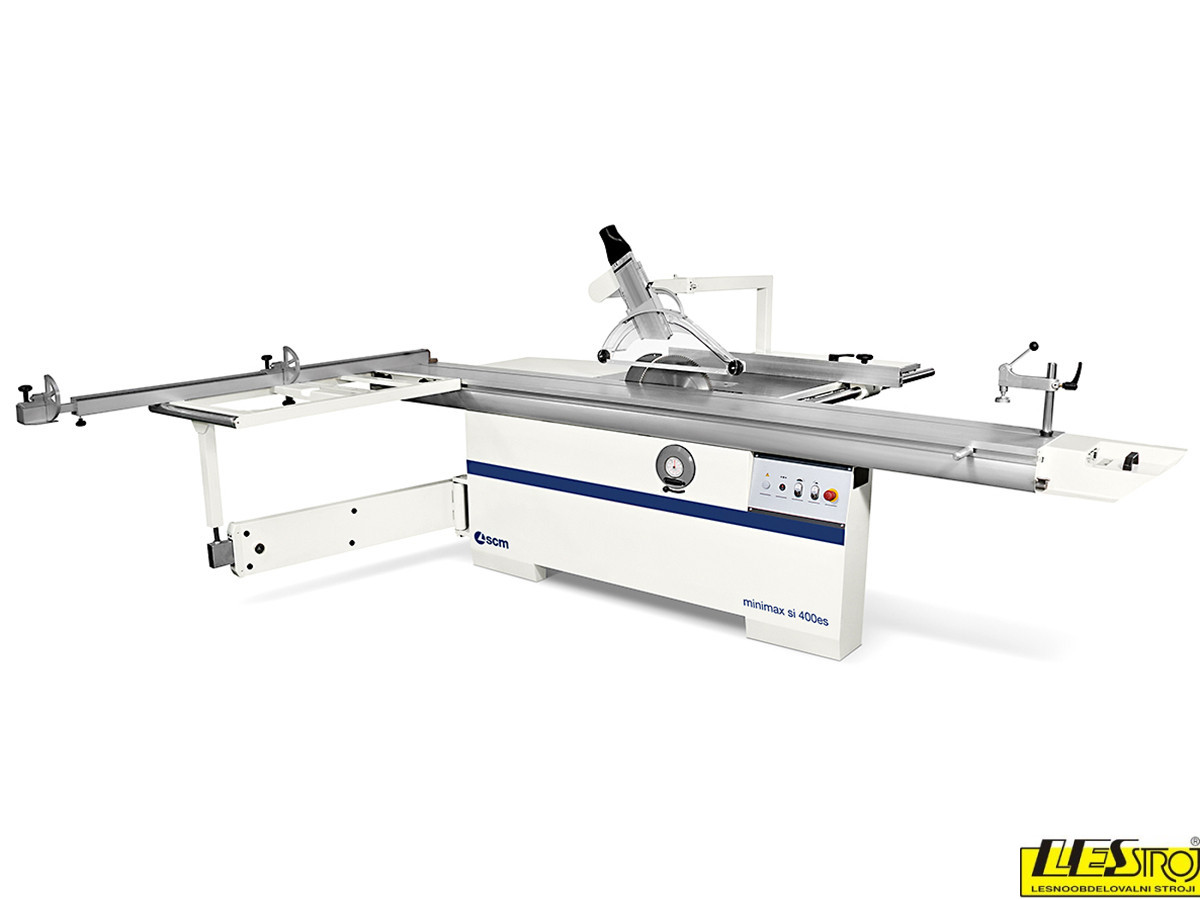

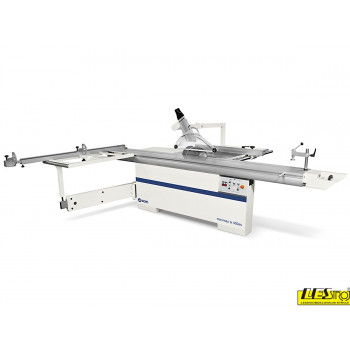

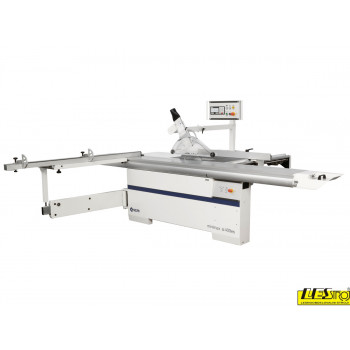

MiniMax S400 ELITE S

S400 Elite S is a circular saw with tilting blade and professional performances, for a quality without compromises.

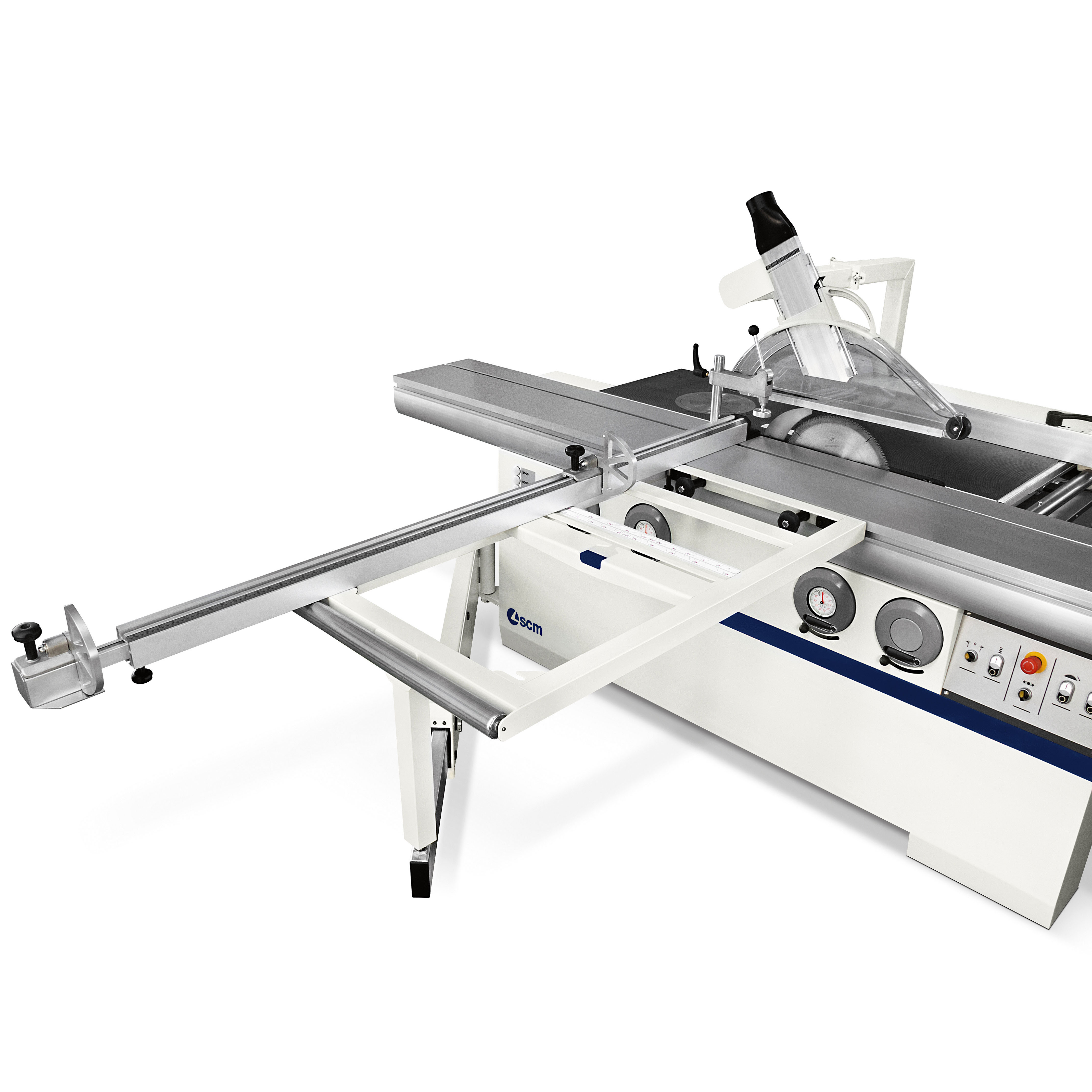

Cast-iron saw unit with 400mm saw blade and scoring unit with independent motor. Thanks to the 330mm width sliding table, you have the best support when cutting wood material.





Product Details

Data sheet

Max. saw blade diameter
400
Main engine power
5
Rotational speed (rpm)
3500 / 5000
Cut-out width on the right guide frame
1270
Pre-cutter - engine power
0,55
Scoring saw blade (mm)
120
Length (mm)
2600 / 3200
Max. cut-out at 90°/45°
138 / 98
Extraction nozzles (mm)
120
Grinding head tilt (°)
90° - 45°
Images

Predrezilo se lahko nastavlja izven delovne mize stroja...

Zagotavlja hitro in zelo natančno pozicioniranje predrezila. Ključnega pomena pri razrezu iverala!

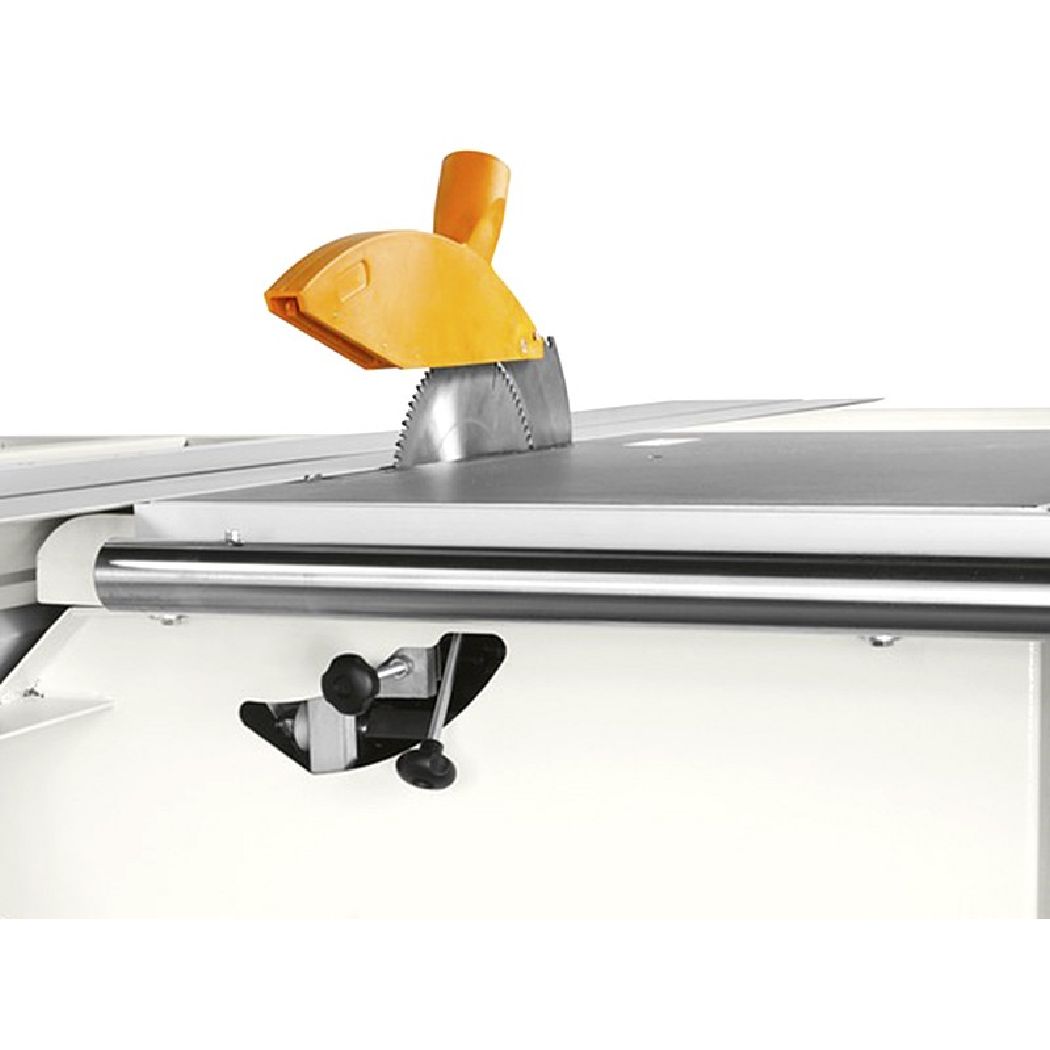

Možen električni dvig-spust in nagib žagnega lista....

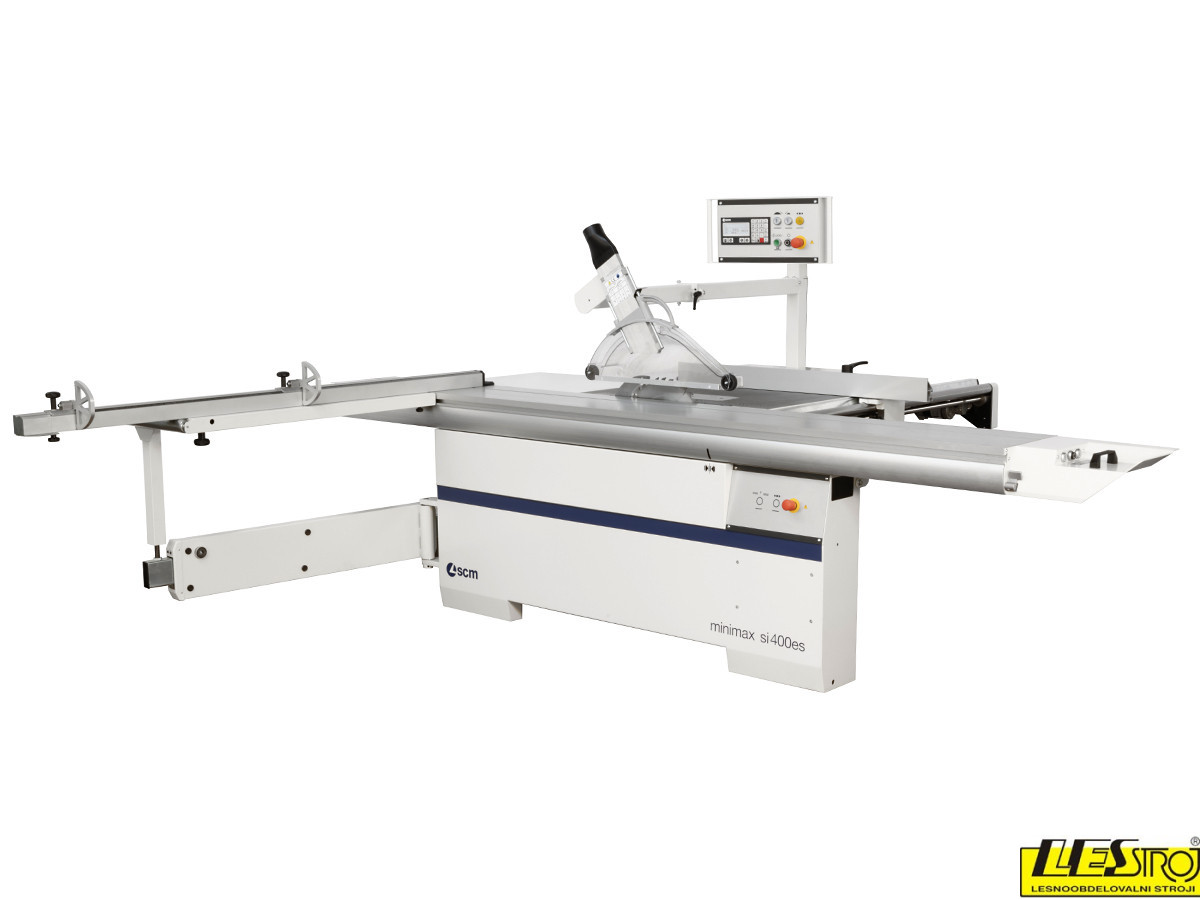

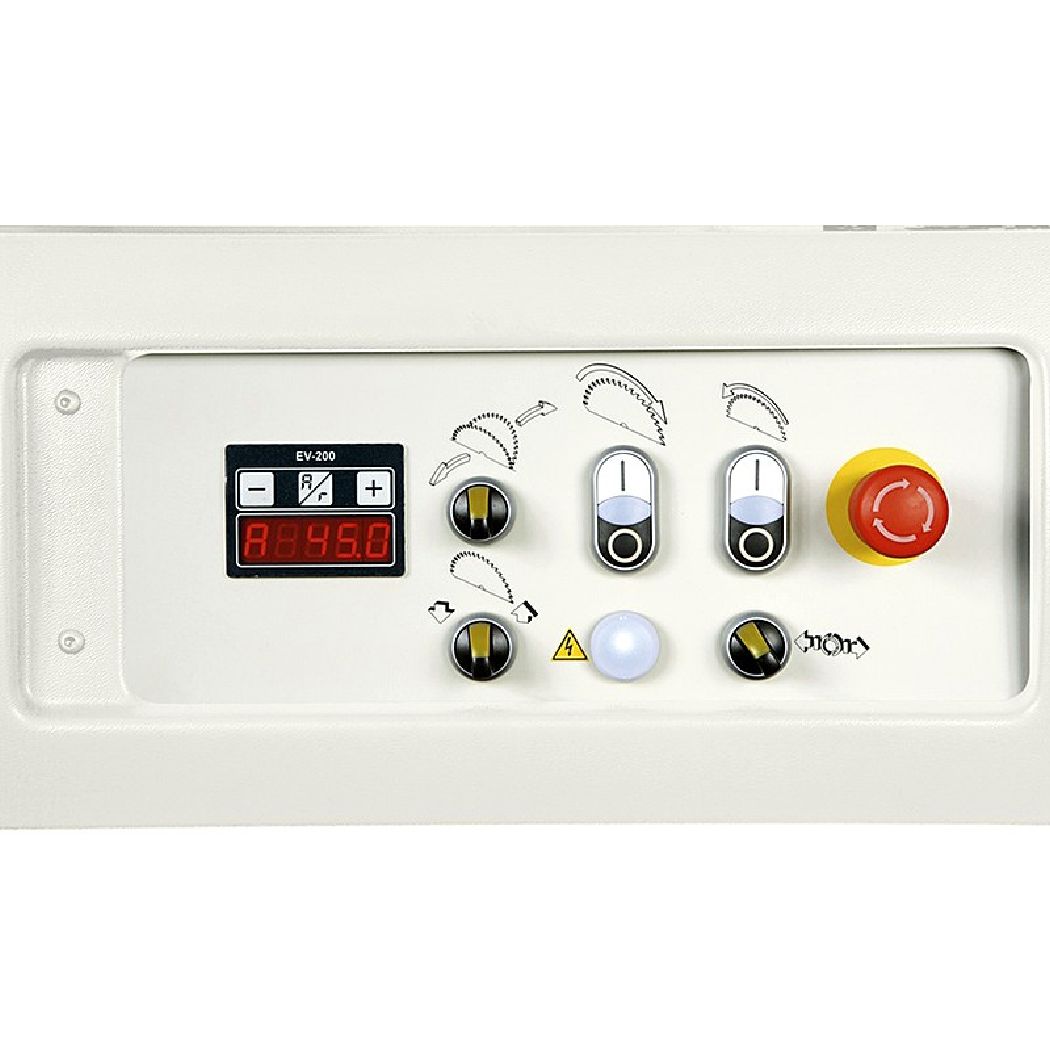

Upravljalna plošča v višini oči uporabnika za udobne nastavitve stroja
