Panel saw MiniMax SC1W

Panel saw MiniMax SC1W

Request for more information

Product inquiry

I want contact by: *

Contact details:

Condition
New product
Description

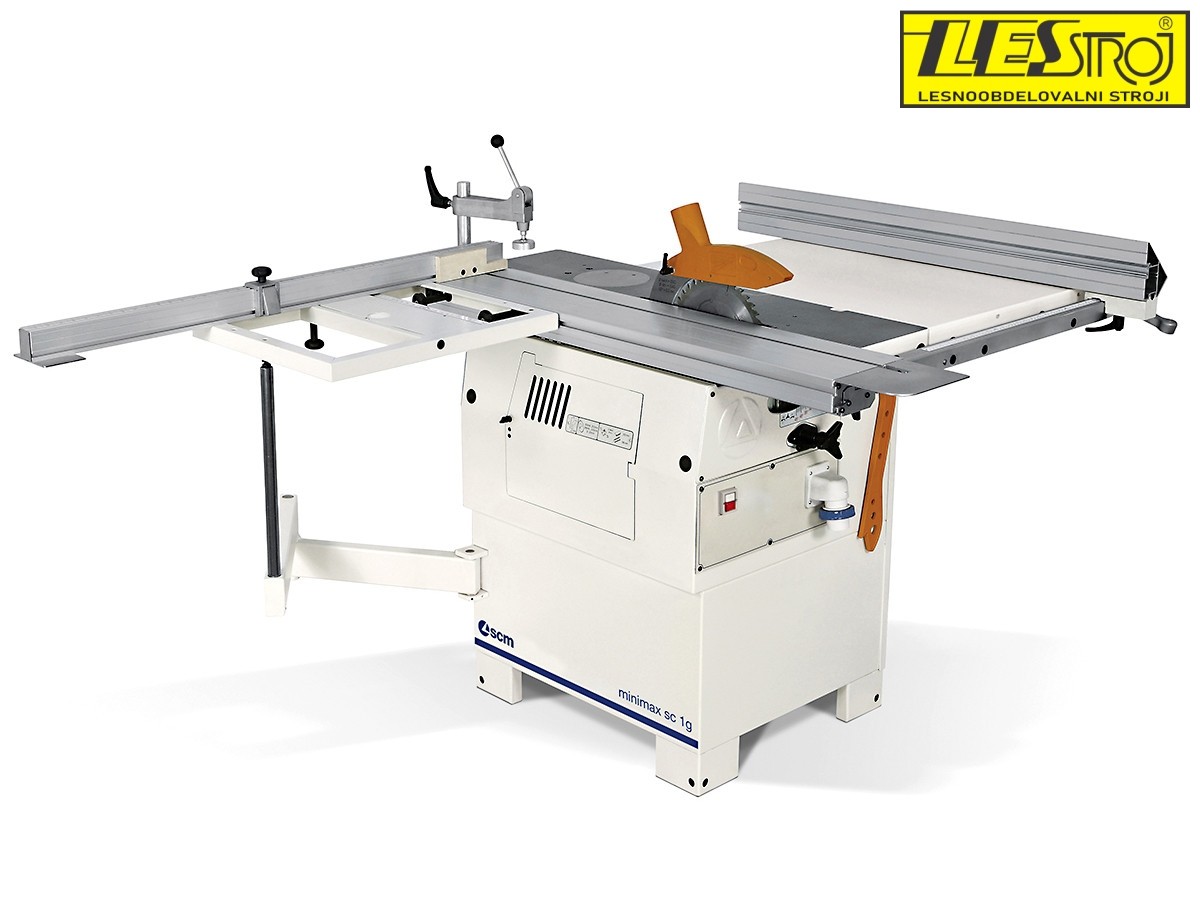

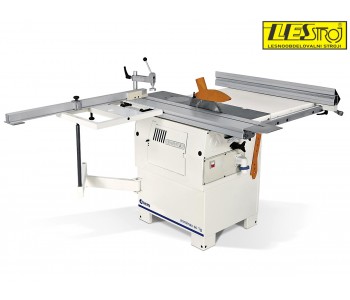

MiniMax SC1 Genius

SC1 Genius is easy to use and has great precision. The saw unit can be raised and tilted using convenient handwheels. Sliding table is made out of anodised-aluminium and has a 1200mm stroke.

Product Details

Data sheet

Saw carriage length
1200
Max. saw blade diameter (mm)
250
Worktable height (mm)
900
Cut-off height (mm)
80
Cut-out width on the right guide frame
700
Saw blade tilting (°)
90 - 45
Motor power (kW)
1,8
Extraction nozzles (mm)
120
Images

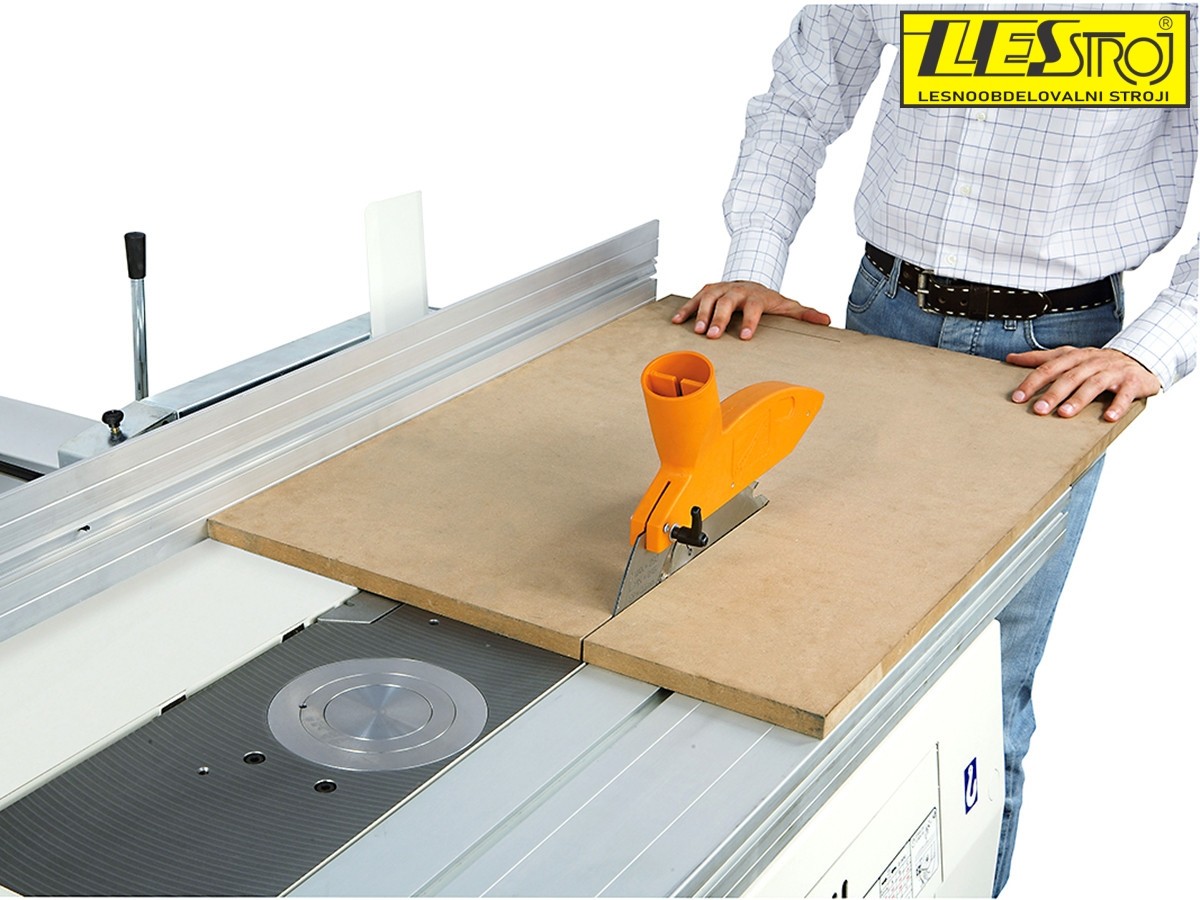

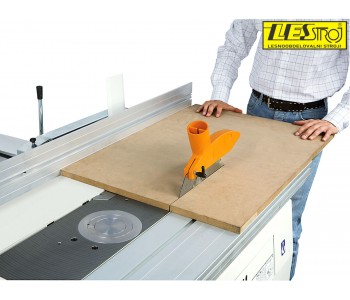

Žaga z nagibom do 45 stopinj. Odrez na desno vodilo

S krožno žago Genius je možen odrez na desno vodilo do širine 700 mm!
