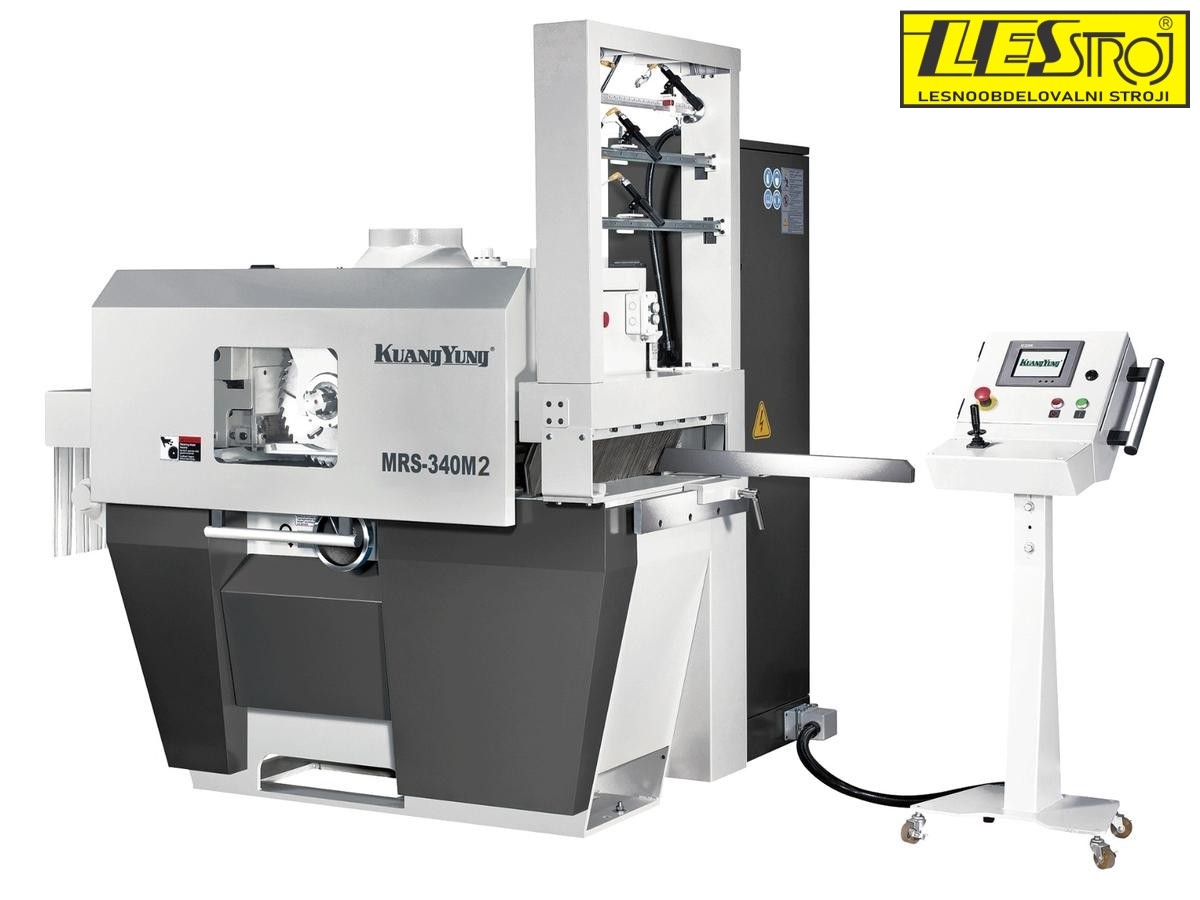

Multi-blade Saw MRS 340M
Multi-blade saw MRS340M with 1–2 movable blades and servo-motor positioning delivers up to 3× higher material yield and precise cuts up to 340 mm wide, dramatically reducing production time and costs. Key advantages include automatic lubrication with interchangeable steel/rubber chain inserts, fixed and movable lasers to project the cutting line, four anti-kickback safety locks, plus pneumatic top rollers and a cast-iron chain assembly for reliable, safe, long-lasting operation.
Multi-blade Saw MRS 340M

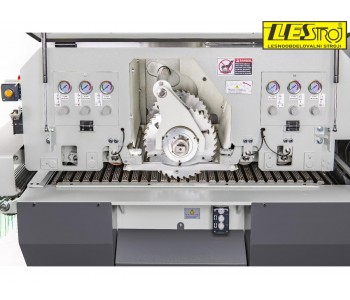

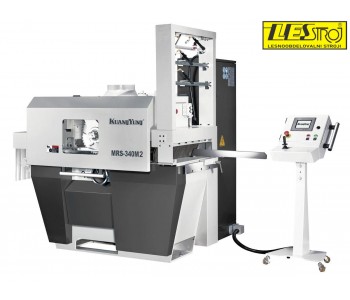

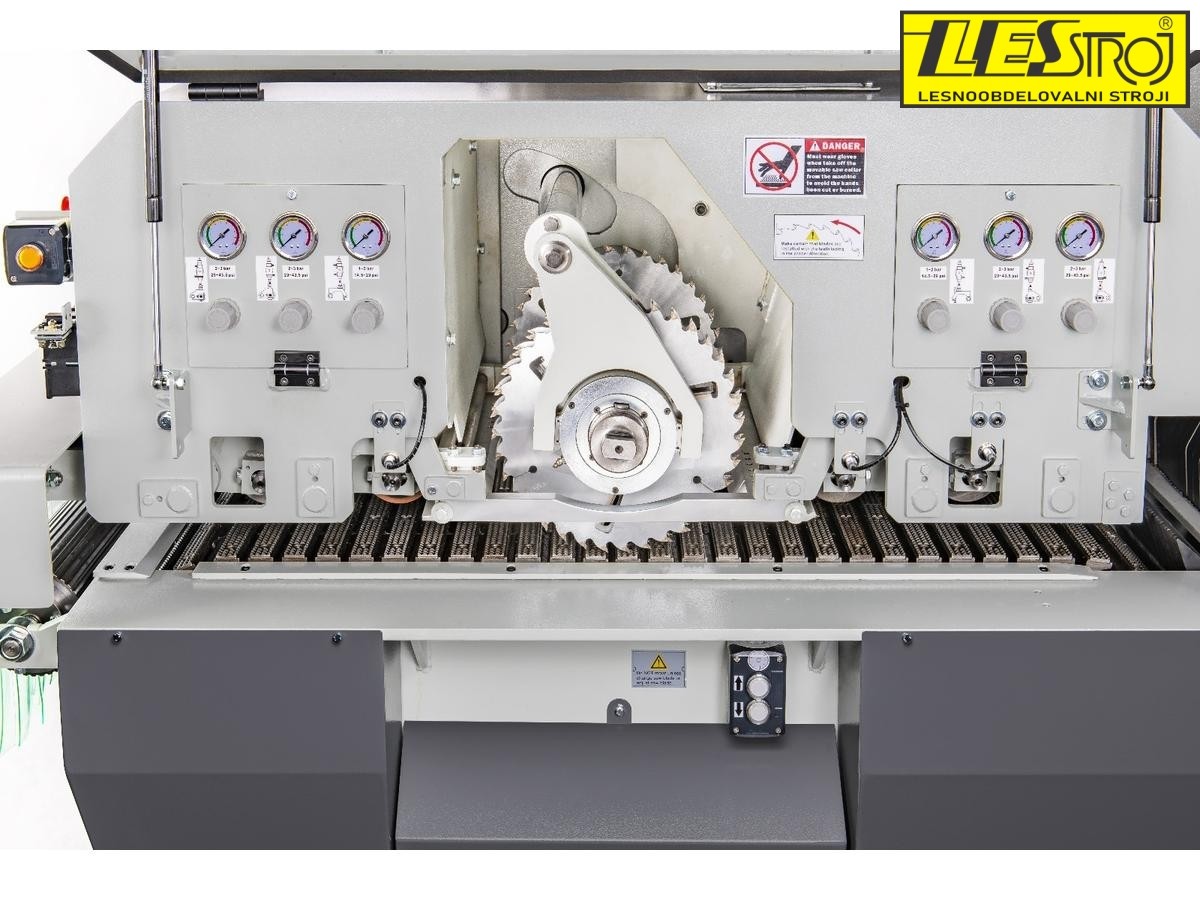

Multi-blade Saw MRS340M is a multi-blade sawing machine with a movable saw blade, available with one or two movable blades. The motor-driven blade system provides maximum flexibility in industrial ripping and thus the highest material yield. Compared with conventional single-blade cutting, the production process is optimised by up to 3×, saving time and costs while boosting productivity without compromise.
A touch-screen lets the operator pre-set blade positions or manually move the blades to the desired setting. Each movable blade is driven by a servo motor; adjustment is carried out via a ball screw and linear guide for ultimate precision. A laser line marks the blade position, visualising the cut and increasing efficiency. If you need higher material yield and flexible ripping, the MRS 340M is ideal for series production.
The main challenge in ripping is optimising board width for maximum yield; this is where the MRS 340M saves material thanks to its movable saws. Cutting accuracy is ensured by a precision conveyor belt; machines without a chain cause lamella shift due to internal stresses. The belt offers the highest accuracy, whereas roller feeders cannot and create more waste.
Why choose the MRS340M with 1 or 2 movable blades?
• 1 or 2 movable blades for maximum flexibility and up to 3× higher capacity
• 50 HP main motor (options 60 HP or 75 HP)
• Variable feed speed with frequency inverter and overload-sensing system
• Maximum width between blades: 340 mm
• Touch-screen for 10 programmes × 10 settings
• Blade positioning via joystick or foot pedal
• Accepts blades up to Ø 355 mm (cut depth up to 102 mm)
Main machine advantages:

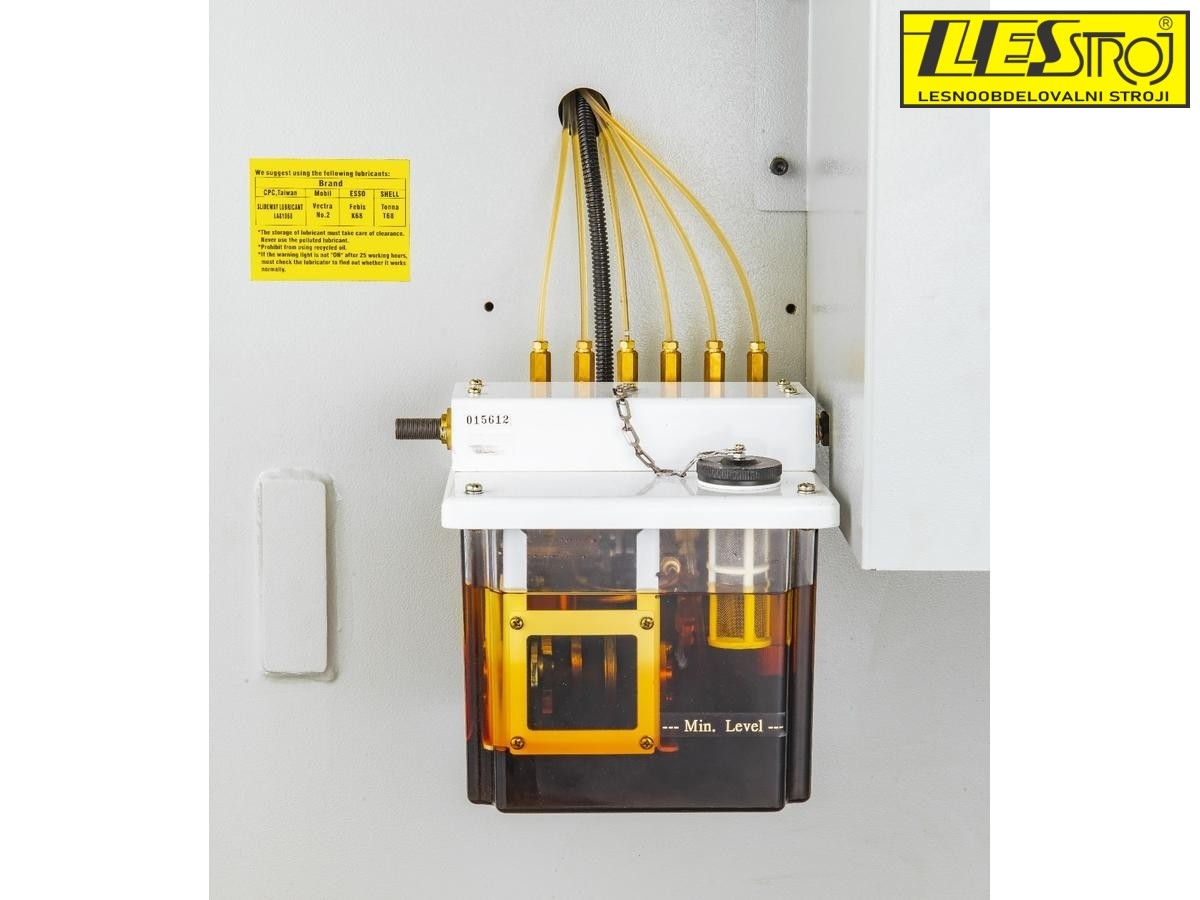

• Automatic lubrication of the chain track
• Interchangeable chain inserts (steel / rubber)

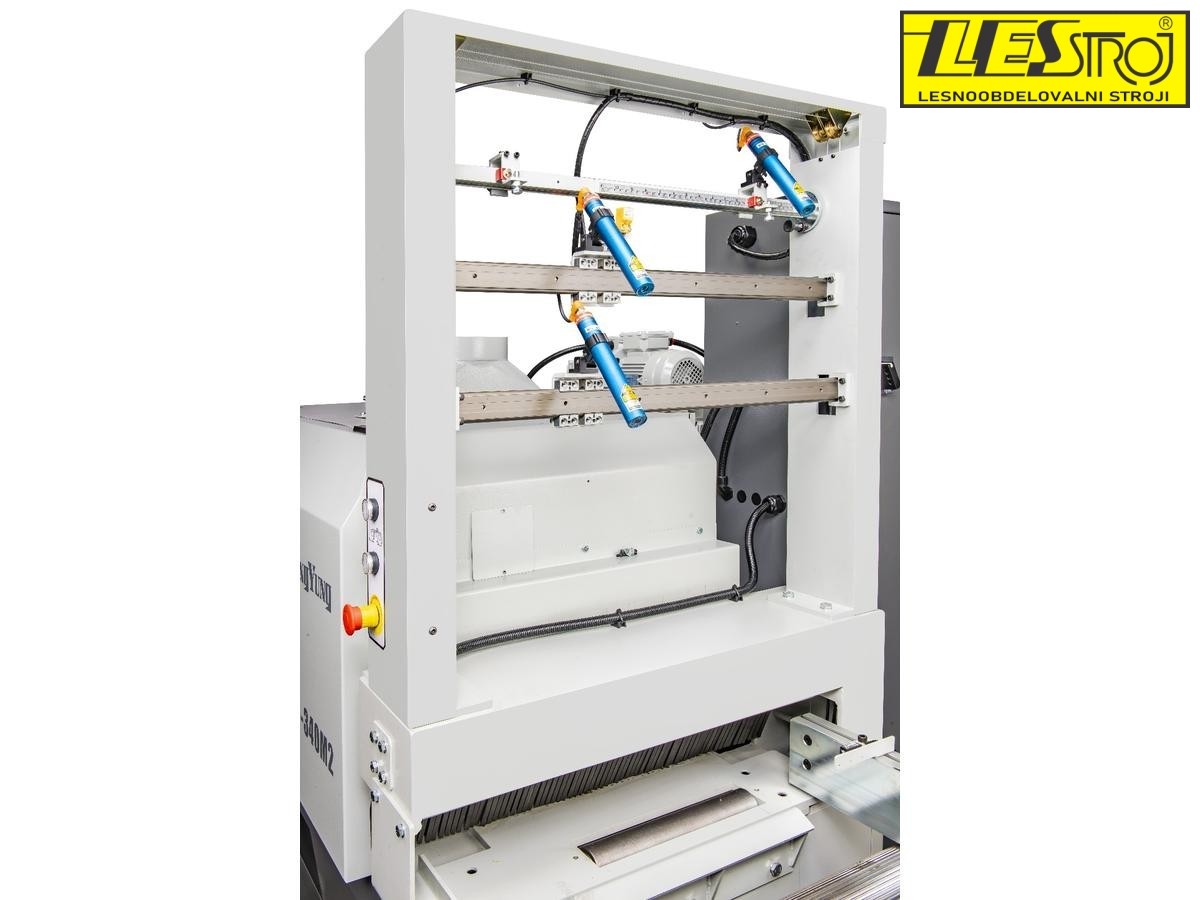

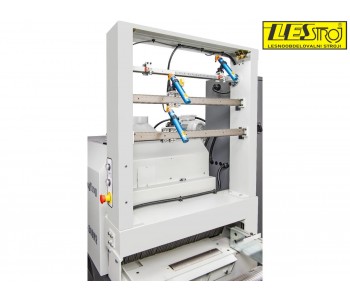

• Fixed and movable lasers for projecting the cutting line

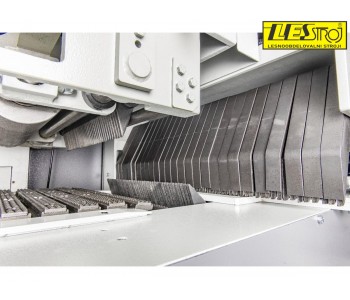

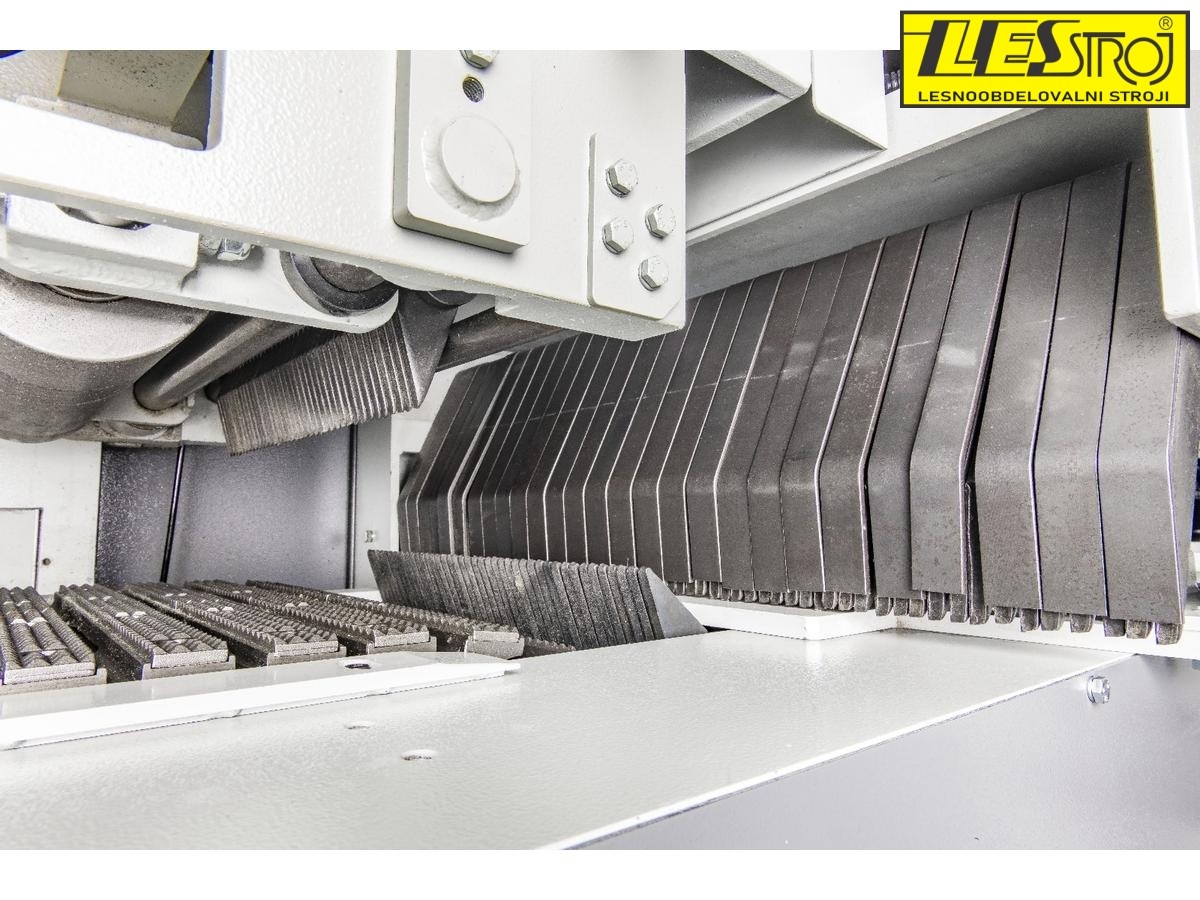

• Four safety kickback blockers

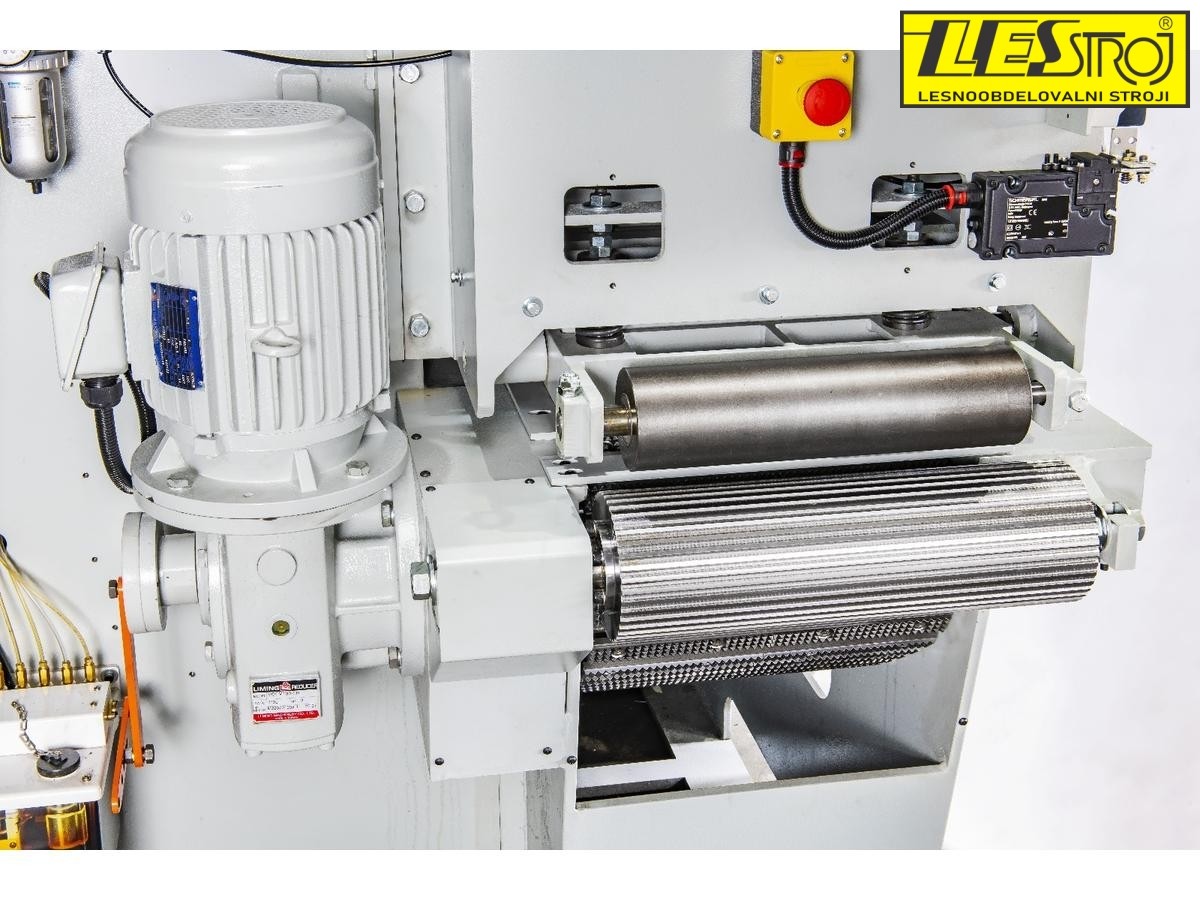

• Driven outfeed roller for smooth material discharge

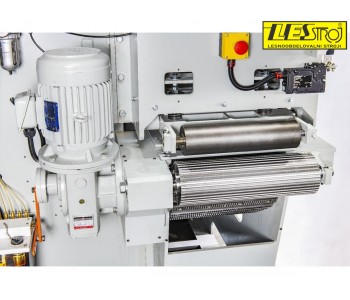

• Pneumatic top pressure rollers for precise control
• Cast-iron chain and track assembly for maximum durability
