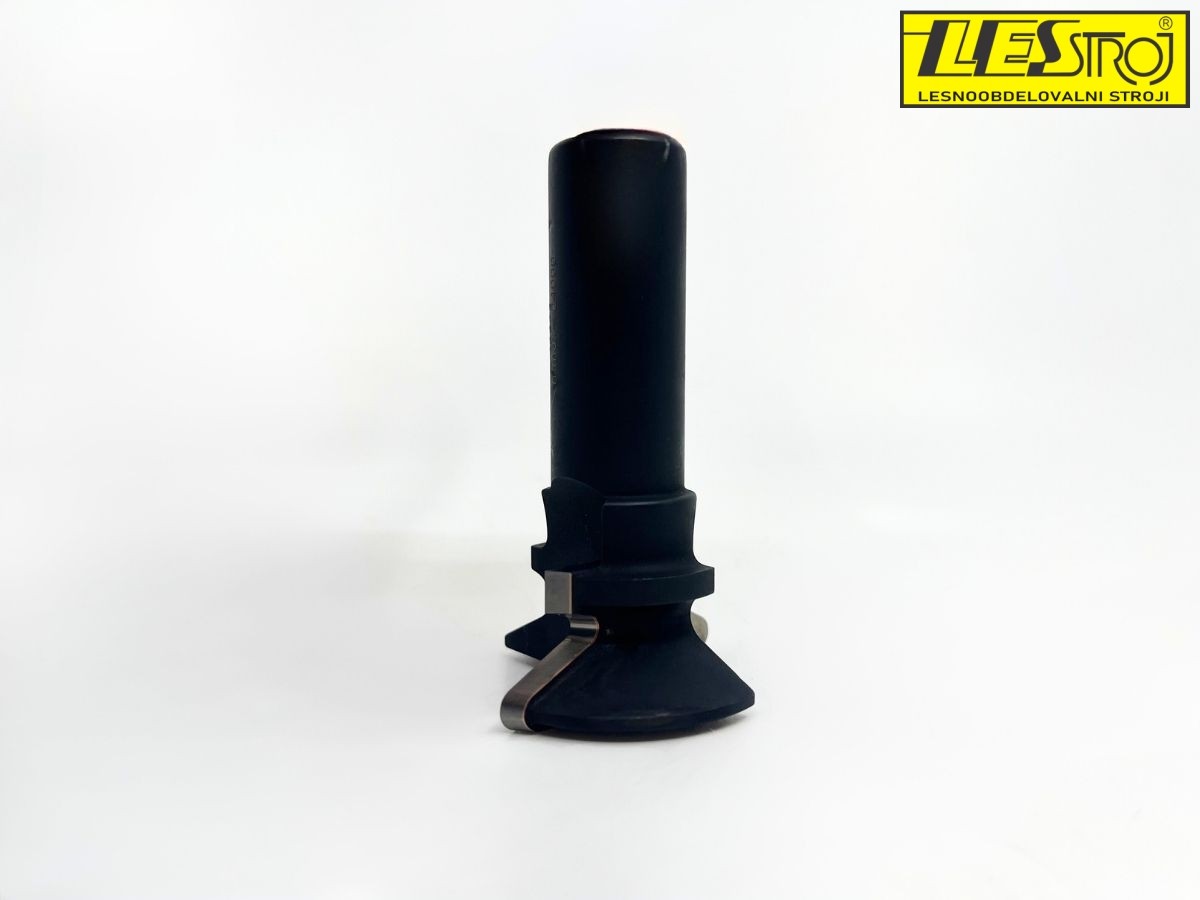

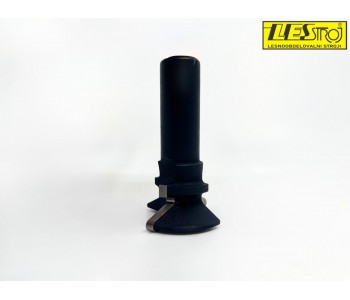

CNC Router Bit for Hidden Handles
CNC router bit designed for producing hidden handles on drawer fronts, cabinet doors, and similar applications. The cutter is made of high-quality steel and equipped with brazed carbide tips for durability and precision.
€119.00
Reference:
018941
Specifications:
- Shank: 20 mm
- Groove/handle depth: 14 mm
- Cutting width: 22 mm
- Distance from groove start to radius: 12 mm
- Transition radii: R2 and R3

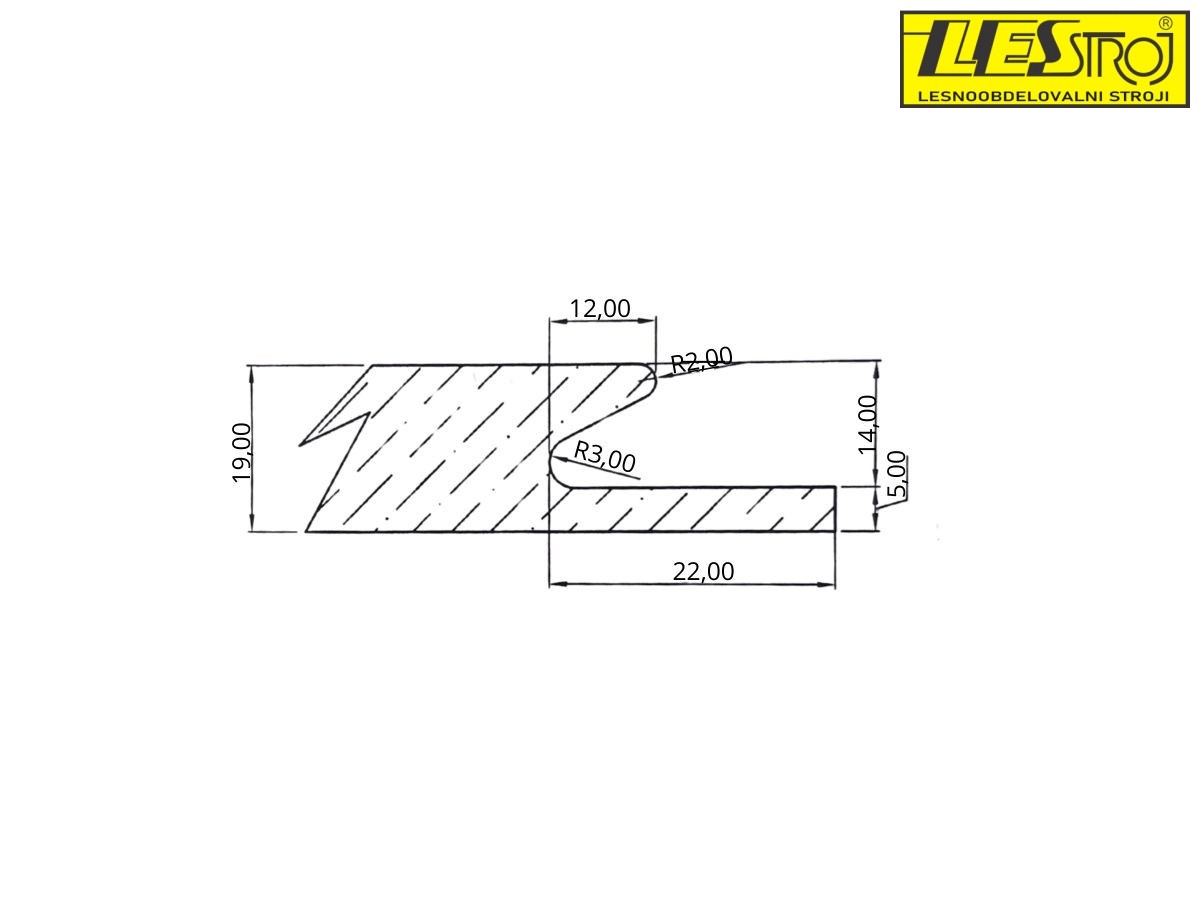

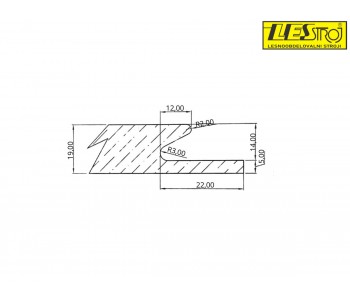

Cutting profile:
The bit features two consecutive radii (R2 and R3) that create an ergonomic finger grip.
- Maximum cutting depth: 14 mm
- Maximum handle length: 22 mm
