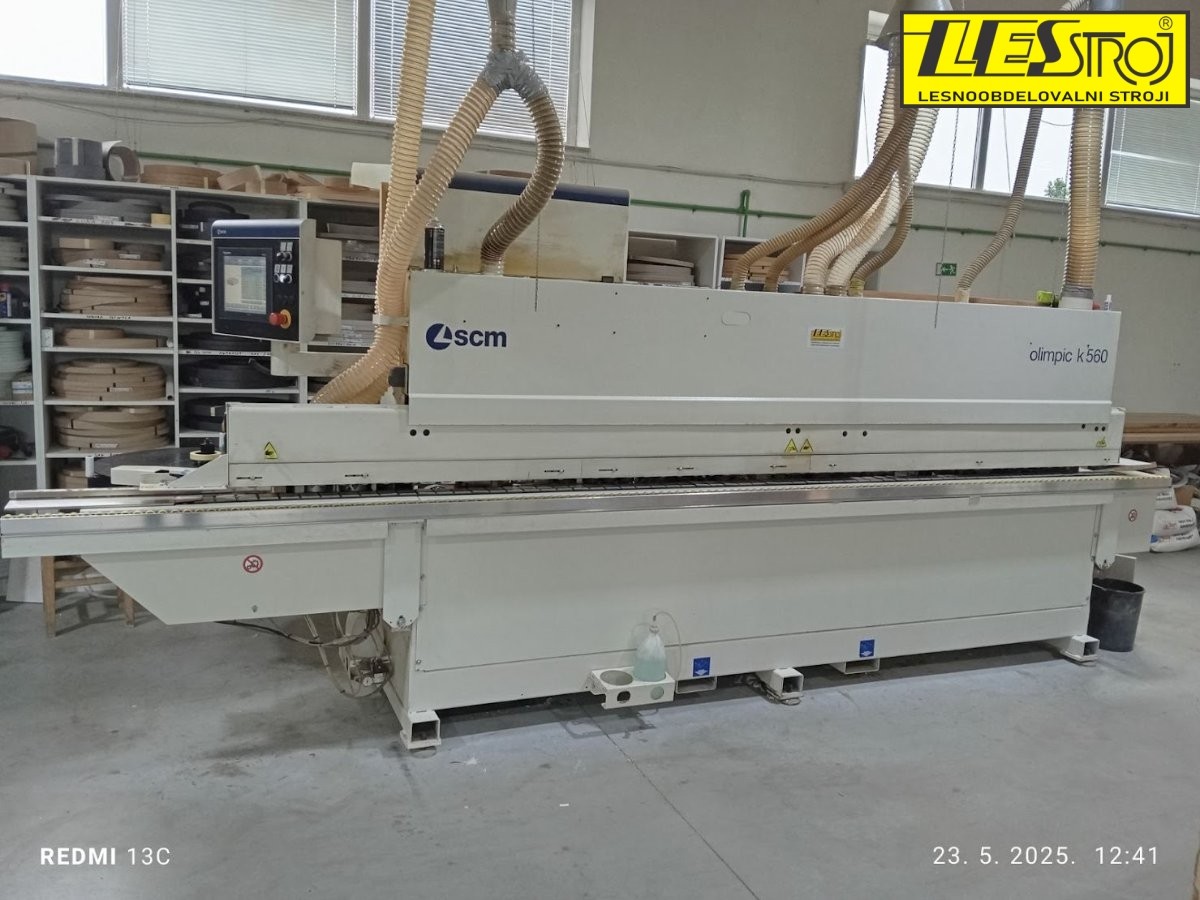

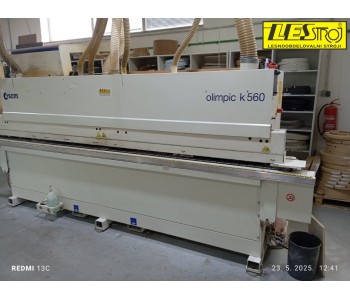

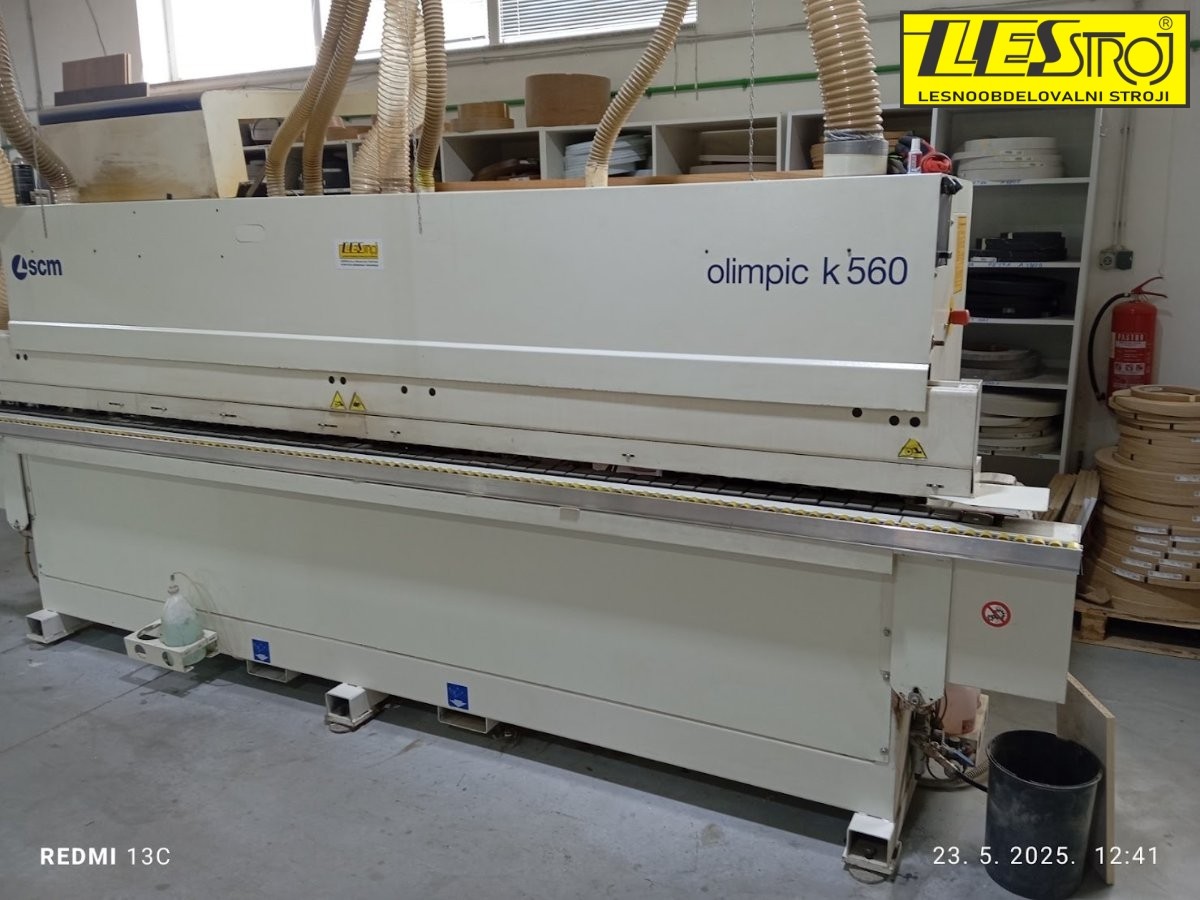

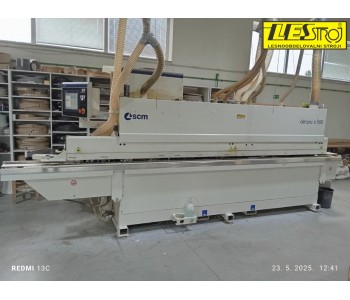

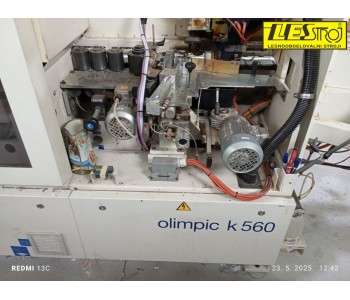

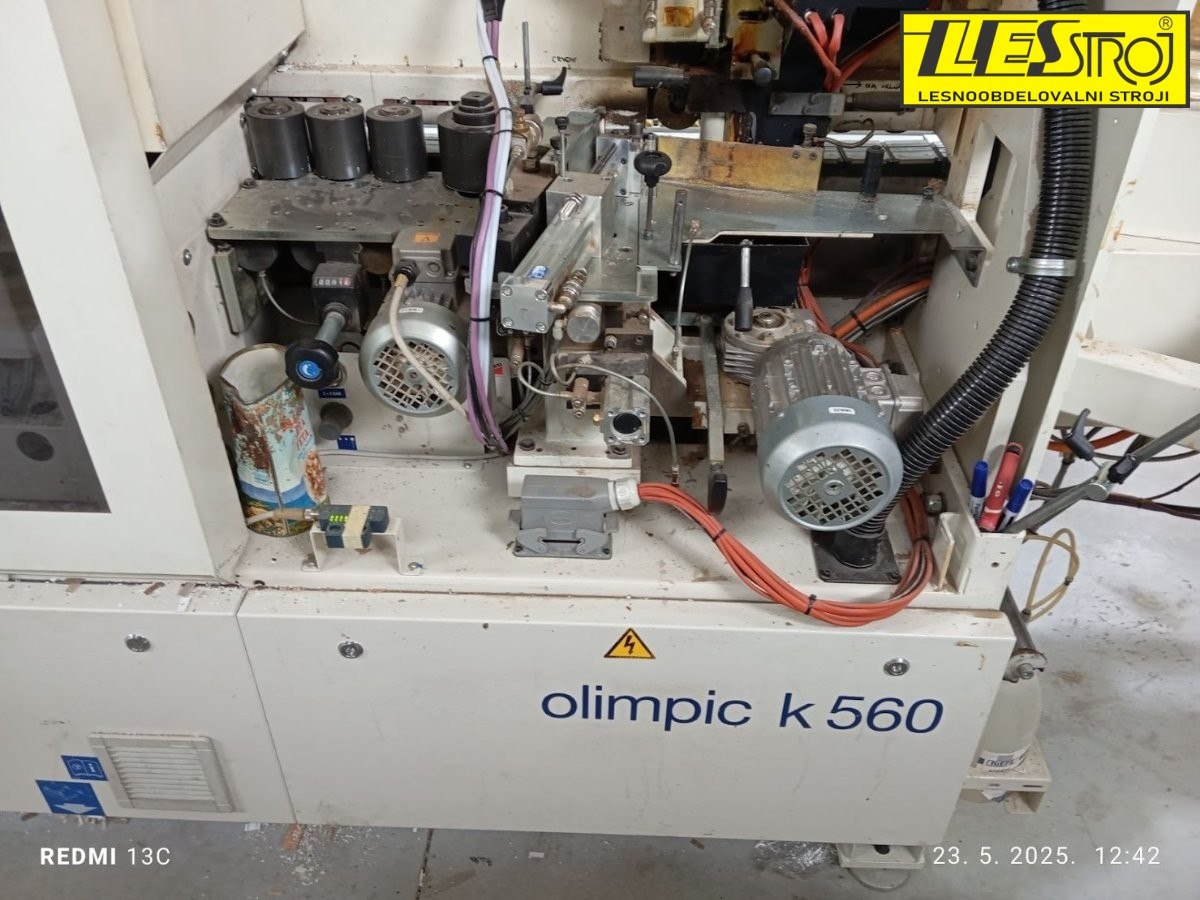

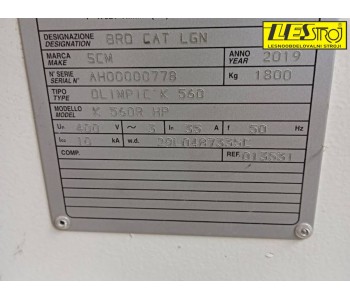

Edge bander K 560 HP year of manufacture 2019

WORKGROUPS – UNITS:

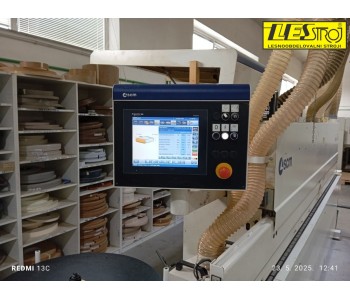

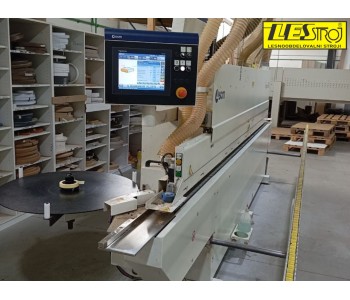

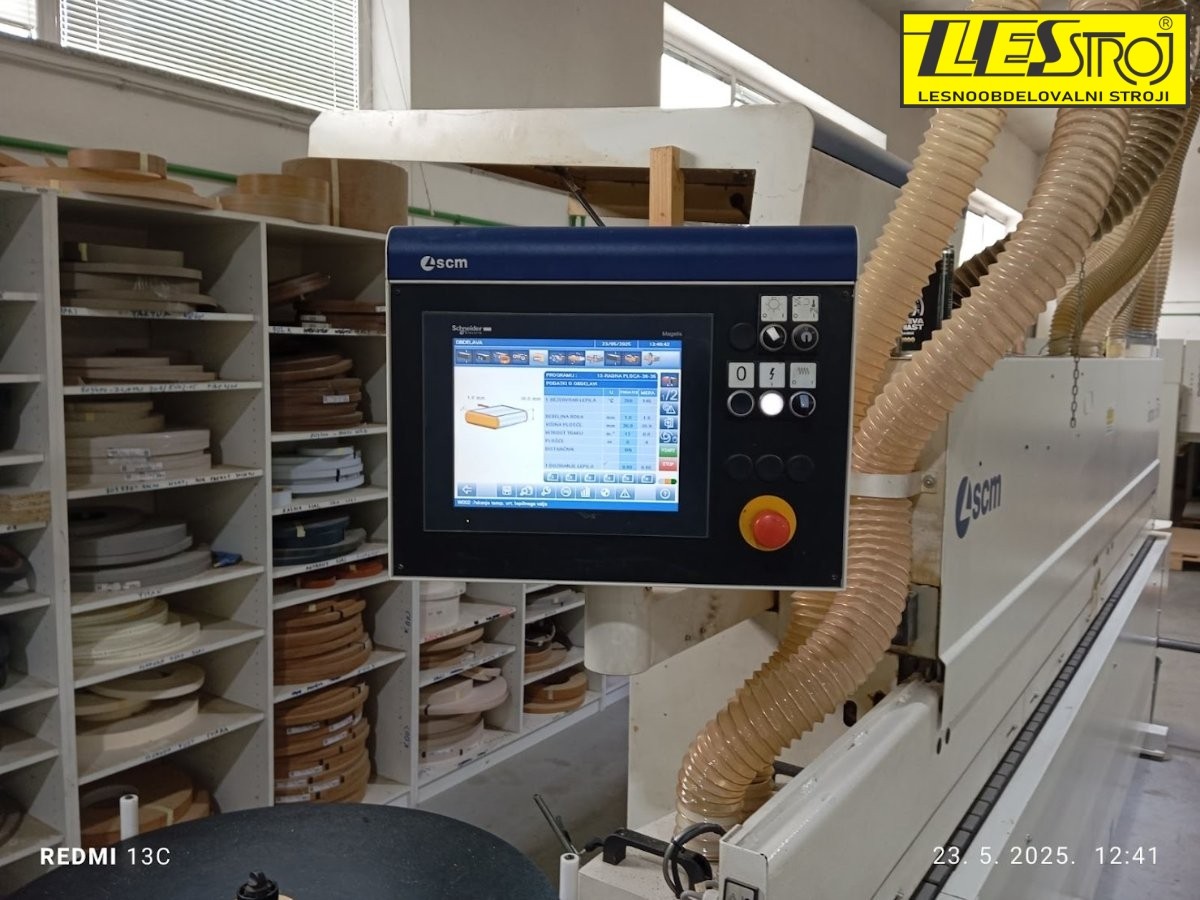

STAR TOUCH control panel
- 12" touchscreen
- operational units visually indicated (on/off)
- graphical piece simulation
- 100 configurable programs, 6 with quick access
- automatic motor startup per unit
- adhesive temperature control in the tank
- 1st and 2nd pass selection without program change
- problem diagnostics
- partial and total processing statistics (piece count, chain travel)
- CE safety standards compliance
- entry board spacers
- AAR fluid application
- Easy Size, cabin and adhesive zone lighting
- pre-glue routing RT/V
- diamond cutters H 64 mm, D 100 mm (Z=2+2)
- adhesive application SGP NC boiler
- squaring units K/SEL, R-HP Multiedge routers 2R
- auto-setting for various thicknesses (0.4–0.6 mm), ABS radii 1 mm & 2 mm, solid wood up to 8 mm
- profiling top and bottom edges (e.g., R2 top, straight bottom)
- high-gloss fluid
- Round X Multiedge edge circulation unit
- RAS-HP Multiedge 2R edge cleaners with separate extraction hoods
- RC-V flat scraper glue, SP-V polishing brushes
Technical Data:
Speed 12–18 m/min
Board thickness: with Round K mm 10–50; without Round mm 60
Roll label dimensions: max 3 × 45 mm; solid labels: max 8 mm
