Format4 Creator 950 (2019)

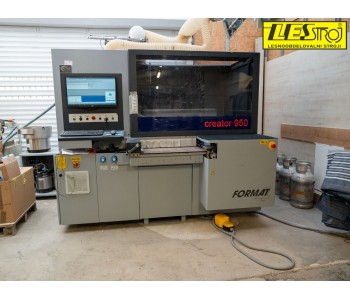

Used CNC center FORMAT4 CREATOR 950 (2019) with a 12 kW HSK-F63 spindle, integrated Ø 120 mm saw, dowel-insertion unit, and rapid traverses up to 90 m/min offers a compact solution for precise milling, drilling, and panel sizing in wood processing.

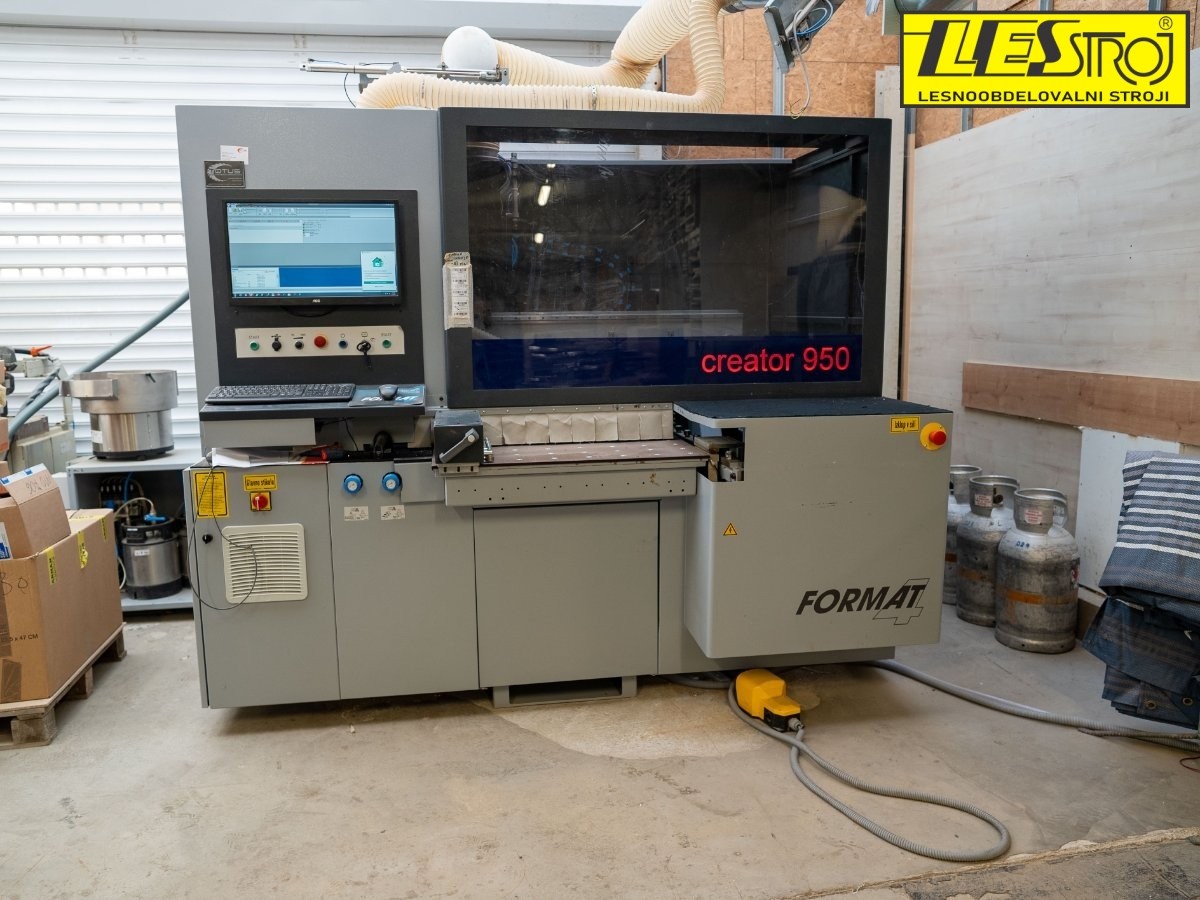

FORMAT4 CREATOR 950 (year 2019)

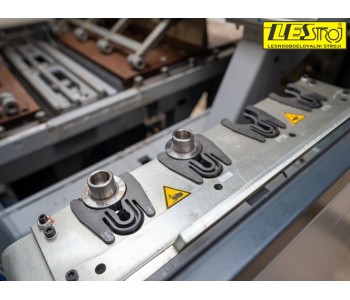

Axis travel: X 3,000 mm (unlimited thanks to movable clamps), Y 950 mm, Z 80 mm.
Rapid traverses: X/Y 90 m/min (25 m/min with clamps closed), Z 18 m/min.
Machining units: 12 kW HSK-F63 spindle (1,000–24,000 rpm, ceramic bearings) and integrated Ø 120 mm saw (6,000 rpm, cutting depth up to 5 mm).

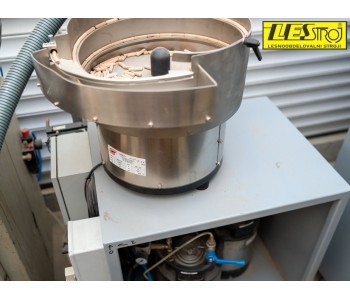

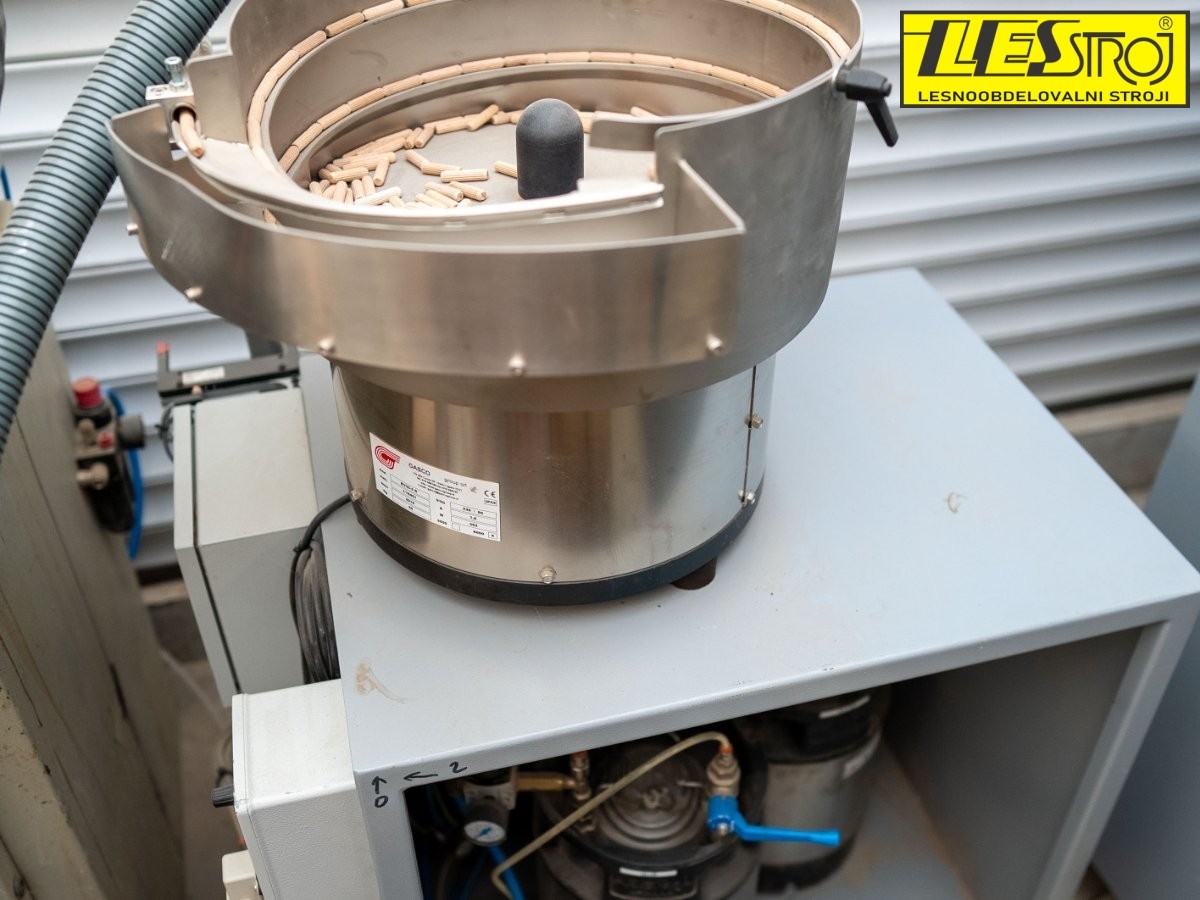

Equipment: 4-position linear tool magazine for tools Ø up to 125 mm, L up to 100 mm (≤ 7.5 kg); dowel-insertion unit Ø 8/10 mm with glue dosing; central automatic lubrication.

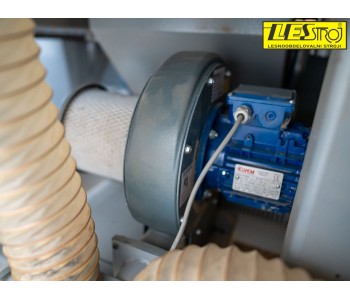

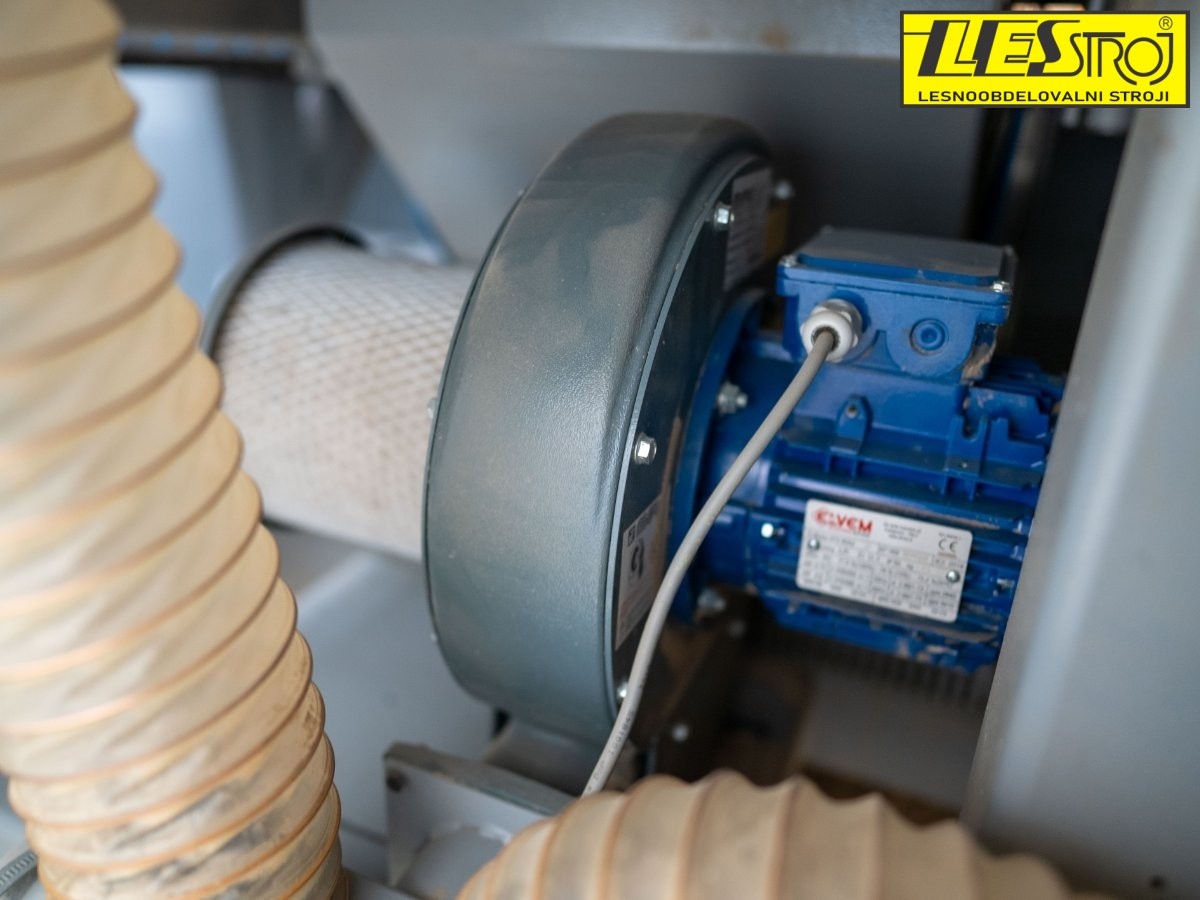

Connections and dimensions: extraction Ø 200 mm / 2,850 m³/h, compressed air 8 bar, power supply 400 V / 32 A; dimensions 2,075 × 2,400 × 2,274 mm, weight 1,950 kg.
