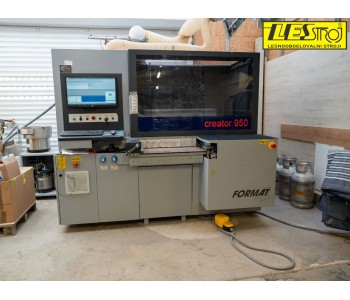

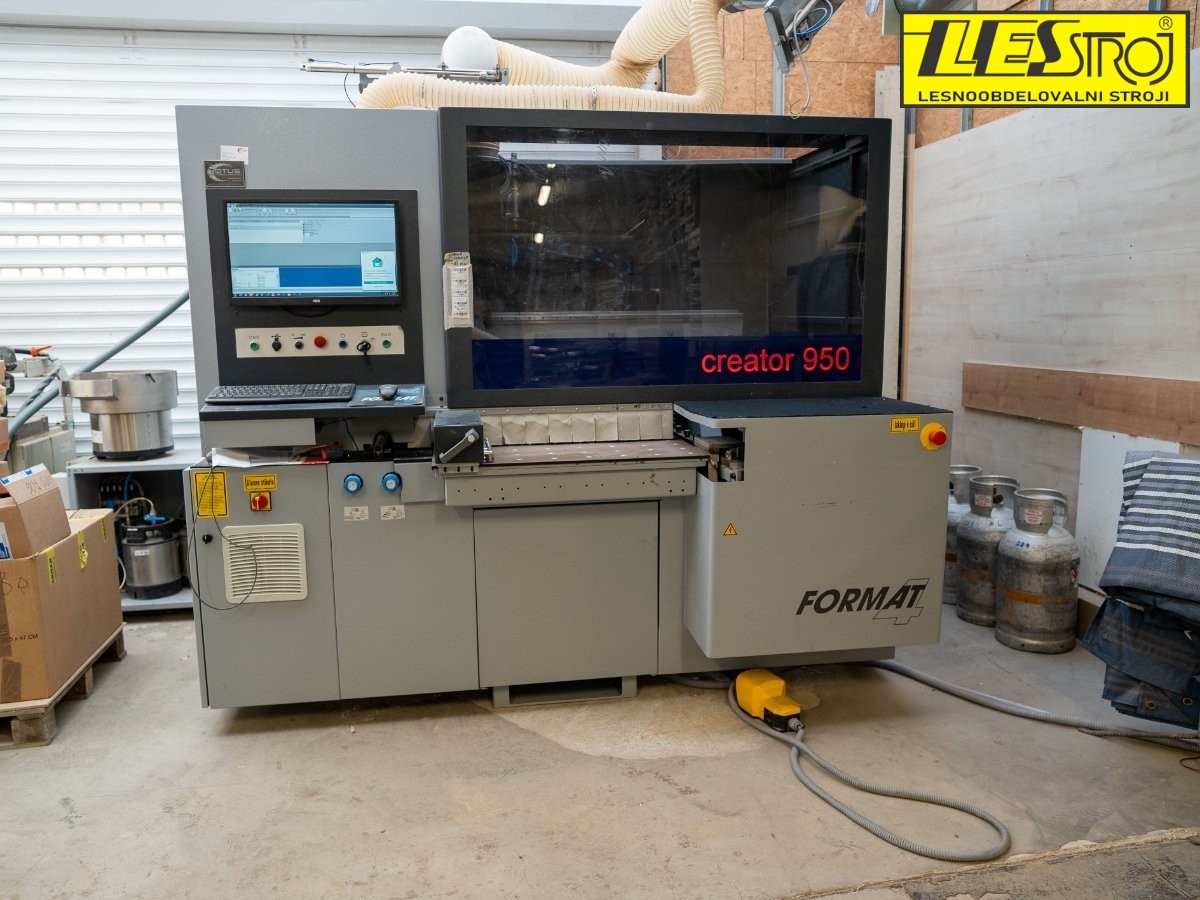

Felder Group Format4 Creator 950 Throughfeed CNC Machine (2019)

FELDER GROUP FORMAT4 CREATOR 950 (2019) WITH GLUE AND DOWEL INSERTION
Key Technical Advantages
- Occupies only 5 m² of space
Ideal for workshops with limited space.

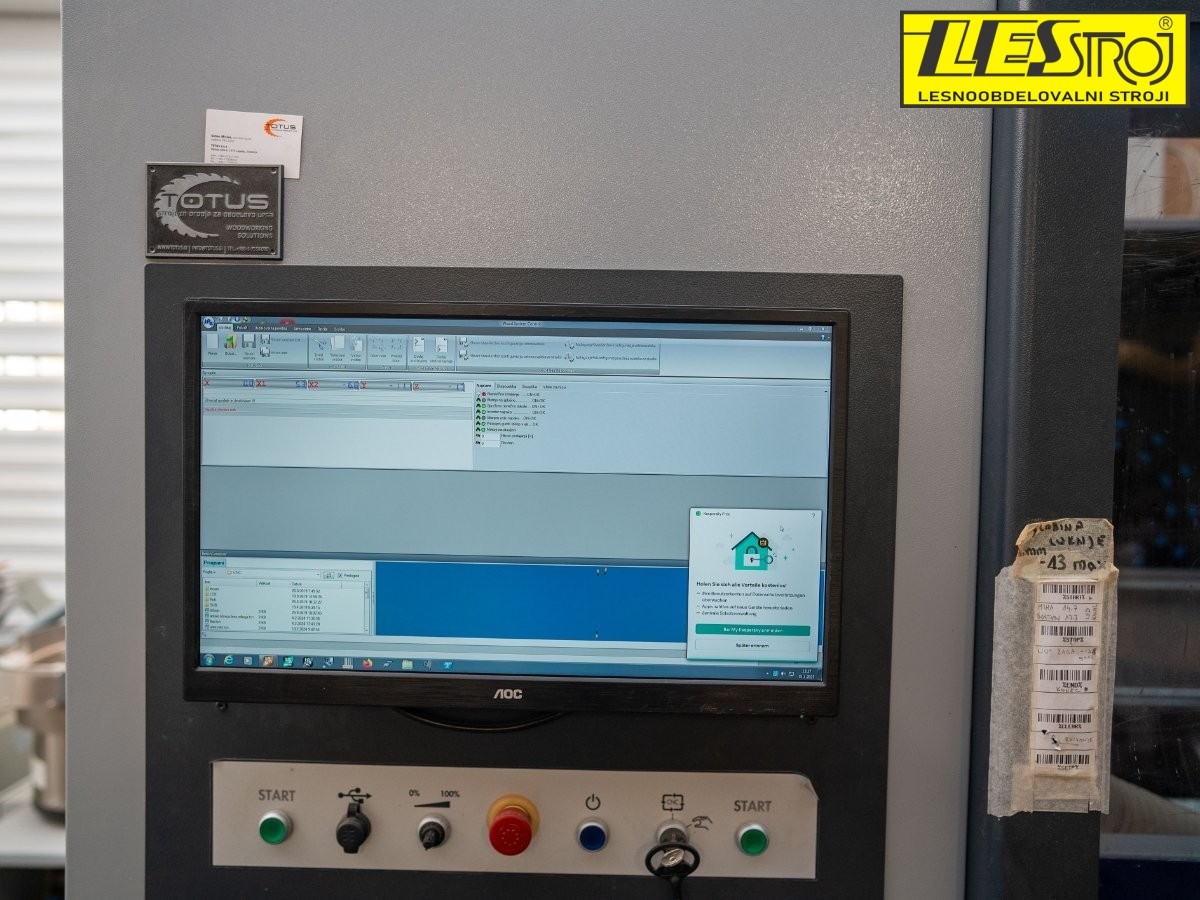

- Easy clamping and programming
Fast and intuitive operation, even for less experienced users.
- Compact, powerful, and fast
Perfect for smaller workshops seeking professional results.
Advanced Features

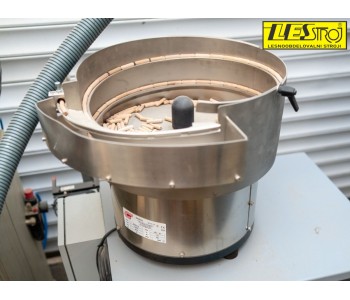

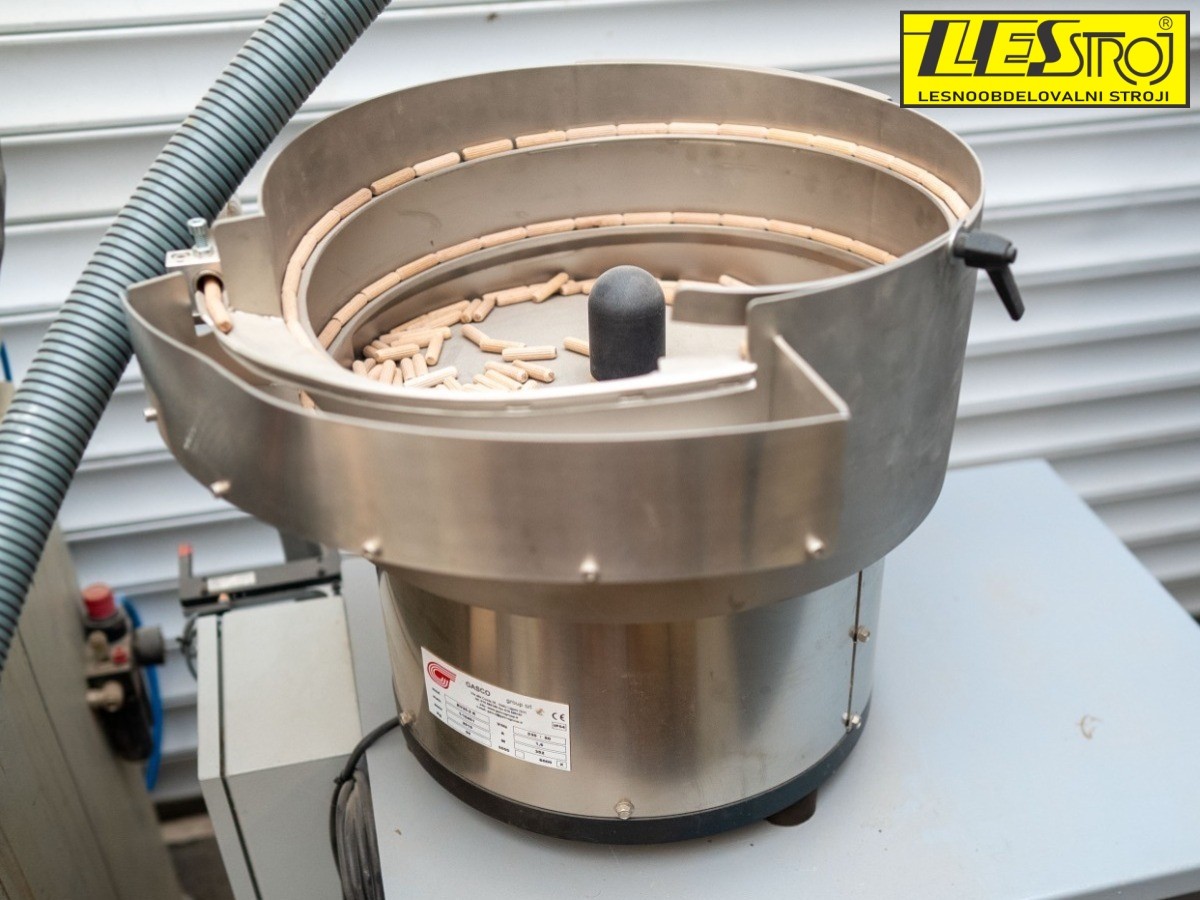

- Glue and dowel insertion unit
- 12 kW milling unit (up to 24,000 rpm)
- Automatic workpiece length measurement

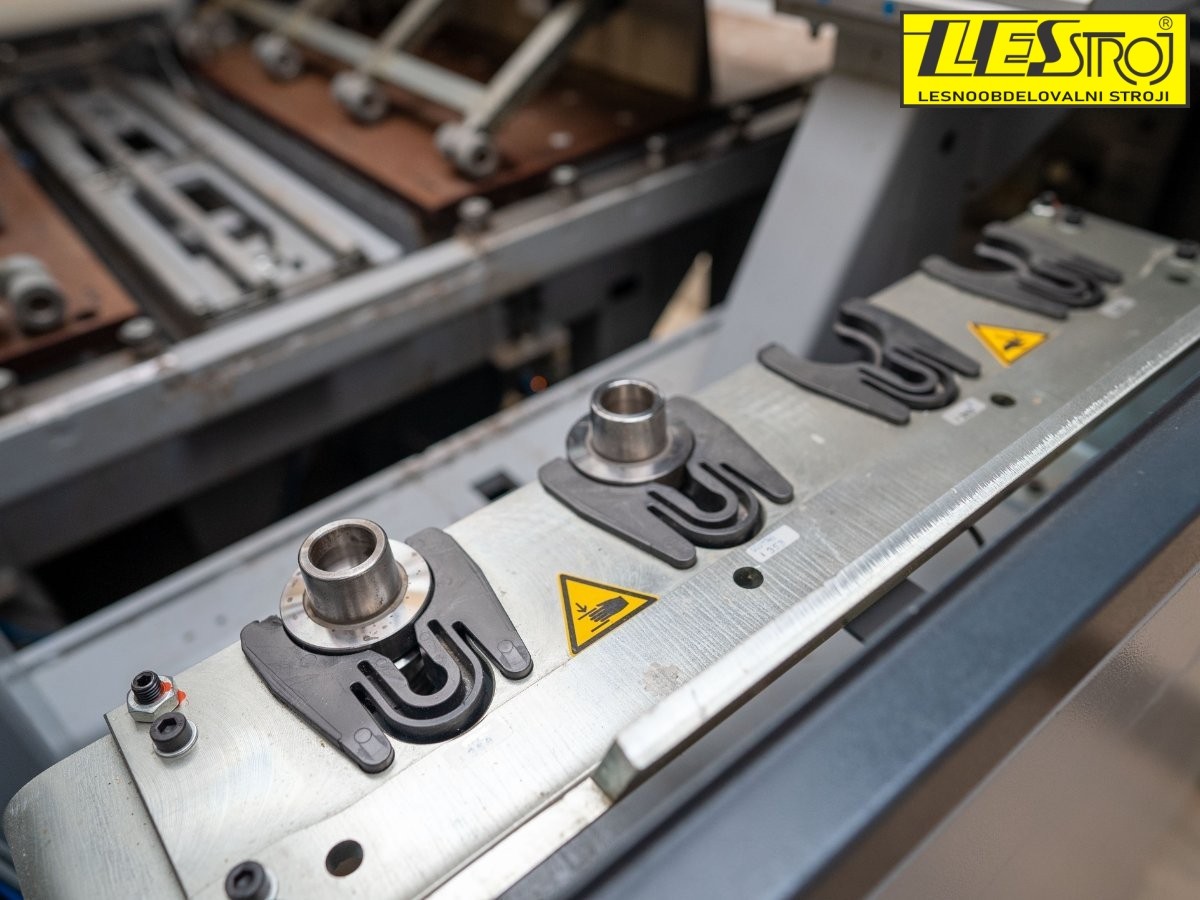

- Automatic tool changer (linear tool magazine with 4 positions)
- Drilling from all five sides
- Groove cutting with integrated saw blade
- Processing from all four sides of the workpiece
- Door panel machining

Drive Unit
- Spindle: HSK F63
- Number of axes: 3
Travel Distances
- X-axis travel: 3000 mm
- Y-axis travel: 950 mm
- Z-axis travel: 80 mm
Tools
- Maximum tool weight: 7.5 kg
Worktable
- Table load capacity: 130 kg
Additional Equipment
- Online remote service support package
- Automatic central lubrication
