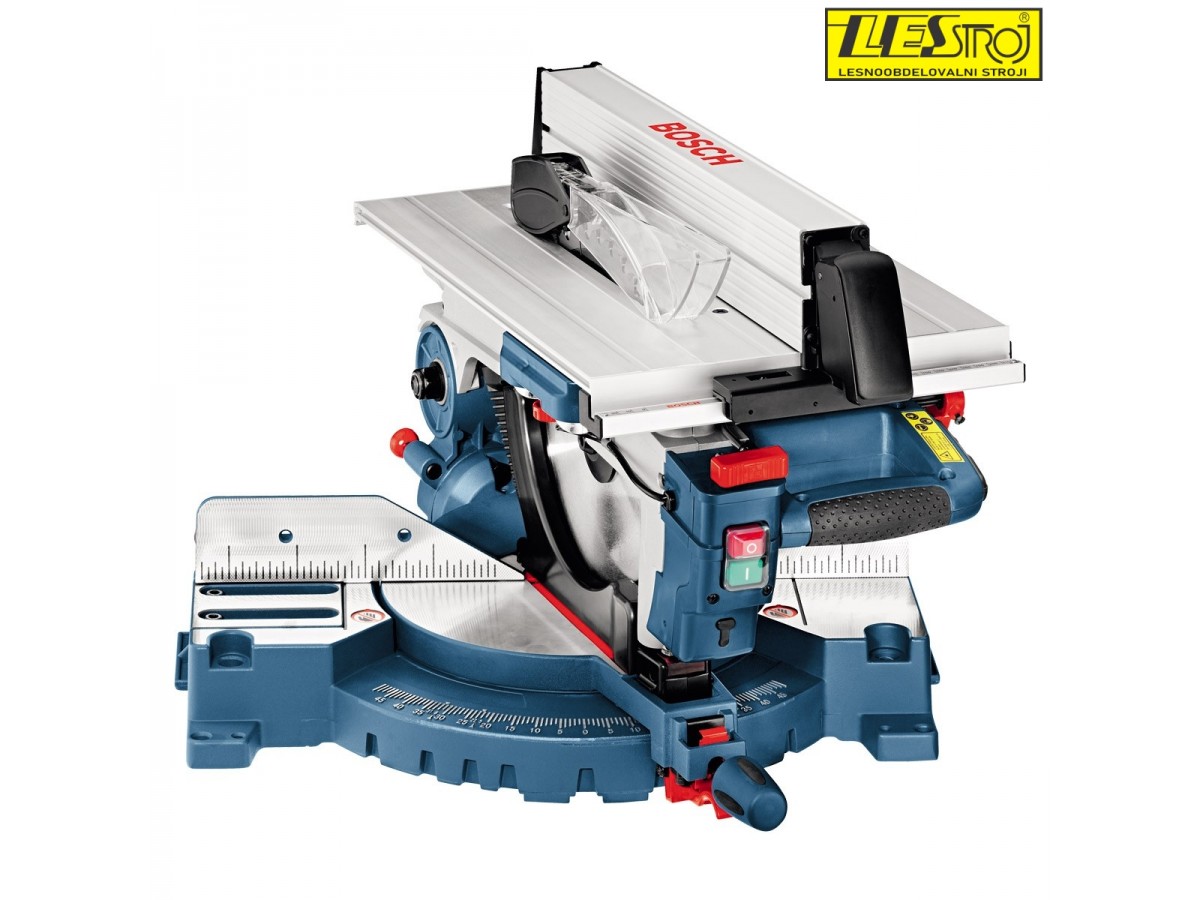

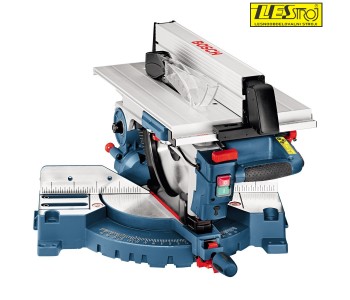

GTM 12 Bosch combination mitre/table saw
Versatile miter saw for angled and lengthwise cutting.
The Bosch GMT12 miter saw is a miter and table saw with high precision.
Advantages
- It has an integrated light for working in poor light conditions and a laser light for accurate cutting.
- Added dust bag.
The saw blade has a diameter of 305 mm, so the rectangular cut is 151 mm and 95 mm in height.
The cutting height on the longitudinal cutting table is 51 mm. The saw has a vertical angle of +- 48 degrees and a horizontal angle of -2 to +47 degrees.
The Bosch circular saw is similar to the Makita GMT12 saw.
Data sheet
- Saw blade diameter (mm)
- 305
- Power (kW)
- 1800
- Idle speed revolutions (rpm)
- 4300
- Saw blade bore (mm)
- 30
- Angle adjustment
- 48 ° L / 48 ° D
- Tilt adjustment
- 47 ° L / 2 ° D
- Cutting capacity 0° (mm)
- 95 x 151
- Cutting capacity 45° (mm)
- 95 x 90
- Volume (dB (A))
- 104
- Weight (kg)
- 22,5
- Machine gross dimensions
- 660 x 550 x 400
