Dust extraction unit SAF Teknik E-3500, airflow 3500 m³/h

Excellent SAF dust extraction unit with a 3 kW motor15 filters with a total surface area of 7.76 m²airflow of 3500 m³/h, and two collection bags for wood dust with a volume of 200 L.

Call for price
Request for more information

Product inquiry

I want contact by: *

Contact details:

Product available for orders
Reference:
015718
Description

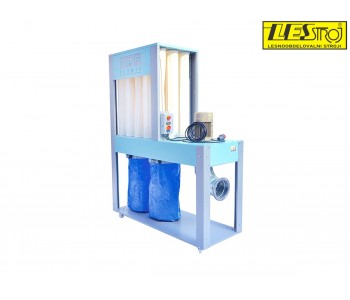

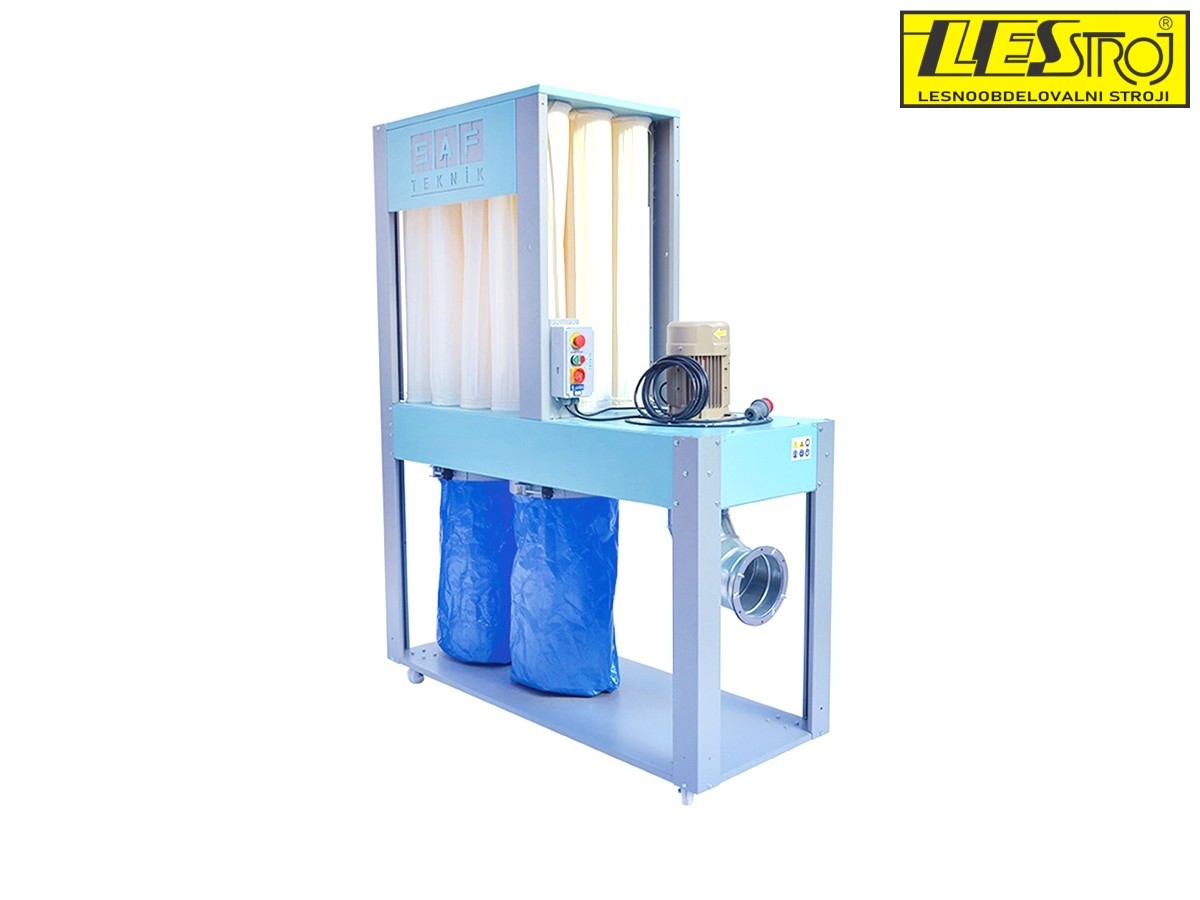

SAF Teknik E-3500 Dust Extraction Unit



The mobile SAF E-3500 dust extractor will satisfy any carpenter who needs a high-quality extraction unit for removing wood dust and sawdust from woodworking machines with higher air consumption or from two smaller machines.

Thanks to its wheels and compact dimensions, the unit is suitable for smaller workshops where the machine occasionally needs to be moved from one place to another.

The dust extraction unit is equipped with 15 bag filters with a diameter of 160 mm and a length of 1030 mm, ensuring higher airflow compared to similar machines with a single larger filter.

An advantage of SAF extraction units is also their metal impellers made of 3 mm thick steel, which are precisely balanced and ensure smooth and quiet operation.

Product Details
015718

Data sheet

Motor power (kW)
3
Maximum extraction capacity (m3/h)
3500
Flow rate (m/s)
30
Filtering area (m2)
7,76
Collection bag volume (liters) (l)
200
Extraction outlet diameter (mm)
200
Weight (kg)
120

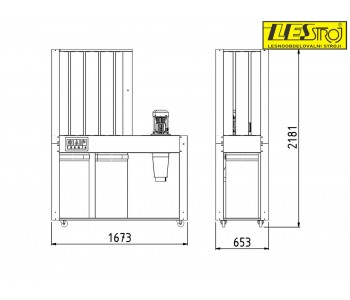

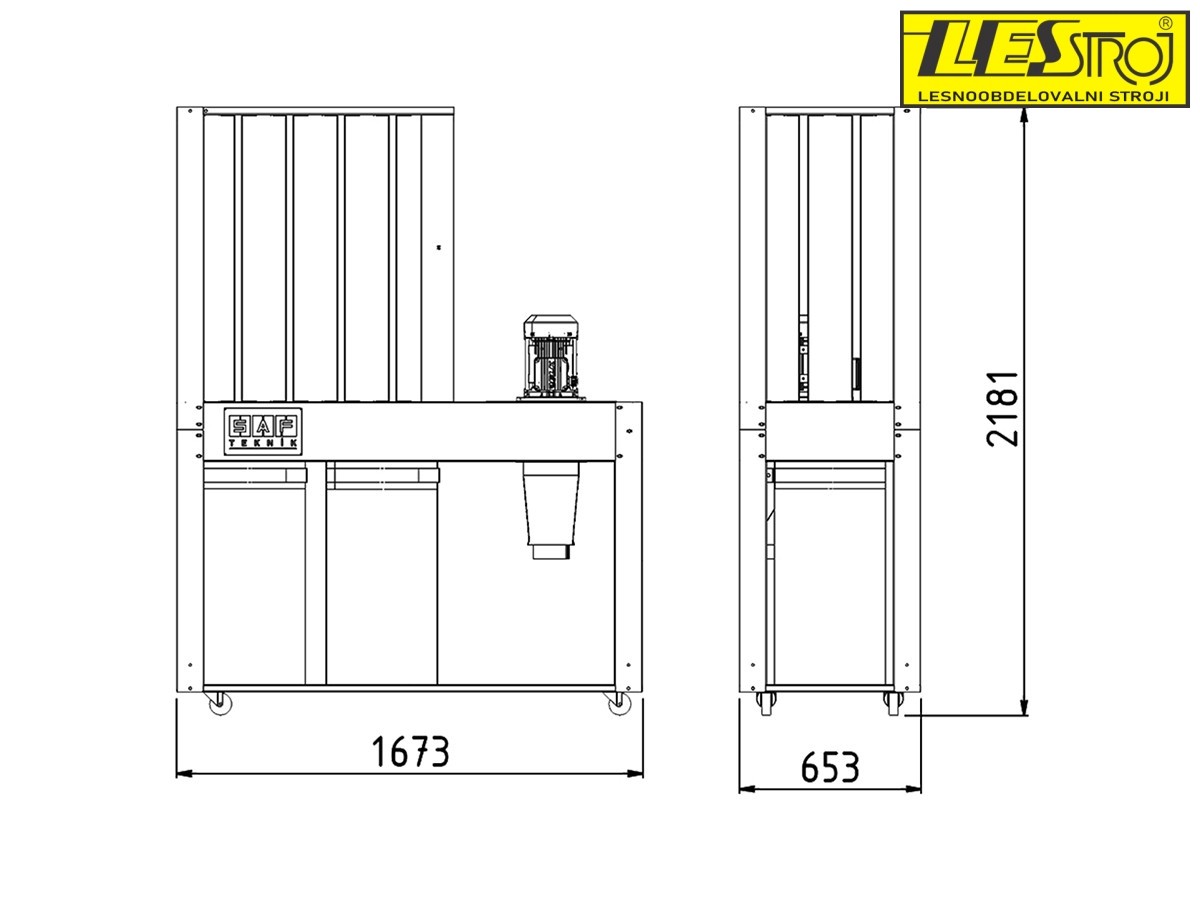

Machine external dimensions (LxWxH)
1673 x 653 x 2181 mm
