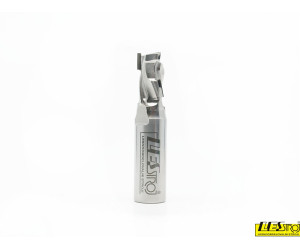

Diamond router bit 143 for hard materials

The diamond router bit CMT 143 is intended for cutting hard materials, such as the compact panels and other composite panels, such as HDF, MDF, chipboard panel and similar.

We may sharpen the router bit up to 12 times.

Limited special offer
€339.15 €357.00 -5%

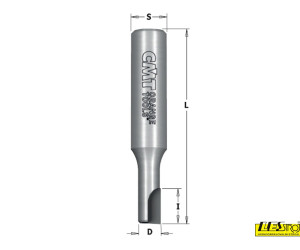

Diameter (D)
Cutting length (I)
Shank diameter (S)
Total length (L)
No. of cutting edges (Z)
There are not enough products in stock
Reference:
015995
Brand:
Description

The diamond rezkar CMT 143 is intended for use on all CNC machines for making joints, grooves, rabbets, etc.

The router bit is especially suitable for processing hard materials, such as the compact panels, panels layered with melamine resins (ultra pas) and similar.

The DIA router bit has 3 flutes, on which there are 10 or 36 diamond cutting edges.

The main advantage of the router bit is thicker layer of diamond particles, which allows us to sharpen it up to 12 times!

High-performance router bit for most demanding operations.

Product Details
015995

Specific References

Other product combination
Model Diameter (D) Cutting length (I) Total length (L) No. of cutting edges (Z) Shank diameter (S) Unit price Buy Avail.
143.180.61 18 mm 25 mm 82 mm 10 DIA + 1 HM 20x50 mm
€357.00
– 5%
€339.15
Call us
143.182.61 18 mm 35 mm 92 mm 15 DIA + 1 HM 20x50 mm
€511.20
– 5%
€485.64
Call us
143.202.61 20 mm 35 mm 92,5 mm 15 DIA + 1 HM 20x50 mm
€504.00
– 5%
€478.80
Call us
143.205.61 20 mm 50 mm 106,5 mm 24 DIA + 1 HM 20x50 mm
€705.60
– 5%
€670.32
Call us
143.208.61 20 mm 65 mm 121,5 mm 31 DIA + 1 HM 20x50 mm
€943.00
– 5%
€895.85
Call us
 Product is available
 Product is no longer in stock
 Product is no in stock, but is allowed to be back-ordered
