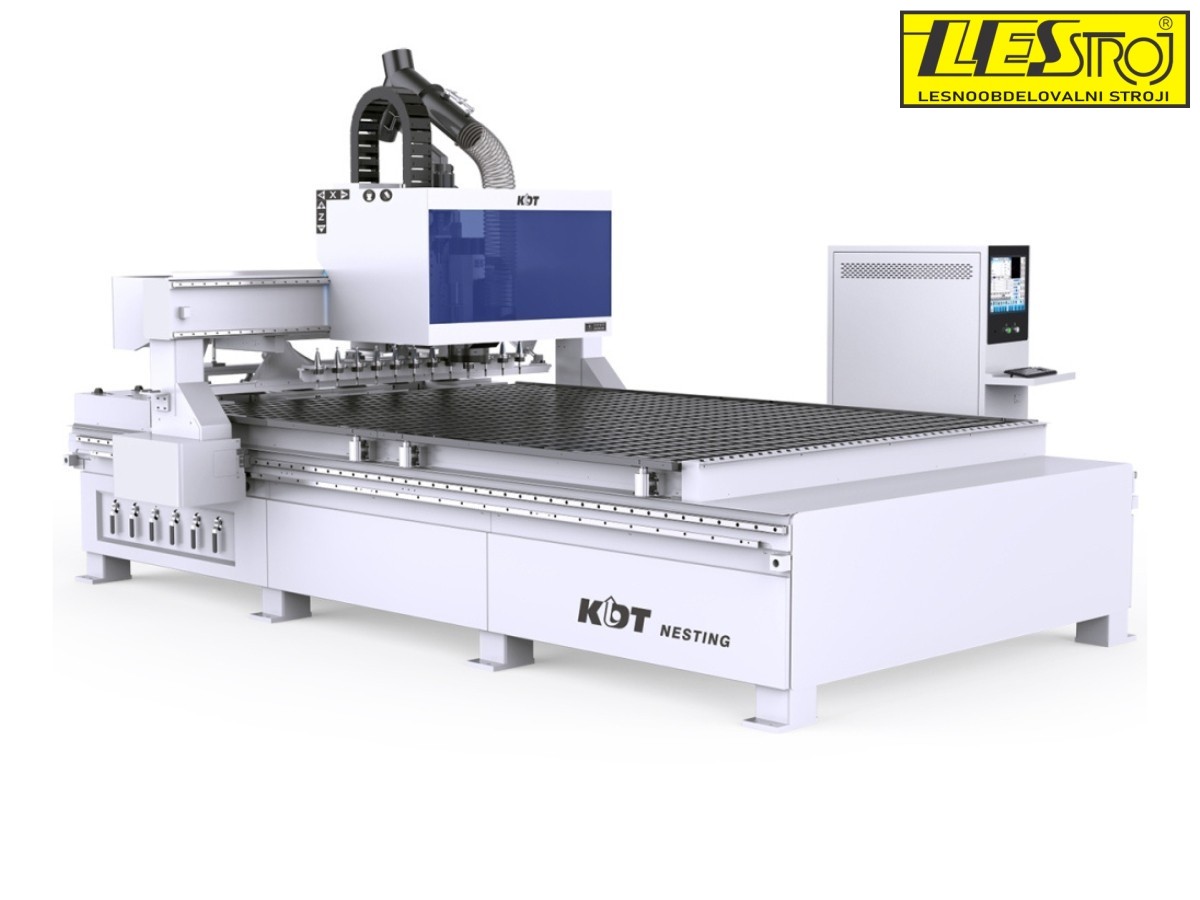

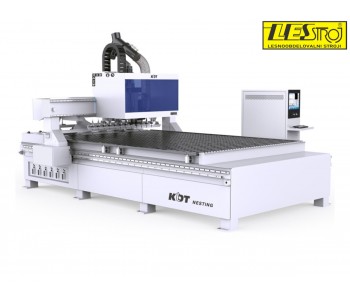

CNC Nesting Machine KDT KN-2710DL
The KDT KN-2710DL CNC machining center is an industrial 3-axis nesting CNC machine designed for high-precision processing of flat materials (e.g. furniture panels, MDF, particle board). It is equipped with a powerful 9 kW ISO-30 spindle, a 12-position automatic tool changer, a vacuum work table, and LNC CNC control, enabling fast and repeatable machining operations as well as automated production of larger component series. The machine is designed for efficient production, reliable material clamping, and optimized workflow processes.
CNC nesting machine KDT KN-2710DL is a robust and precise industrial machine designed for processing flat materials such as wood, MDF, particle boards, and composites. It features a large working area of 2150 × 3100 mm and an efficient axis travel speed of up to 80 m/min, enabling fast and accurate machining of components.

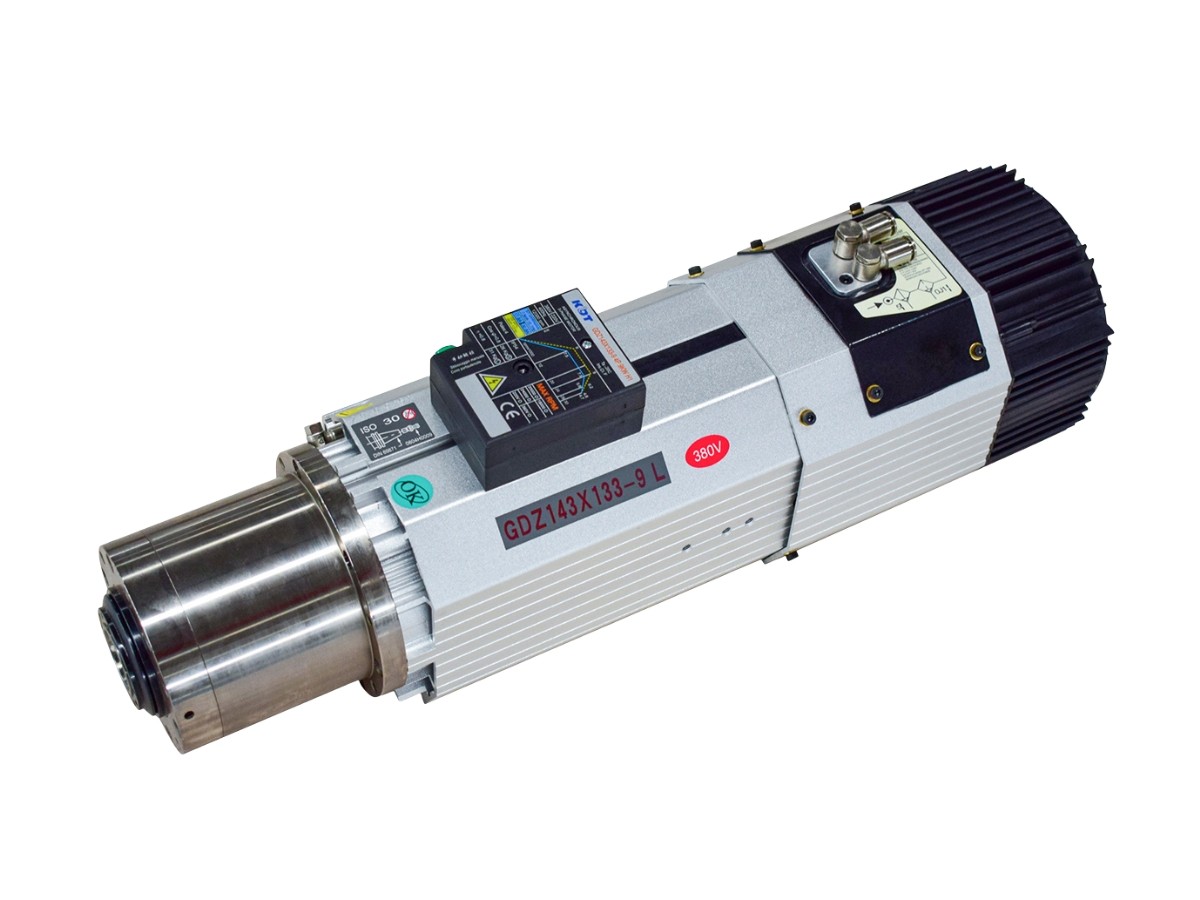

The machine is equipped with a powerful 9 kW electric spindle and a 12-position linear automatic tool changer (ATC), allowing multiple machining operations (cutting, drilling, profiling) without manual tool changes.
Programming and control are handled via the LNC CNC control system, while the vacuum system with a dual vacuum pump setup ensures reliable fixation of workpieces, even small ones.
A compact design for small workshops, featuring automatic labelling on the machine and minimal external dimensions for limited spaces. An affordable solution for every woodworker!
Main advantages:
- Large working area and high axis speeds for high productivity.
- Powerful 9 kW spindle and automatic tool changing for dynamic multi-operation processing.
- Stable industrial construction for precise results and long service life.
- Vacuum system with strong suction for secure material clamping.
Technical specifications
| Technical specification | Value |
|---|---|
| Control system | NCstudio (Taiwan) |
| Working area (X/Y/Z) | 3100 × 2150 × 60 mm |

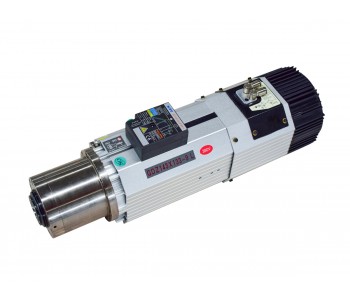

| Spindle | KDT, 9 kW, 24,000 rpm, ISO-30 |

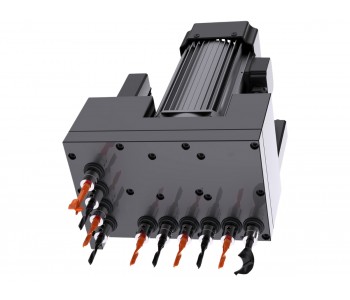

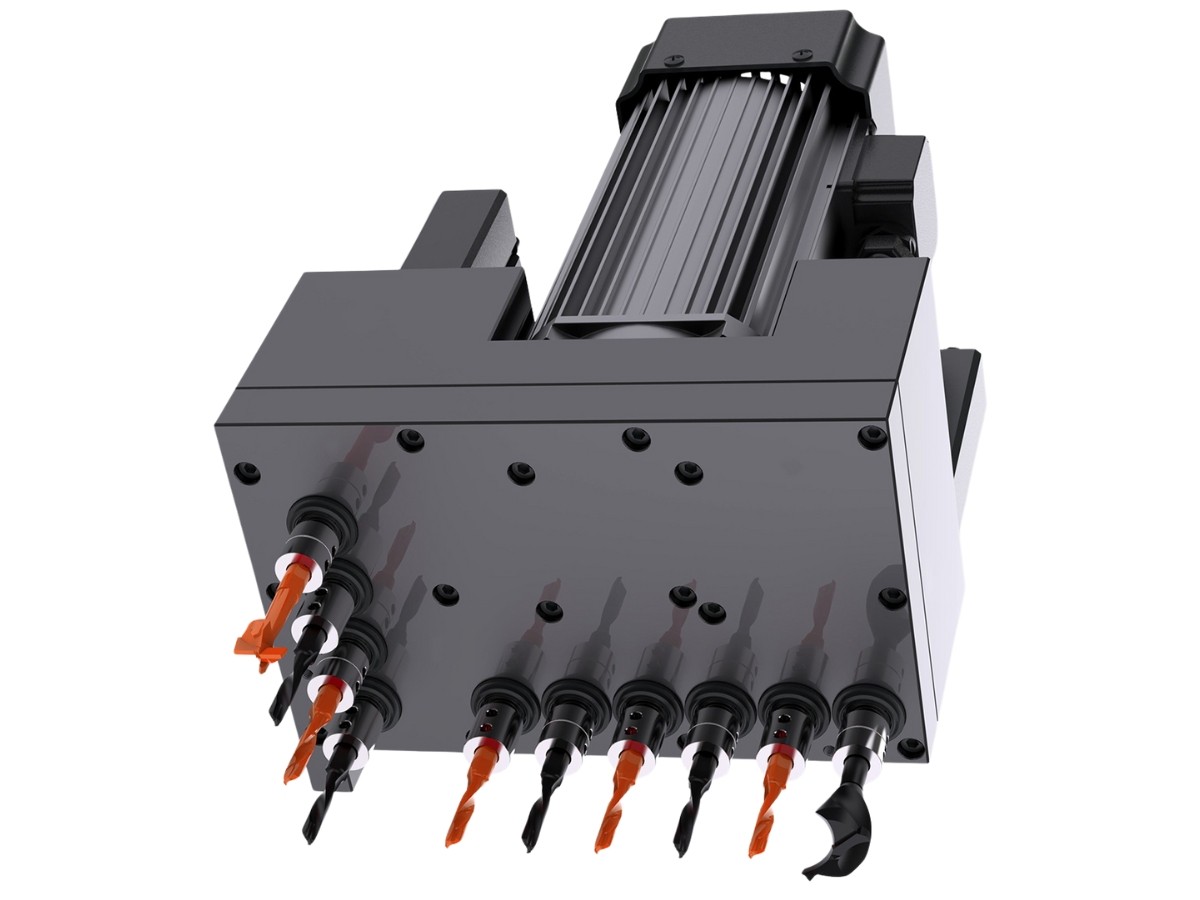

| Drilling head | 10 vertical spindles, 1.7 kW, 6,000 rpm |

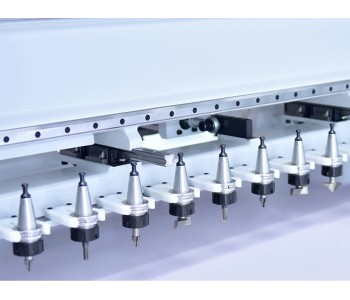

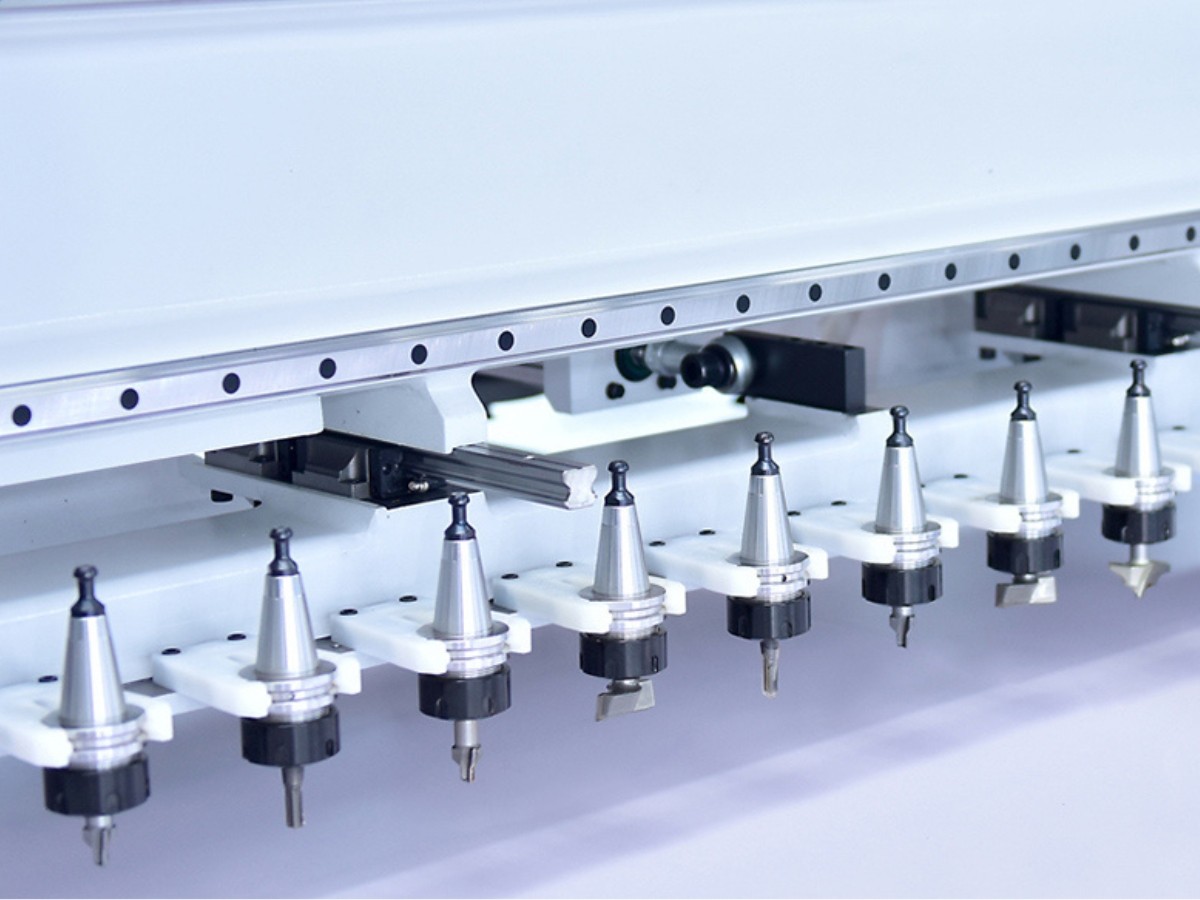

| Tool changer | 12-position linear tool changer |
| Travel speed X/Y/Z | 80 / 80 / 30 m/min |
| Servo motor power X/Y/Z | 2 × 1.5 / 1.5 / 1.5 kW |
| Vacuum zones | 6 (mechanically controlled) |
| Total power | 28.2 kW |

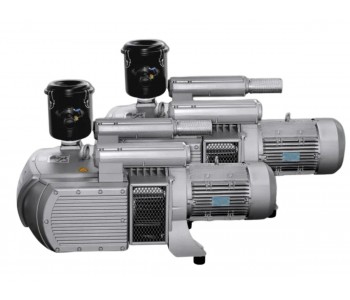

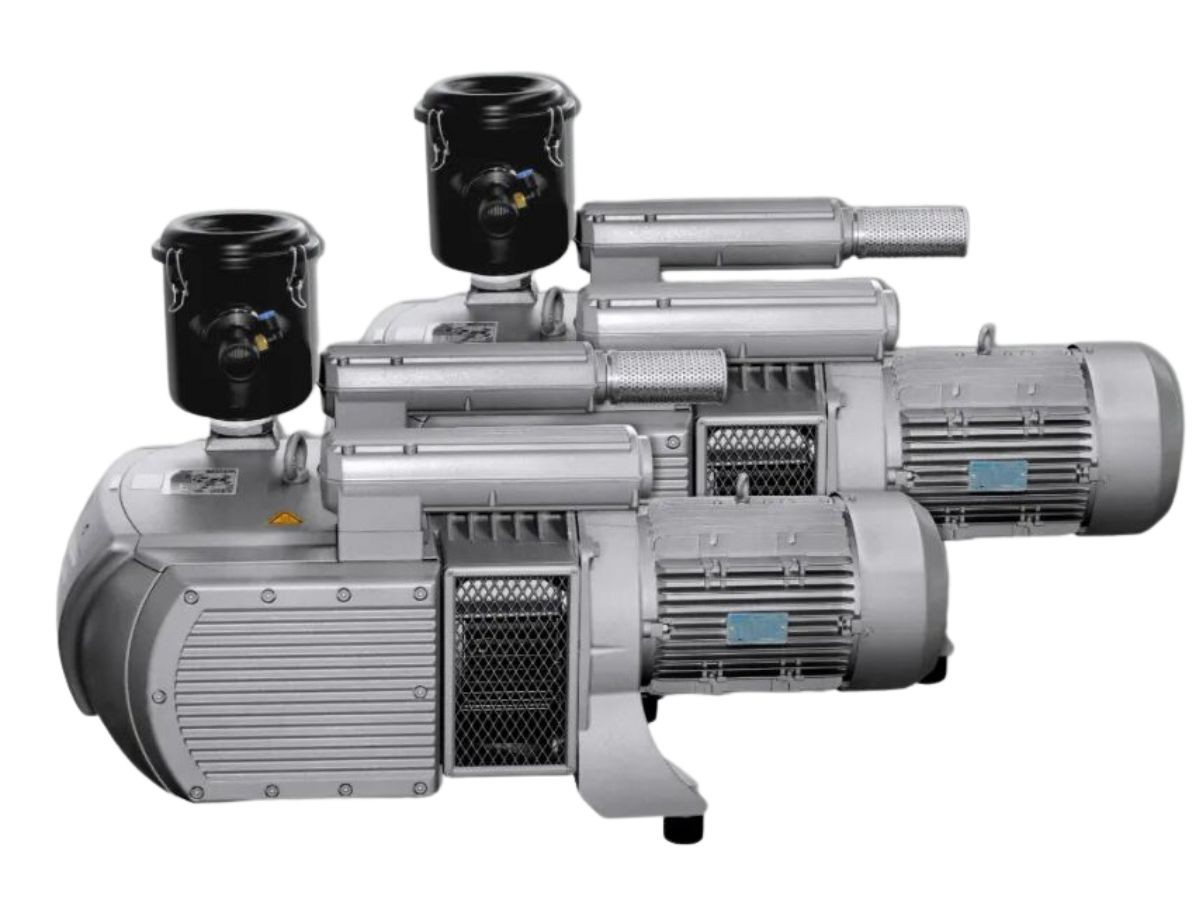

| Vacuum pump capacity | 2 × 250 m³/h |
| Dimensions (L × W × H) | 4330 × 3120 × 2450 mm |
| Machine weight | 5,000 kg |
Why choose KDT?
Productivity without compromise – one machine covers cutting and drilling without repositioning workpieces.
Lower labour and material costs – the operator can manage multiple processes simultaneously, while nesting optimisation increases material yield by up to +10%.
Robust industrial design – ensures precise cuts and long-term reliability.
Affordable investment – KDT keeps costs accessible, with readily available service and spare parts.
