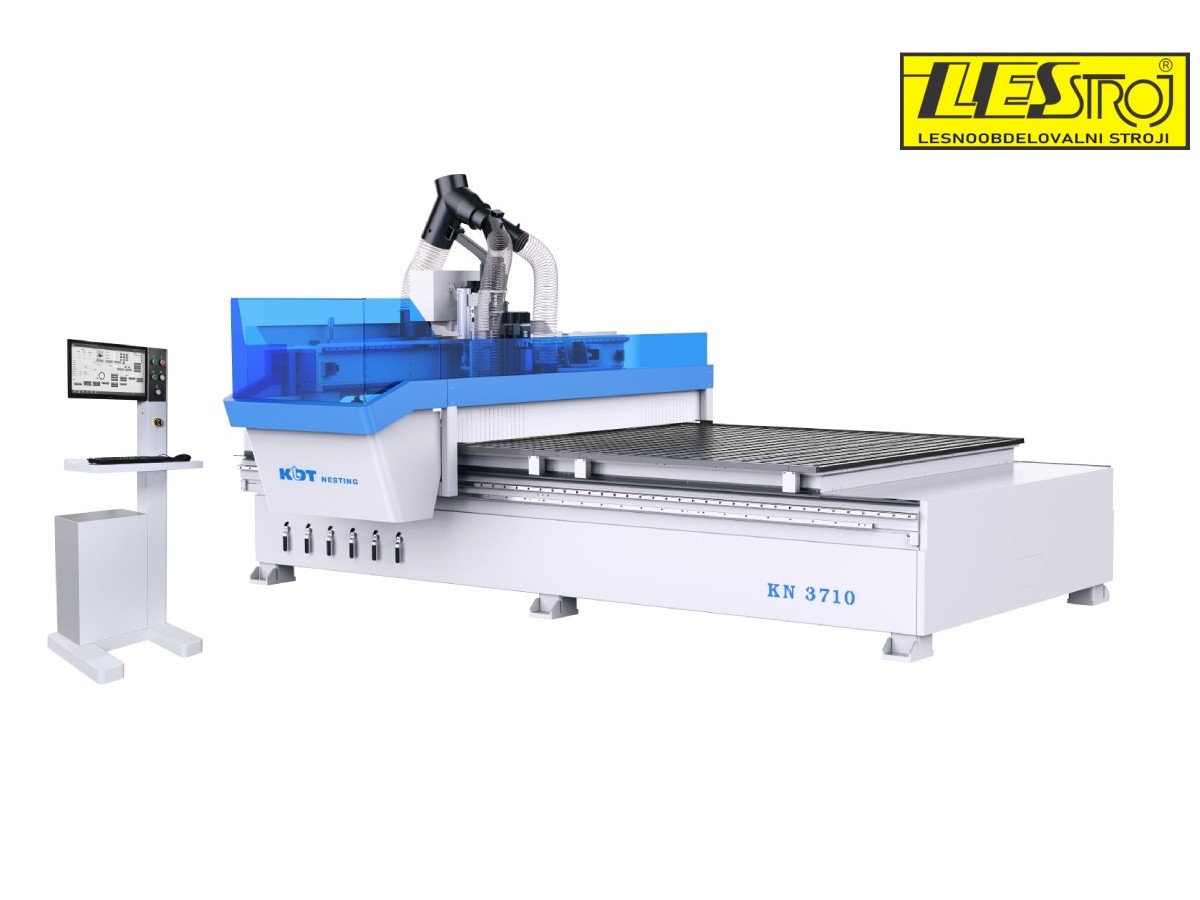

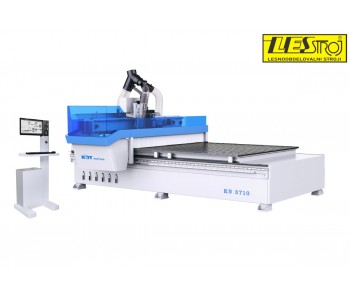

CNC Nesting machine – KDT KN-3710DE / DPC
Brand:
KDT CNC Nesting – Series 3 (KN‑3710DE / DPC)
The new Generation‑3 CNC Nesting line from KDT builds on the success of the earlier series, already used by many cabinet‑makers across Slovenia. Why are more and more shops skipping the classic panel saw and moving straight to a nesting CNC? Because you save one operator on cutting, shorten the entire production cycle, and squeeze more parts out of every sheet.

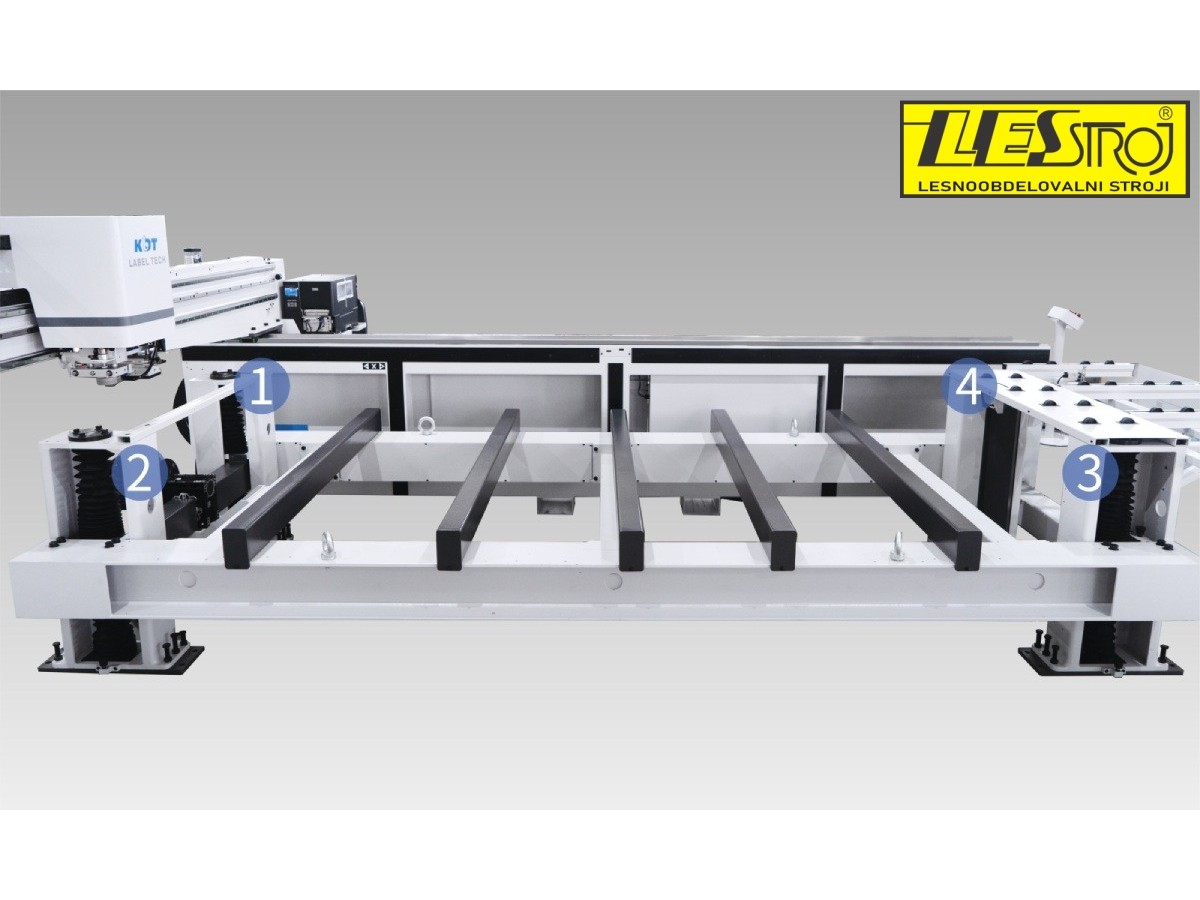

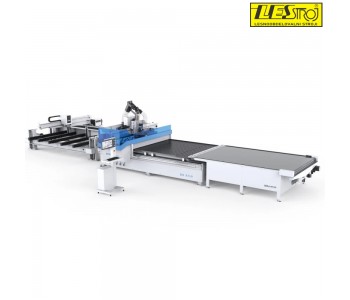

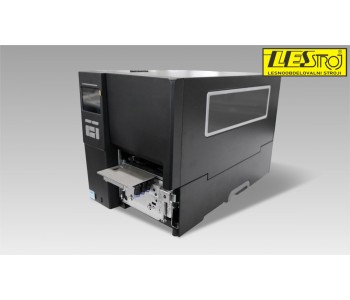

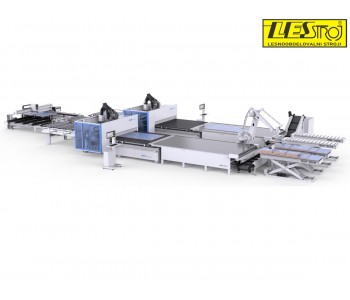

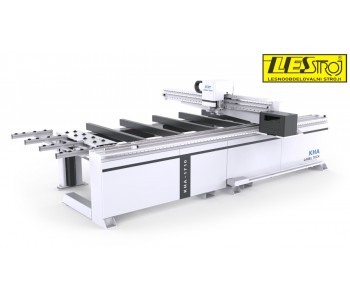

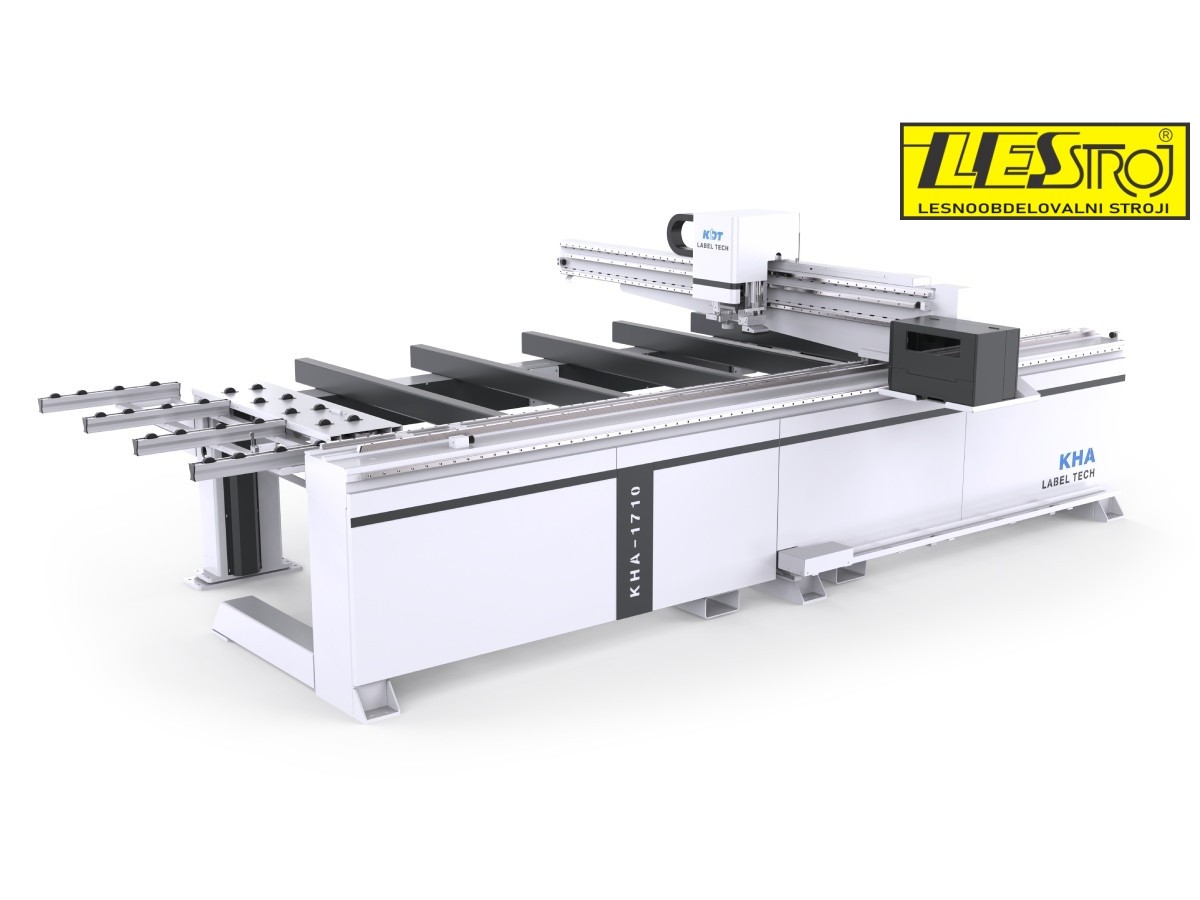

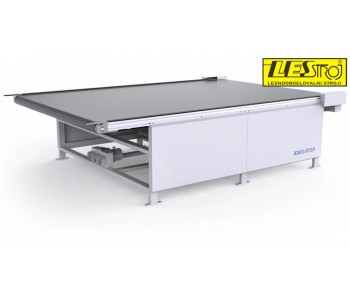

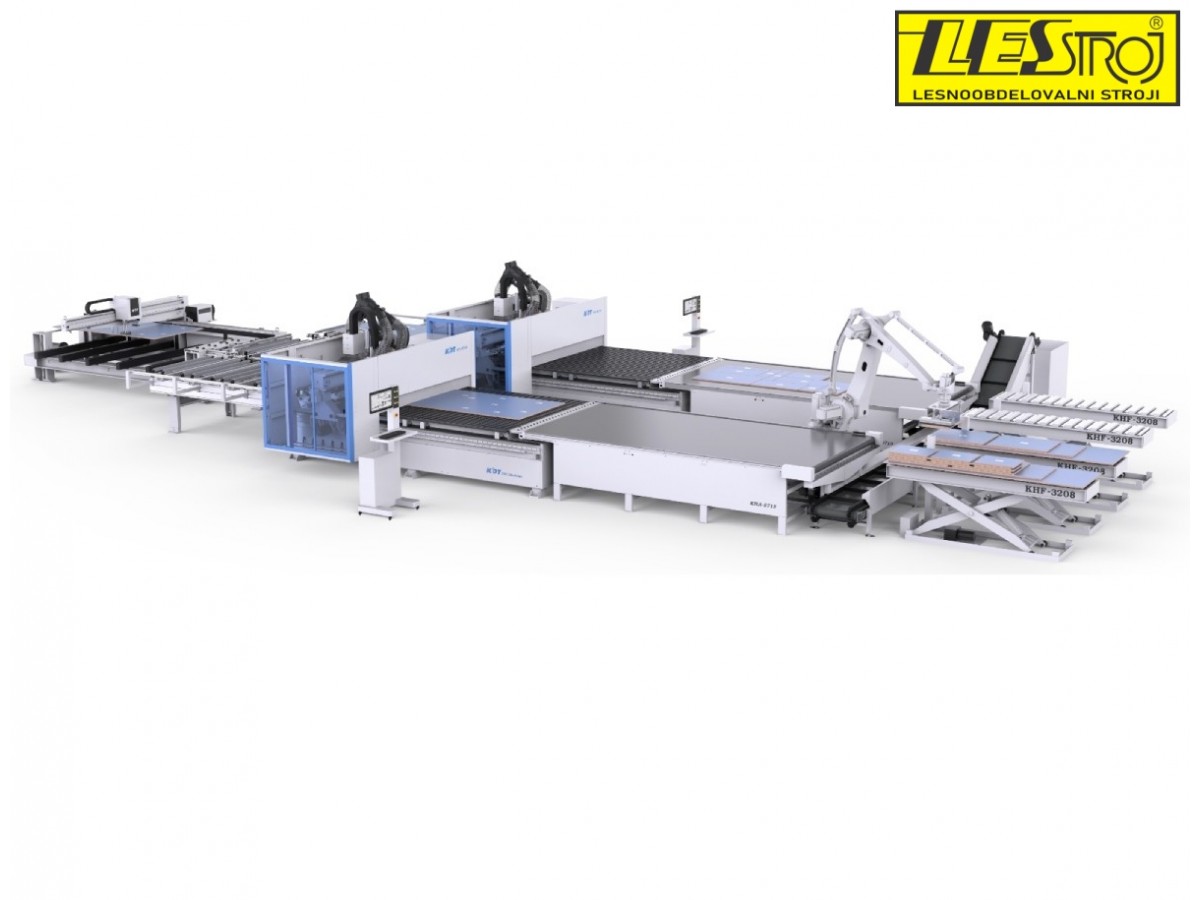

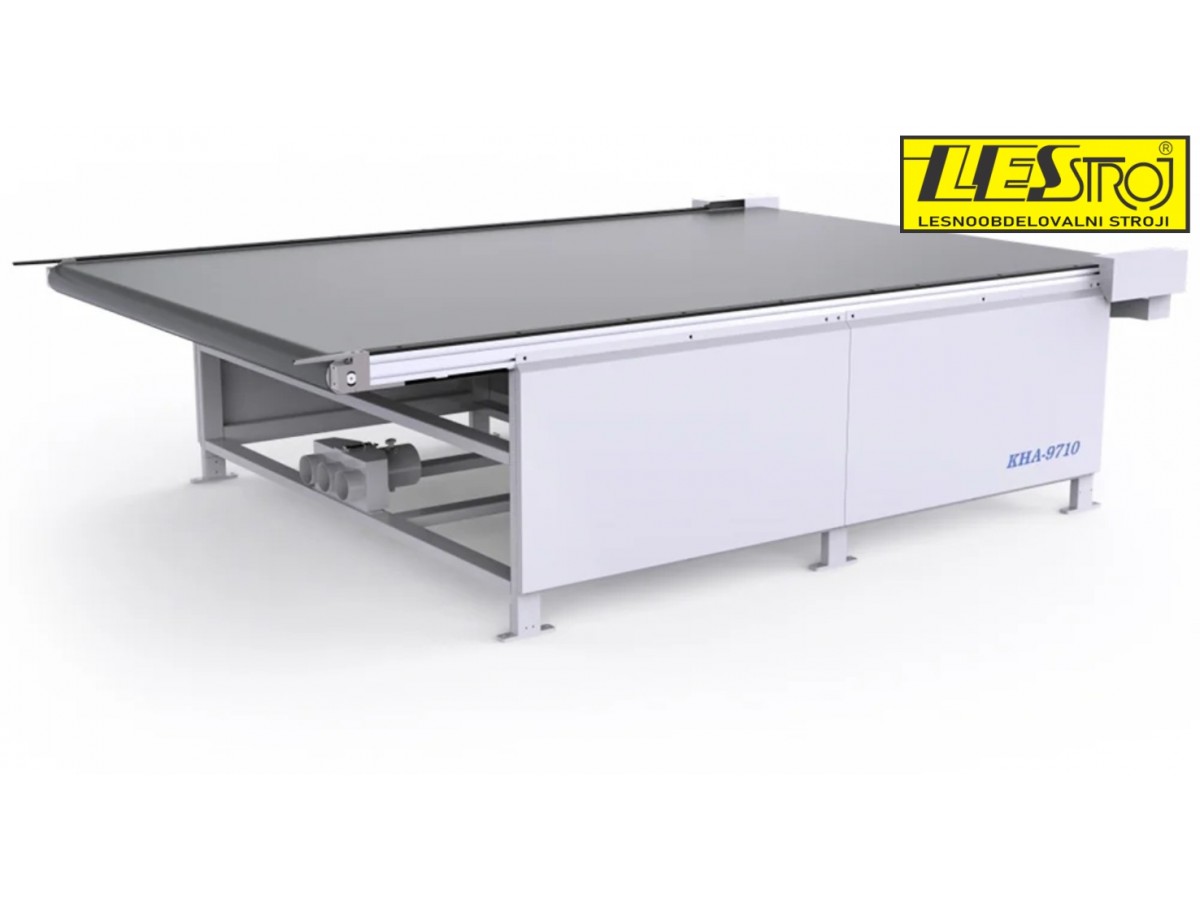

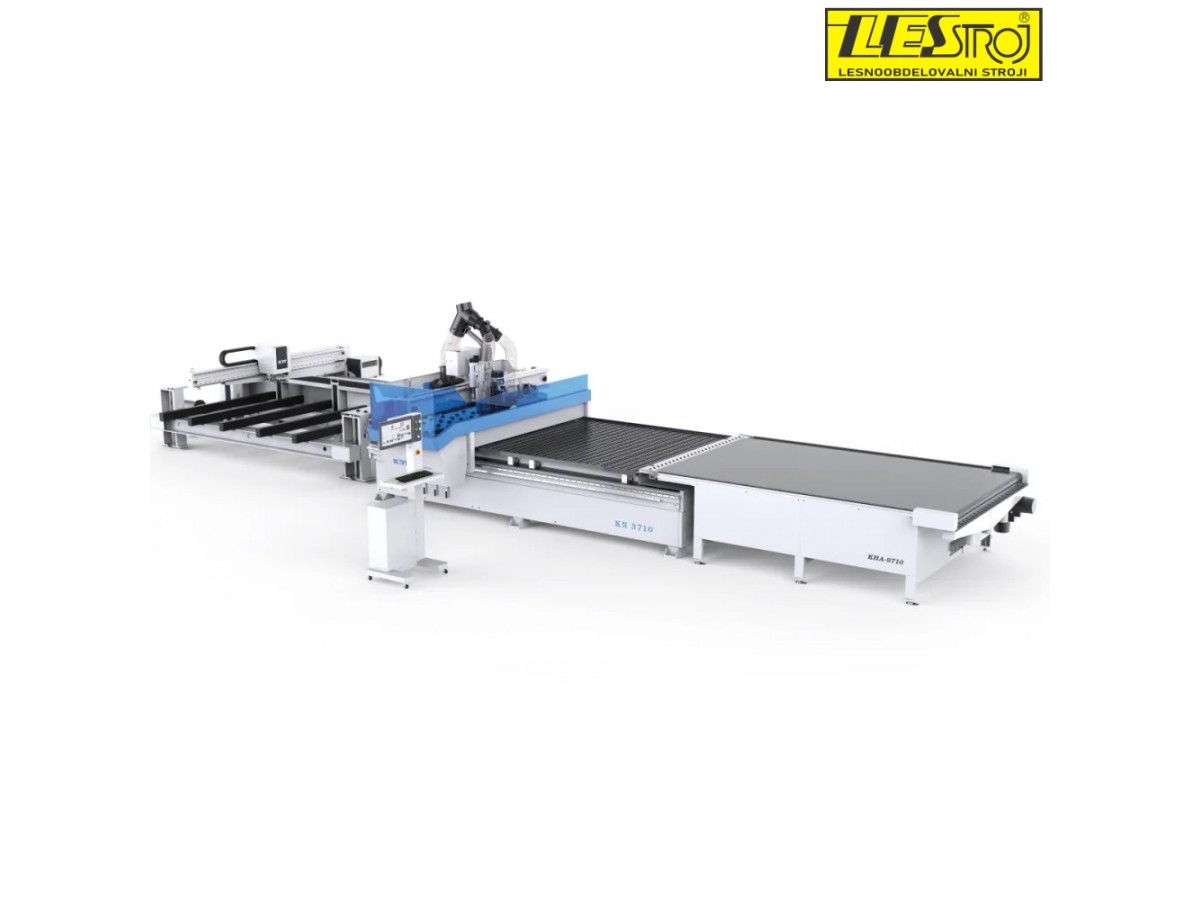

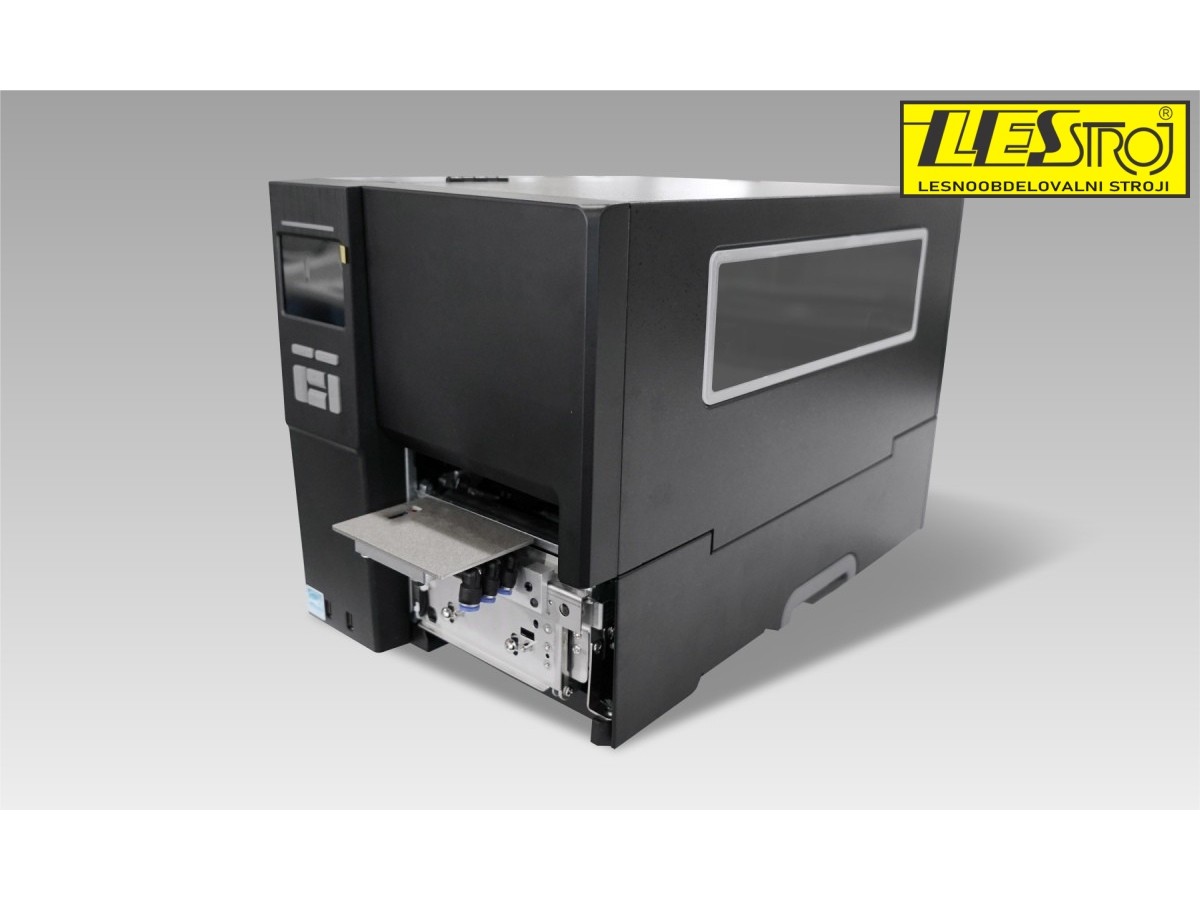

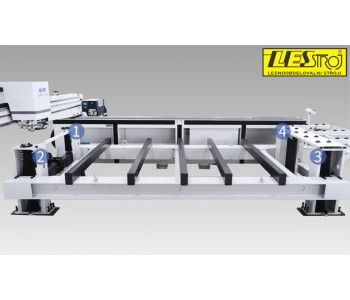

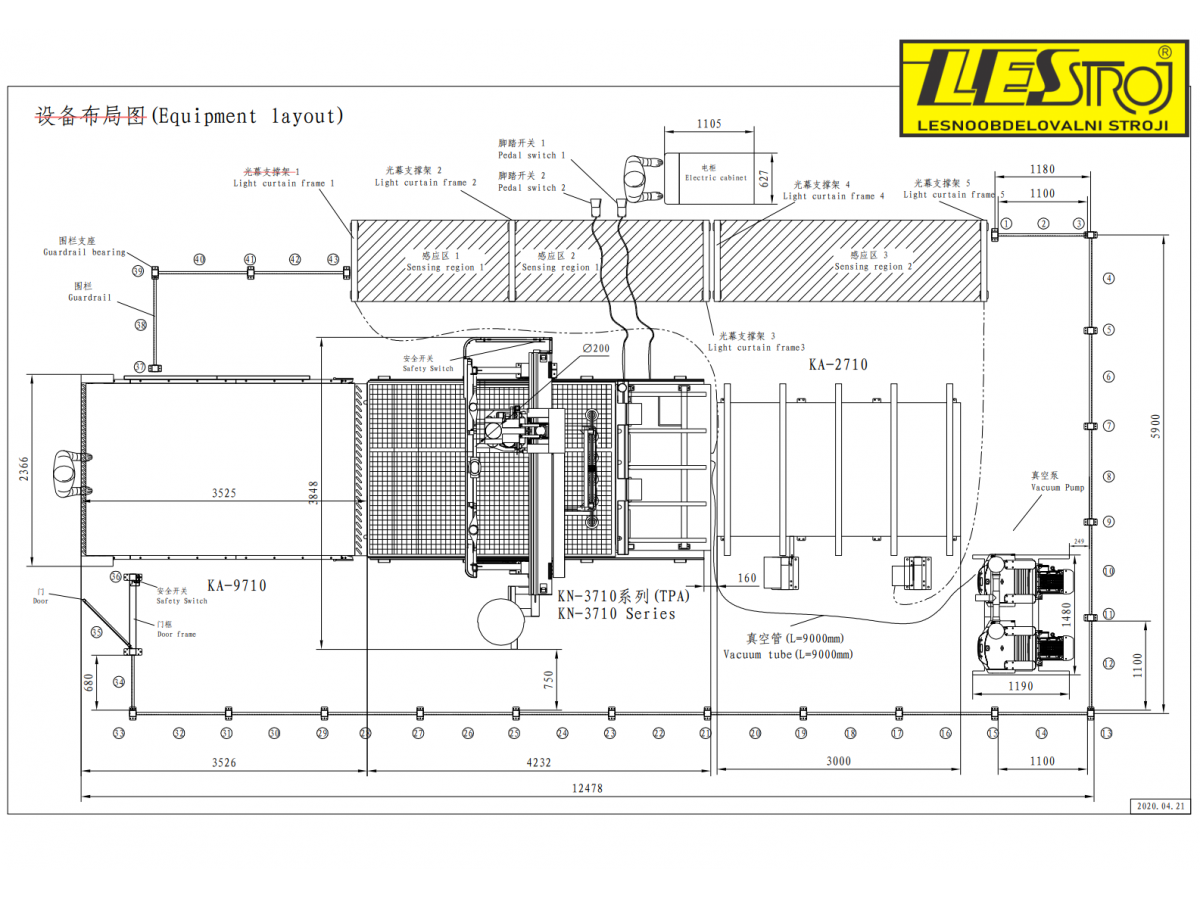

KDT offers a fully modular setup: the CNC machine, a lift‑table infeed with labelling, and an outfeed conveyor. If you start with just the CNC, you can upgrade later with the infeed and outfeed modules at any time—no extra retrofitting costs.
Key Advantages
- Welded gantry construction with integrated vacuum channels
Vacuum channels are part of the frame, making the table extremely rigid and ensuring suction power is evenly distributed across the entire surface – even the smallest pieces stay fixed during rapid movements. - High speeds, less tool wear
The routers run smoothly, cuts are clean, and tool life is extended because the machine maintains optimal cutting speeds throughout the process. - Fully equipped as standard
KDT is designed as a package: the base CNC comes standard with side alignment guides, vacuum grippers for positioning the panel on the machine, automatic centering, manual or automatic vacuum zones, powerful TPA controller, strong vacuum and efficient switching extraction – all without expensive additional options.
Technical data:
| # | Parameter | Value |
|---|---|---|
| 1 | Operating system | TPA |
| 2 | Drive system | INVT |
| 3 | Vacuum capacity | 2×244 m³/h |
| 4 | Vacuum zones | 6 |
| 5 | Effective working area | 3100mm × 2150mm × 100mm |
| 6 | Spindle | 12kW (HSK-F63) |
| 7 | Drill head | 10V |
| 8 | Number of tool changers | 12 positions |
| 9 | Size and quantity of extraction hood | Φ200mm × 1 |
| 10 | Total power | 31.6 kW |
| 11 | Overall dimensions | L×W×H = 4500mm × 3350mm × 2415mm |
| 12 | Maximum feed speed | X: 80 m/min; Y: 80 m/min; Z: 30 m/min |
| 13 | Working pressure | 0.65 MPa |
Details that matter
- Automatic panel alignment ensures every piece starts from an exact zero point – no manual corrections.

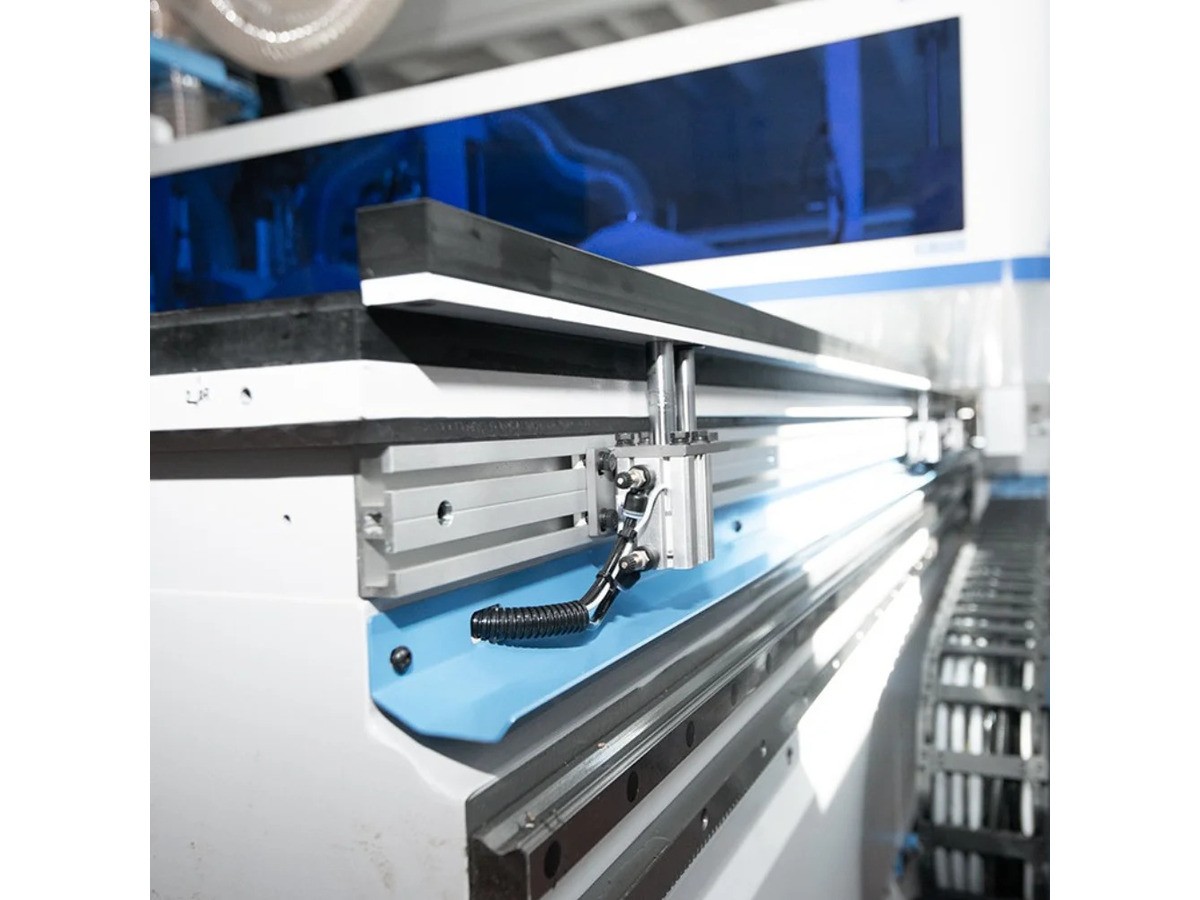

- Lift-up side guides protect the workpiece from shifting during fast X/Y movements.
- Tool calibration sensor precisely sets the tool length and reduces the risk of errors.
- Optional vacuum grippers on the worktable enable complex 5-sided machining.
Why choose KDT?
- Productivity without compromise – one machine covers cutting and drilling, with no repositioning of workpieces.
- Lower labor and material costs – the operator can monitor other processes simultaneously,
