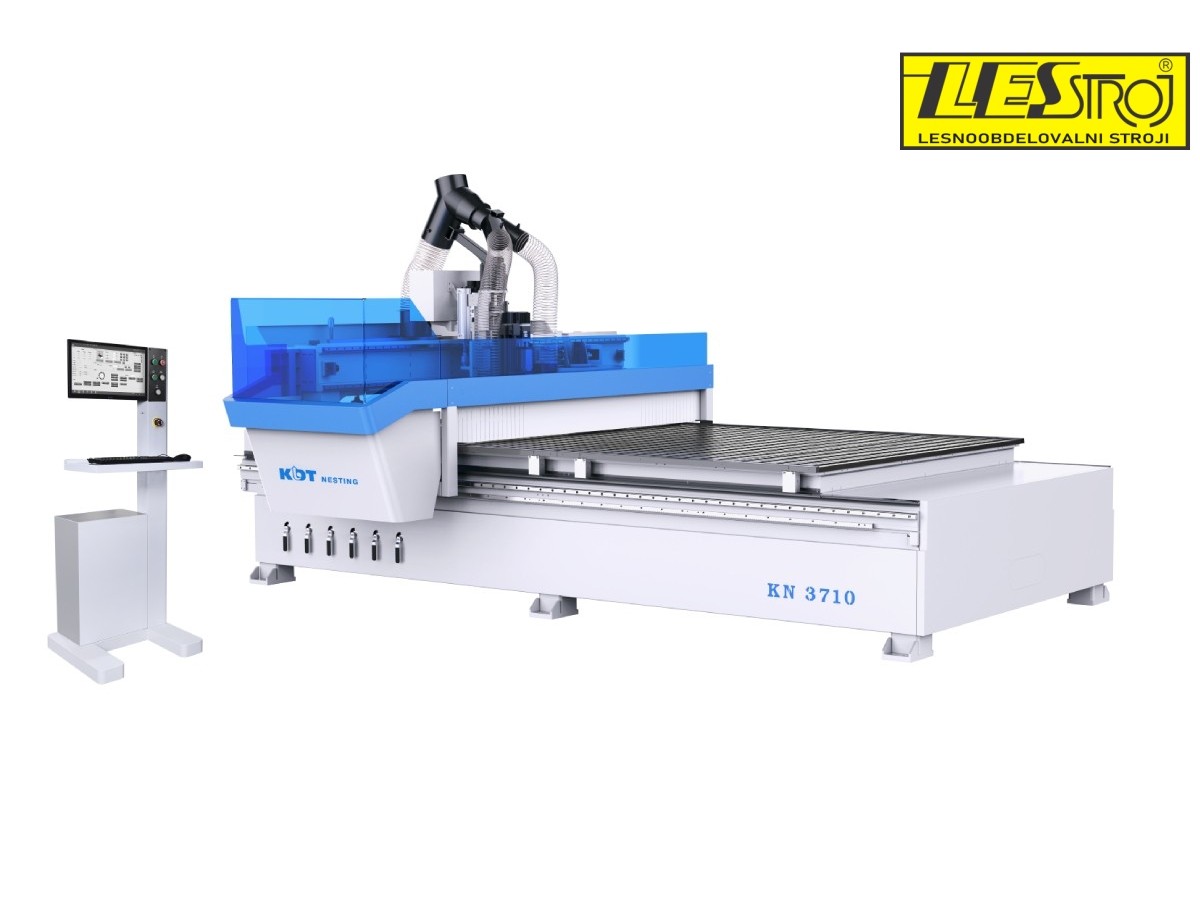

CNC Nesting machine – KDT KN-3710D

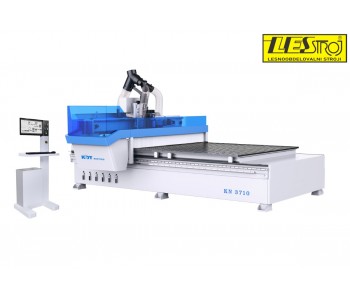

KDT CNC Nesting – Series 3 (KN‑3710DE / KN‑3713DE)
The new Generation‑3 CNC Nesting line from KDT builds on the success of the earlier D‑Series, already used by many cabinet‑makers across Slovenia. Why are more and more shops skipping the classic panel saw and moving straight to a nesting CNC? Because you save one operator on cutting, shorten the entire production cycle, and squeeze more parts out of every sheet.

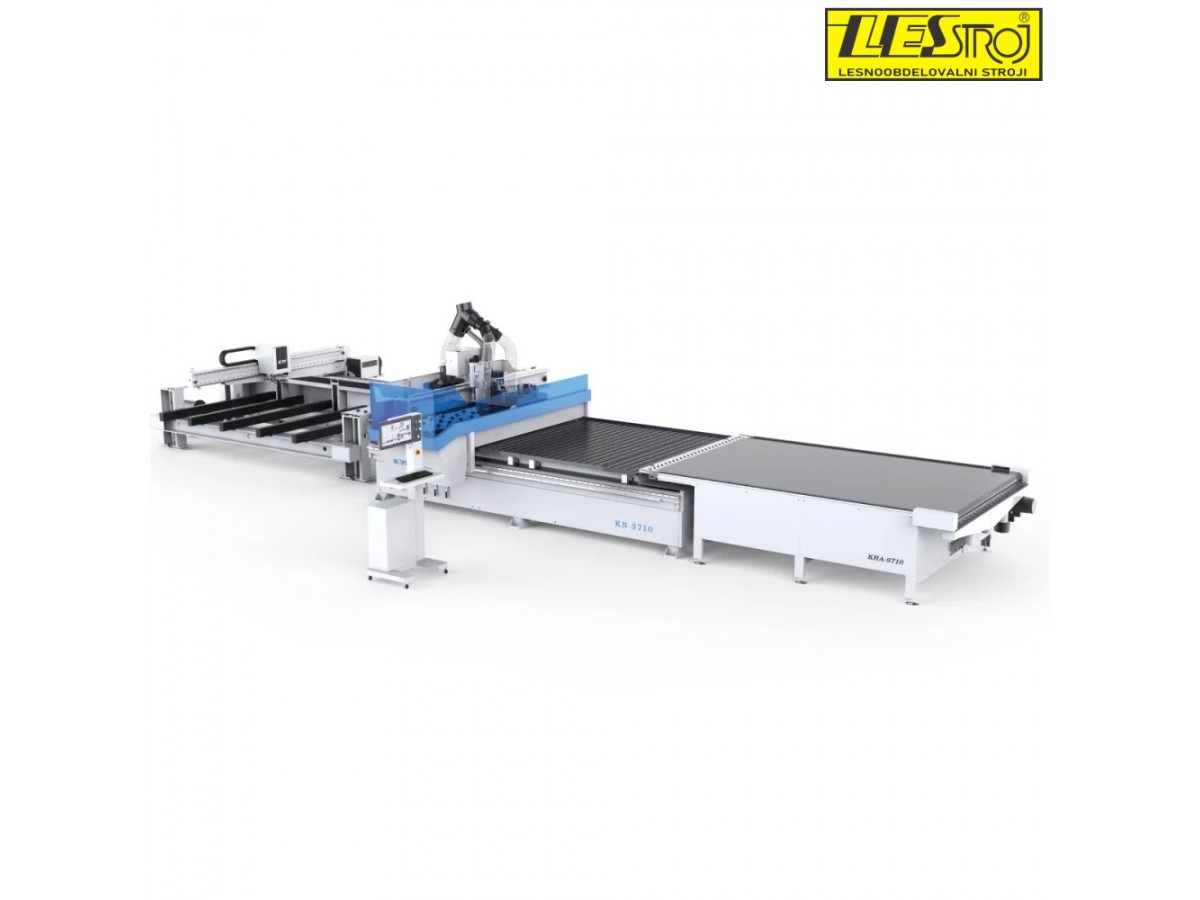

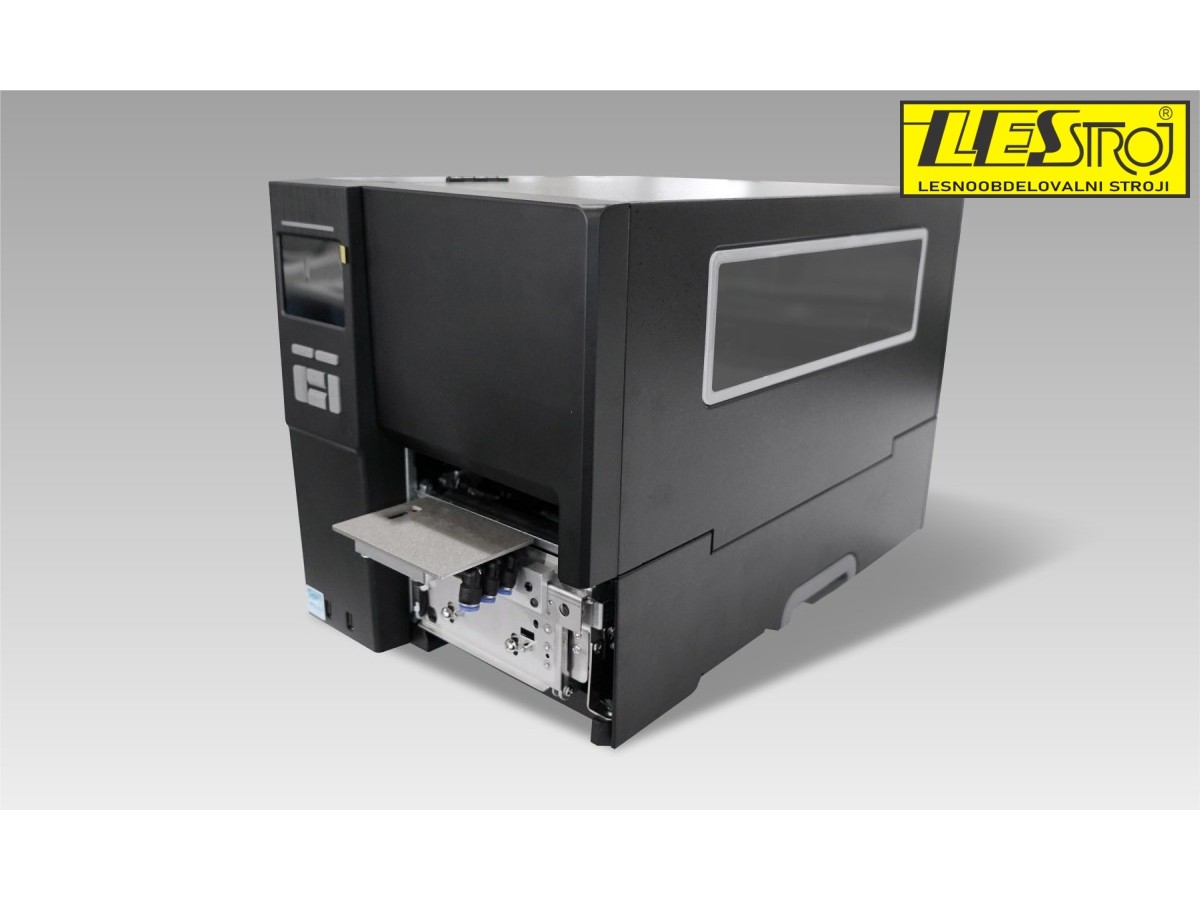

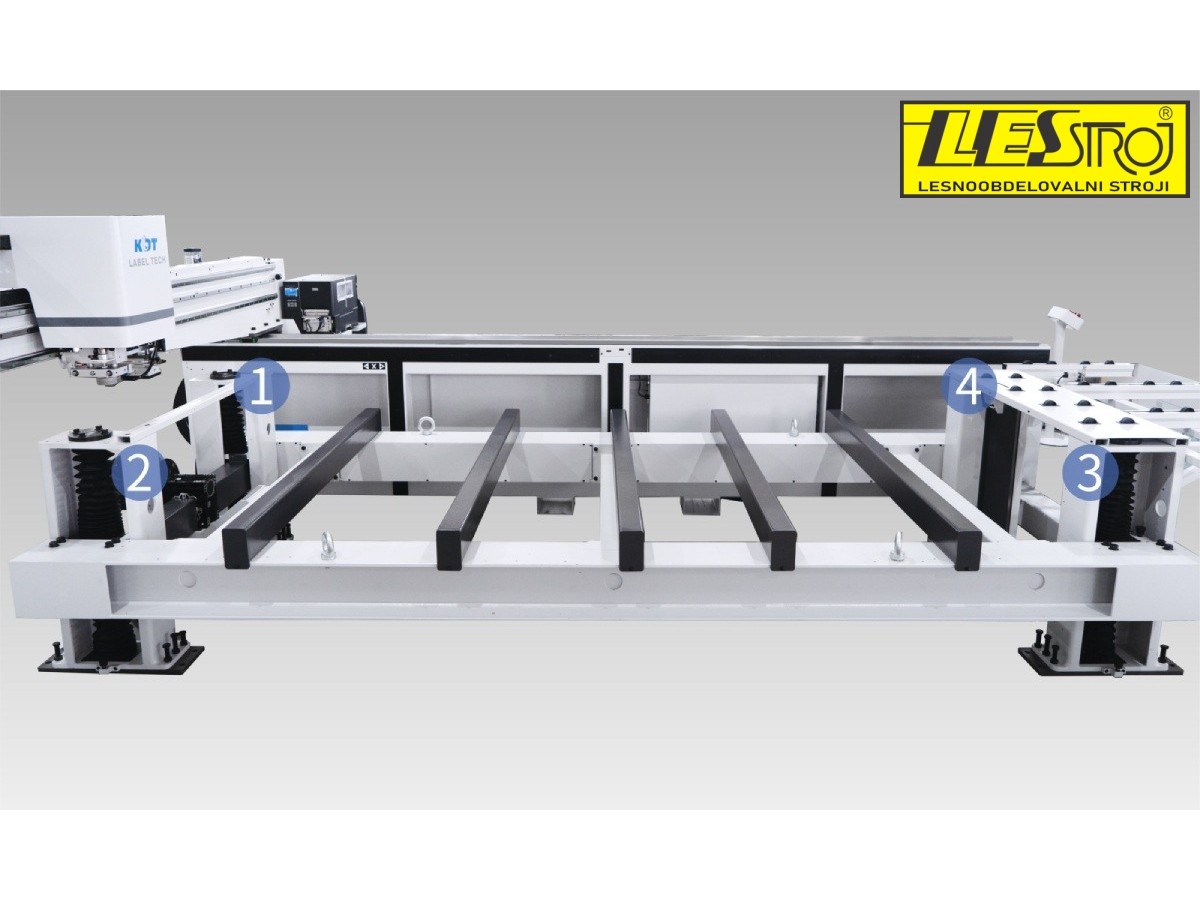

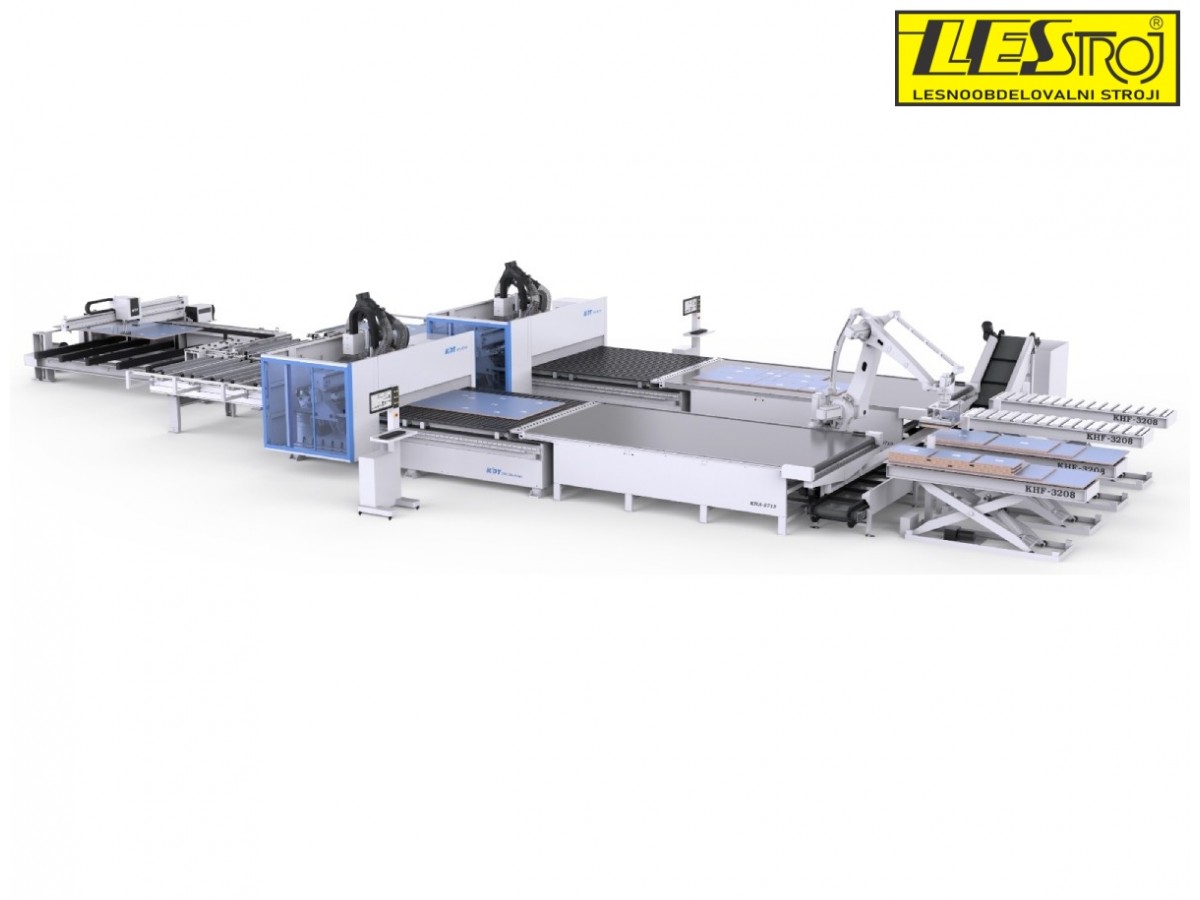

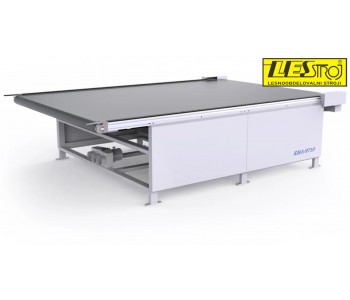

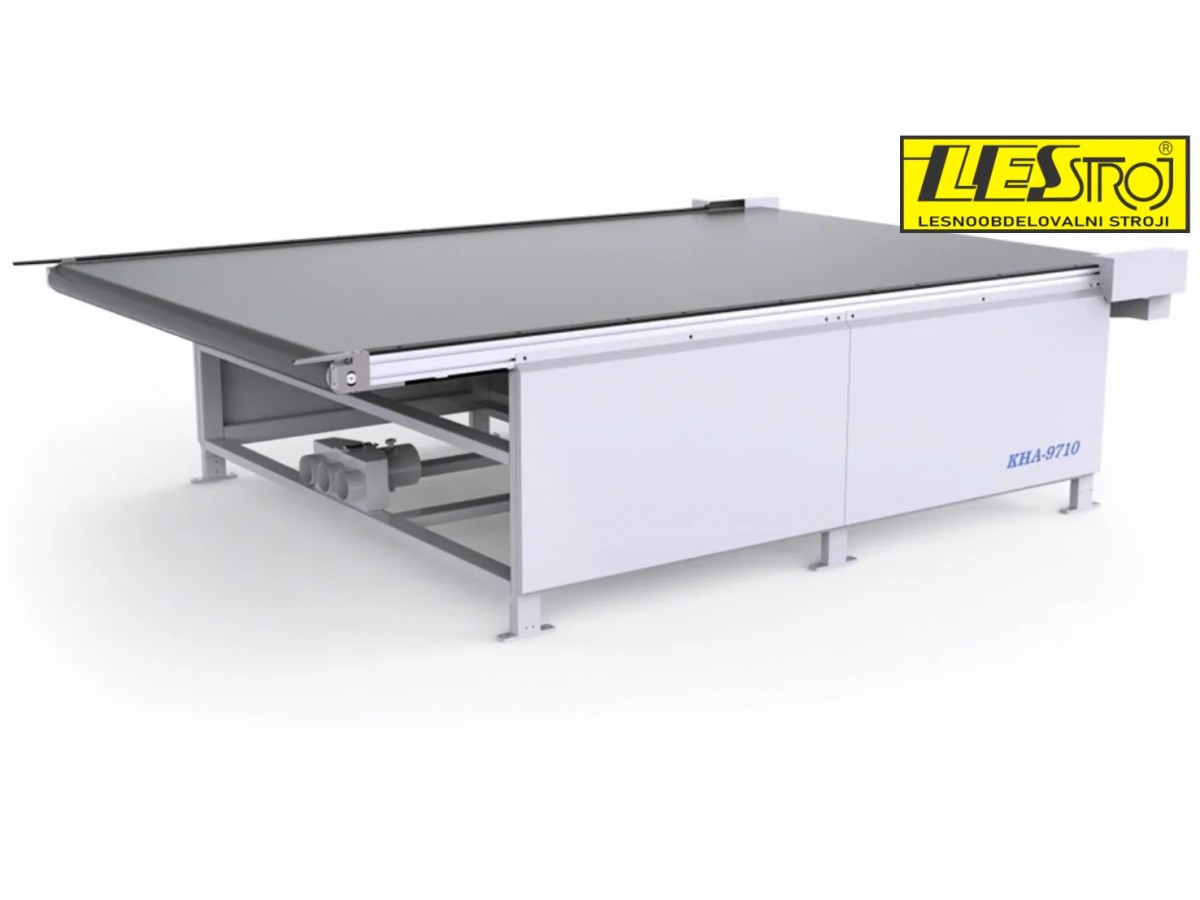

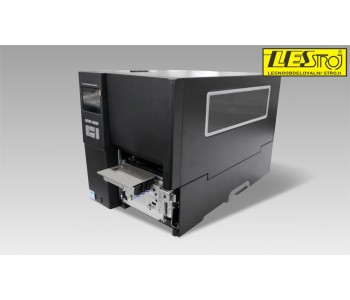

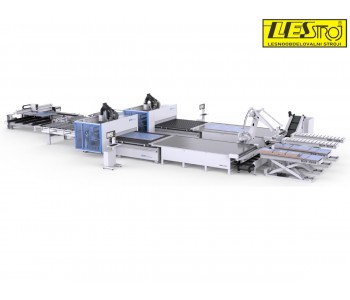

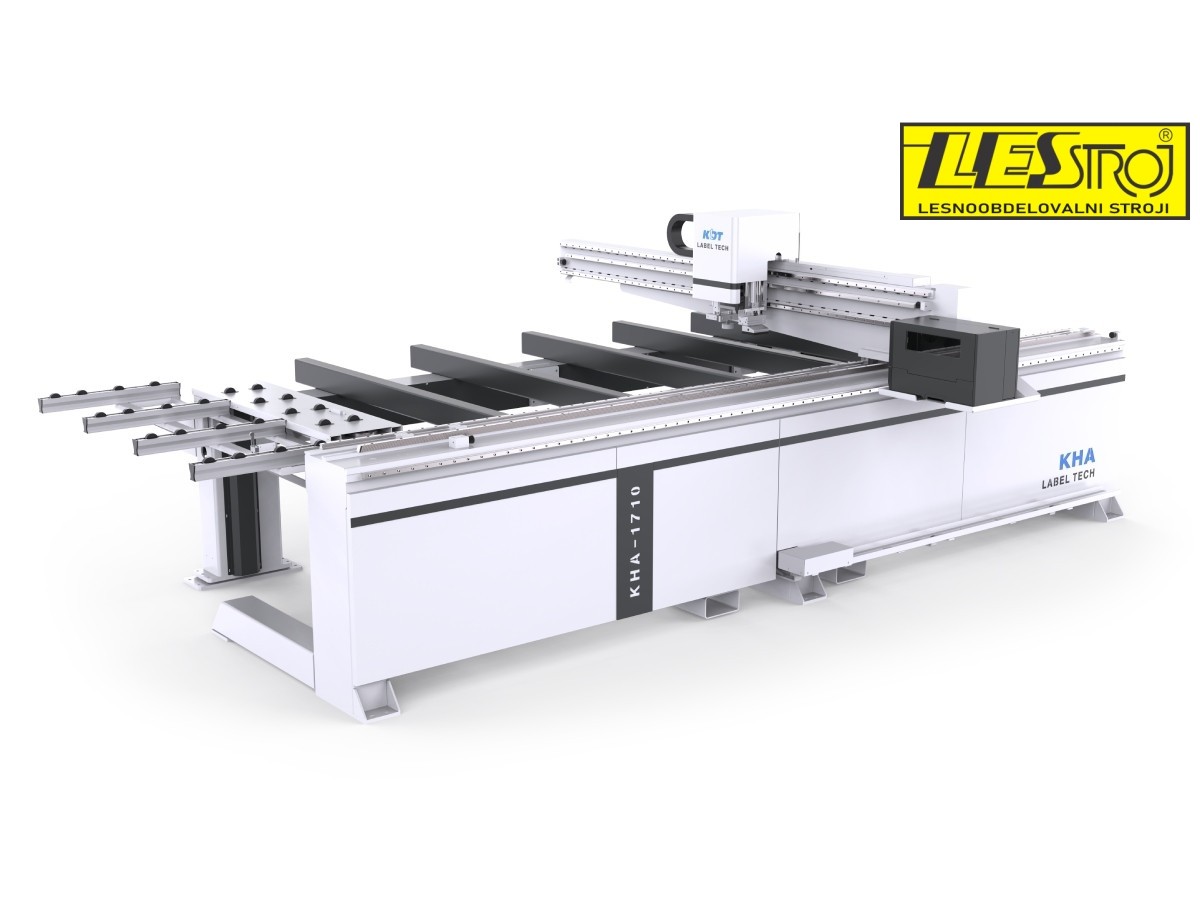

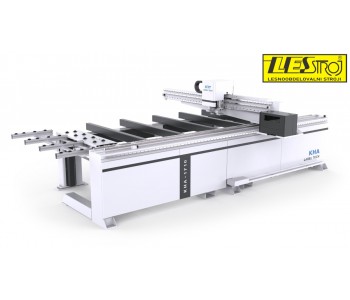

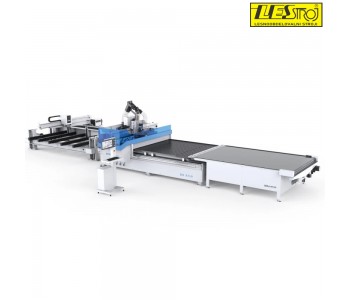

KDT offers a fully modular setup: the CNC machine, a lift‑table infeed with labelling, and an outfeed conveyor. If you start with just the CNC, you can upgrade later with the infeed and outfeed modules at any time—no extra retrofitting costs.
Key advantages

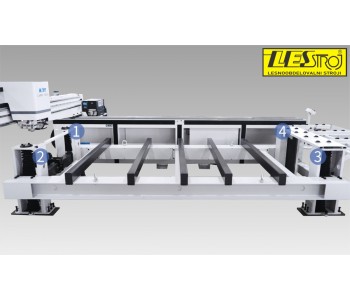

- Welded gantry frame with integrated vacuum channels
Because the vacuum channels are part of the frame, the table is extremely rigid and suction power is distributed evenly across the entire surface – even the smallest parts stay fixed during rapid traverses. - High speeds, less tool wear
Cutters run smoothly, cuts are clean, and tool life is longer because the machine maintains optimal cutting speeds throughout the process. - Full equipment as standard
KDT’s package design means the base CNC already includes side alignment guides, vacuum grippers for loading the panel, automatic centring, manual or automatic vacuum zones, a powerful TPA controller, strong vacuum, and a sophisticated dual‑position dust hood – with no costly add‑ons.
Technical data:
|
Module |
Detail |
|
Table size |
lengths 2500 / 3100 / 4300 mm • widths 1250 / 2150 / 2210 mm |
|
Spindle |
12 kW, HSK‑F63, 3‑ or 4‑axis head |
|
Rapid feeds |
X 80 m/min • Y 80 m/min • Z 30 m/min |
|
Z stroke |
up to 220 mm (model DPC) |
|
Tool magazine |
rotary, 16 positions + pocket for angle head (DPC) |
|
Vacuum zones |
6–8, automatic on/off |
|
Pumps |
2 × Becker 250 m³/h |
|
Dust extraction |
double brush + 4 air jets between them |
|
Zero points |
6 pneumatic pins + panel‑alignment system |
|
Software |
TPA / TPA NEST (incl. nesting optimisation) |
|
Machine weight |
≈ 8 700 kg |
Details that matter
- Automatic panel alignment ensures every part starts from absolute zero – no manual corrections.

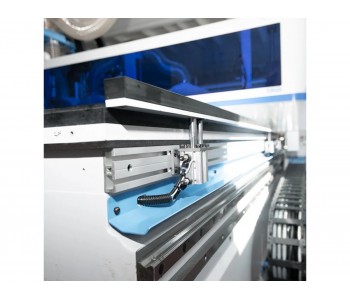

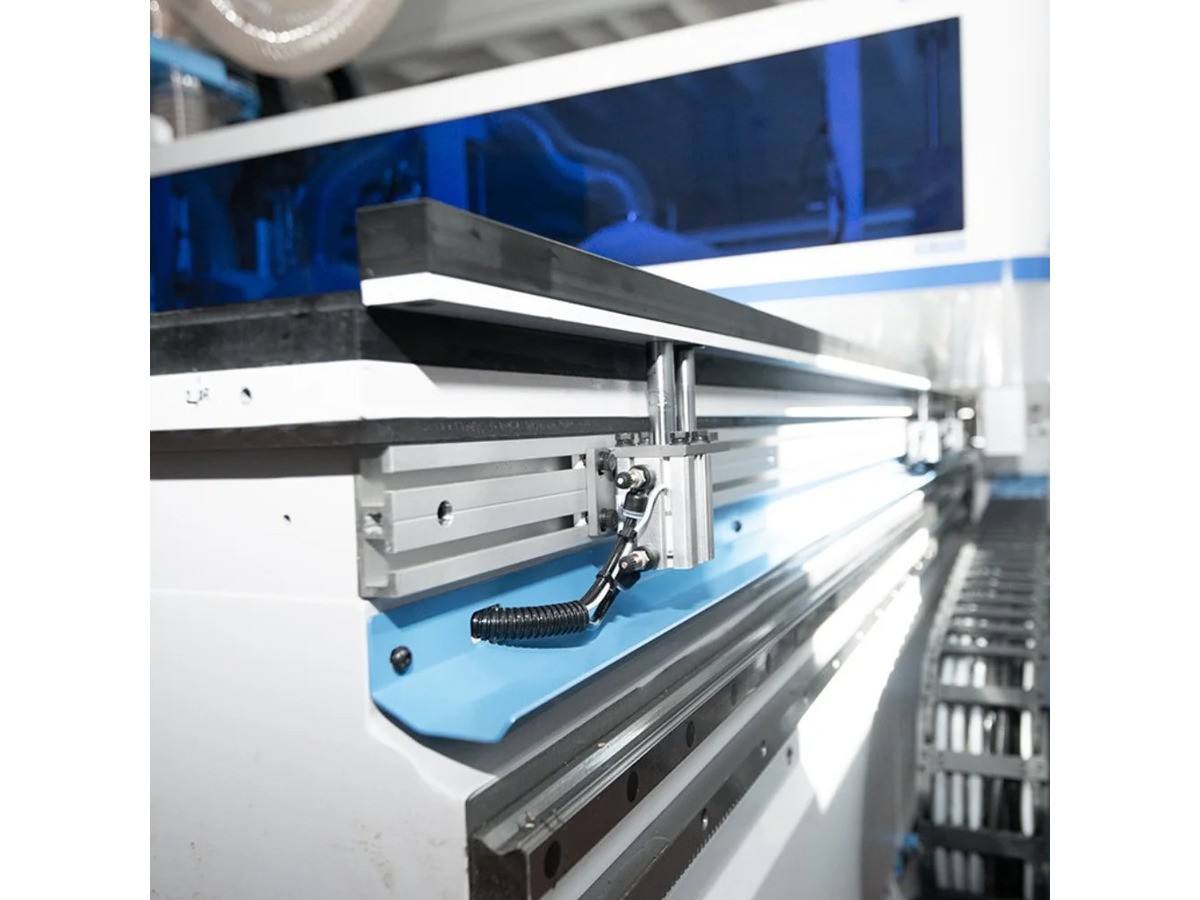

- Lift‑up side guides protect the workpiece from shifting during fast X/Y moves.
- Tool‑length sensor sets the exact cutter length and reduces the risk of errors.
- Optional vacuum clamps on the worktable open the door to complex five‑sided machining.
Why choose KDT?
- Productivity without compromise – one machine covers cutting and drilling with no re‑handling of workpieces.
- Lower labour and material costs – the operator can supervise other tasks as well, and sheet yield increases by +10 % thanks to the nesting algorithm.
- Robust industrial design – 8.7 t for the entire line means precise cuts and long‑term reliability.
- Affordable investment – KDT keeps the price friendly, with service and spare parts close at hand.
