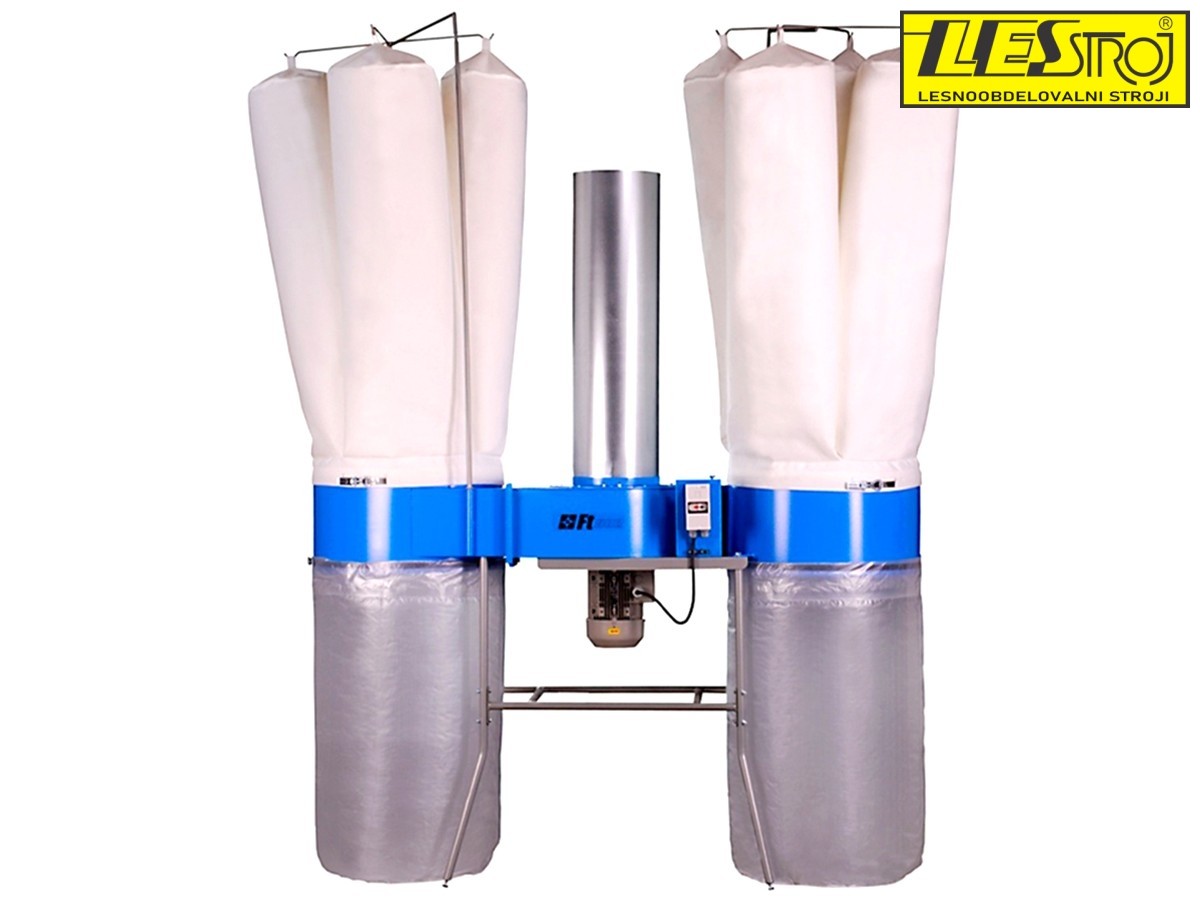

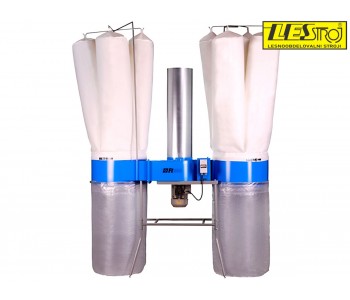

Dust Collector ACWORD FT502
The FT 502 dust collector has two bags, a 3 kW motor, steel impeller, air flow of 7900 m3/h and an extraction inlet diameter of 300 mm.
The FT 502 dust collector with very high air flow is designed for users who need an extractor for connecting several classic joinery machines at the same time. A machine with high air demand can also be connected (4-sided planer, larger edgebander, wide belt sander, CNC machines, etc.).
Main features of the machine: metal construction, polyester filters with a large filter area (12 m2), powerful motor, bag volume of 660 l and a 300 mm outlet.
A major advantage of ACword dust collectors is their high motor power efficiency relative to the extracted air flow, compared with competing machines from other manufacturers.
Data sheet
- Motor power (kW)
- 3
- Operating voltage (V)
- 400
- Maximum extraction capacity (m3/h)
- 7900
- Flow rate (m/s)
- 32
- Negative pressure (Pa)
- 1800
- Filtering area (m2)
- 12
- Collection bag volume (liters) (l)
- 660
- Extraction nozzles (mm)
- 300
- Volume (dB (A))
- 84
- Weight (kg)
- 125
- Machine external dimensions (LxWxH)
- 2000 x 700 x 2900 mm
