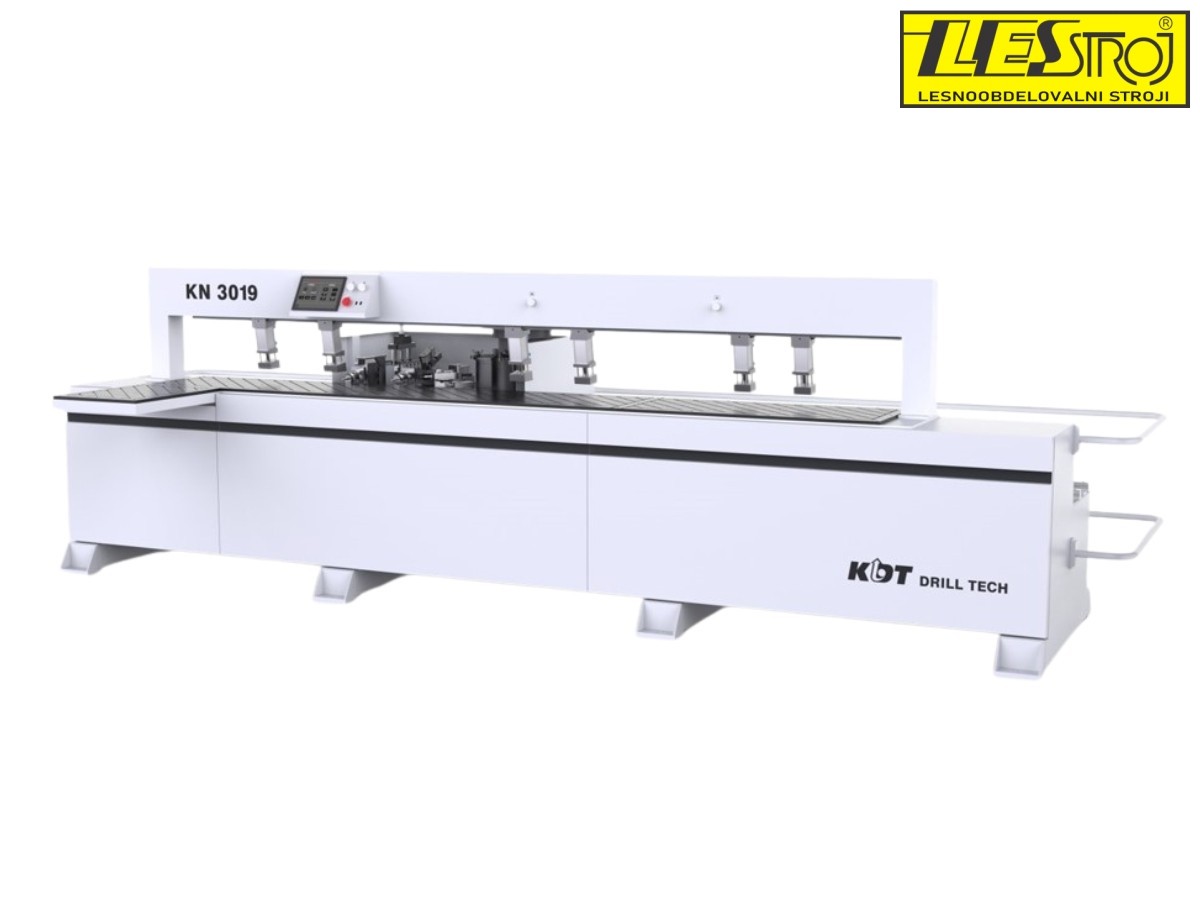

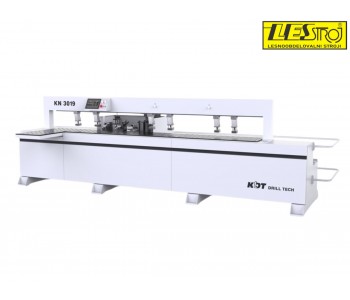

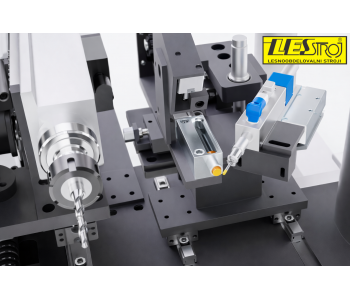

Horizontal drilling and dowel insertion machine KDT KN-3019S
Brand:

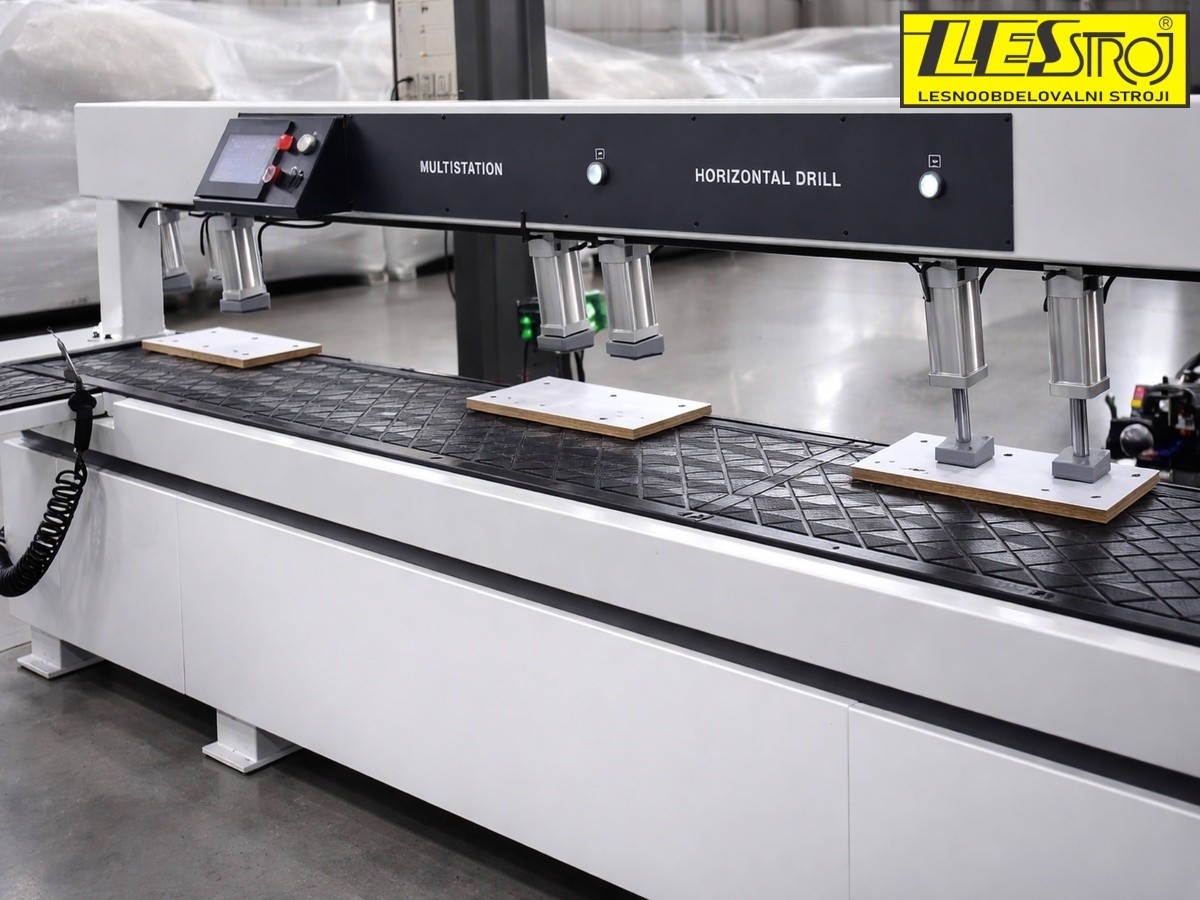

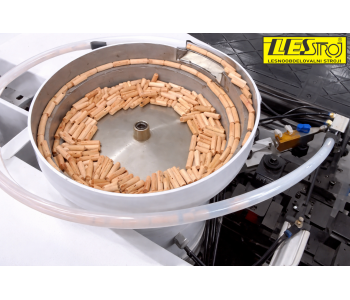

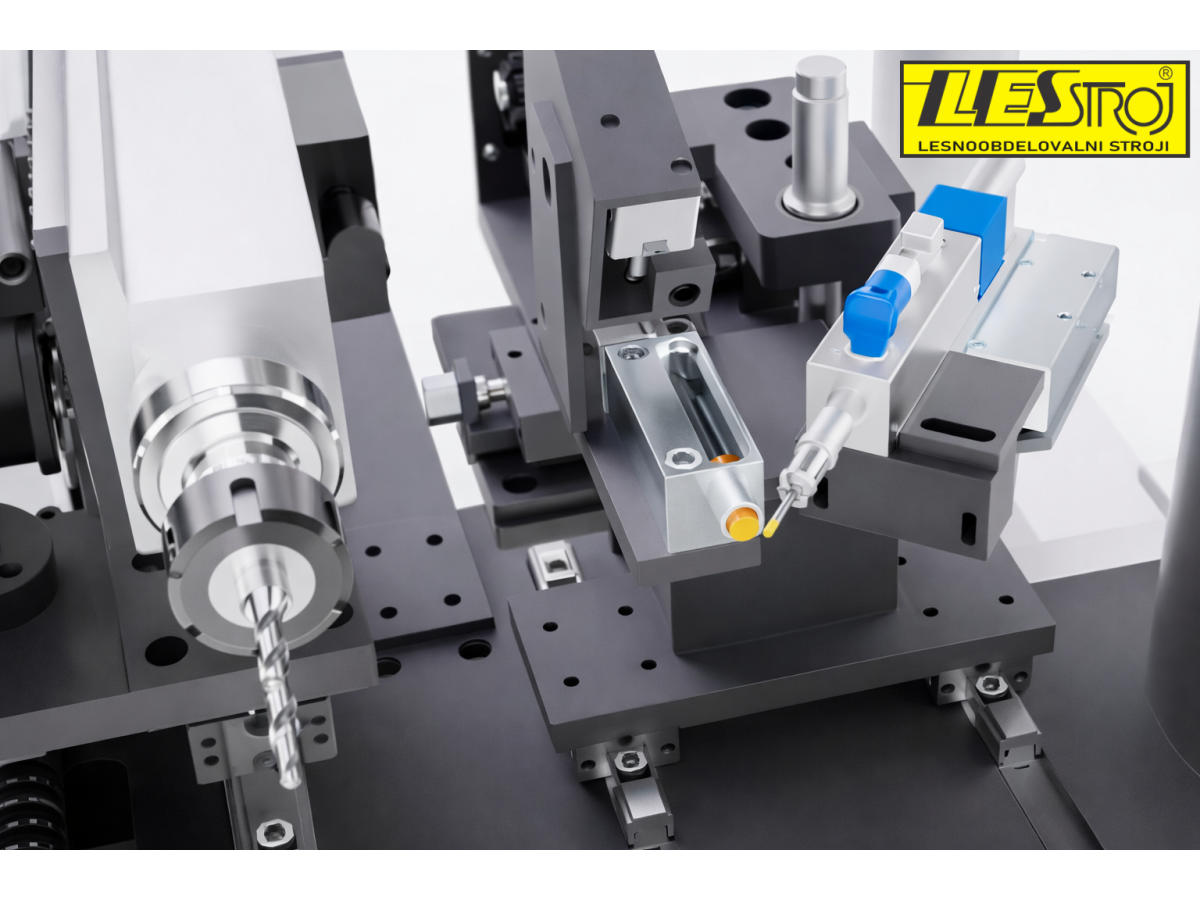

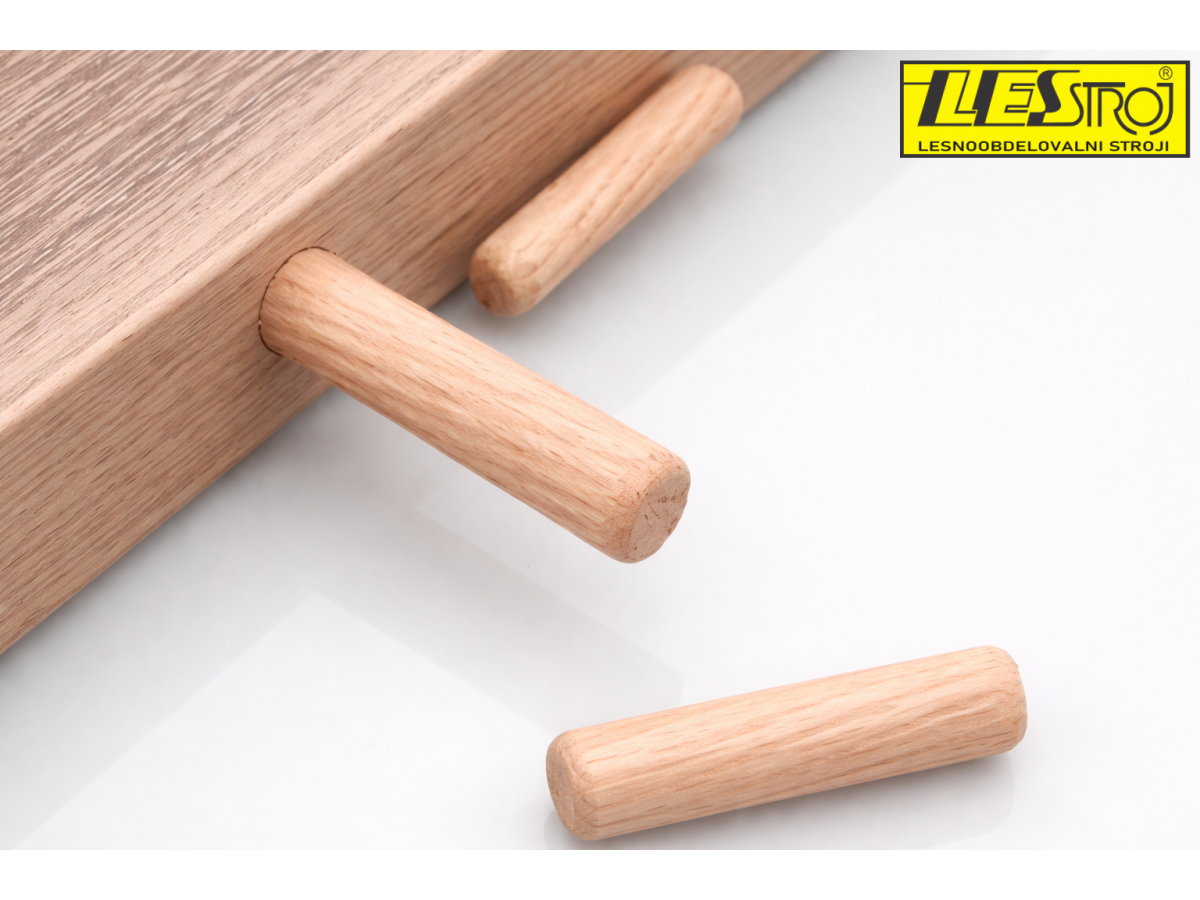

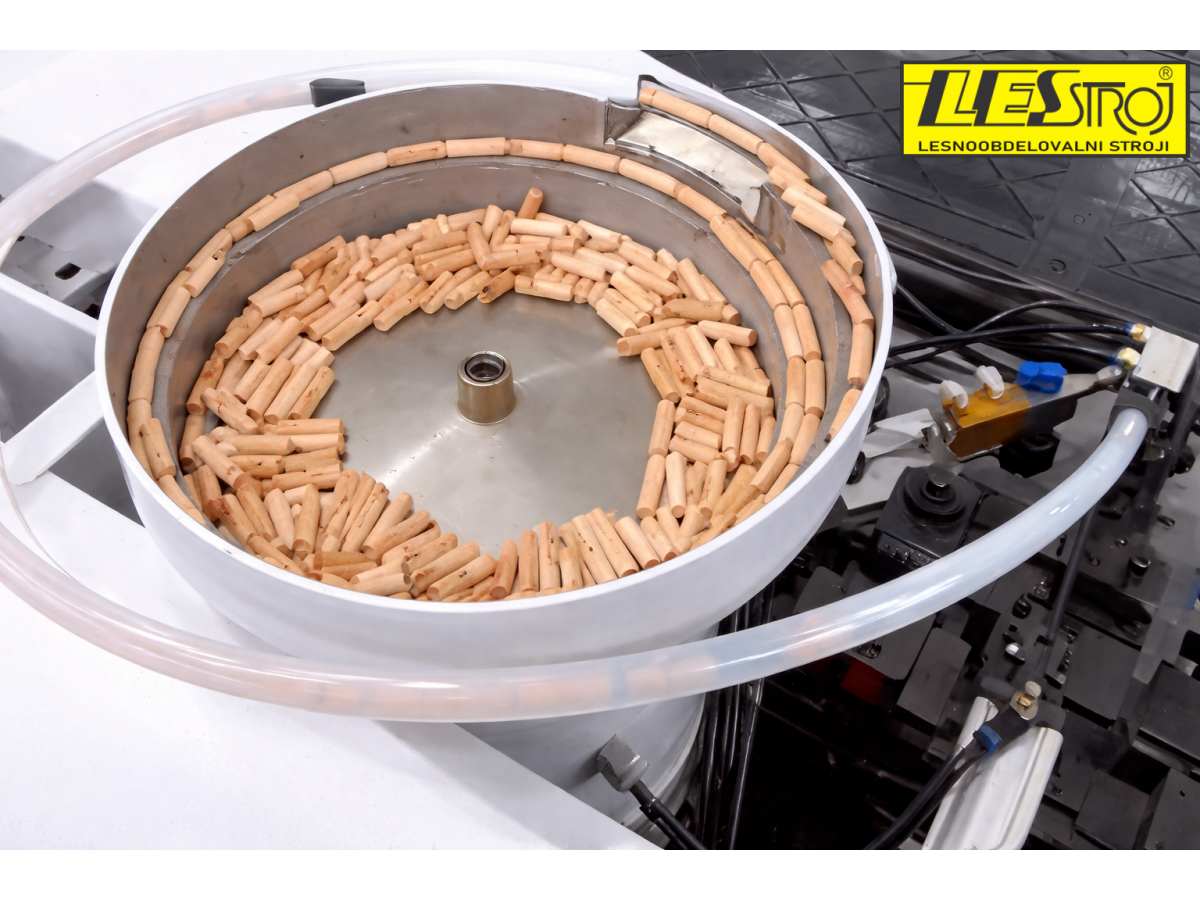

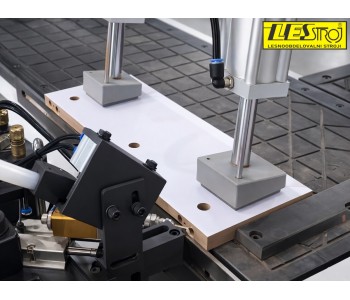

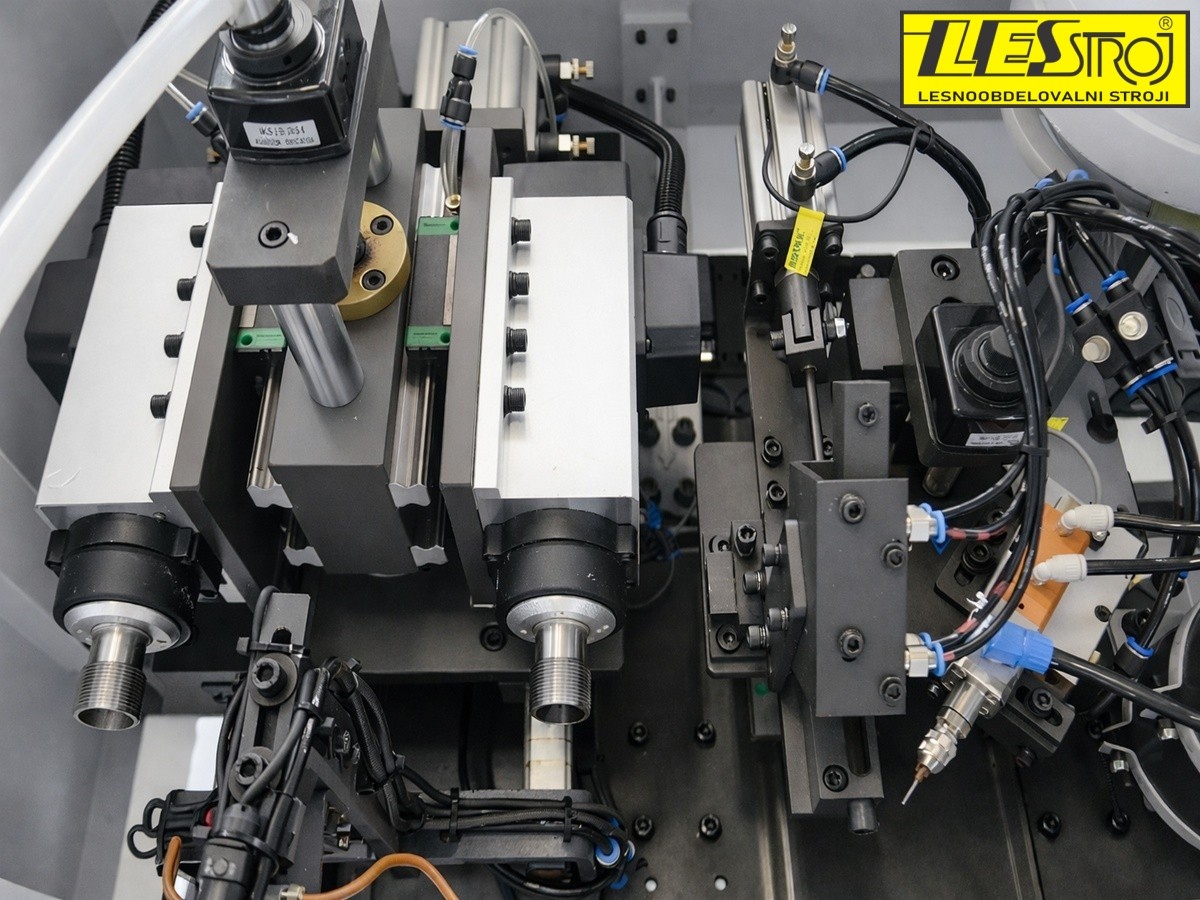

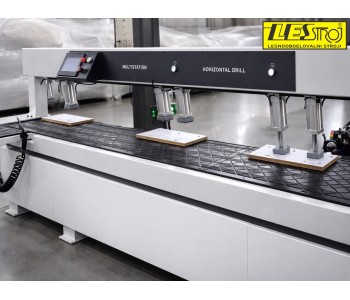

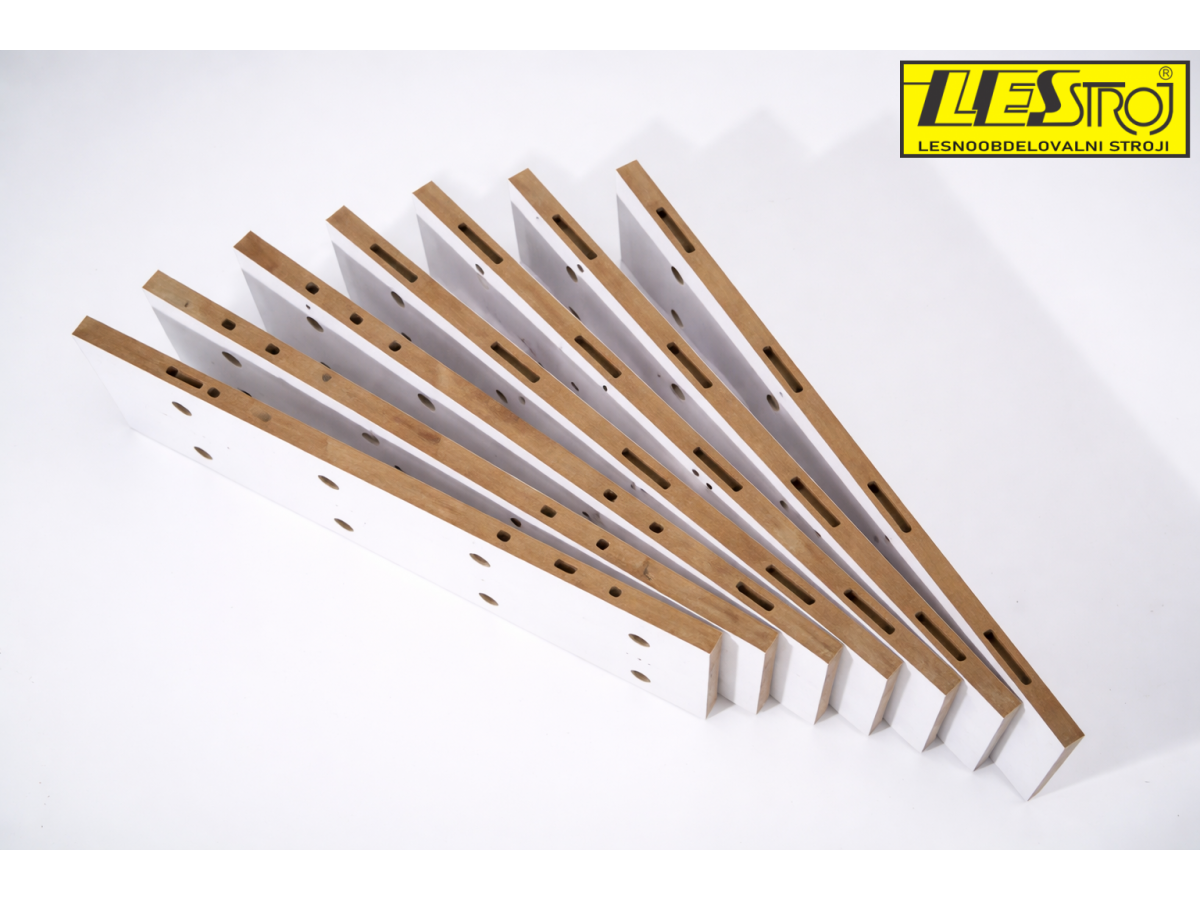

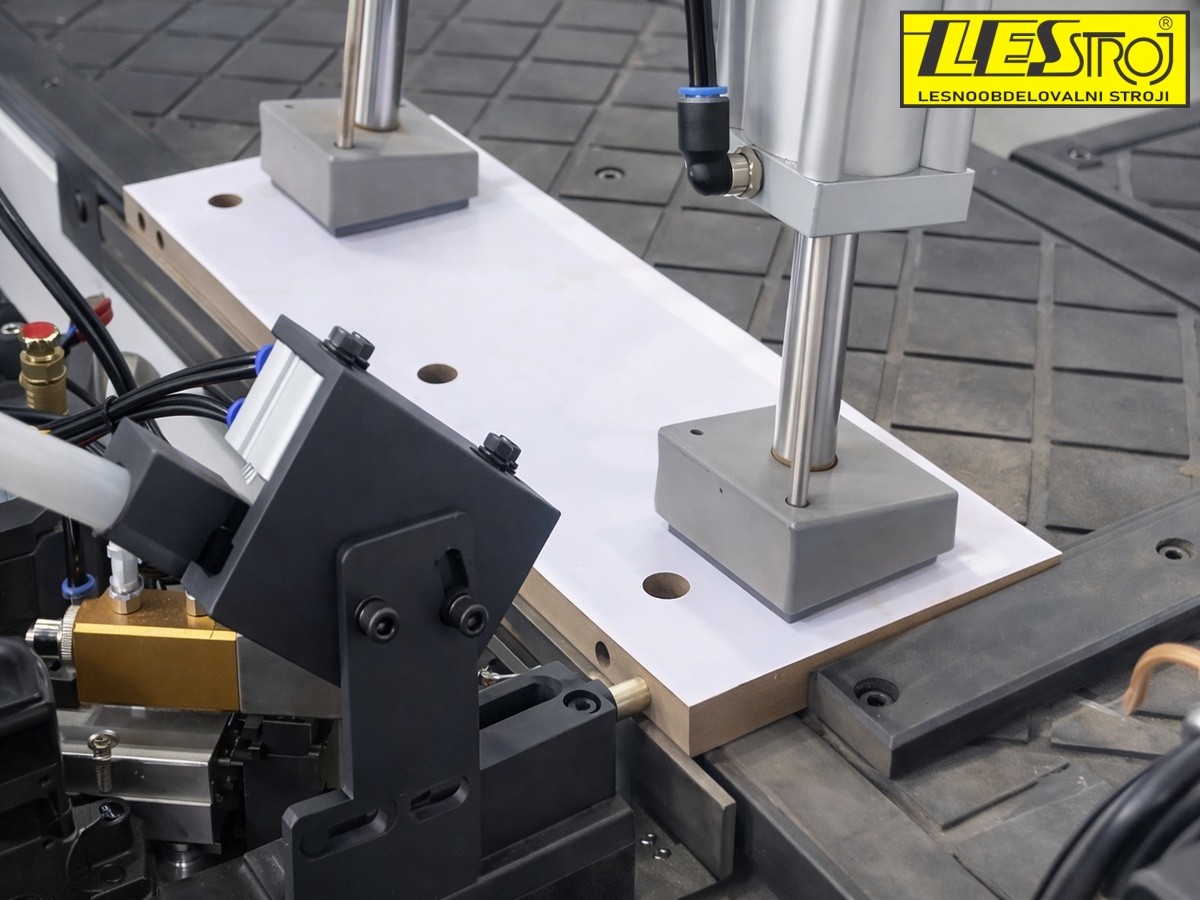

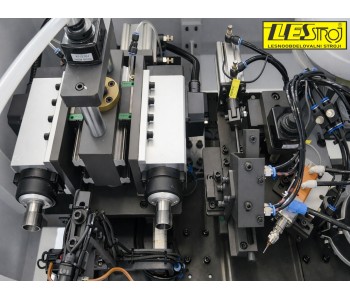

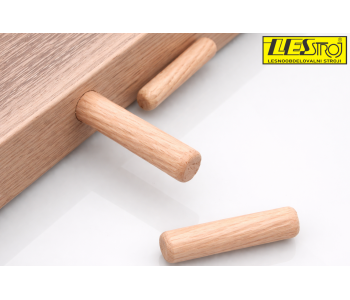

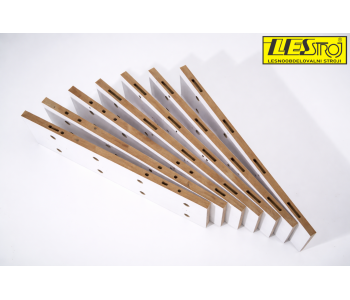

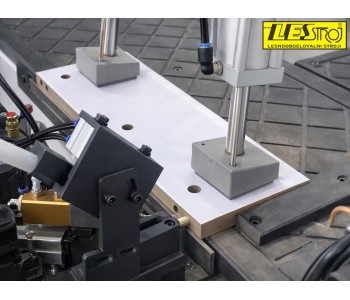

The KN-3019S is an advanced horizontal drilling and dowel insertion machine designed for efficient and precise processing of wooden components. It enables operation with one or three working stations and is equipped with a dual spindle system for versatile horizontal processing such as drilling, grooving, and Lamello joining. An integrated automatic dowel insertion and gluing system (8 × 30 mm) ensures fast, reliable, and repeatable assembly, increasing productivity in furniture manufacturing.
Horizontal drilling machine with dowel insertion KDT KN-3019S
KDT KN-3019S is an advanced horizontal drilling and dowel insertion machine designed for efficient and precise processing of wooden components.
Technical specifications
| Parameter | Value |
|---|---|
| Working length | 0–2800 mm / 0–900 mm (3 stations) |
| Working width | ≥ 60 mm |
| Working thickness | 12–35 mm |
| Horizontal working depth | 0–35 mm |
| Motor power | 2.2 kW + 2.2 kW |
| Working stations | 3 |
| Feed speed | 60 m/min |
| Spindle speed | 0–18,000 rpm |
