Band Saw Woodma D400
Brand:
The Woodma D400 band saw is suitable for more demanding hobby users, with a 400 mm wheel diameter and a 1.5 kW motor.
Condition
New product

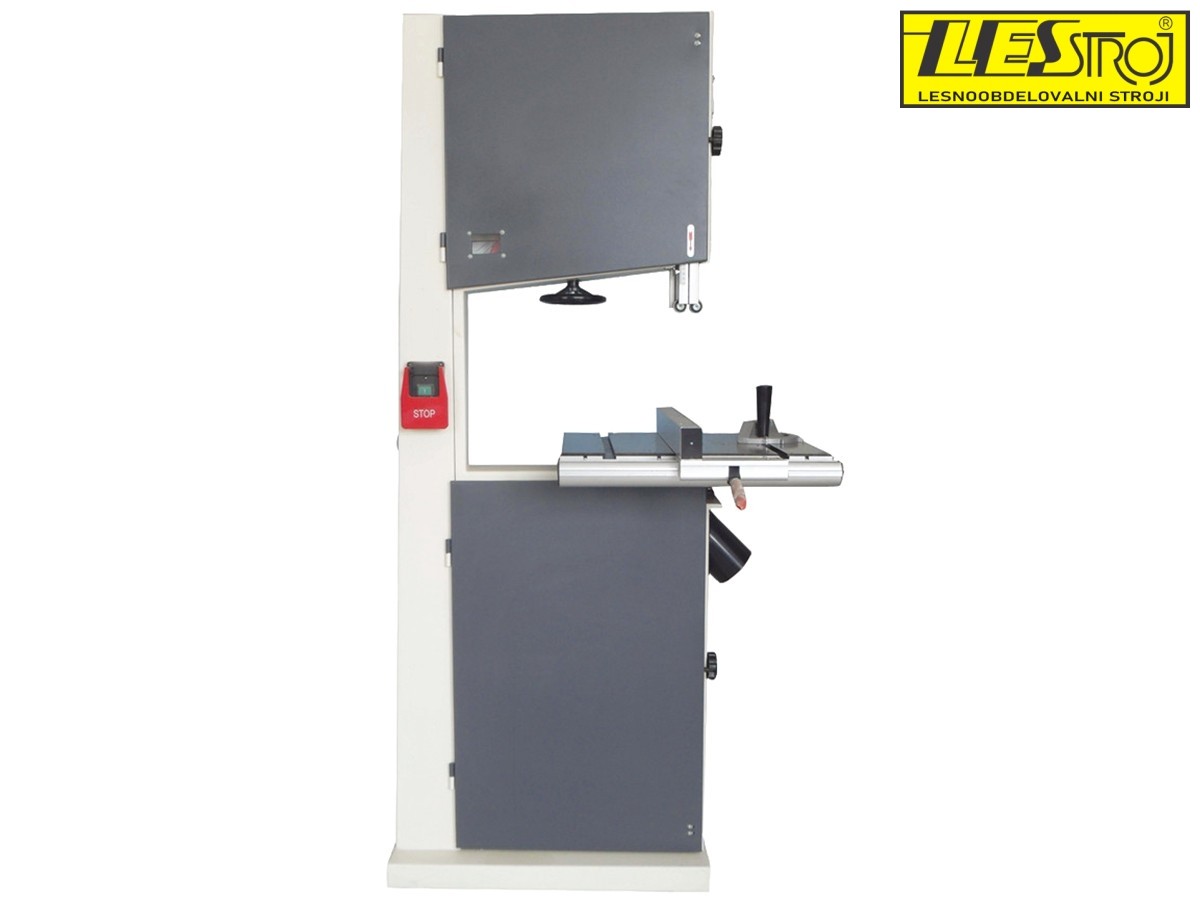

Band saw Woodma D400
The D400 band saw is intended mainly for more demanding hobby users, as it already has a free-standing construction and a cast-iron work table.
The 400 mm wheel diameter means less bending of the blades compared to smaller band saw models, which prevents blade cracking.
The wheels are solid, which ensures smooth blade running during work. Blades 6 to 25 mm wide can be used.
STANDARD EQUIPMENT:
- 1.5 kW motor
- blade guide
- angle fence
- rip fence
- tilting work table
Data sheet
- Cut-off height (mm)
- 200
- Wheel diameter
- 400
- Maximum sawing width
- 380
- Length of bandsaw blade
- 2950
- Blade width
- 6 - 25
- Motor power (kW)
- 1,5
- Worktable dimension (mm)
- 500 x 395
- Weight (kg)
- 140
- Machine external dimensions (LxWxH)
- 480 x 600 x 1760 mm
Alu vodilo z mikrometrično skalo
Vodilo je nameščeno na delovni mizi tračne žage in je namenjeno paralelnemu odrezu.
Delovna miza z nagibom
Robusten nosilec delovne mize iz sive litine. V standardni izvedbi tračne žage je možen nagib delovne mize od 0- 90 stopinj. Paralelnost mize zagotavljajo dvojna polkrožna vodila.
Delovna miza tračne žage
Tračne žage Woodma imajo v standardni opremi paralelno in kotno vodilo. Delovna miza je izdelana iz sive litine (gus) in je polirana. Nagib mize od 0 - 45 stopinj. Za miren in natančen rez skrbi nastavljivo vodilo.
Kotno vodilo
Na kotno vodilo lahko namestimo ravni prislon. Nagib vodila v obe smeri 45 stopinj. Že v standardni opremi tračnih žag Woodma!
Robustna kolesa tračne žage
Kolesa tračne žage se dvigujejo preko dvojnih stabilnih vodil in neskončnega vijaka, ki skrbi za napenjanje lista. S stranskim vrtljivim kolesom nastavljamo nagib in posledično tek lista tračne žage.
Vodilo tračnega lista
Vodilo lista tračne žage je nastavljivo preko zobate letve in vrtljivega kolesa. List tračne žage je vodljiv preko dveh stranskih ležajev in zadnjega drsnika.
