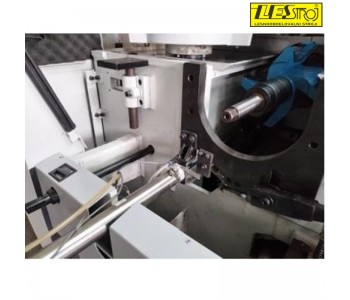

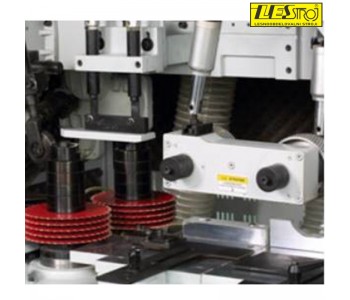

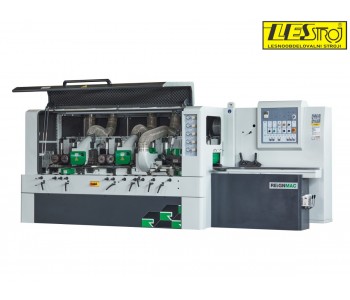

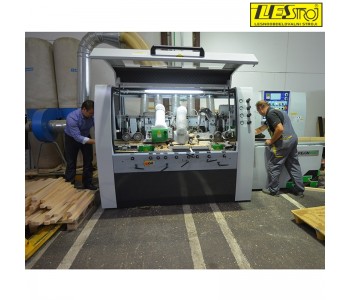

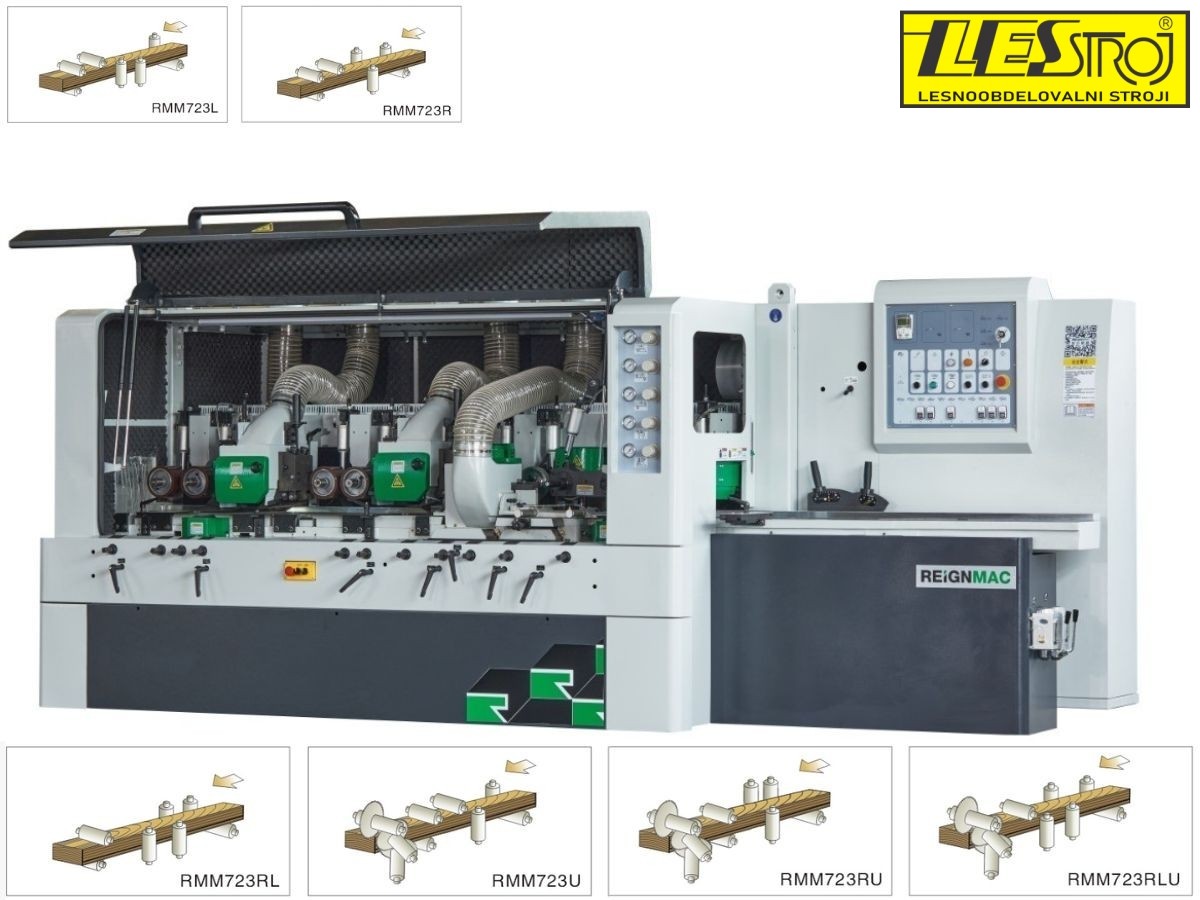

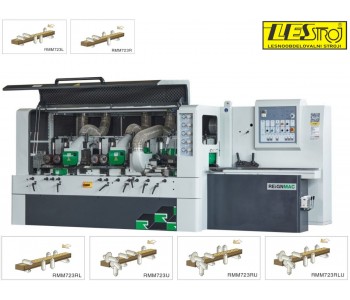

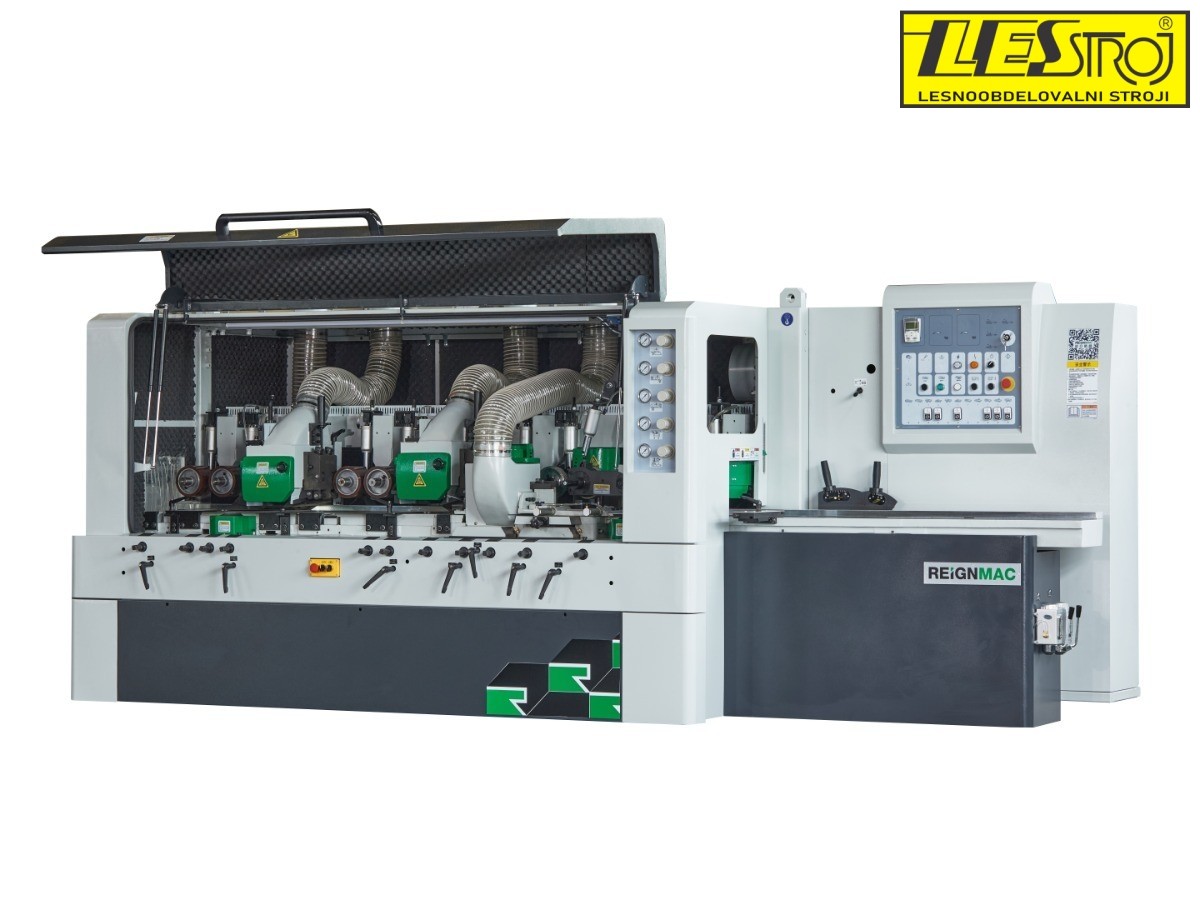

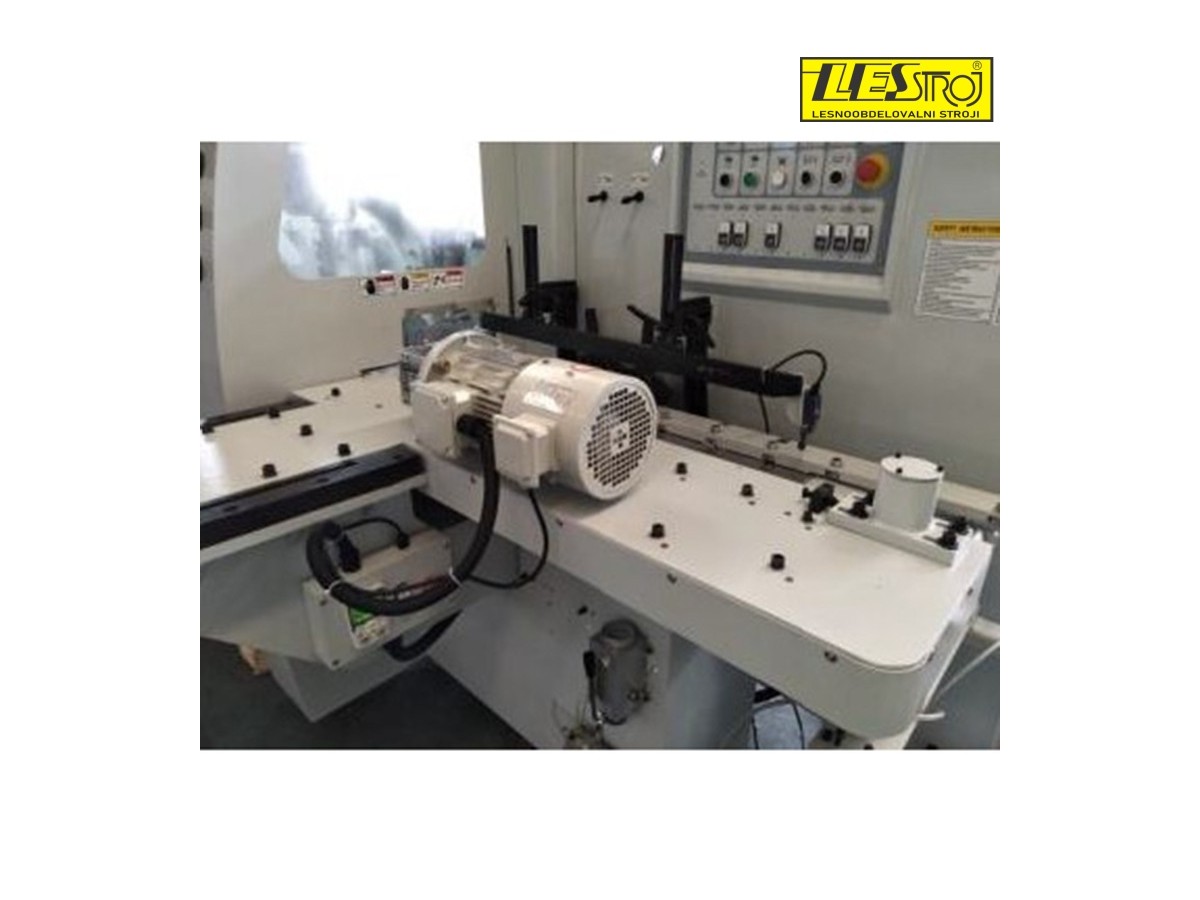

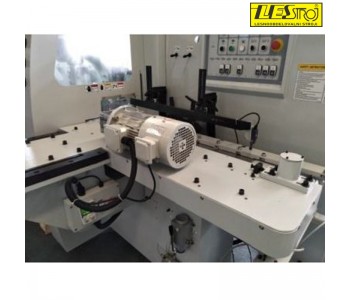

Four-sided planing machine REIGNMAC PowerLine RMM 723U
4-sided planing machine Reignmac RMM 723U, industrial design, 6+1 spindles, working width up to 230 mm and height up to 160 mm.
The Reignmac RMM 723U is a powerful four-sided planing and profiling machine with independently driven spindles, built in a robust industrial design with a hard chrome-plated working table, suitable for processing solid wood as well as MDF/HDF. The model features 6+1 spindles, enabling more efficient and faster profiling of larger wooden elements.
Four-sided planing and profiling machine Reignmac Powerline series RMM 723U
Four-sided planing machines Powerline RMM 723U are universal multi-spindle planing and profiling machines designed for the production of roof structures, corner mouldings, cladding, ship flooring, glued elements, parquet, and profile mouldings up to a cross-section of 230 × 160 mm. RMM machines are extremely robust and intended for industrial use.
Due to their affordability, smaller companies and carpenters also choose to invest in Reignmac machines.
Key features of RMM 723U:
- universal application, exceptional durability, and competitive price
- industrial construction, machine weight 6.1 t
- chrome-plated working tables as standard
- maximum working section 230 × 160 mm, minimum section 20 × 8 mm

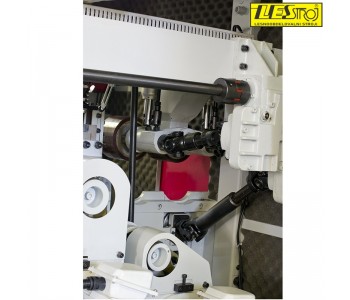

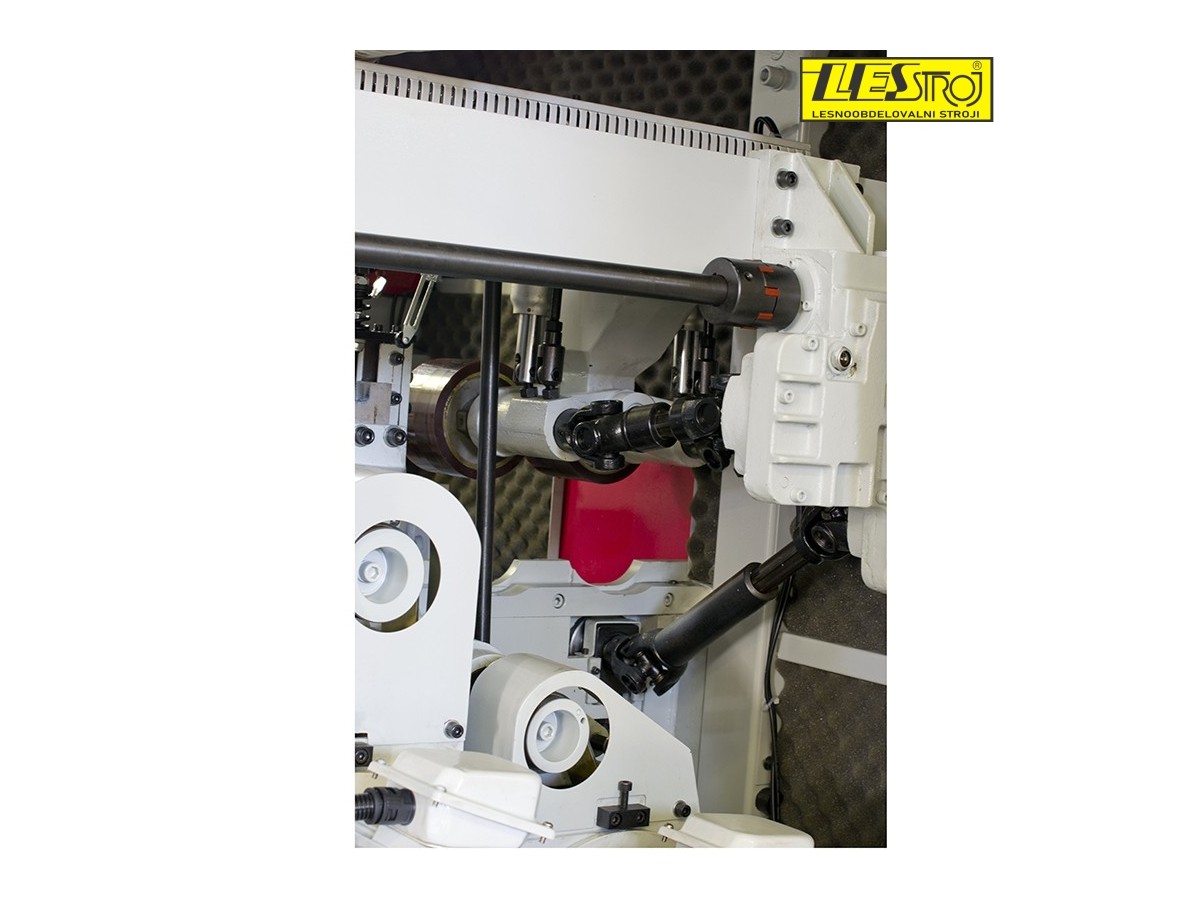

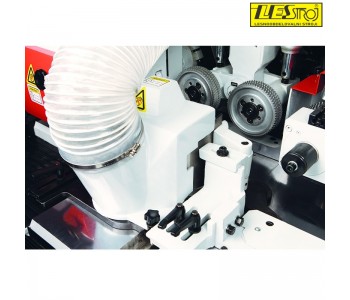

- powerful cardan feed system
- inverter-controlled feed up to 30 m/min (optional)

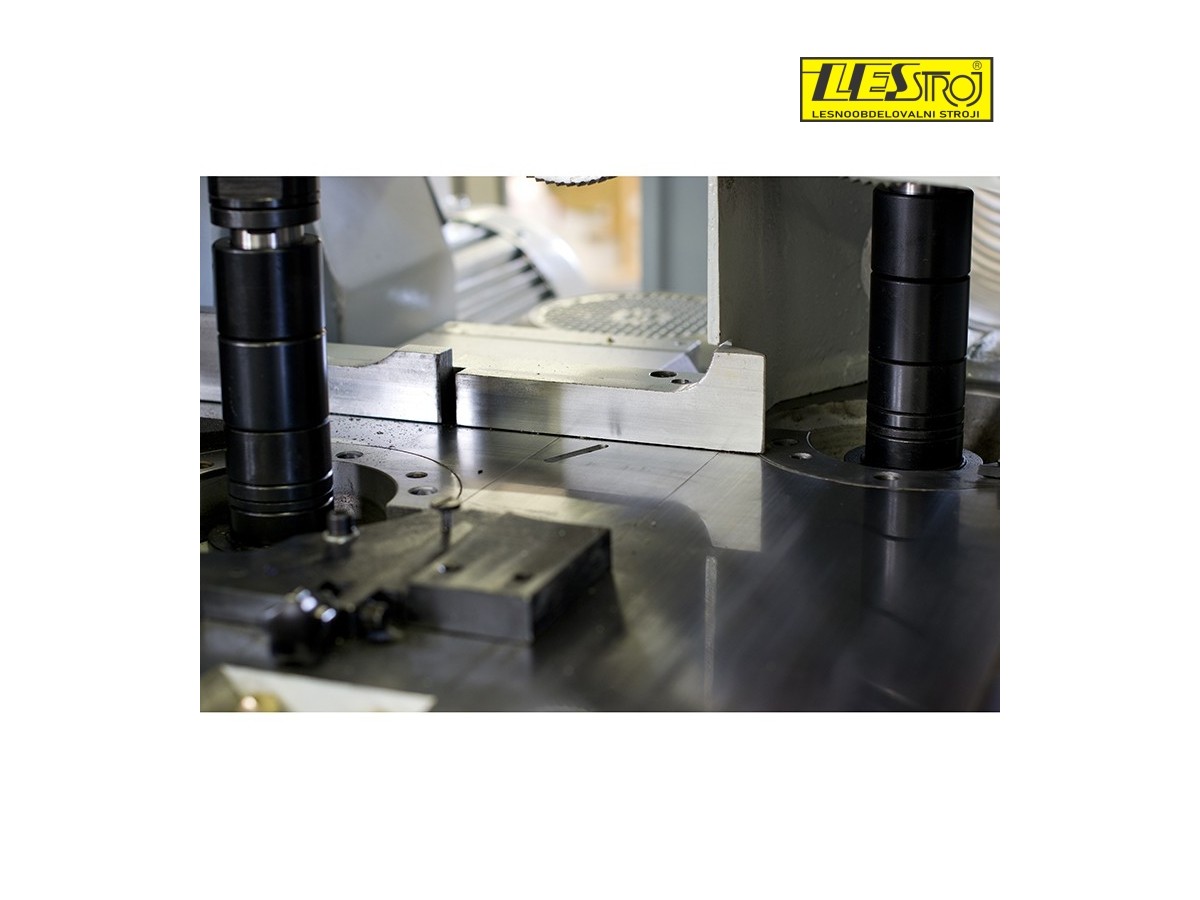

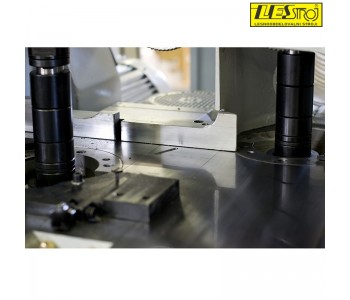

- profiling up to 45 mm
- numeric indicators for adjustment of all spindles

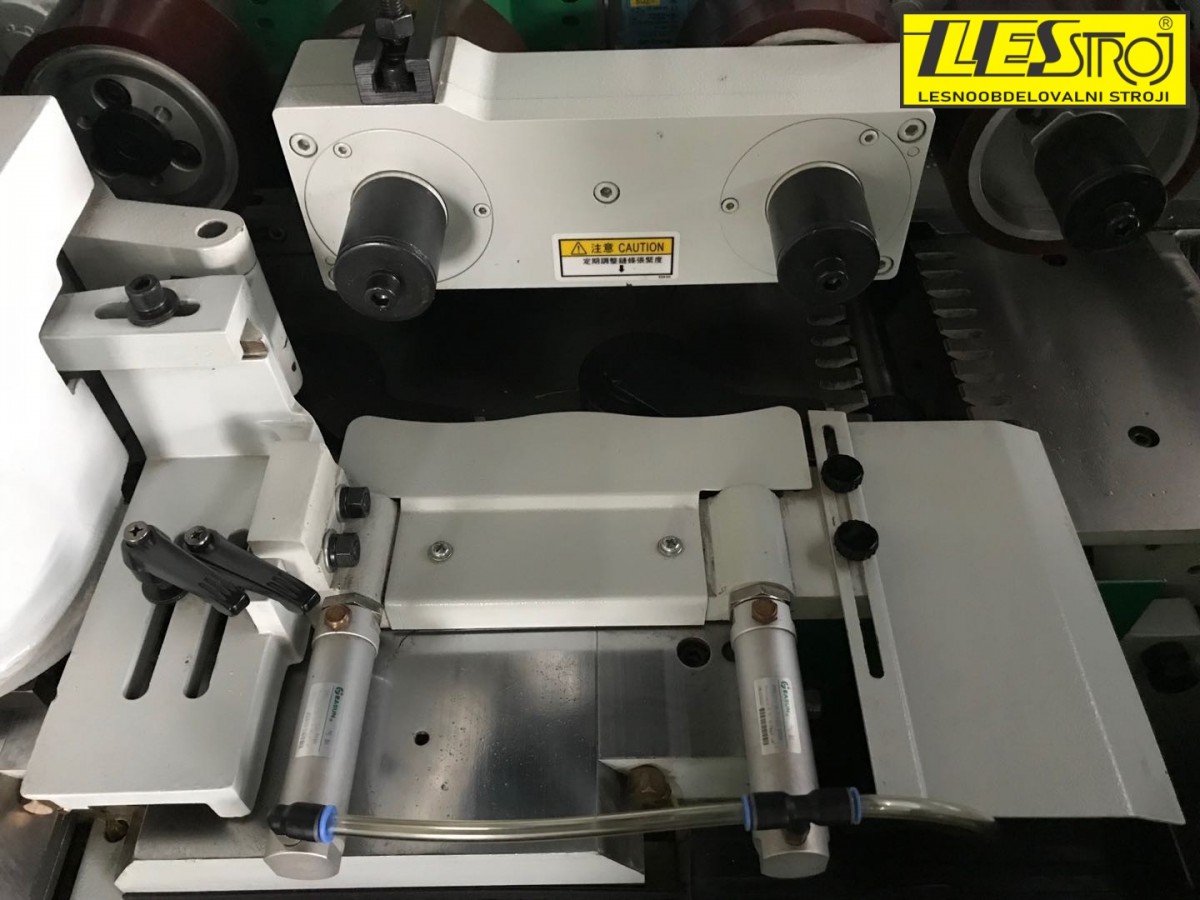

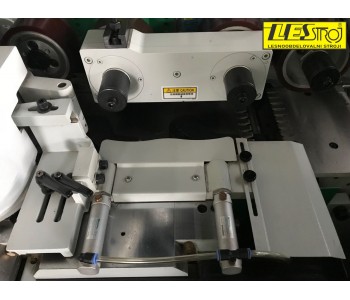

- pneumatic pressure on side and top guides
- option for automatic motorized adjustments
- 6+1 spindles
- CE certification
Additional equipment (optional):

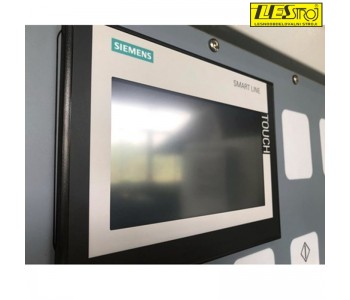

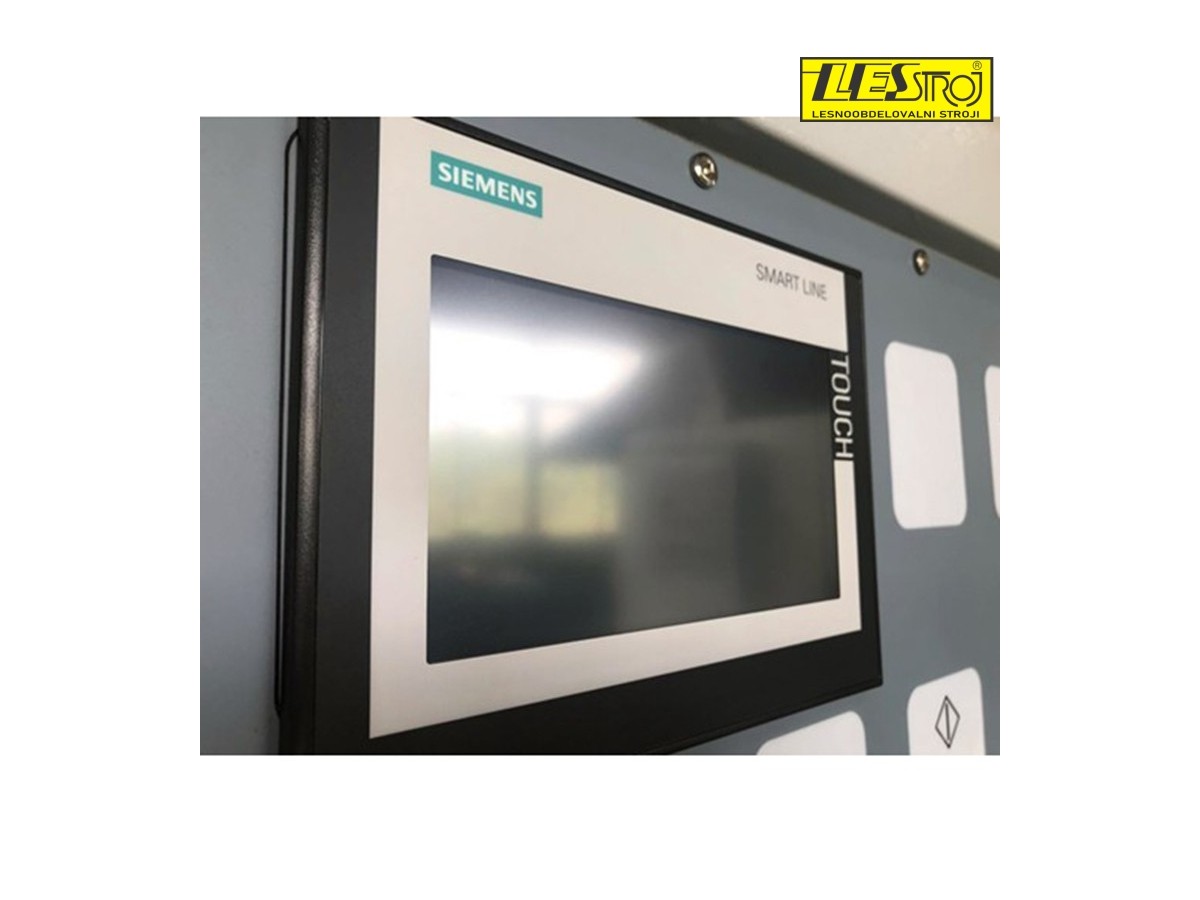

- Siemens Touch – touchscreen with program for saving settings

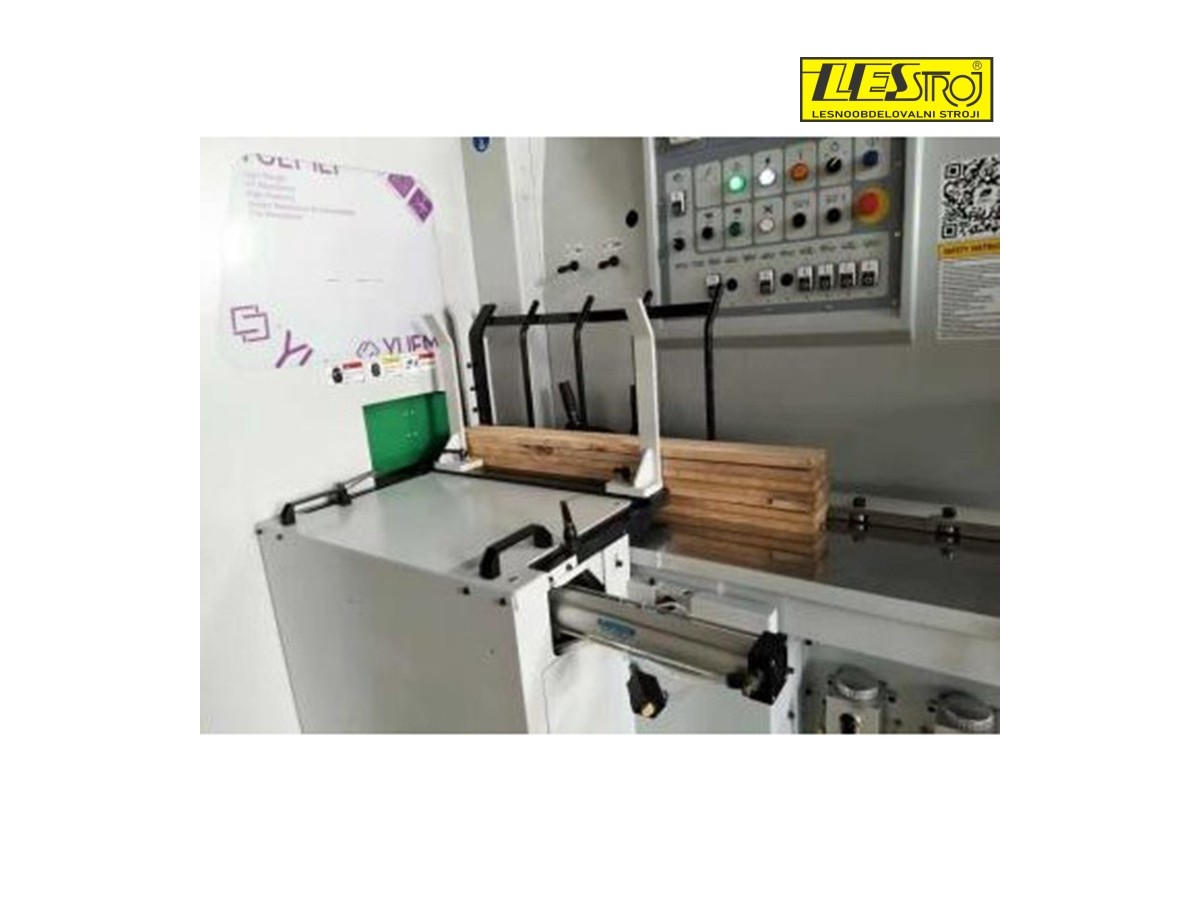

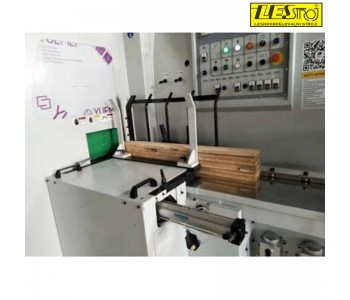

- automatic feeder for short elements
- automatic feeder – “hedgehog” system for long elements
- loading and unloading transport system

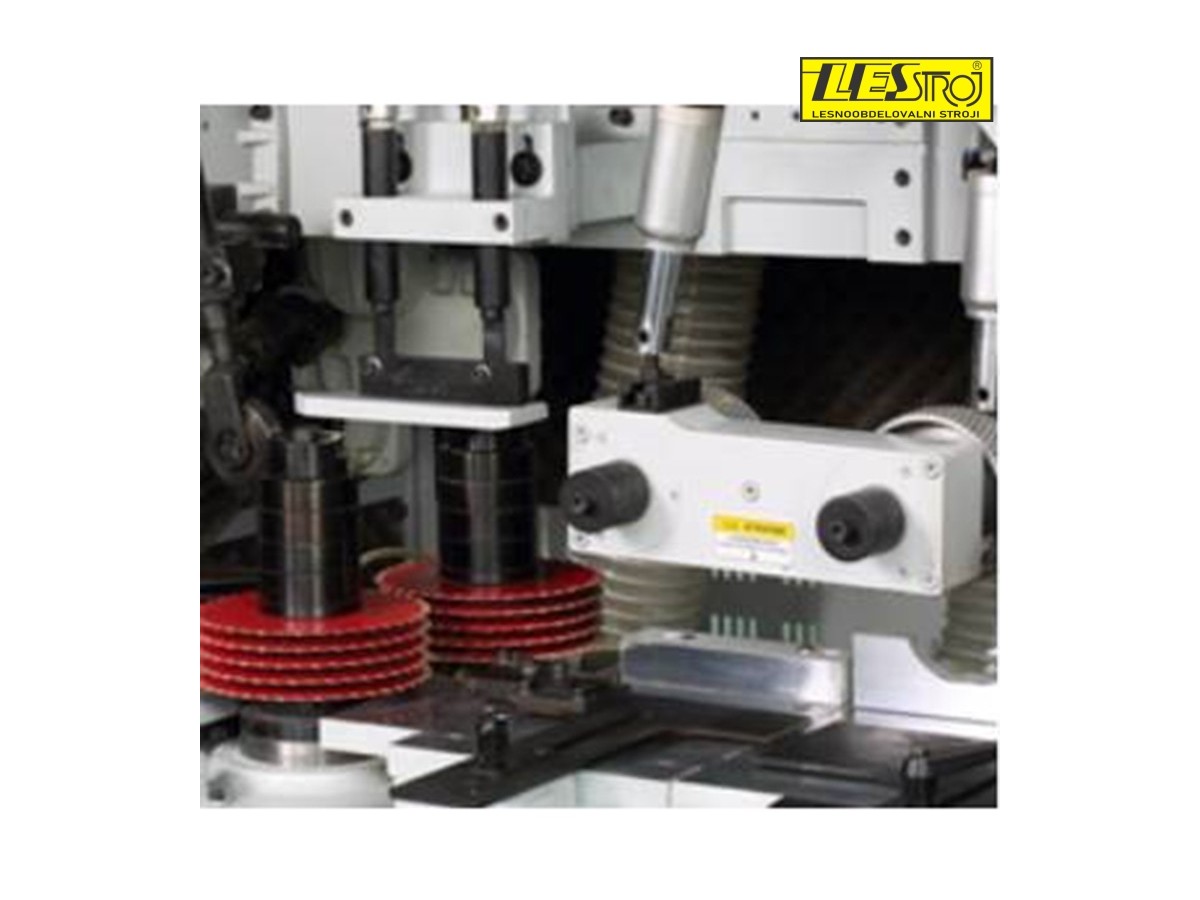

- mounting of horizontal saw units (22 kW motor)

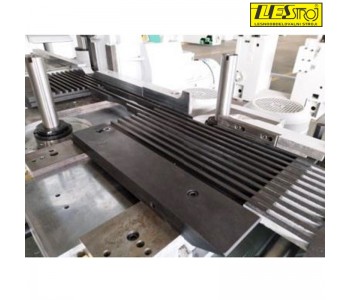

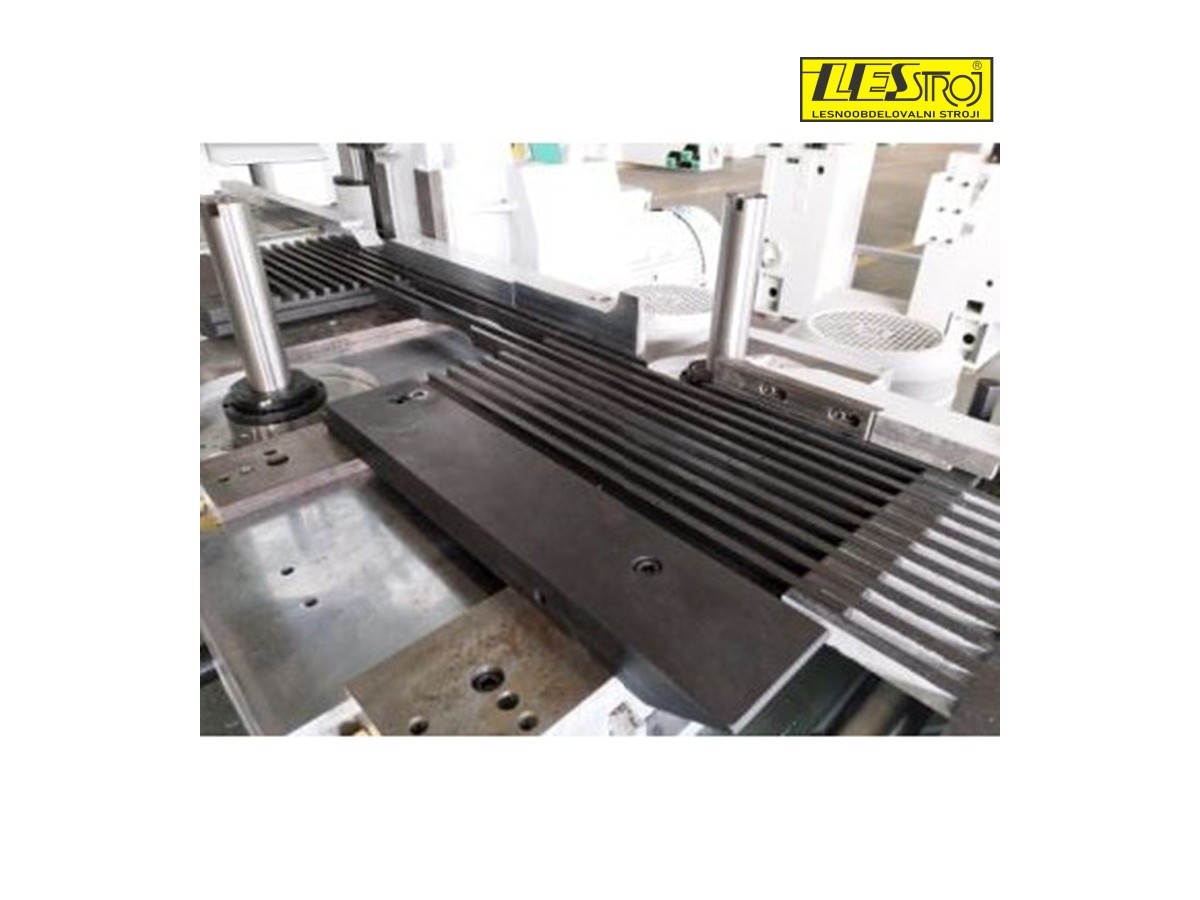

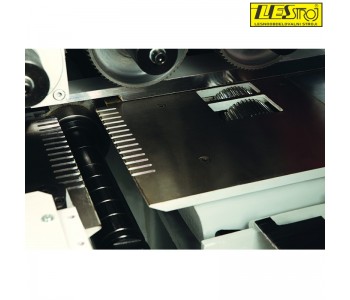

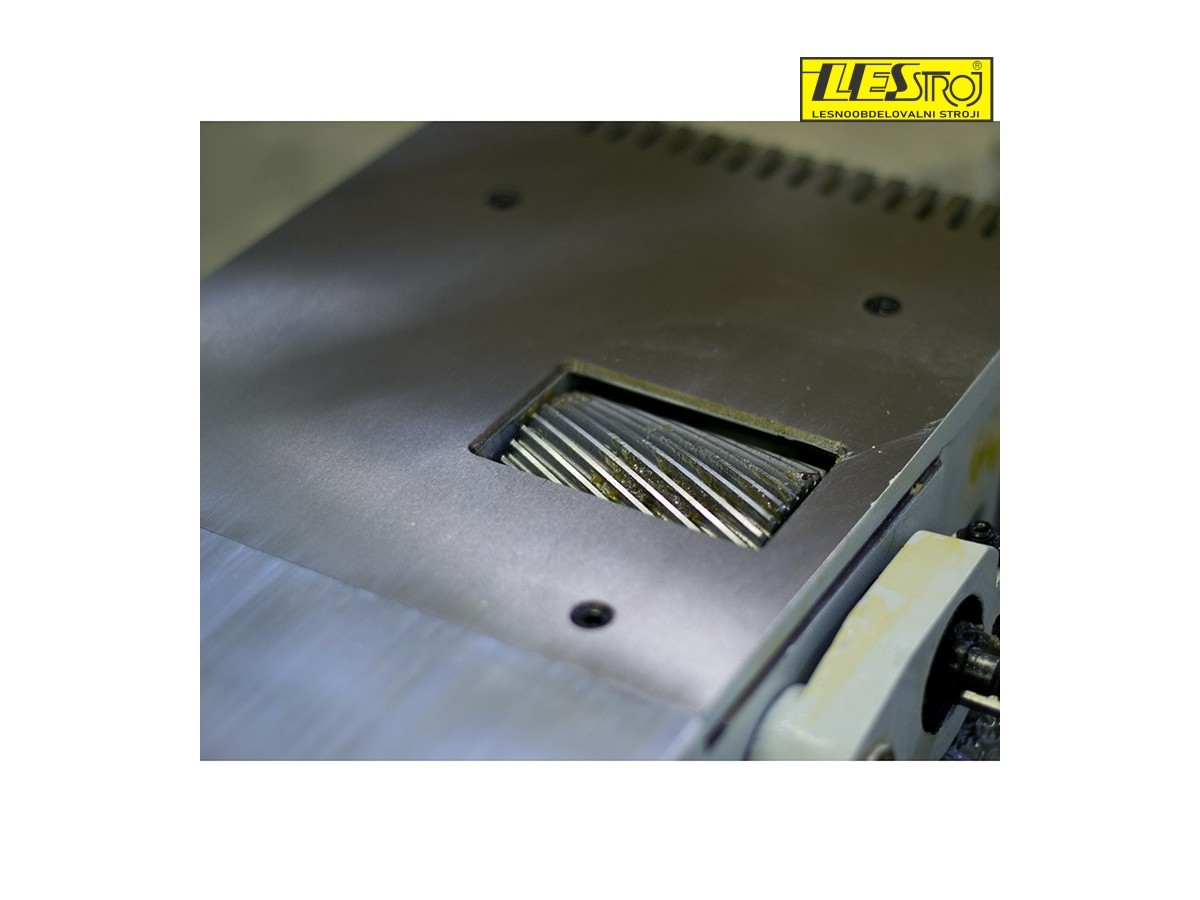

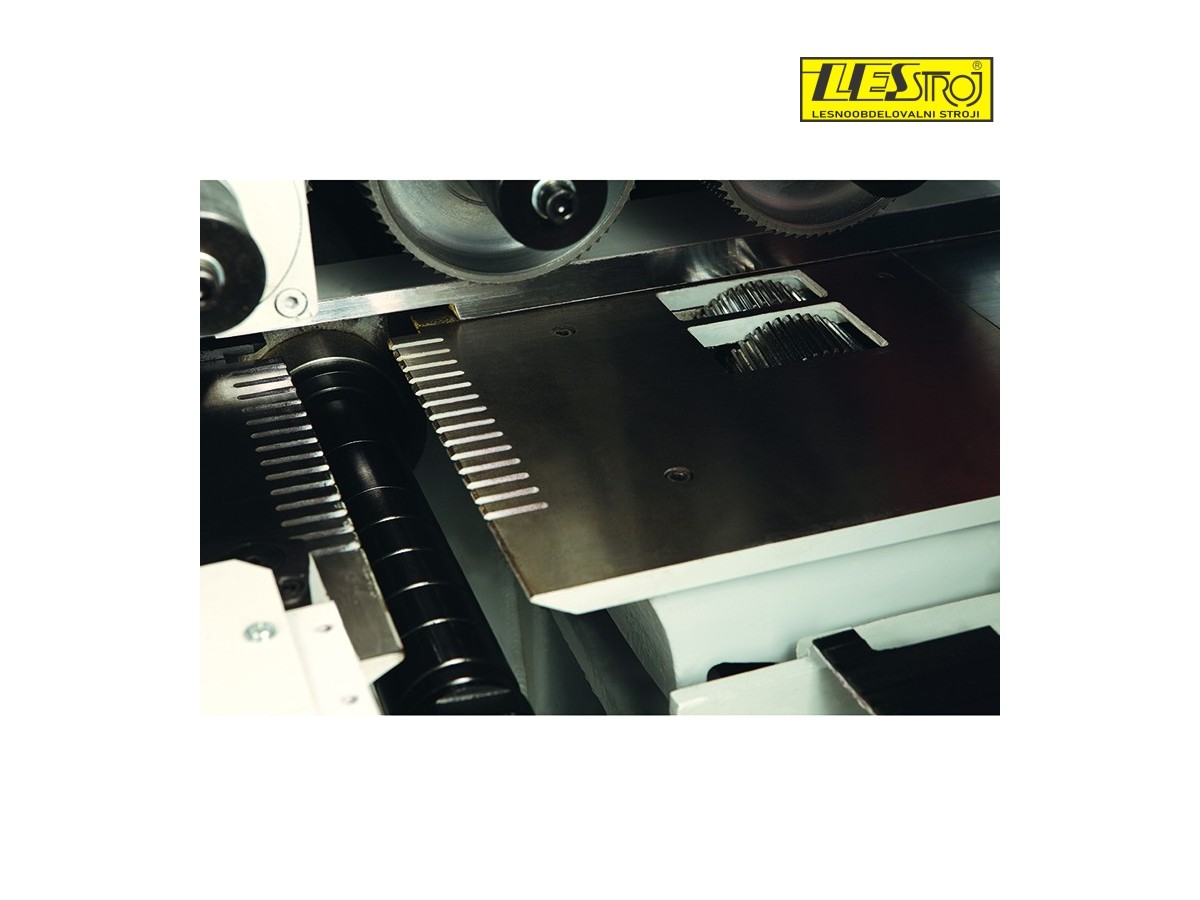

- grooved tables for short pieces from 150 mm onwards
- automatic lubrication of the working table
- increased spindle speed up to 8000 rpm
- double bearings for higher loads
The machine is ideal for professional workshops and industrial wood processing where precision, robustness, and efficient production are essential.
Data sheet
- Planing width
- Planing thickness
- 8 - 160 mm
- Number of spindles
- Engine power of the 1st lower spindle
- 5,5 kW
- Right spindle motor power
- 5,5 kW
- Left spindle motor power
- 5,5 kW
- Engine power of the 1st upper spindle
- 7,5 kW
- Engine power of the 2nd lower spindle
- 7,5 kW
- Moč motorja 2. zgornjega vretena
- 5,5 kW
- Feeder motor power
- Moč univerzalnega motorja vretena
- Machine external dimensions (LxWxH)
