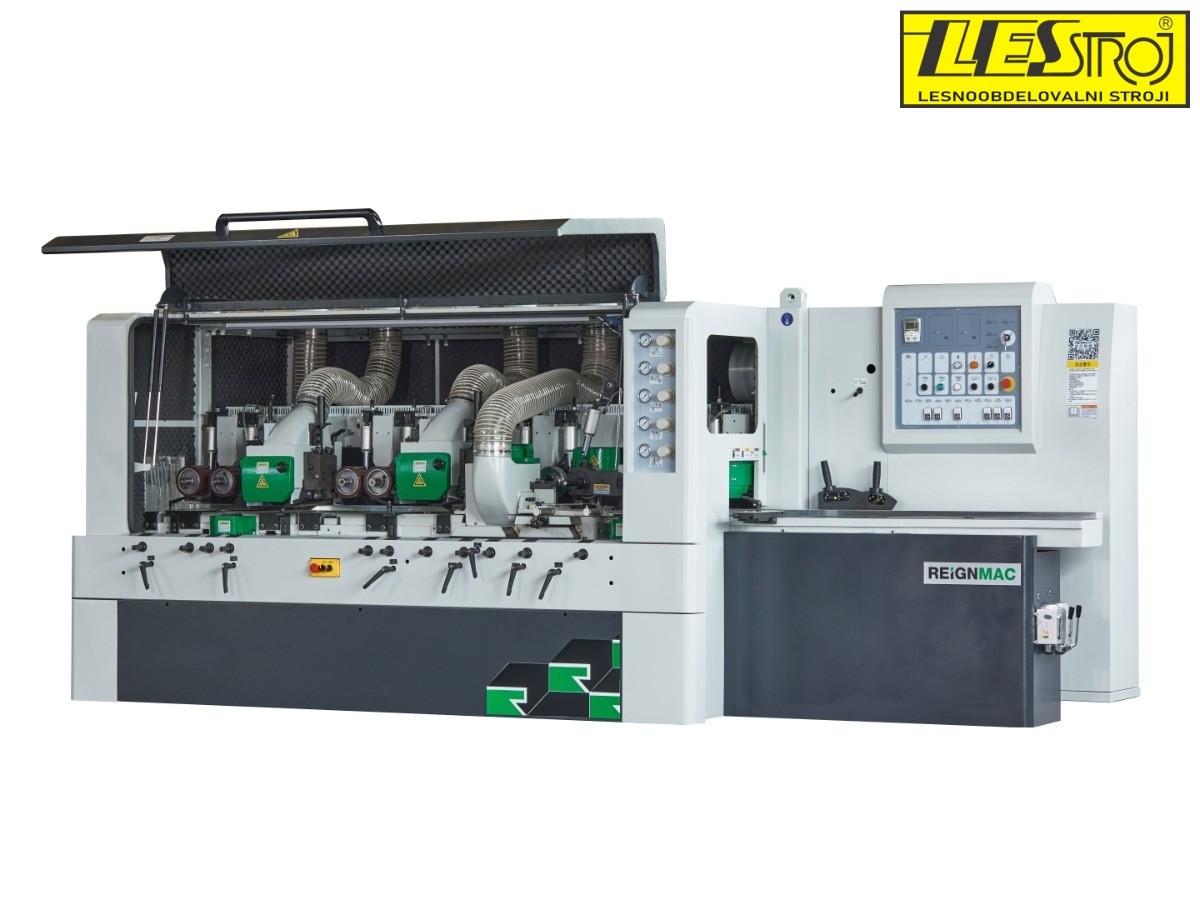

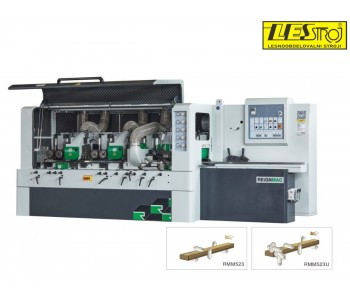

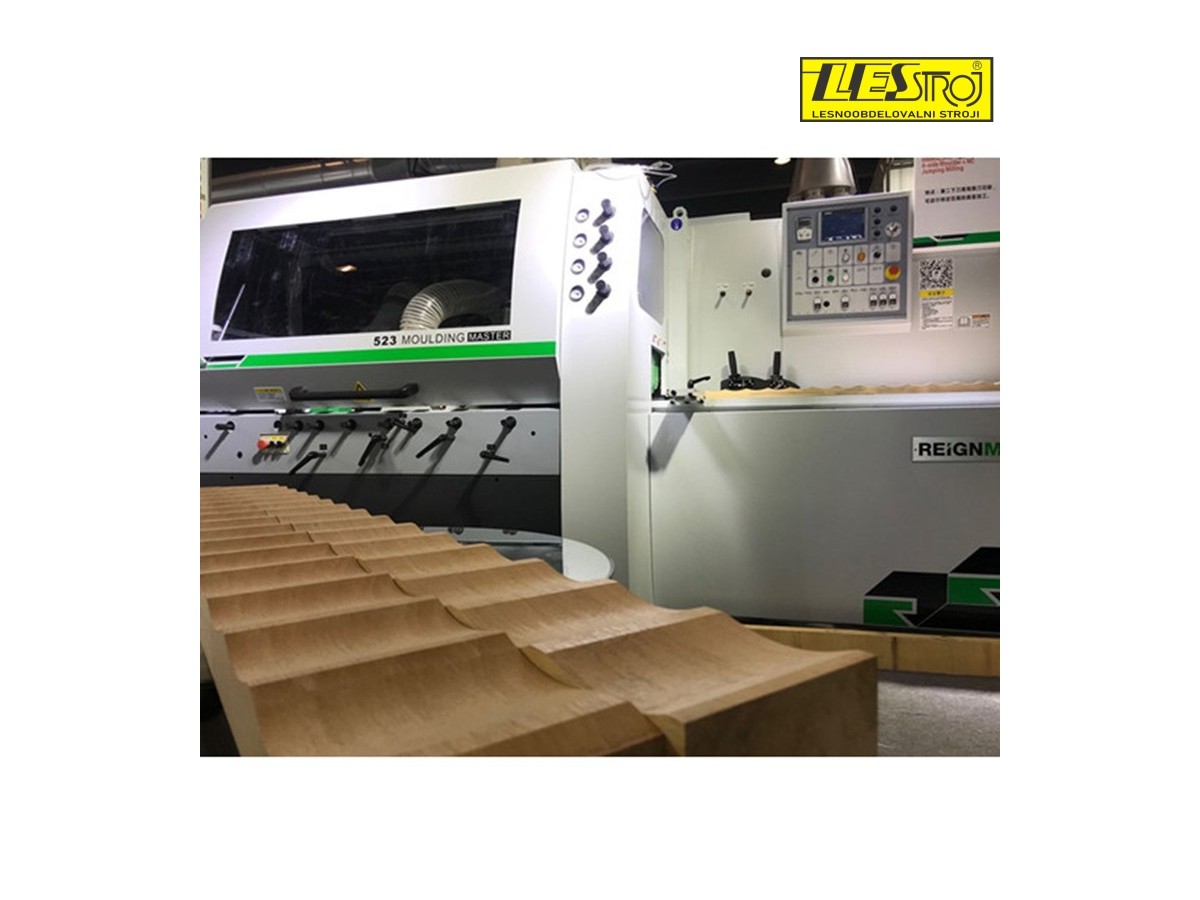

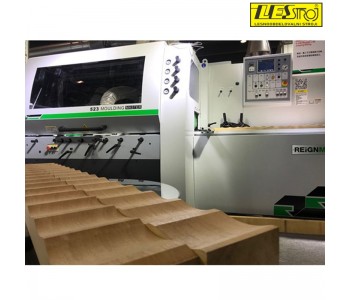

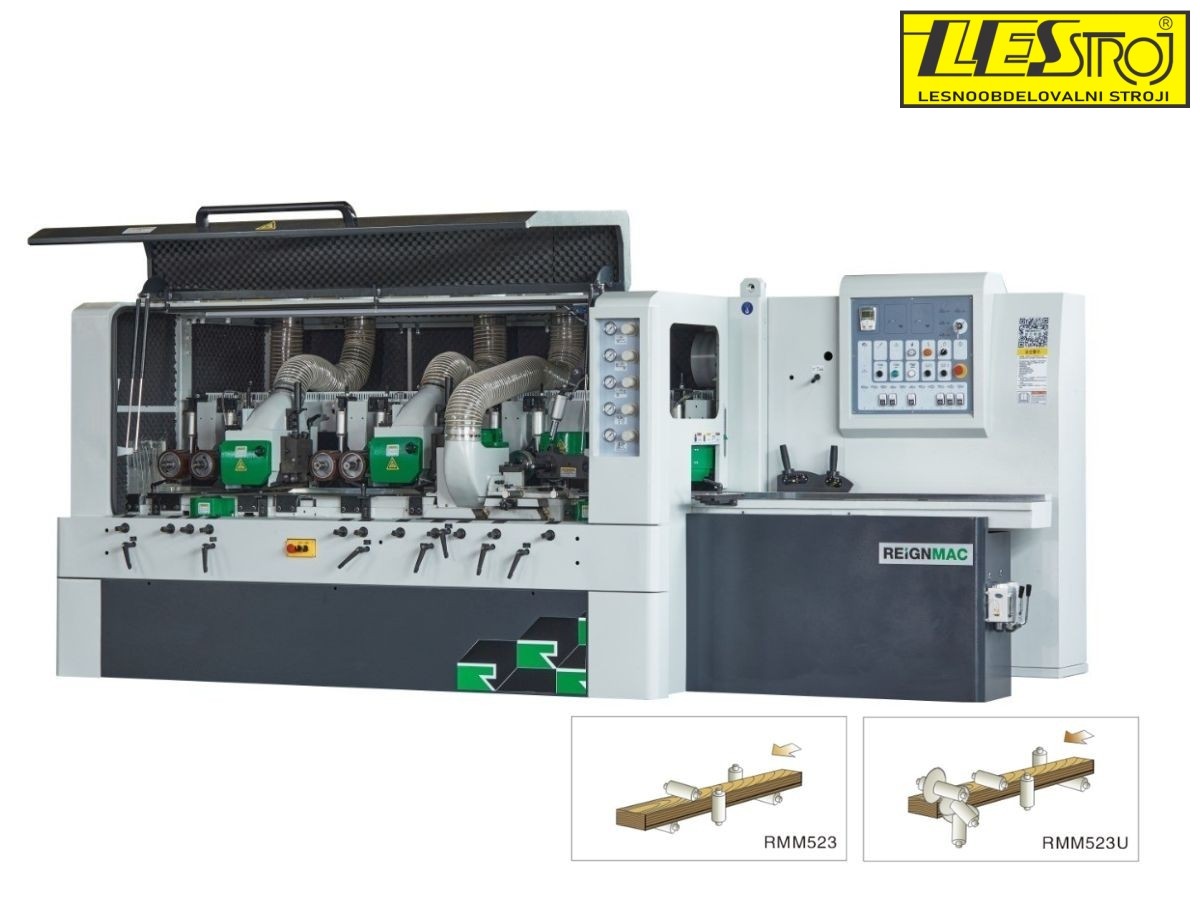

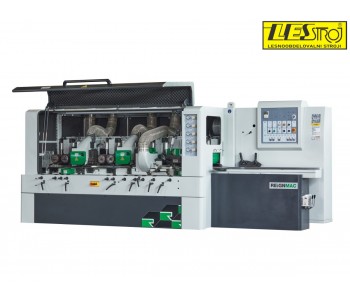

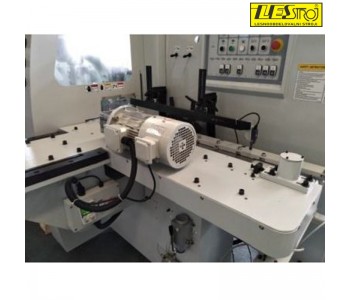

Four-Sided Planer REIGNMAC PowerLine RMM 523
The Reignmac RMM 523 is a 4-sided planer, industrial design, with 5 spindles, working width up to 230 mm and height up to 160 mm.
The Reignmac RMM 523 is a powerful machine for planing and profiling, featuring a robust industrial design with a hard-chromed worktable. It is suitable for processing solid wood as well as MDF/HDF. RMM series machines optionally offer a recessed table for working with shorter pieces, depending on the model and machine configuration.
Four-Sided Planing and Profiling Machine Reignmac Powerline Series RMM 523
The Powerline RMM 523 four-sided planers are universal multi-spindle machines for planing and profiling roof beams, corner battens, formwork, ship decking, laminated boards, parquet, and profile strips up to a cross-section of 230 × 160 mm. RMM machines are extremely robust and designed for industrial use.
Due to their cost-effectiveness, even smaller companies and carpenters often invest in Reignmac machines.
Highlights of RMM 523:
- Universal application, exceptional durability, and affordable price
- Industrial construction, machine weight approx. 3.8 t

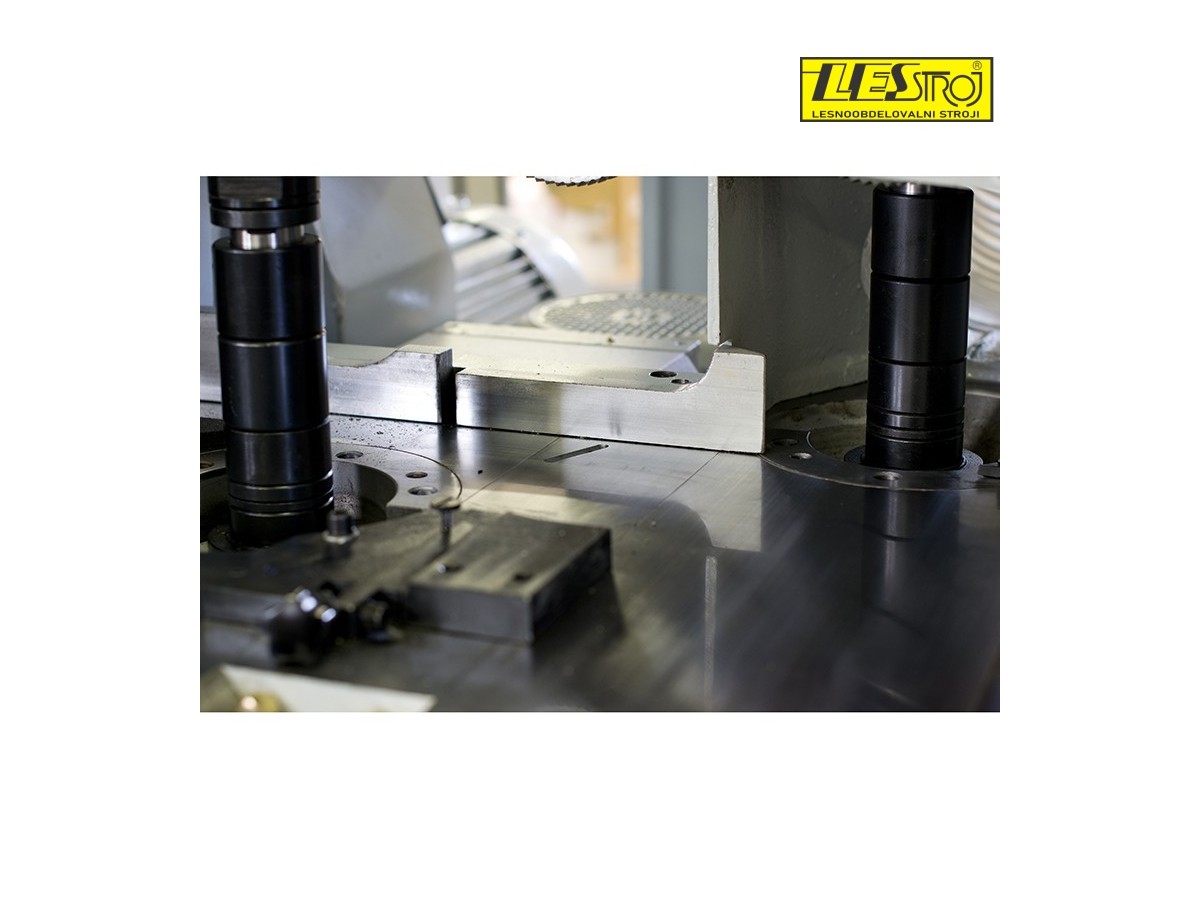

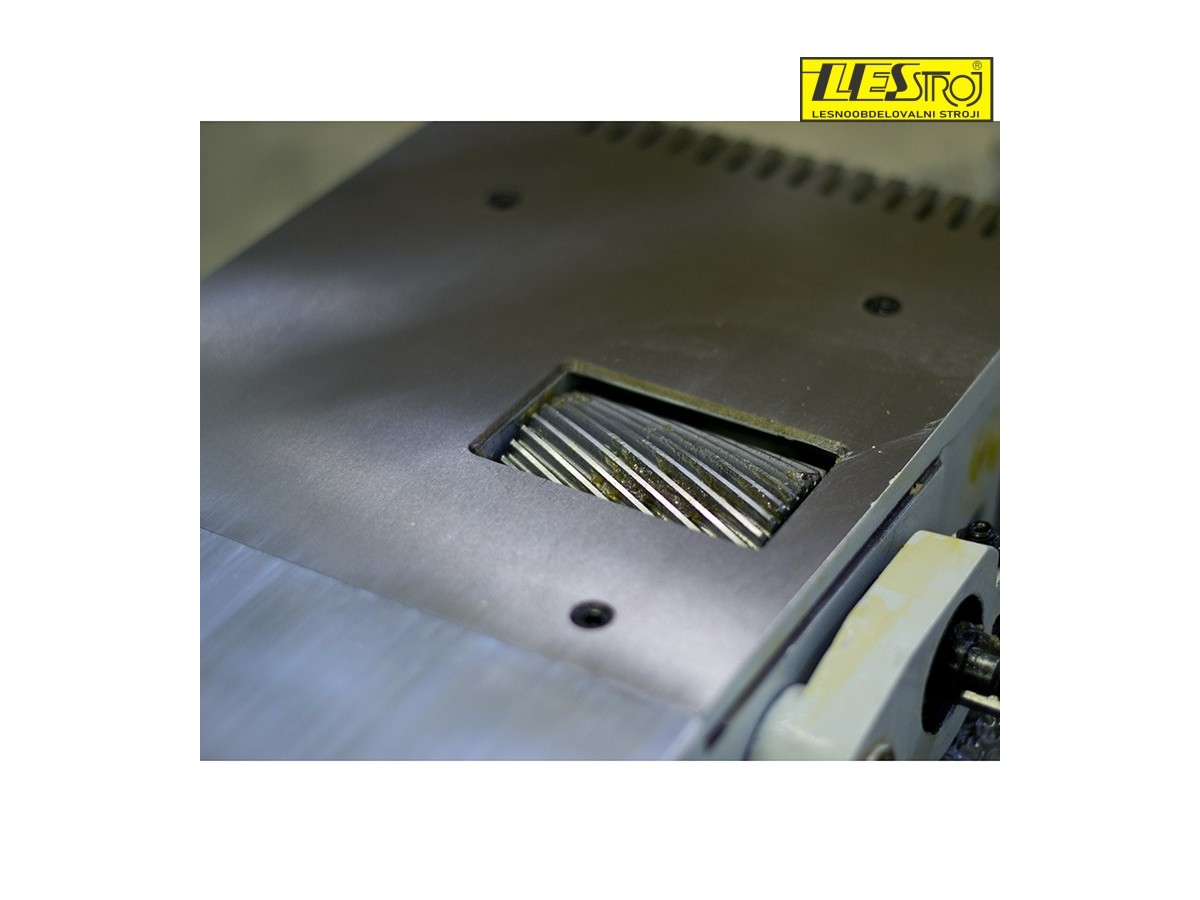

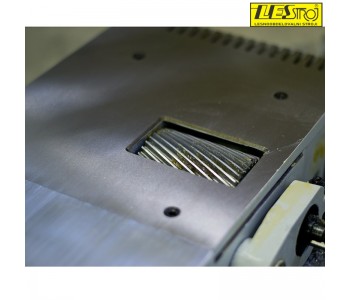

- Chromed worktables as standard
- Maximum processing cross-section 230 × 160 mm, minimum 20 × 8 mm

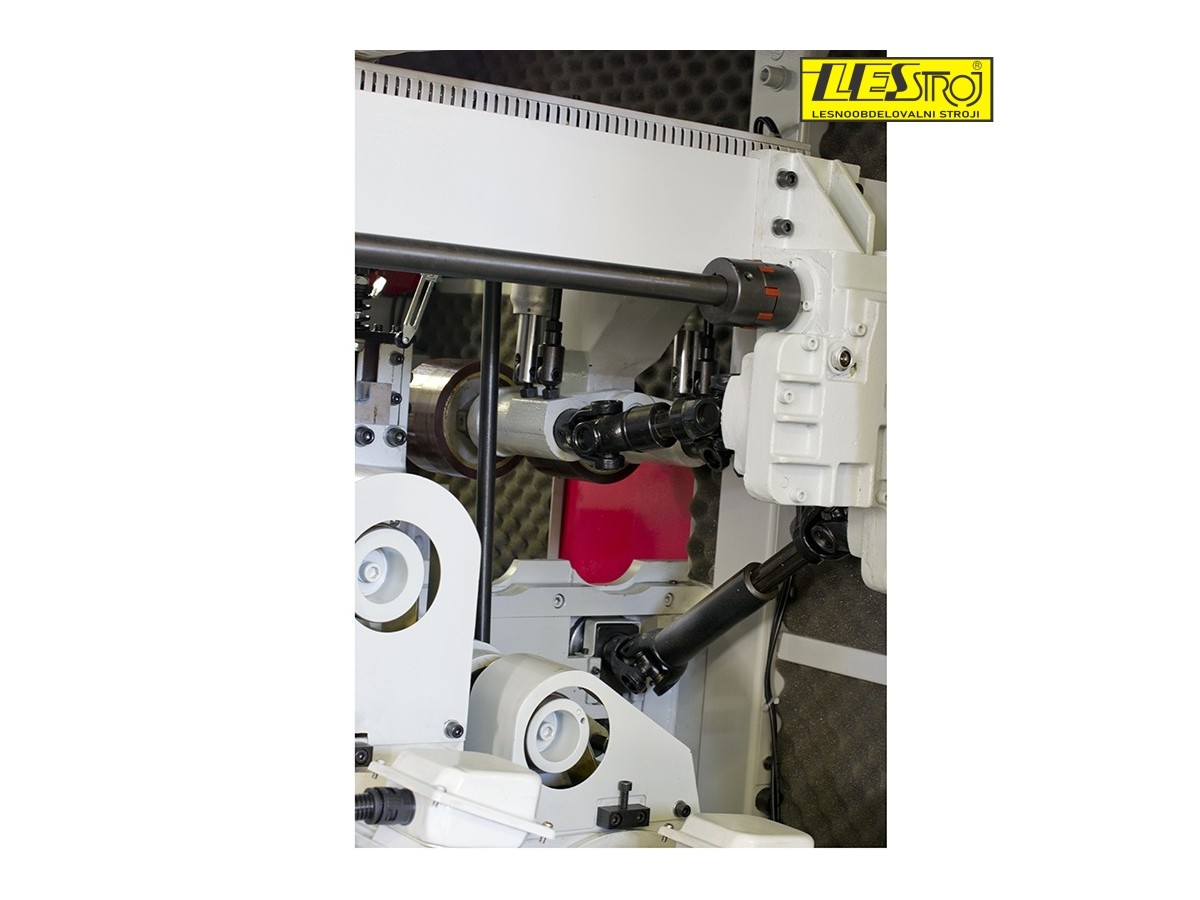

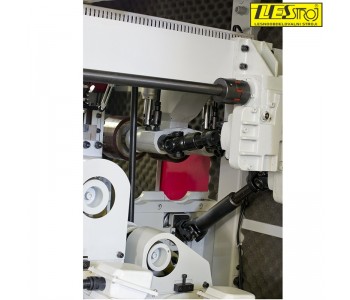

- Powerful cardan feed system
- Inverter-controlled feed up to 30 m/min (optional)
- Profiling up to 45 mm
- Numeric indicators for all spindle adjustments

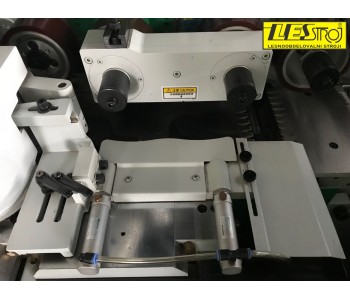

- Pneumatic pressures on side and top guides
- Option for automatic motorized adjustments
- 5 spindles
- CE certification
Optional Accessories:

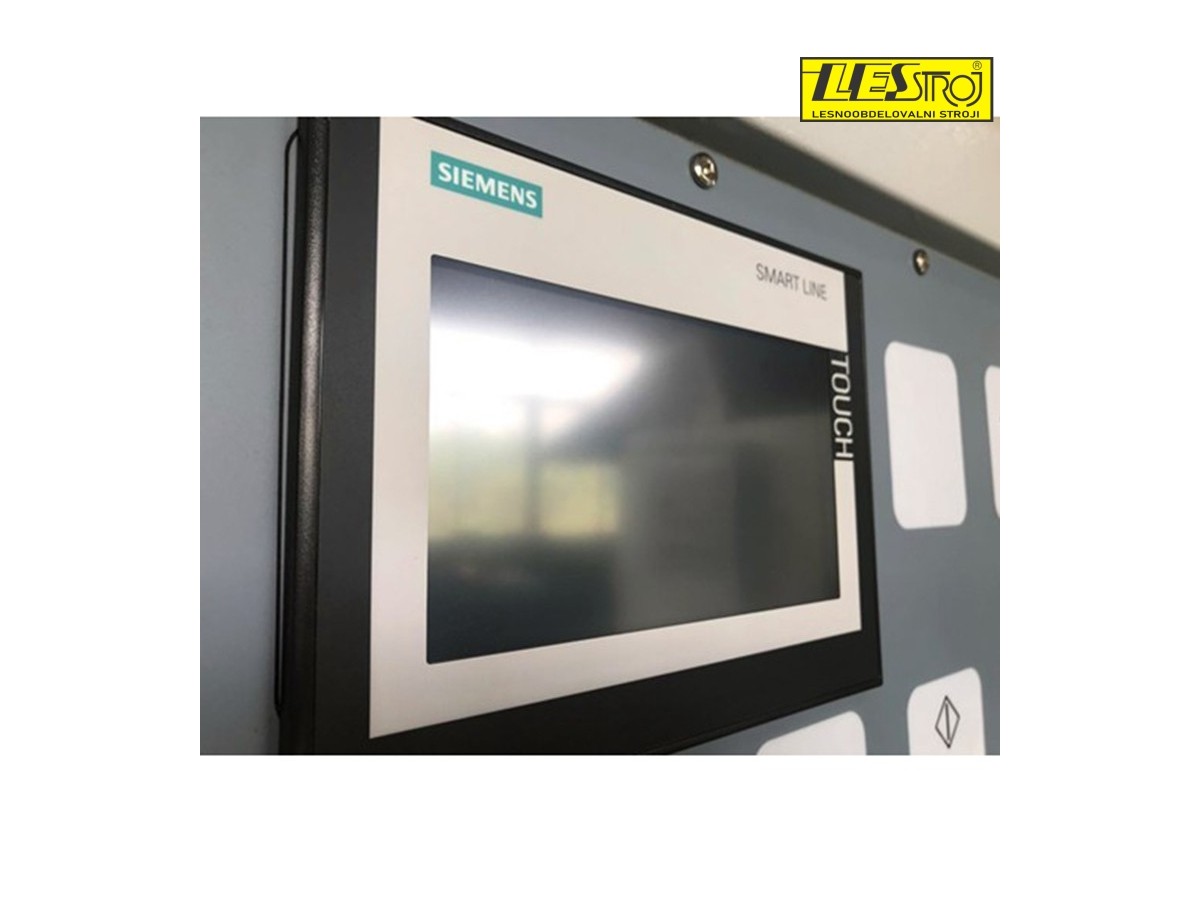

- Siemens Touch – touch screen with program to save settings

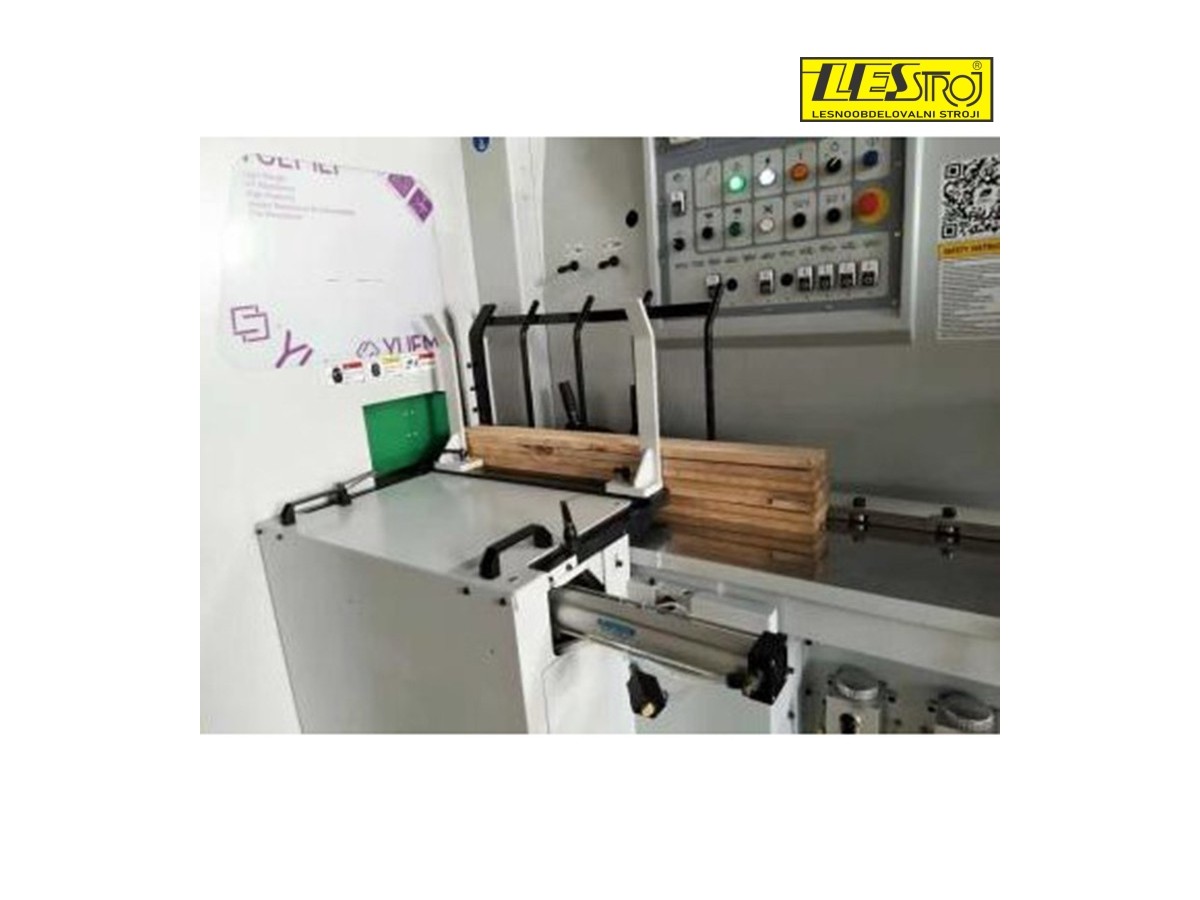

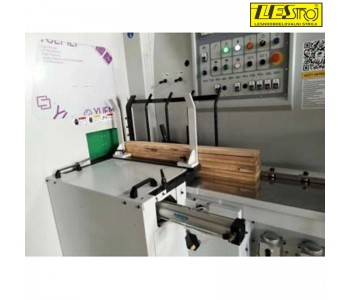

- Automatic feeder for short pieces
- Automatic “hedgehog” feeder for long elements
- Transport loading and unloading device
- Horizontal saw mounting (22 kW motor)

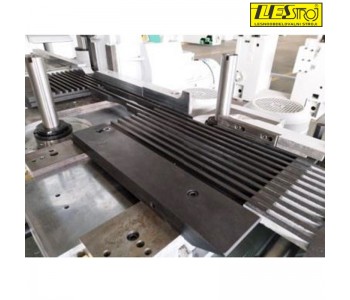

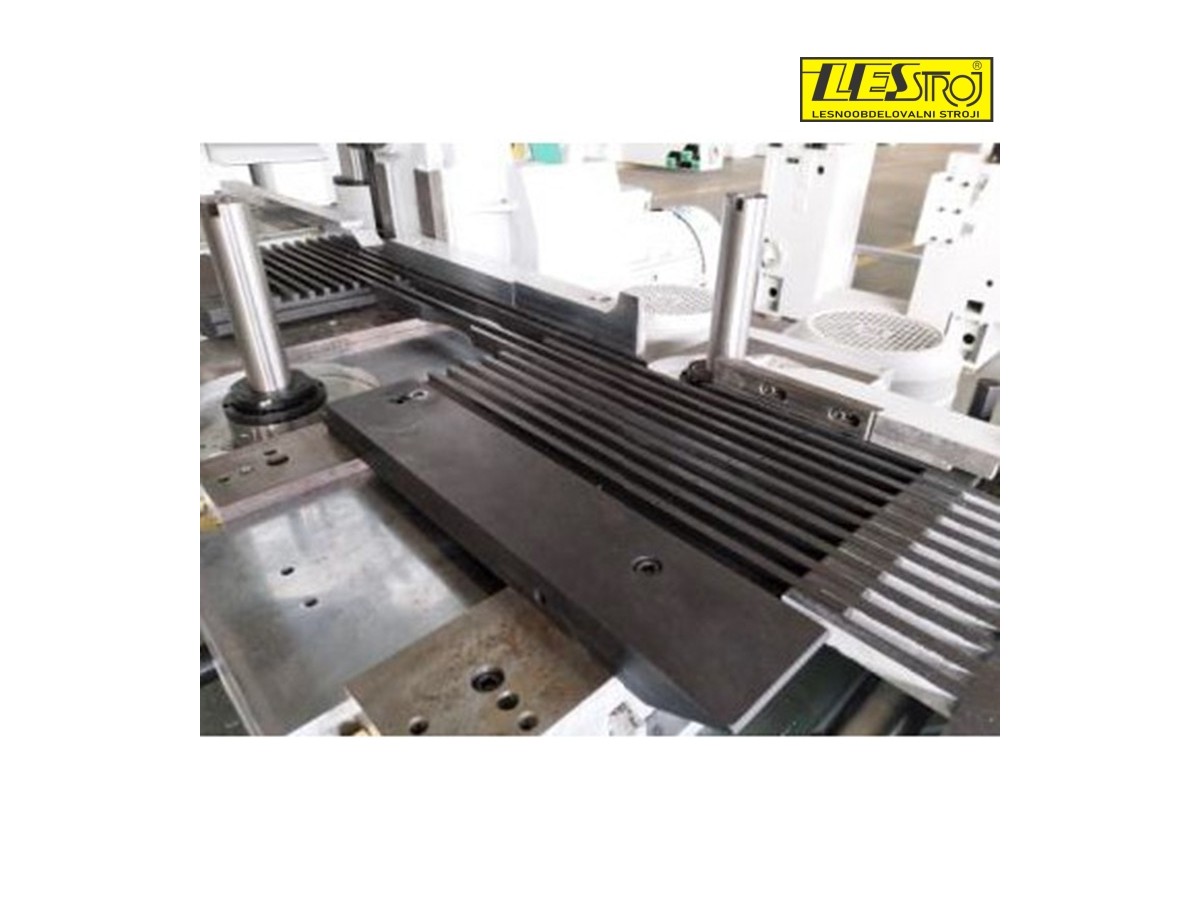

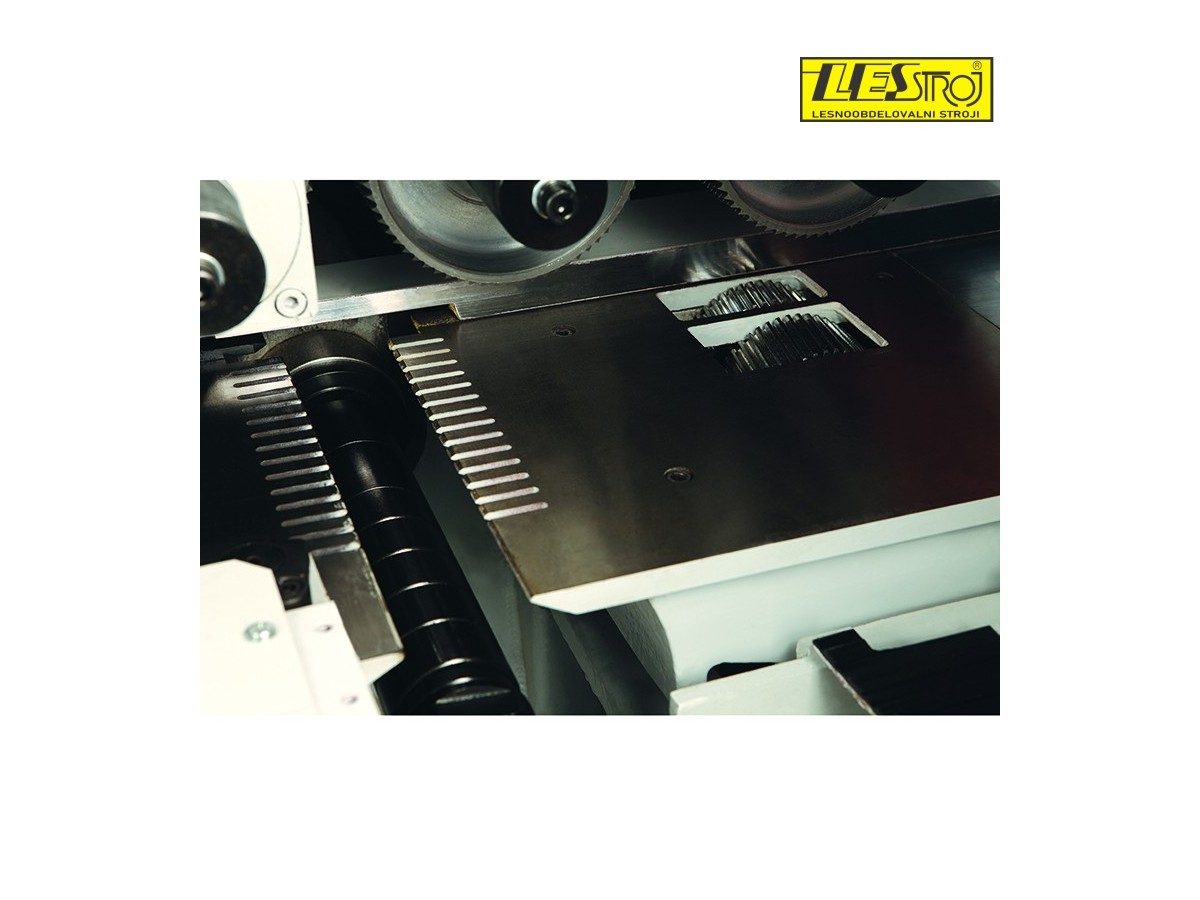

- Grooved tables for short pieces from 150 mm
- Automatic worktable lubrication
- Spindle speed up to 8000 rpm
- Double bearings for higher loads
This machine is ideal for professional workshops and industrial wood processing, where precision, robustness, and efficient production are essential.
Data sheet
- Planing width
- Planing thickness
- 8 - 160 mm
- Number of spindles
- Engine power of the 1st lower spindle
- 5,5 kW
- Right spindle motor power
- 5,5 kW
- Left spindle motor power
- 5,5 kW
- Engine power of the 1st upper spindle
- 7,5 kW
- Engine power of the 2nd lower spindle
- 7,5 kW
- Feeder motor power
- Machine external dimensions (LxWxH)
- 3740 x 1656 x 1730 mm
