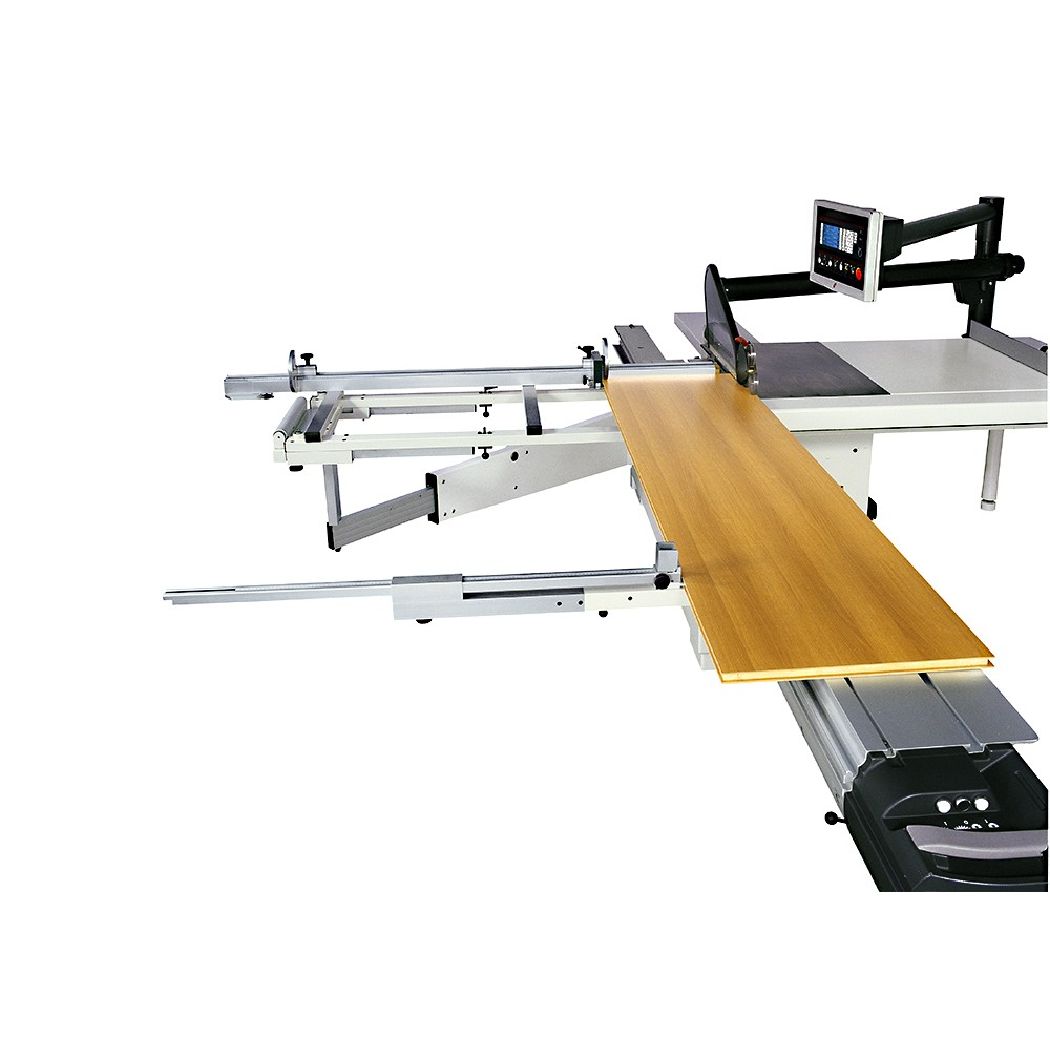

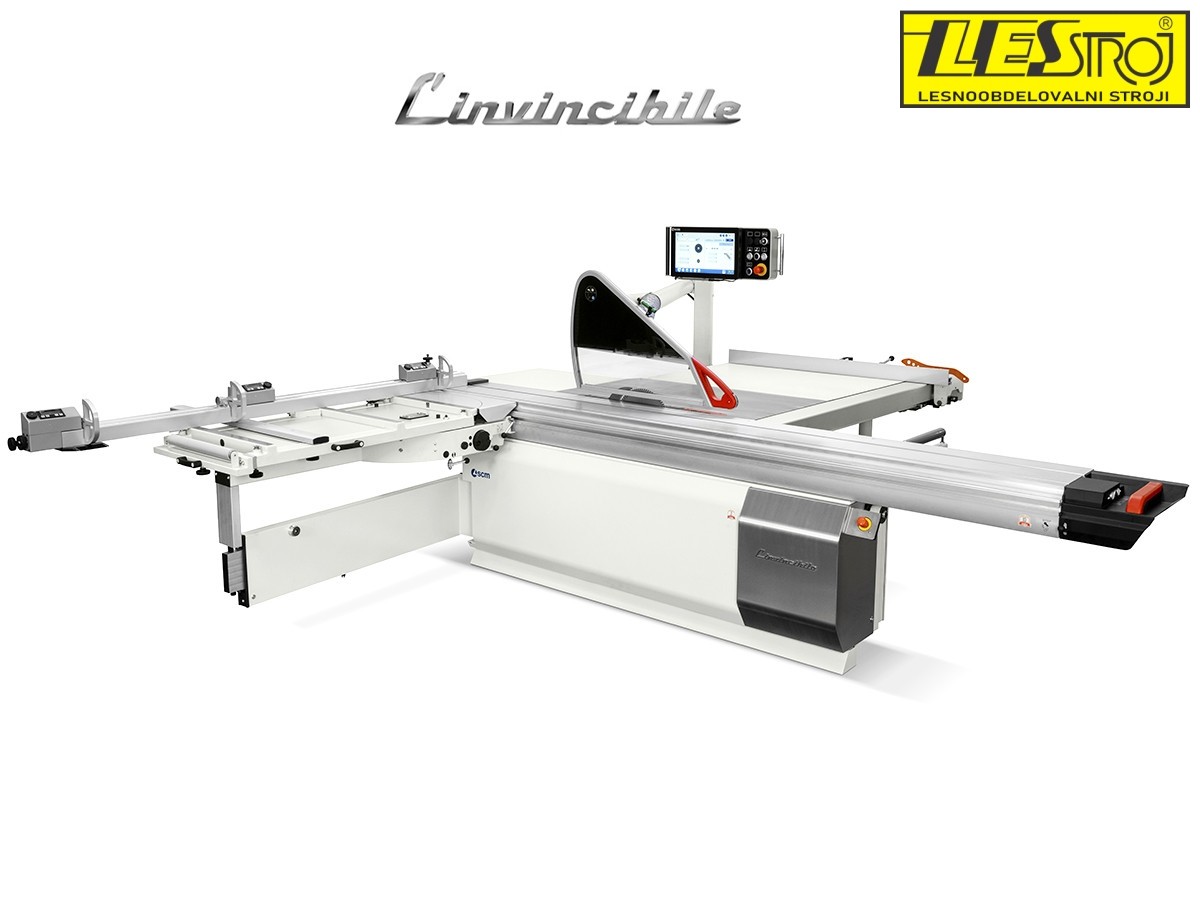

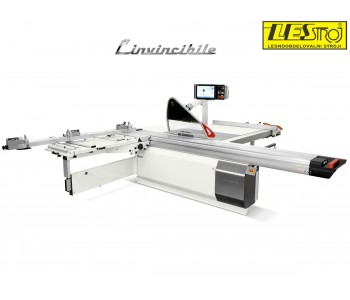

Format Saw SCM Linvincibile SiX

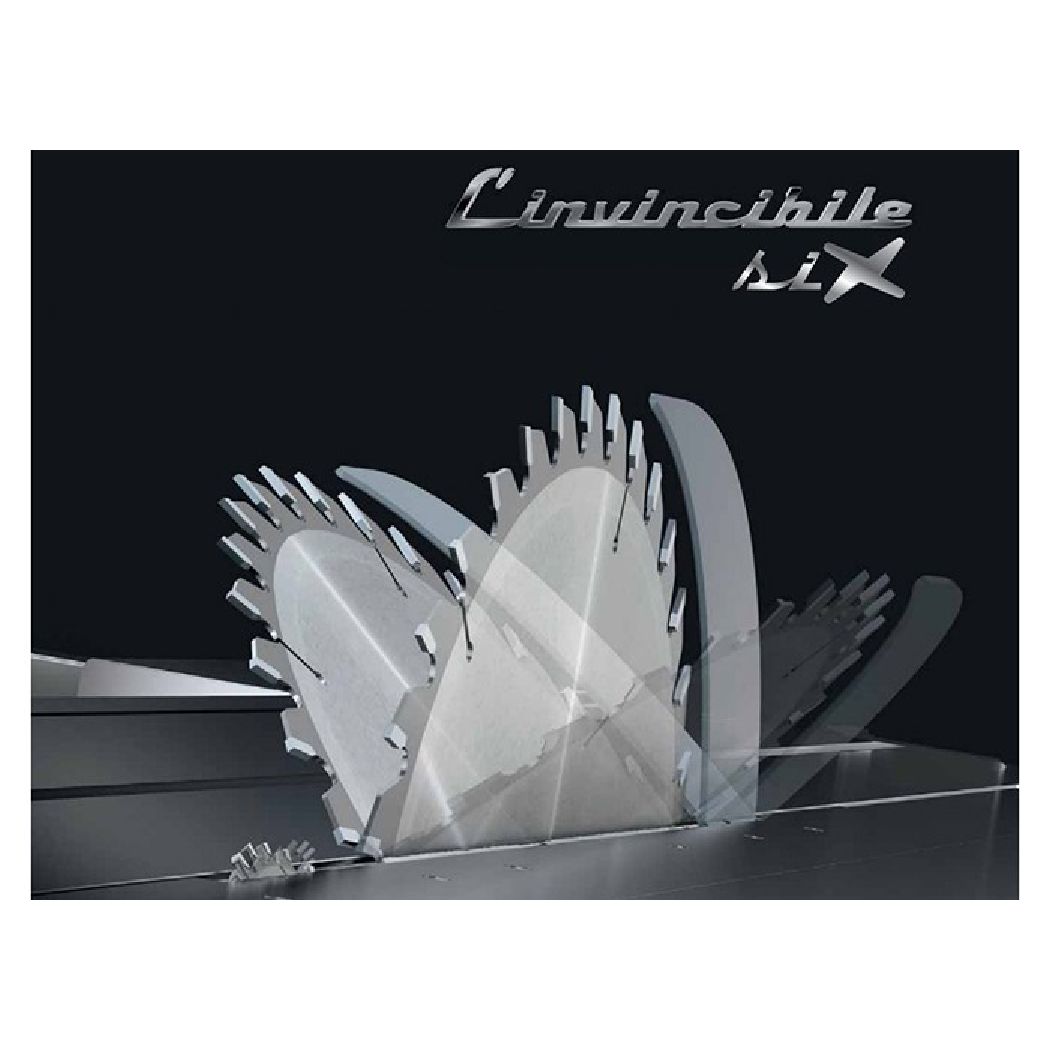

L’invincibile SiX is the top line of SCM circular saws. The special attention to the technological development dedicated to this machine makes it the only one on the market capable of simultaneously use a 550mm saw blade and 160 mm scoring blade, for both 90 ° and ± 46 ° tilted cuts, providing maximum cutting height on veneered panels and solid wood components,
without compromises!

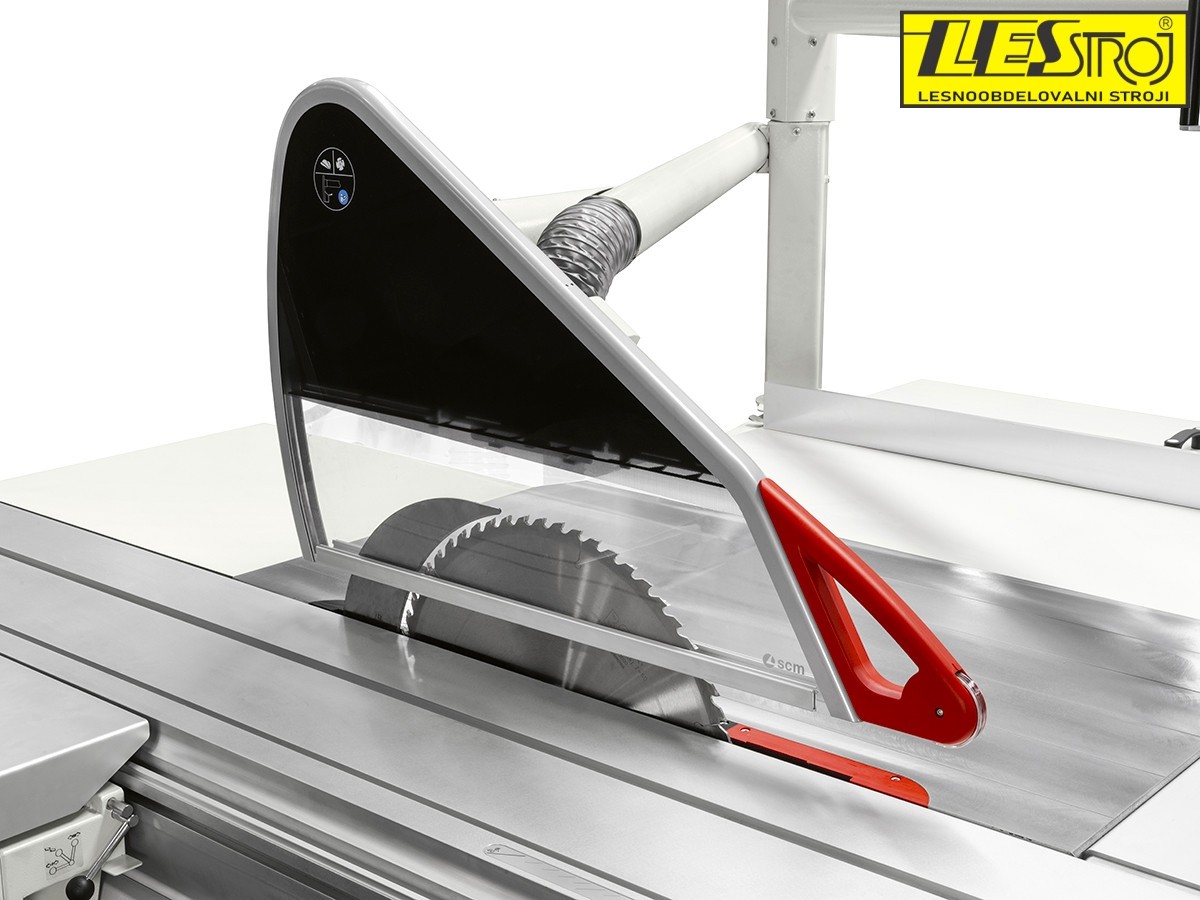

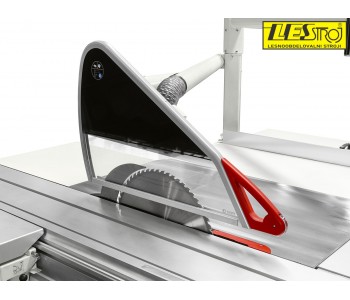

Thanks to the exclusive AP System (SCM patent), the overhead protection automatically positions itself as a function of blade, giving maximum assistance to the operator.

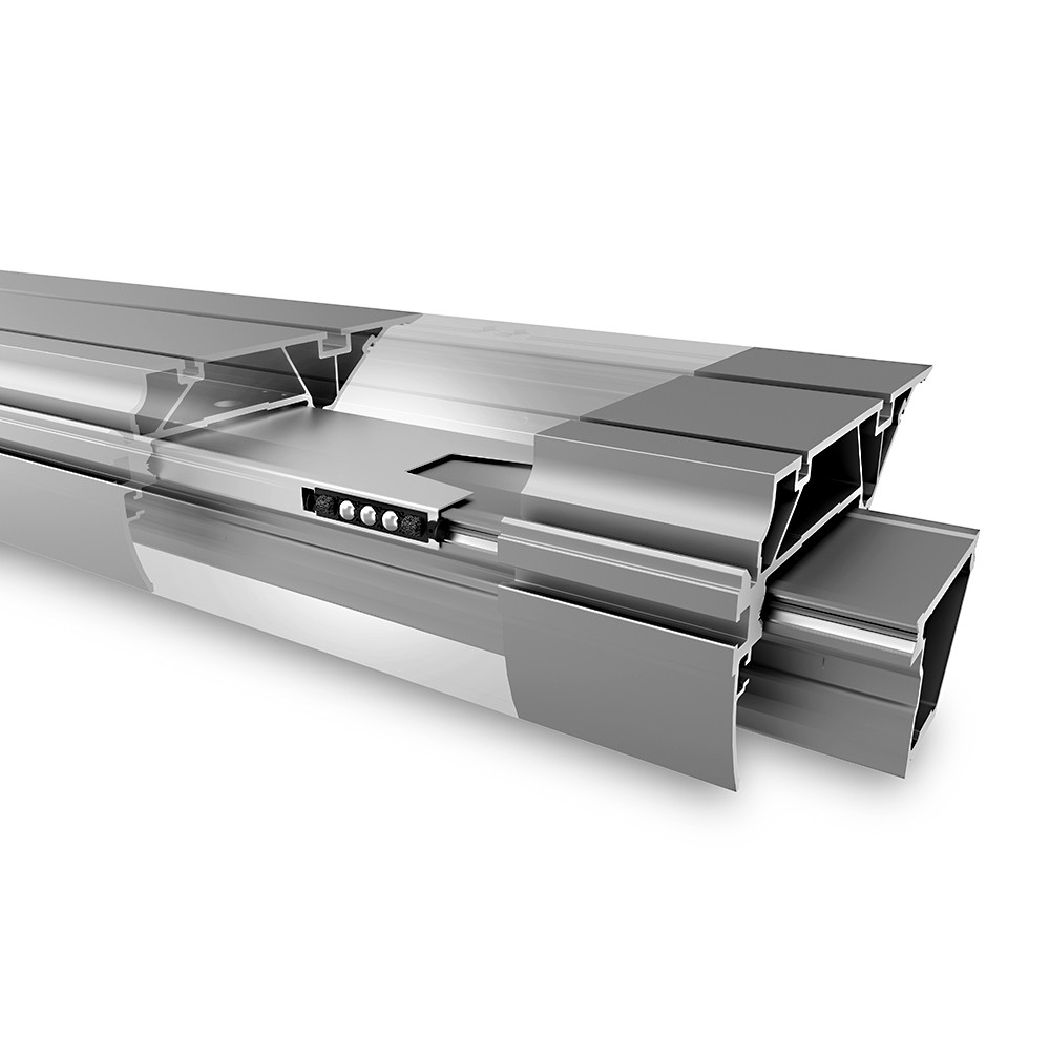

''ARC'' PROFILE GUIDES

- No play and no need for adjustments over time
- Higher loading capacity
- ± 0,05 mm tolerance on the entire carriage length for straight and high quality cutting. The horizontal positioning of the guides ensures protection from dust.
- The carriage will never require adjustment and thanks to its structure with arch-ground steel Slide-ways (SCM exclusive and patented solution) it can bear loads four times higher.

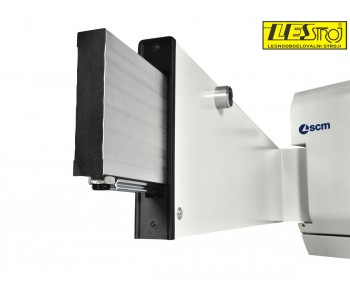

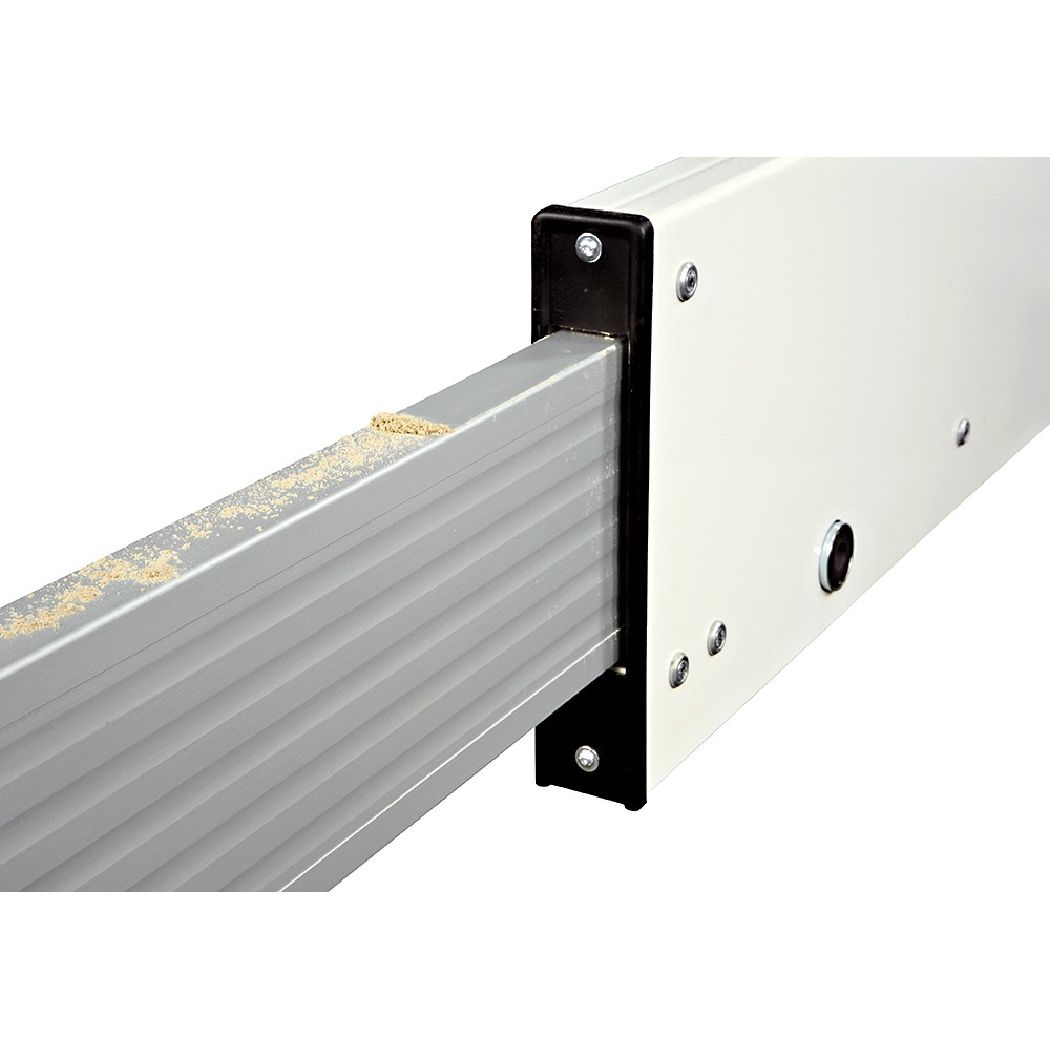

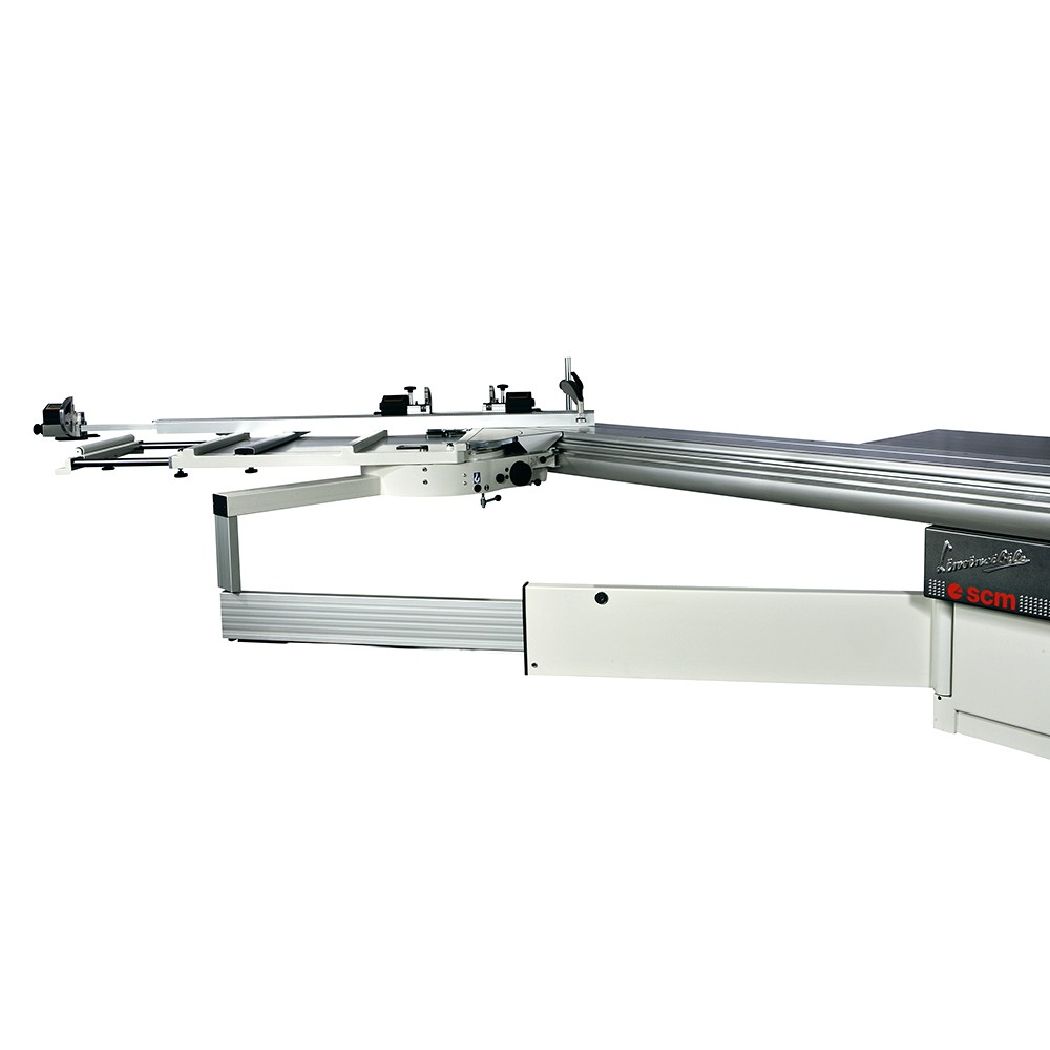

TELESCOPIC SWING ARM:

The work piece support frame is the only one to be made of a large dimensioned extrusion and linear guide on recirculating ball bearings. It ensures:
- maximum work piece with fluid movement
- no play and no noise
- dust protection
- no need for maintenance

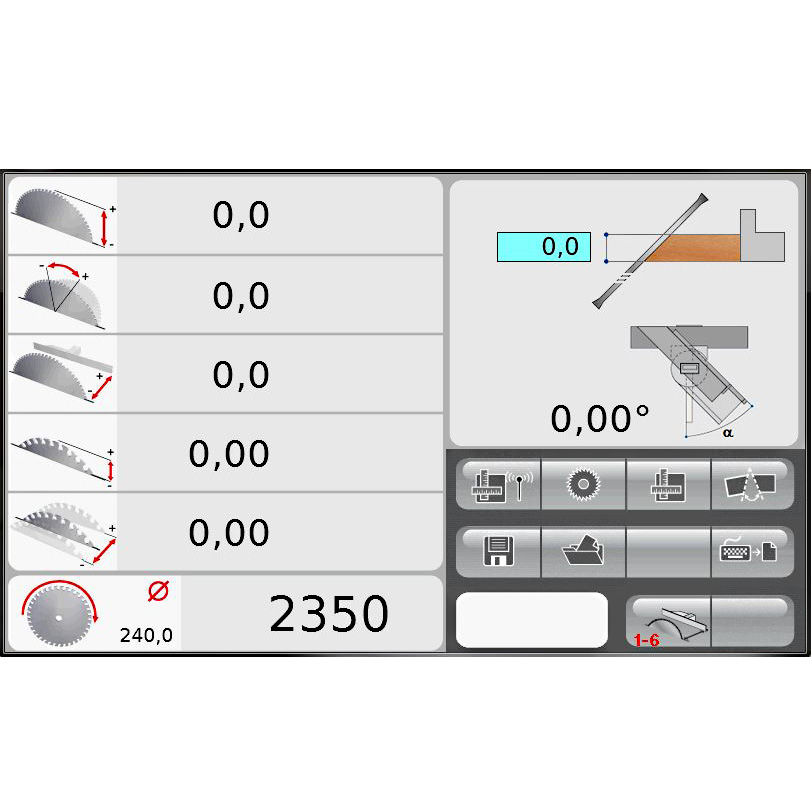

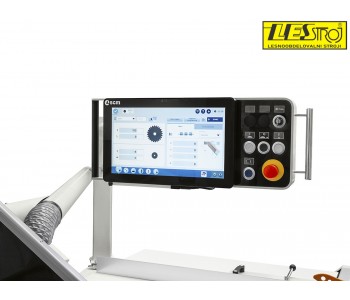

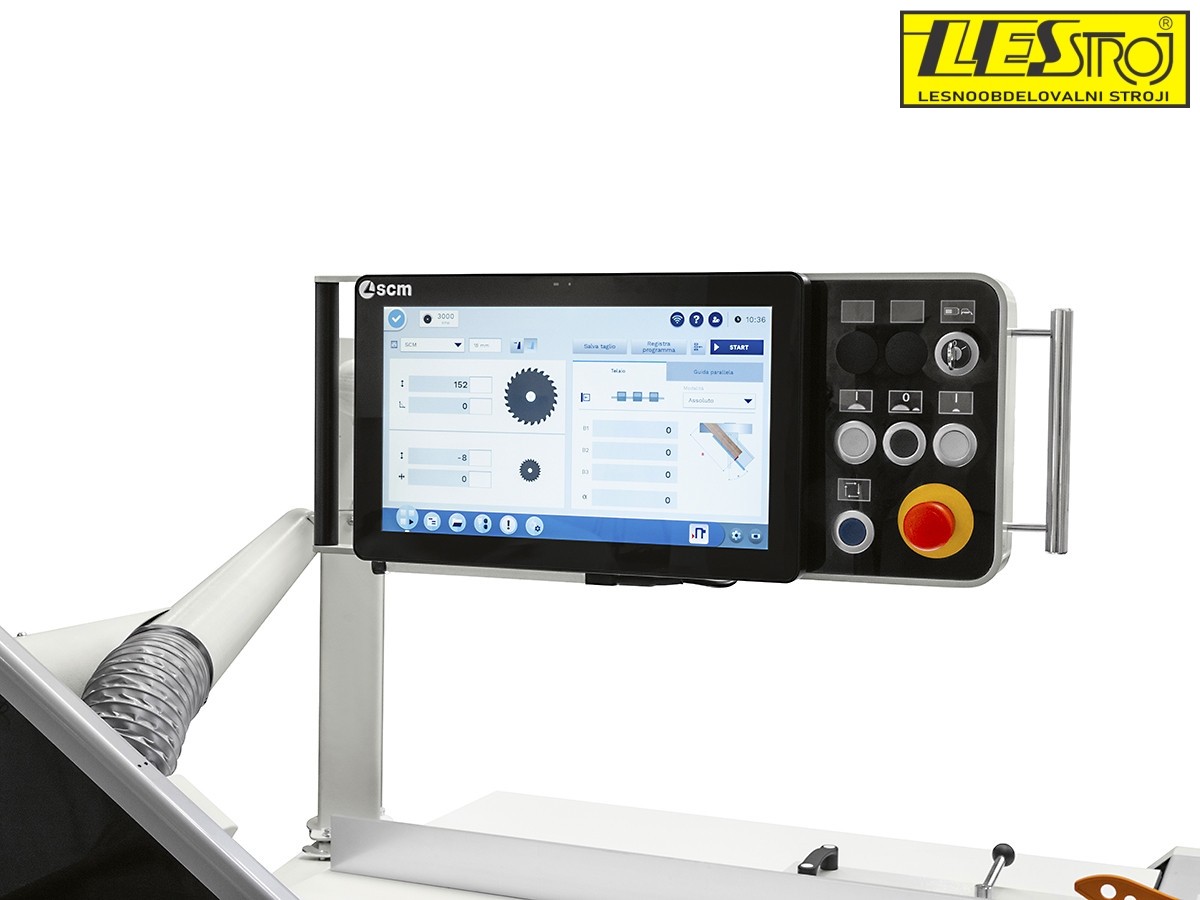

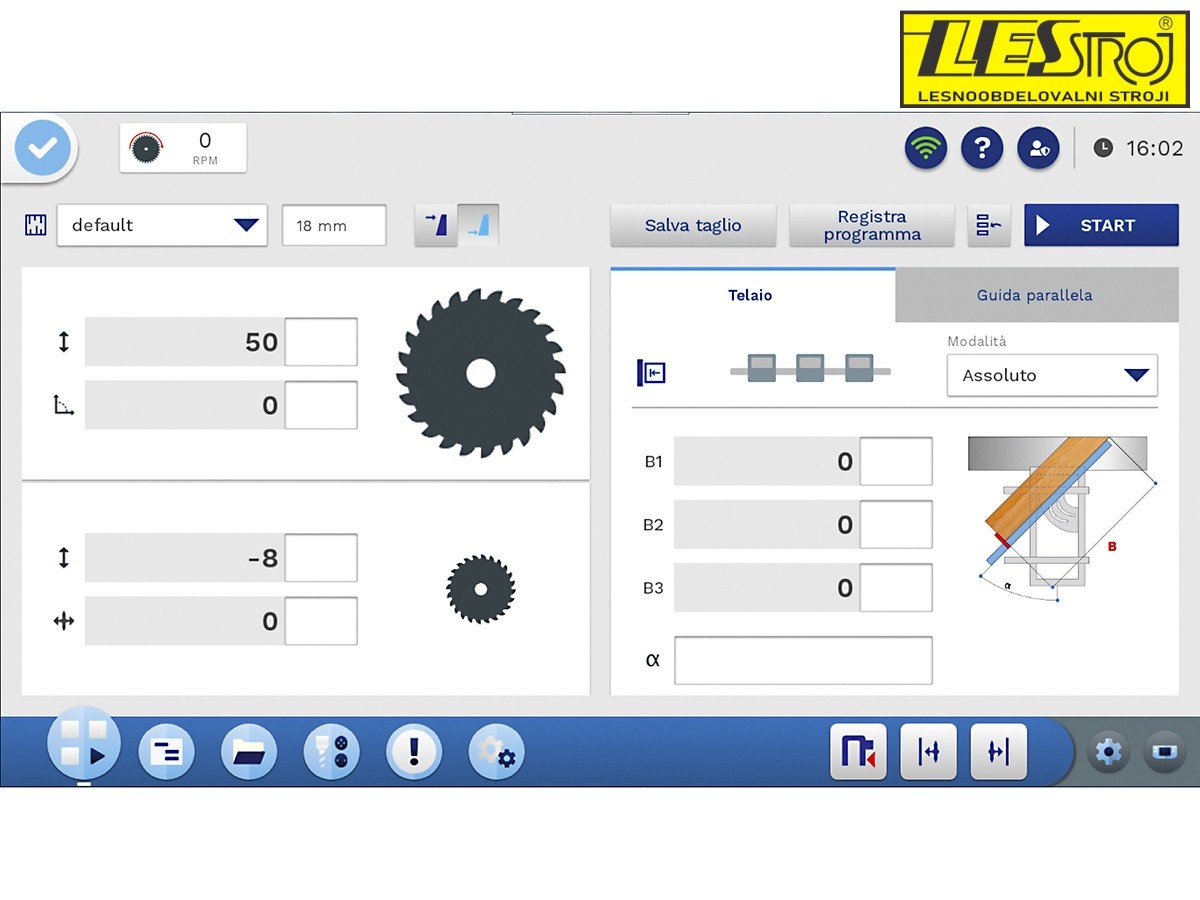

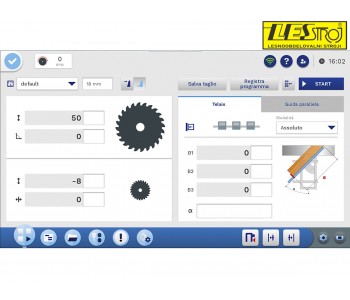

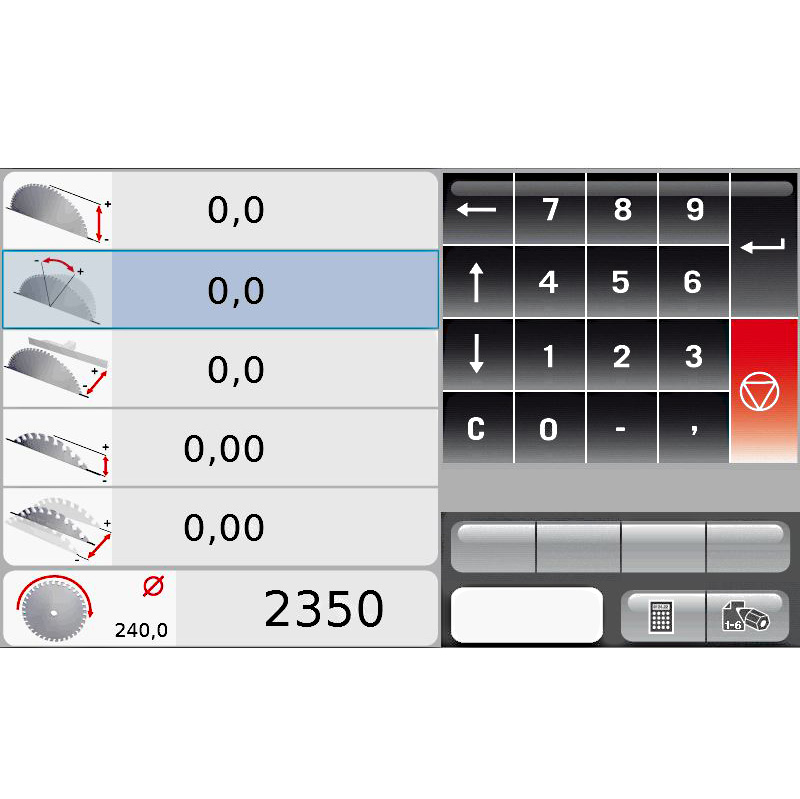

EASY TOUCH 7''

The satisfaction of fast and easy-to-use control of all machine functions with the new 7” touch-screen colour display. The system guides the operator every step of the way offering suggestions that avoid the operator making any mistakes. Additional calculation functions assist the operator when designing the necessary cuts for assembled components and complex geometrical shapes.



Product Details

Data sheet

Saw carriage length
3200 ali 3800
Saw blade diameter (mm)
550
Pre-cutter blade rotation speed
6000
Cut-out width on the right guide frame
1500
Pre-cutter - engine power
0,9
Saw blade tilting (°)
-46 / +46
Scoring saw blade (mm)
160
Motor power (kW)
9
Saw rotation speed (rpm)
2800 - 4200
Max. cut-out at 90°/45°
205 / 130
Extraction nozzles (mm)
1 x 120 / 1 x 100
Software
''EASY''
Machine Version
Avtomatska
Images

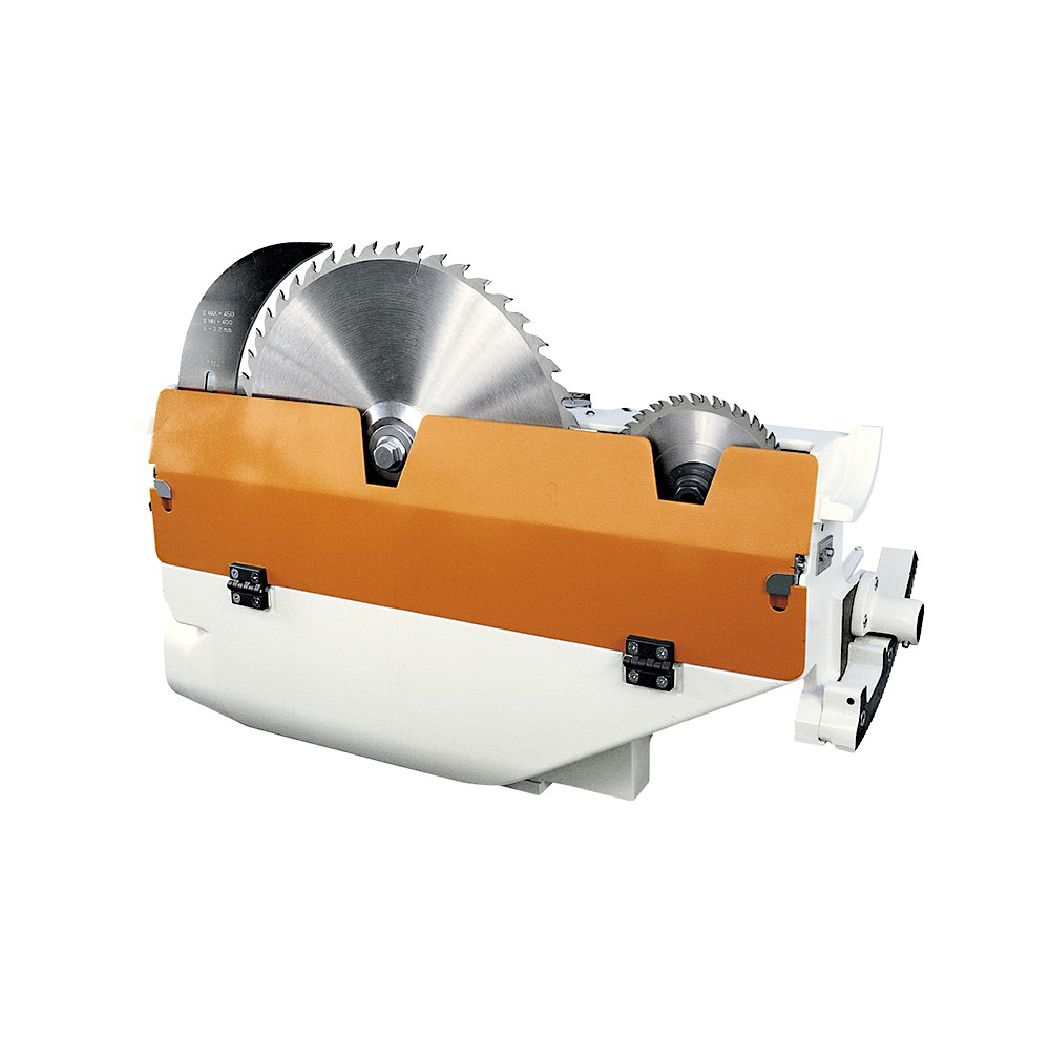

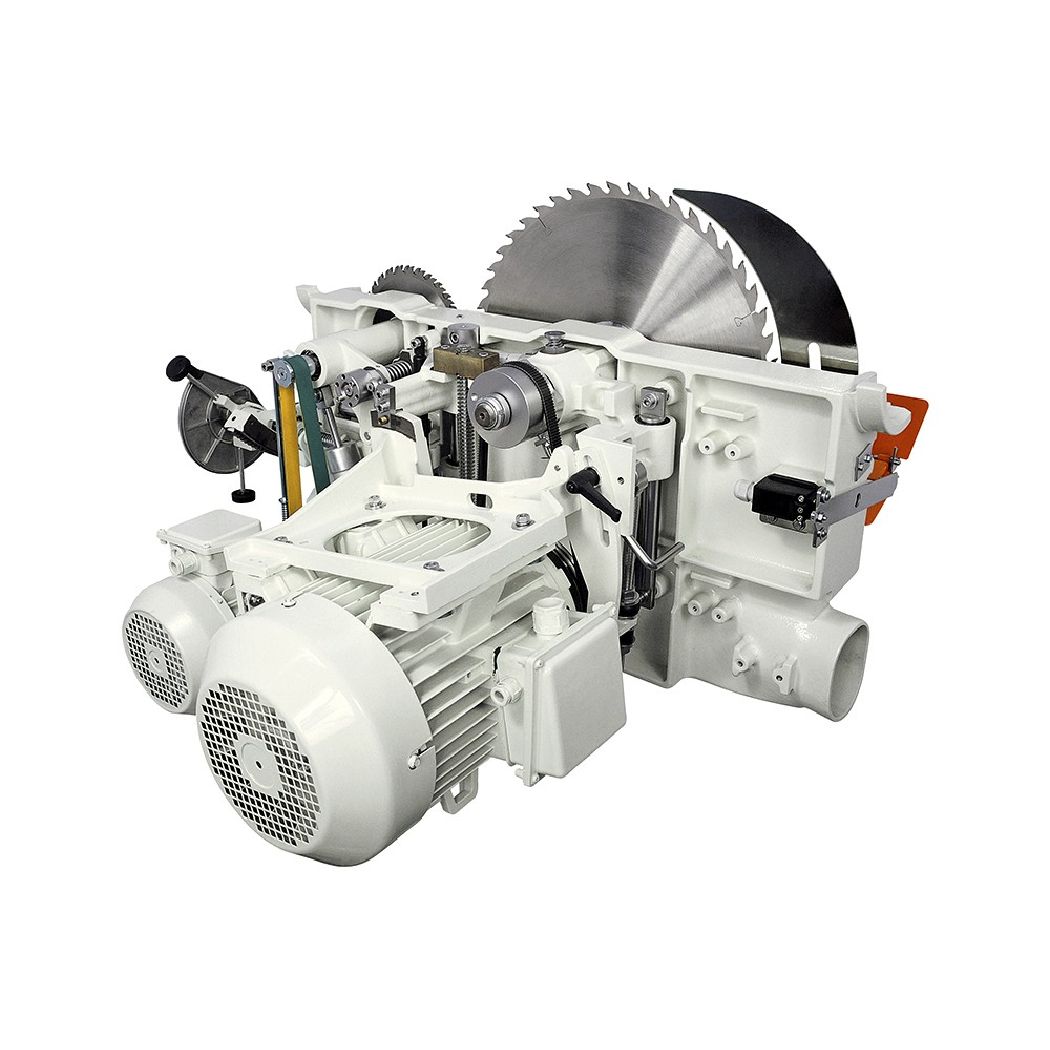

Žagna Enota Livincibile

Vertikalni pomik na krogličnih vodilih zagotavljajo gladek tek in natančne nastavitve. Monolitna (iz enega kosa) žagna enota zagotavlja močno stabilnost in preprečuje vibracije.BREZ MAZANJA IN VZDRŽEVANJA. NEOBČUTLJIVO NA PRAH!

Pokrov Žagne Enote

Pokrov za enostaven dostop in najboljšo zaščito!

Voz serije CLASS/Linvincibile - Prvi z 10 LET GARANCIJE...

Edina rešitev na trgu BREZ vijakov, ekcentrov ali uporabe lepila na vodilih - BREZ VZDRŽEVANJA - Sistem, ki so ga razvili l.1995 in še danes brez spremembe! Posebna termična obdelava aluminija, ki vzmetno deluje na vodila. Natančnost 0,01 mm!

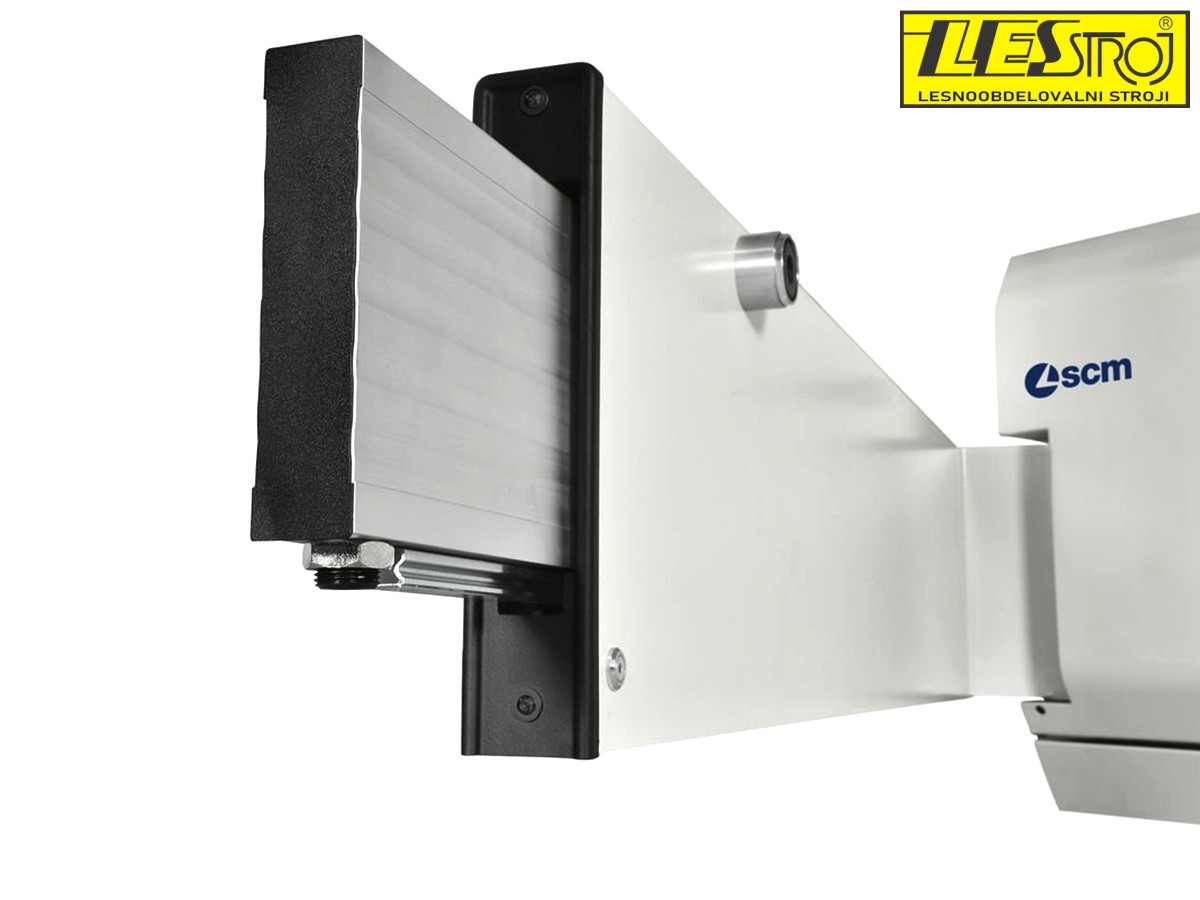

Protiprašna zaščite na podporni roki

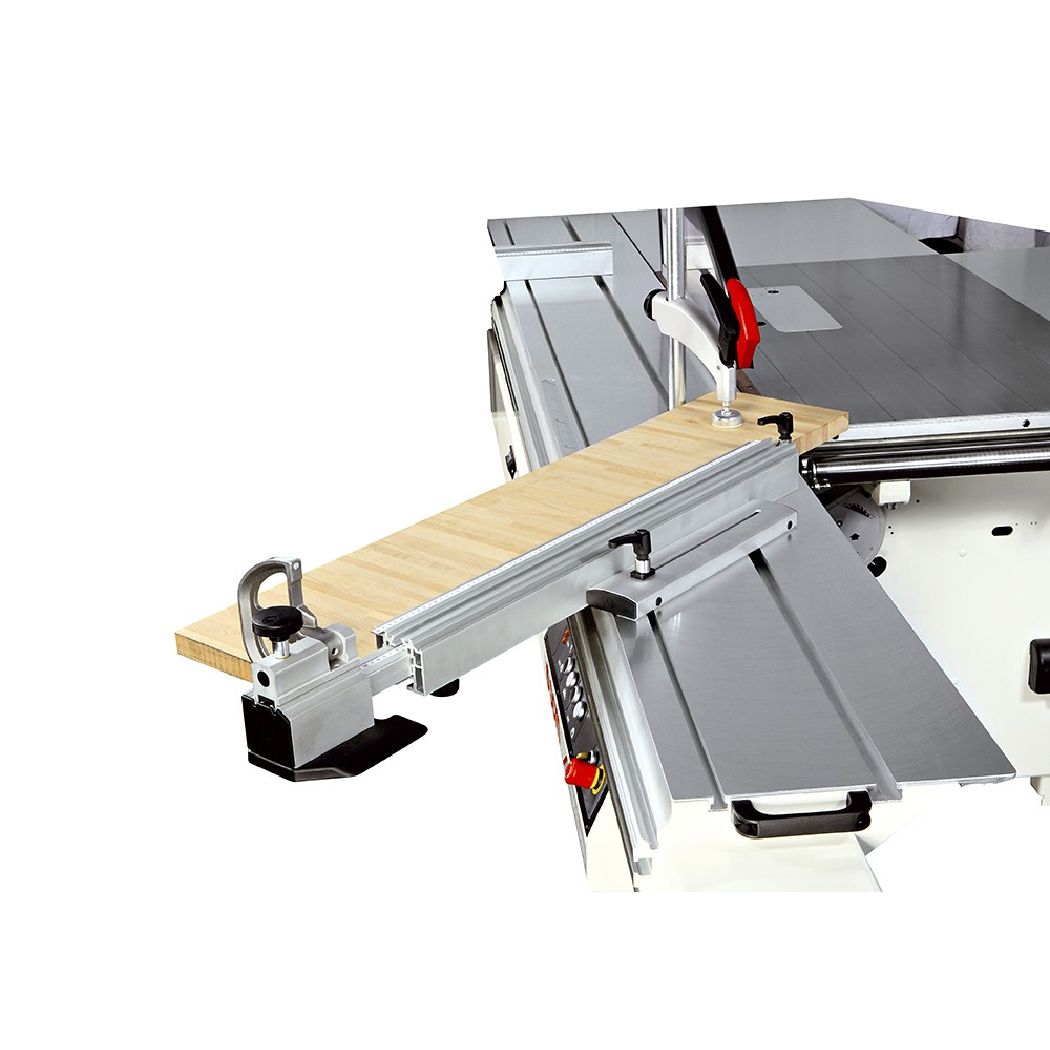

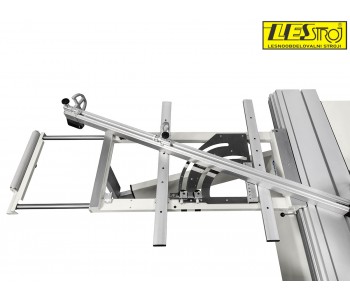

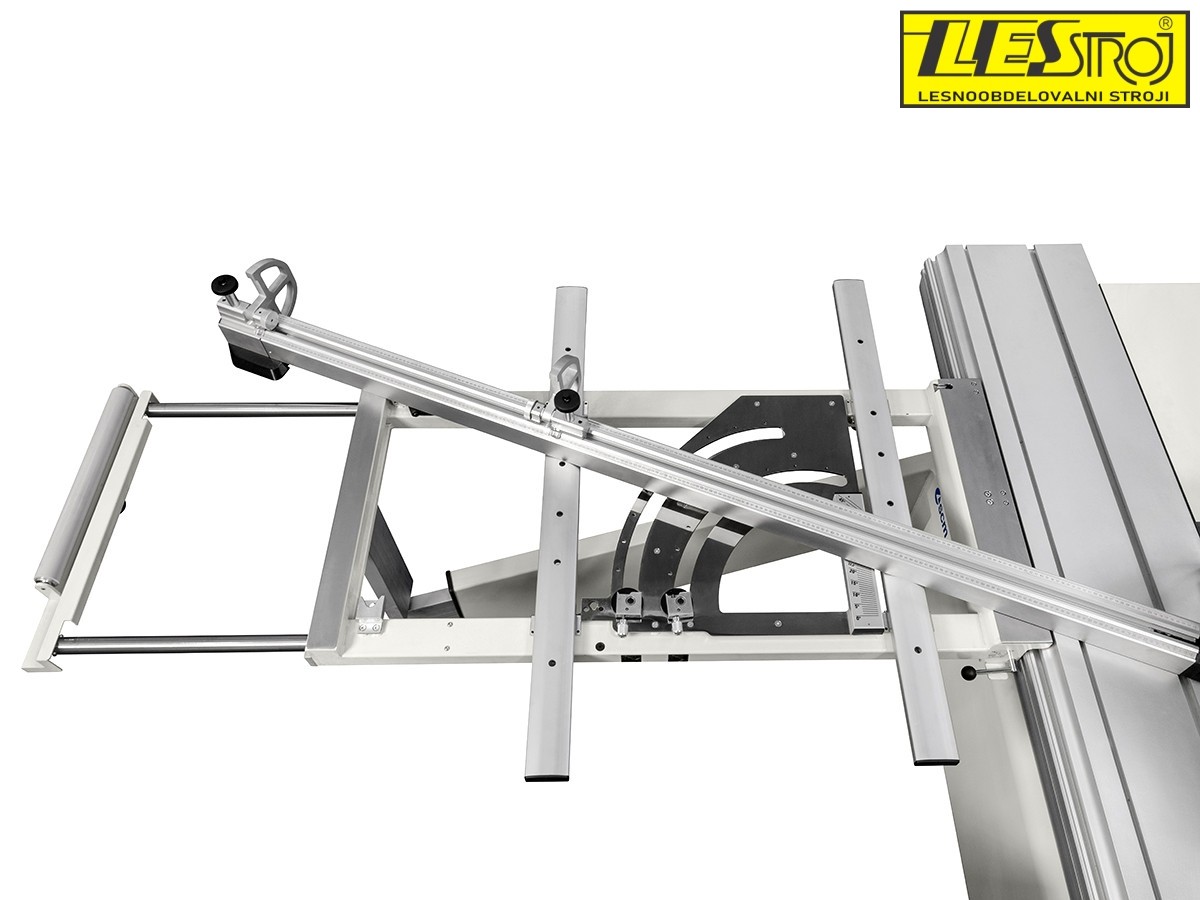

Dodatna miza za krajše obdelovance

Obdelava pod kotom še ni bila tako enostavna in ob enem natančna. Dolžina vodila 1500mm

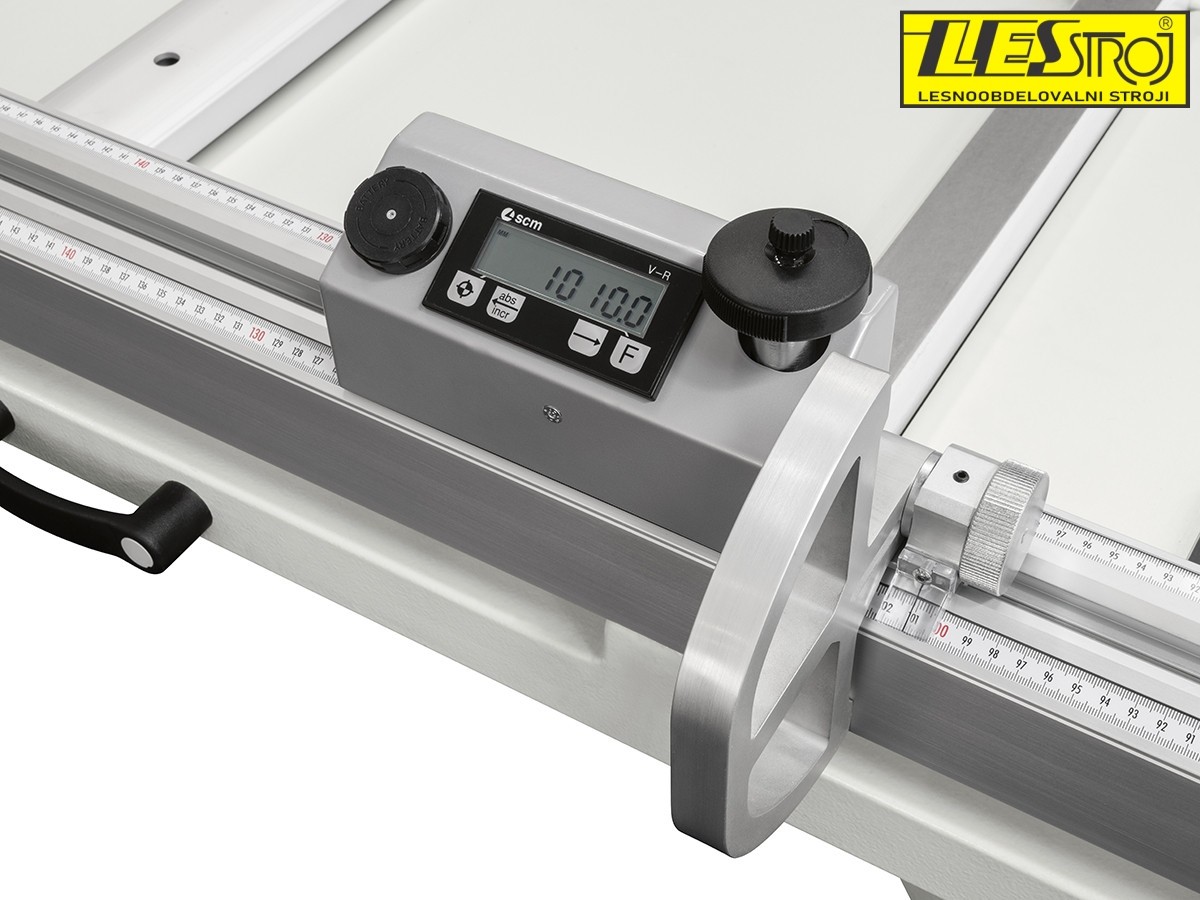

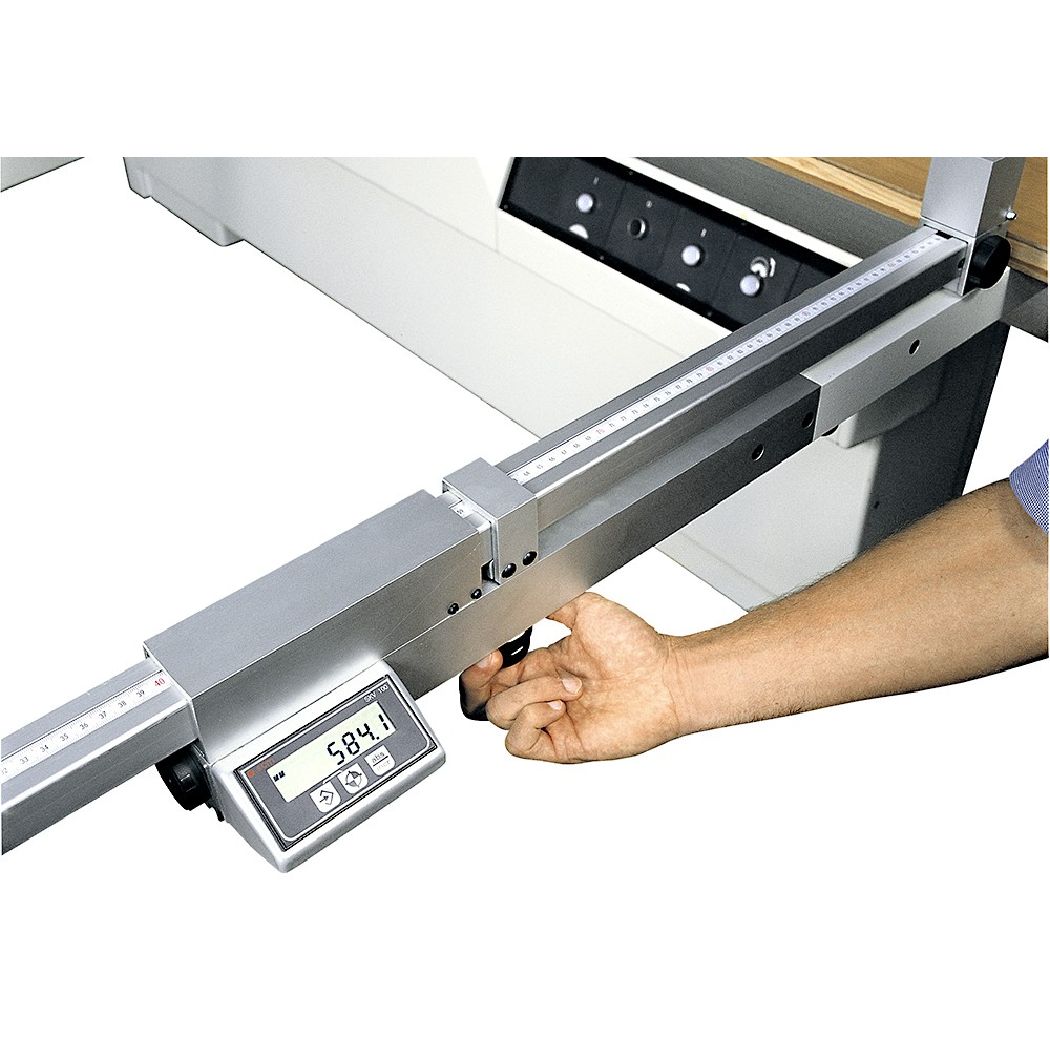

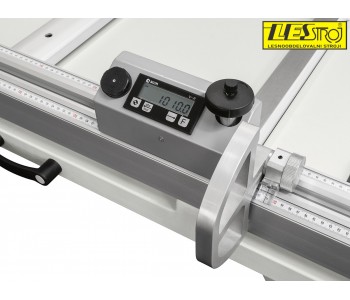

Dodatni numerični števec za sekundarno vzdolžno vodilo.

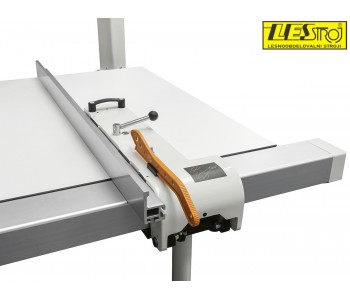

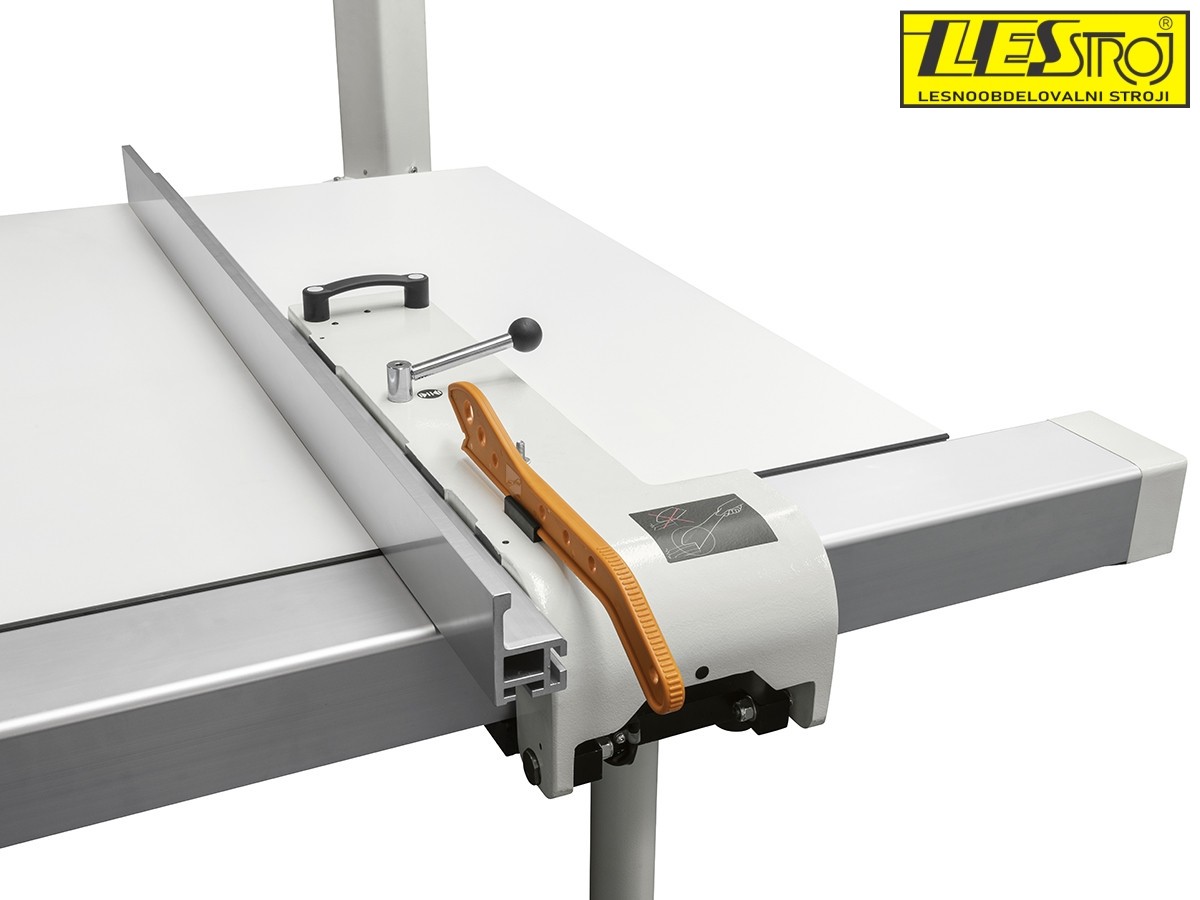

Paralelno vzdolžno vodilo

Vrhunsko izdelana podorna roka in kotno vodilo z brežično...

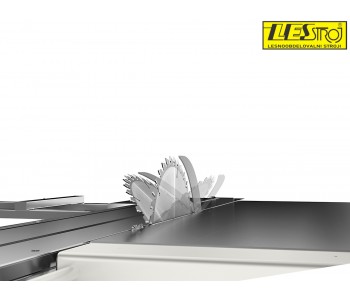

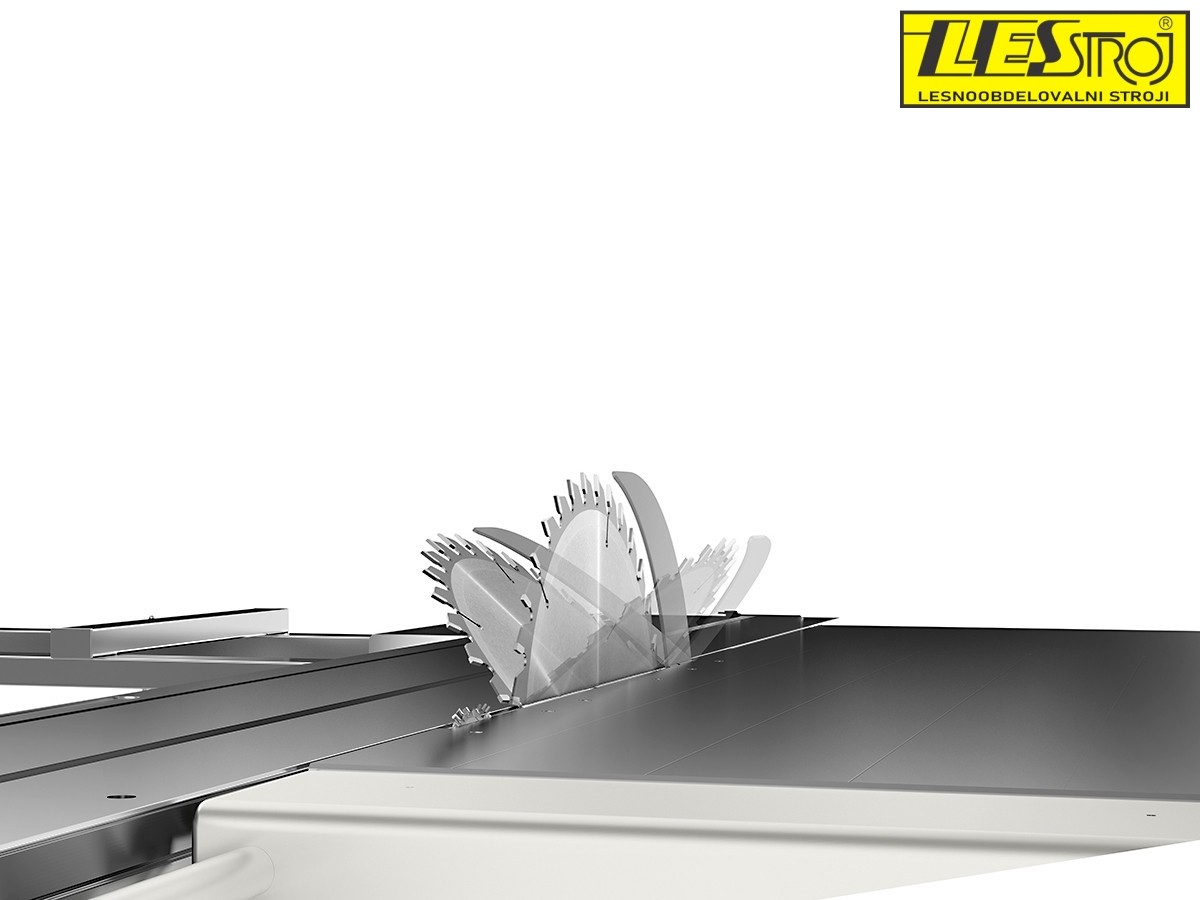

Nagib Žagnega Agregata + - 46°

Zelo uporabna funkcija in z dneva v dan bolj priljubljena je nagib žagnega agregata v obe smeri. Pri SCM so se izkazali, saj je odrez ob nagibu 45° kar 130mm in v drugo smer 105mm!!! Odrez pri 90° pa kar 205mm!
