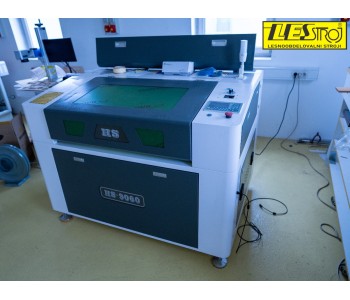

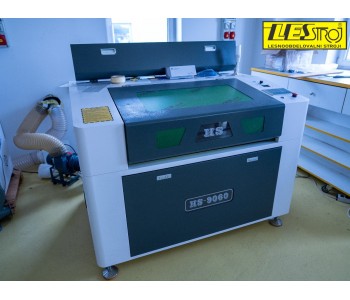

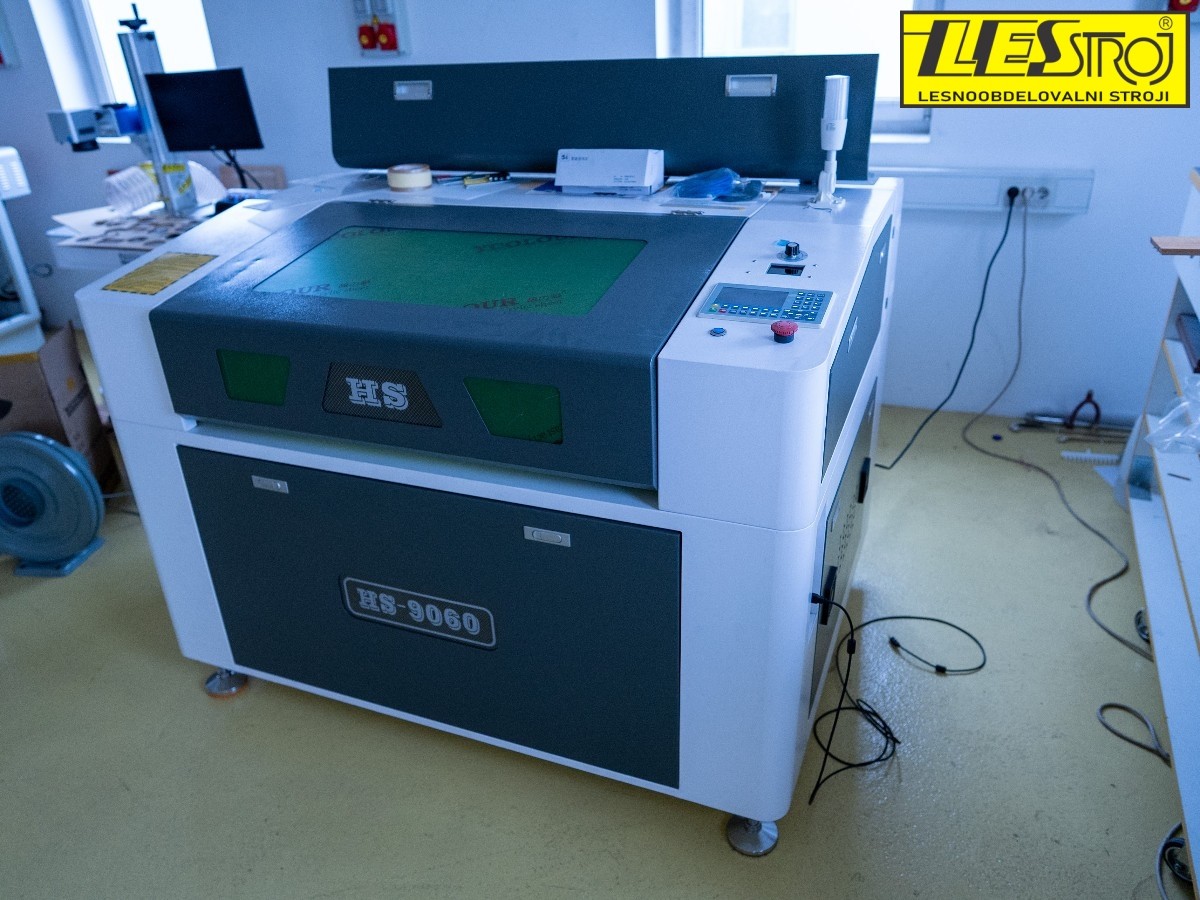

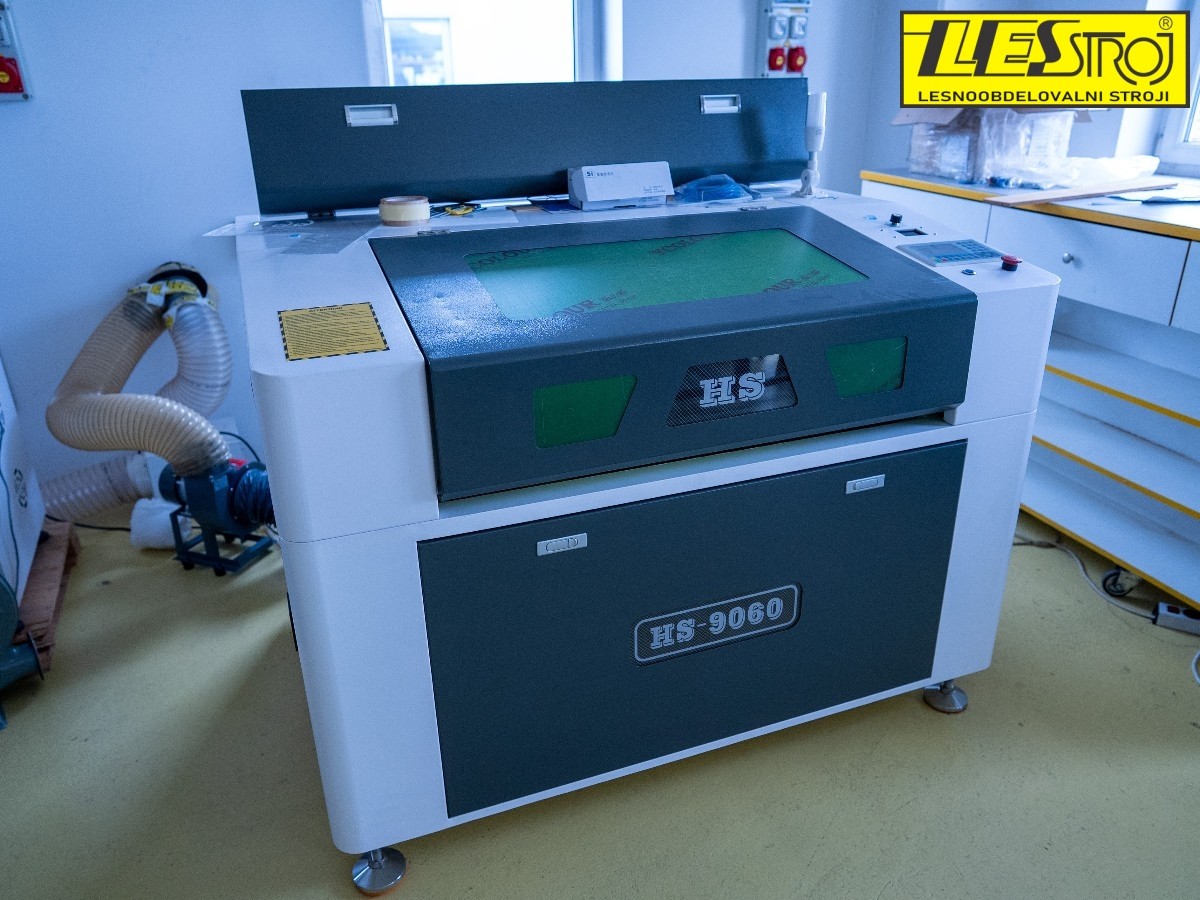

Laser engraving machine HS9060
Laser engraving machine HS9060 with a power of 90 W enables precise engraving and cutting on a 900 × 600 mm working area, supported by a new linear guide system and a color graphic controller. The package also includes RD-CAM software in Slovenian, a water pump, an air compressor, and an exhaust unit for immediate use.
TECHNICAL DATA:
- Laser type: hermetically sealed CO2 laser
- Laser power: 90 W
- Working area dimensions: 900 × 600 mm
- Max. material height for engraving: 200 mm
- Minimum character size: 1 × 1 mm
- Cutting speed: 0–300 mm/s
- Cutting thickness: 0–20 mm, depending on the material
- Recommended engraving speed: 0–500 mm/s (maximum: 1000 mm/s)

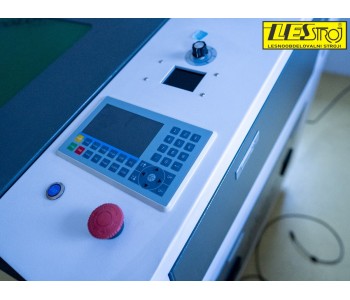

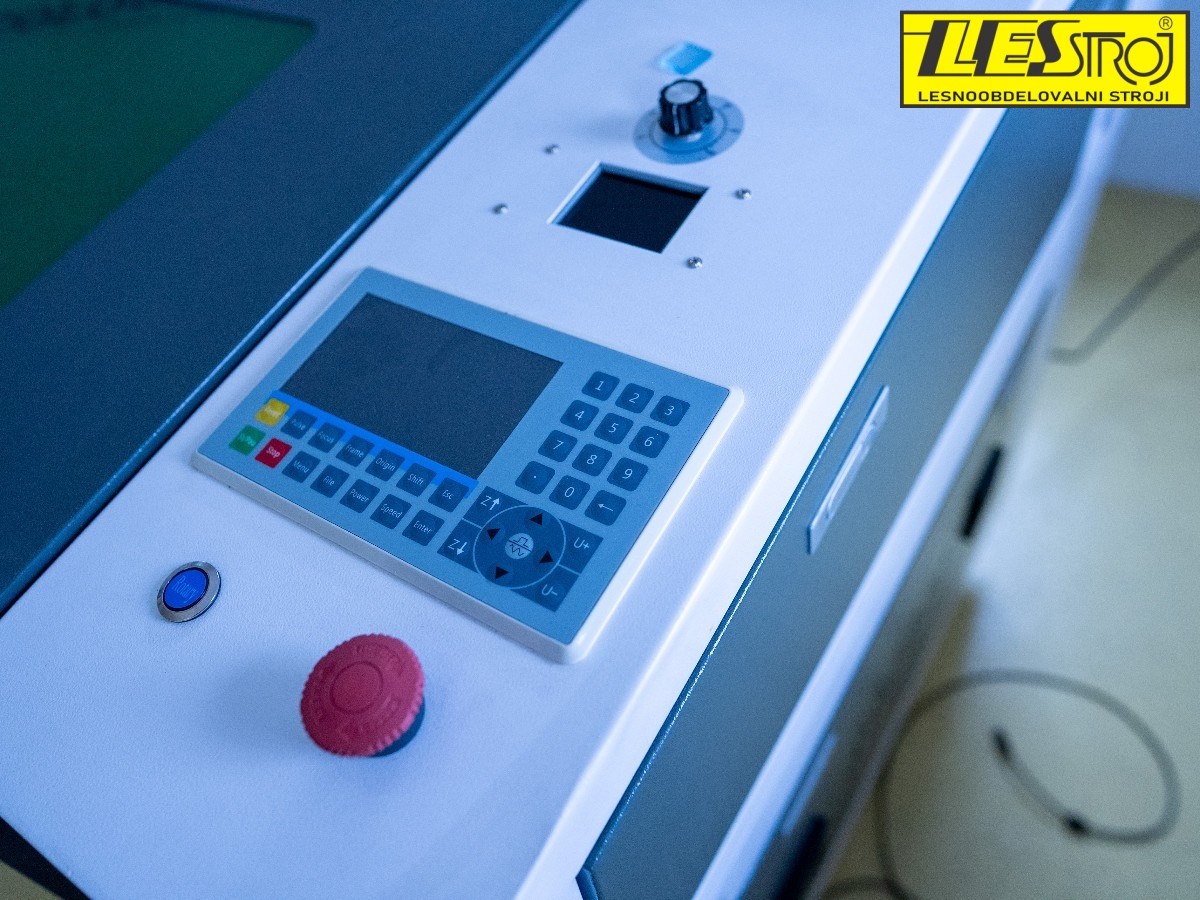

- Color graphic controller
- New linear guide system for increased precision
- Coupling on the Y-axis for easy adjustment of cutting angle
- Repeat accuracy: +/- 0.01 mm
- Resolution: 50 – 2,500 DPI
- Operating system: offline control system
- Power supply: 220 V +/- 10%, 50 Hz
- Cooling system: water cooling
- Working table: honeycomb or metal slats
- Working table: automatic up/down adjustment, for loads up to 30 kg
CONTROL UNIT:
The laser power and laser movement system are compensated.
Supports importing from: CorelDraw, PhotoShop, AutoCAD (AI, PLT, DXF, BMP, JPG, GIF)
GENERAL:
* Working temperature range (cooling water): 5 – 25 °C
* Machine dimensions: 1500 (L) x 1200 (H) x 1150 (W) mm
* Net weight: 210 kg
INCLUDED IN THE PRICE:
* RD-CAM software in Slovenian
* User manual in Slovenian
* Submersible water pump
* Small air compressor
* Small exhaust unit
